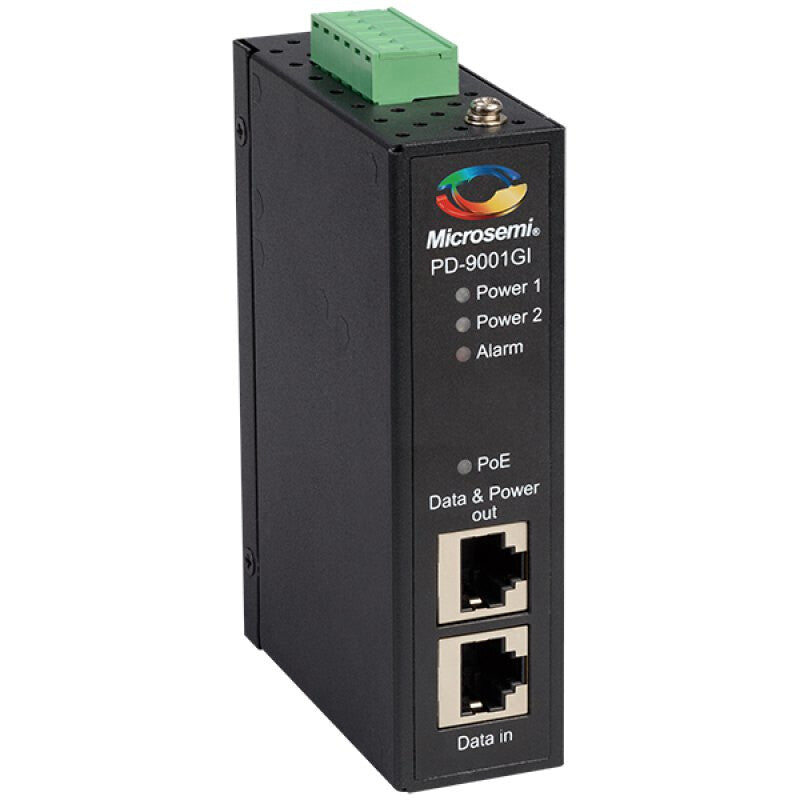

Microchip Technology PD-9001GI/DC PoE adapter 10 Gigabit Ethernet
£195.99
Couldn't load pickup availability
- Number of ports: 1
- PoE output: 30W
- Data rates: 10/100/1000 Mbps
- Power input: DC
- Industrial rated: IP30
- Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
- EMI: EN50522 Class A, EN55024
- Safety: UL 508
- Shock: IEC 60068-2-27 15g, 11 ms duration
The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GI enables remote power for a new range of applications including 802.11n access points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The midspan is designed for industrial applications and outdoor applications from temperature point of view.
| Network | |
|---|---|
| Networking standards | IEEE 802.3at |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | 10 Gigabit Ethernet |
| Features | |
|---|---|
| International Protection (IP) code | IP30 |
| Safety | UL 508 |
| LED indicators | Alarm, PoE, Power |
| Mean time between failures (MTBF) | 170000 h |
| Rack mounting | No |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| RJ-45 output ports | 1 |
| RJ-45 input ports | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power over Ethernet (PoE) power per port | 30 W |
| DC output voltage | 55 V |
| Input current | 2 A |
| Input voltage | 20 - 60 V |
| Certificates | |
|---|---|
| Certification | oHS compliant, WEEE compliant, CEEMI: EN50522 Class A, EN55024 |
| Compliance certificates | RoHS |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | -40 - 75 °C |
| Weight & dimensions | |
|---|---|
| Weight | 380 g |
| Height | 111 mm |
| Depth | 78 mm |
| Width | 31 mm |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
