Mercusys BE9300 Whole Home Mesh Wi-Fi 7 System
Couldn't load pickup availability
- Blazing-Fast 3.6 Gbps Dual-Band Speeds: Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.‡
- Newest Wi-Fi 7: Armed with the 4K-QAM, MLO, Multi-RUs, and other features that Wi-Fi 7 offers, your network will arrive with a jaw-dropping performance.△
- Seamless Roaming for a Smooth Network Experience: No more sudden signal drops or lagging Wi-Fi when you're walking around the house.†
- Multi-Link Operation (MLO): Increases throughput, reduces latency, and improves reliability for emerging applications.△
- Full Gigabit Ports – 3× Gigabit ports per Halo unit for lightning-fast wired connections
- Whole Home Multi-Gigabit Coverage: Halo mesh units work as a unified network to fill your home up to 7,000 ft2 / 650 m2 (3-pack) ; 5,000 ft² / 460 m² (2-pack) .‡

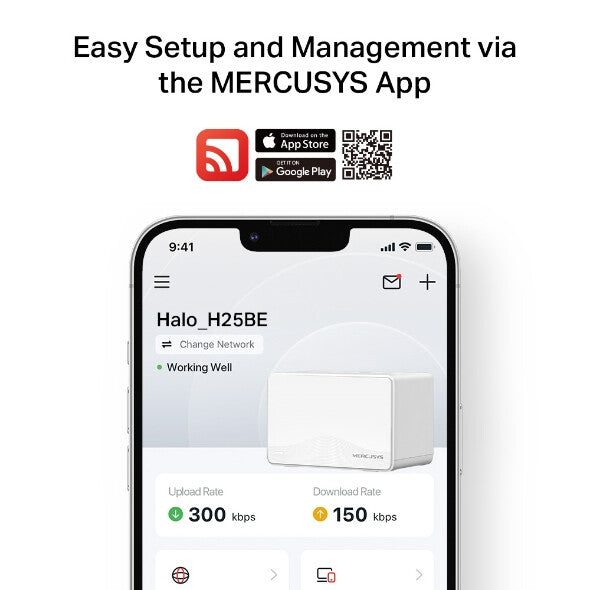

- Easy Setup and Use: Network management has never been easier with the MERCUSYS app
Enjoy Wi-Fi 7 Super Speed, From Basement to Attic!
BE3600 Whole Home Mesh Wi-Fi 7 System
3.6 Gbps Dual-Band Wi-Fi 7 for Exceptional Experiences
Wi-Fi 7, the latest Wi-Fi standard, has arrived with jaw-dropping performance-offering accelerated throughput, lower latency, strongeranti-jamming, and higher efficiency. By upgrading the QAM from 1024 to 4096, Wi-Fi 7 enables the Halo H25BE to achieve speeds of up to 3.6 Gbps. Join the pros and experience the power of the next generation of Wi-Fi.
True Seamless Roaming with One Unified Network
The Halo system automatically connects your phones or tablets to the fastest node, delivering a truly seamless network experience. No more sudden signal drops or lagging Wi-Fi when you’re walking around the house.

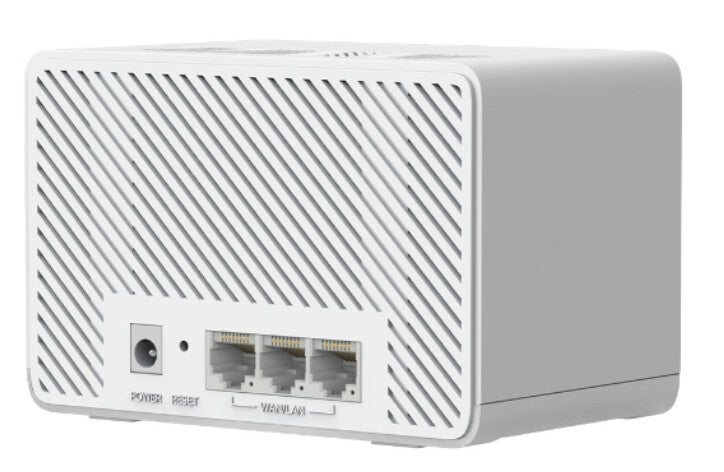

Full Gigabit Ports
Thanks to WAN/LAN Auto-Sensing, there’s no need to distinguish between WAN/LAN ports. This reduces time and effort, so you can get straight to enjoying Halo H25BE’s lightning-fast data transfer to wired devices. With full gigabit ports, your devices will clock 10× faster than standard Ethernet connections.

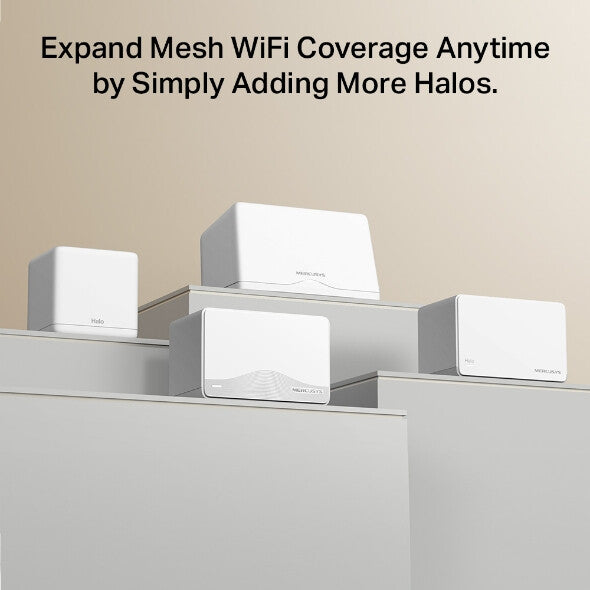

Easily Extend Your Coverage
The Halo Whole Home Wi-Fi kit includes multiple units to fit any type of your house. If that’s not enough, you can expand Mesh Wi-Fi coverage anytime by simply adding more Halos.
| Design | |
|---|---|
| Reset button | Yes |
| Maximum coverage | 650 m² |
| Number of devices supported | 150 |
| Antenna type | Internal |
| LED indicators | Yes |
| Product type | Mesh system |
| Product colour | White |
| Wireless LAN features | |
|---|---|
| Guest access | Yes |
| Dynamic IP | Yes |
| Static IP | Yes |
| Point-to-point protocol over Ethernet (PPPoE) | Yes |
| Number of guest networks (2.4 GHz) | 1 |
| Security algorithms | WPA-PSK, WPA2-PSK, WPA3-SAE |
| Number of guest networks (5 GHz) | 1 |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| WLAN data transfer rate (second band) | 688 Mbit/s |
| WLAN data transfer rate (first band) | 2880 Mbit/s |
| WLAN data transfer rate (max) | 2880 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Features | |
|---|---|
| Parental control | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Ethernet WAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Height | 83.7 mm |
| Depth | 81.3 mm |
| Width | 128 mm |
| Packaging content | |
|---|---|
| Ethernet cable | Yes |
| Number of units included | 2 pc(s) |
| AC adapter included | Yes |
| Number of products included | 2 pc(s) |
