£826.99

Stock Available: 0
  • 10,100 Mbit/s Wi-Fi
  • Built-in processor 256 MB 8000 MB
  • Antenna type: External 3 dBi
  • Desktop/Wall mounting IP30
  • White

Connect hundreds of Logitech Spot sensors throughout an office, especially in areas without a Logitech CollabOS device like Tap Scheduler or Rally Bar.

ONE GATEWAY, EXTENDED COVERAGE

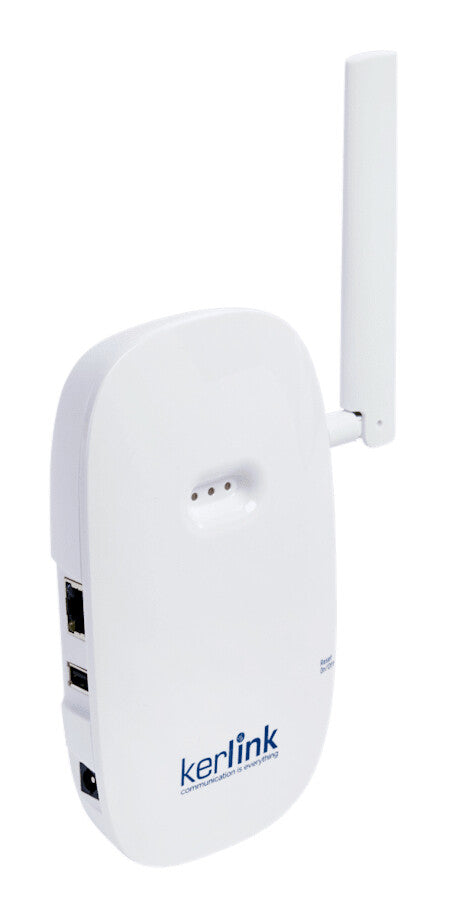

The Kerlink gateway is able to connect hundreds of sensors using a long-range, wide area network (LoRaWAN). No WiFi, no cabling needed between connections.

SIMPLE TO INSTALL

FIND THE BEST AREA
To maximize coverage, find a central place on the floor or building where the gateway would have the best, unblocked reception.

PROVISION VIA SYNC PORTAL
Remotely provision and configure your gateway via Sync Portal.

CONNECT SENSORS
Activate Spot sensors to ensure complete LoRaWAN connectivity.

POWERED BY LORAWAN
The Kerlink gateway connects to Spot sensors via the secure LoRaWAN protocol, ensuring end-to-end encryption, and is separate from your WiFi network. This enables it to be placed outside your corporate network and securely transmit all sensor data to the Sync platform for monitoring and management.

SIMPLE TO MANAGE
Monitor and manage the gateway and Spot sensors via Sync, the Logitech platform for managing all your collaboration devices and spaces.

Design
International Protection (IP) code IP30
Mounting type Desktop/Wall mounting
Product colour White
Features
Antenna gain level (max) 3 dBi
Antenna type External
Performance
Flash memory 8000 MB
Internal memory 256 MB
Processor manufacturer ARM
Processor family ARM Cortex
Built-in processor Yes
Network
Frequency band 2.4 GHz
Wi-Fi Yes
Ethernet LAN data rates 10,100 Mbit/s
Ports & interfaces
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
USB 2.0 ports quantity 1
Management features
Reset button Yes
Power
Output voltage 12 V
Input voltage 230 V
Weight & dimensions
Weight 162 g
Width 90 mm
Depth 35 mm
Height 160 mm
Packaging content
AC adapter included Yes
Manual Yes
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) -20 - 55 °C
