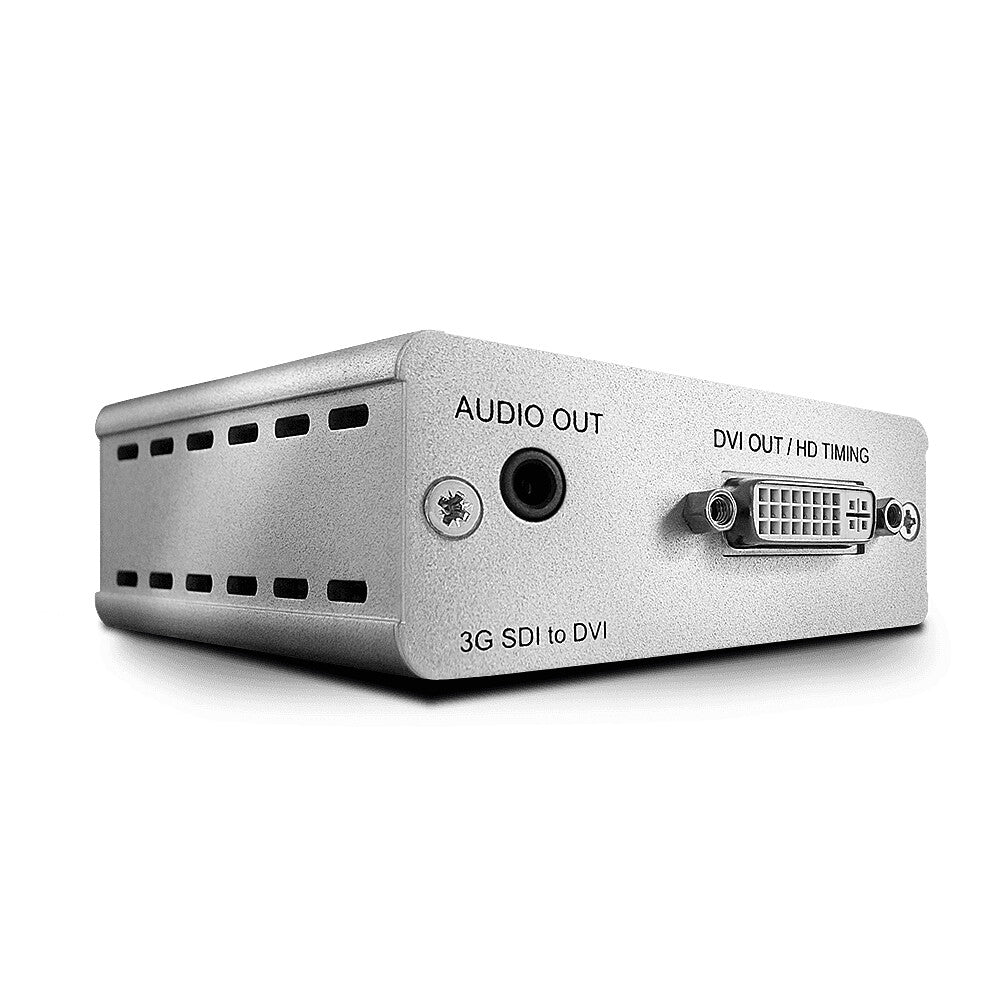

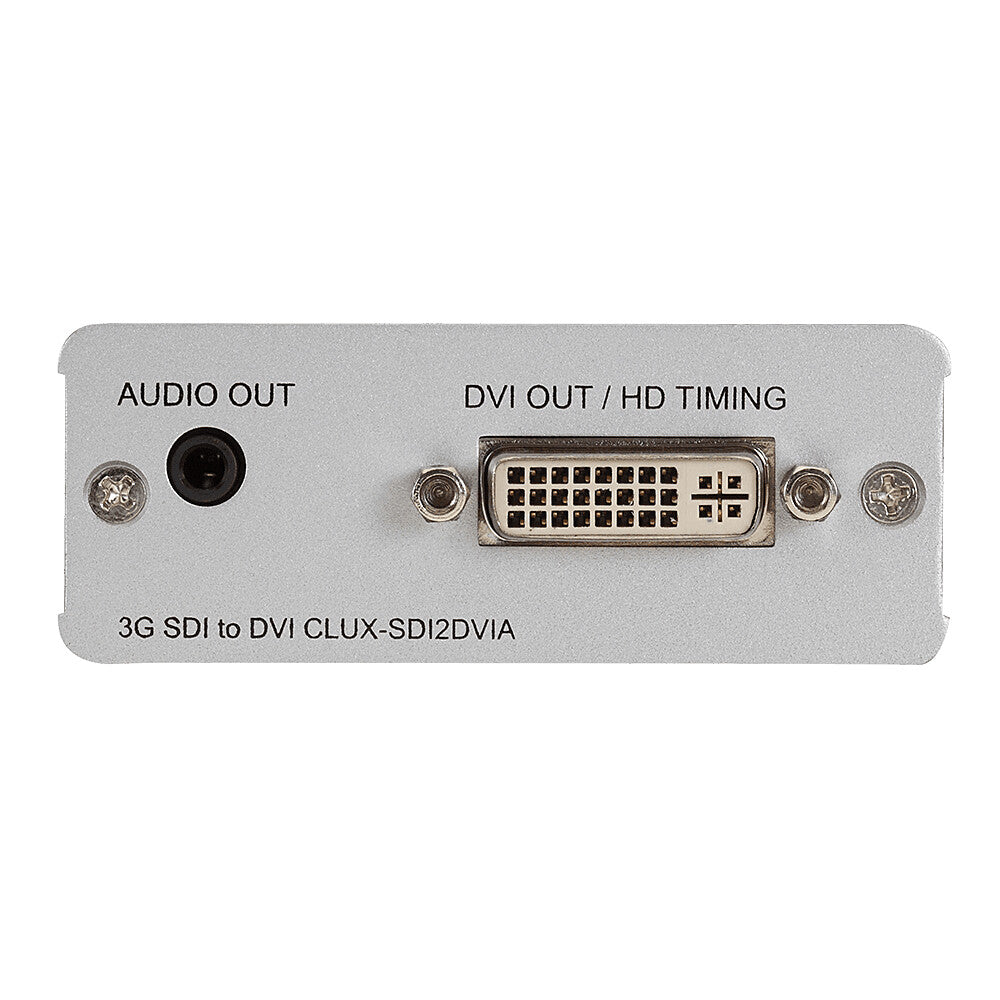

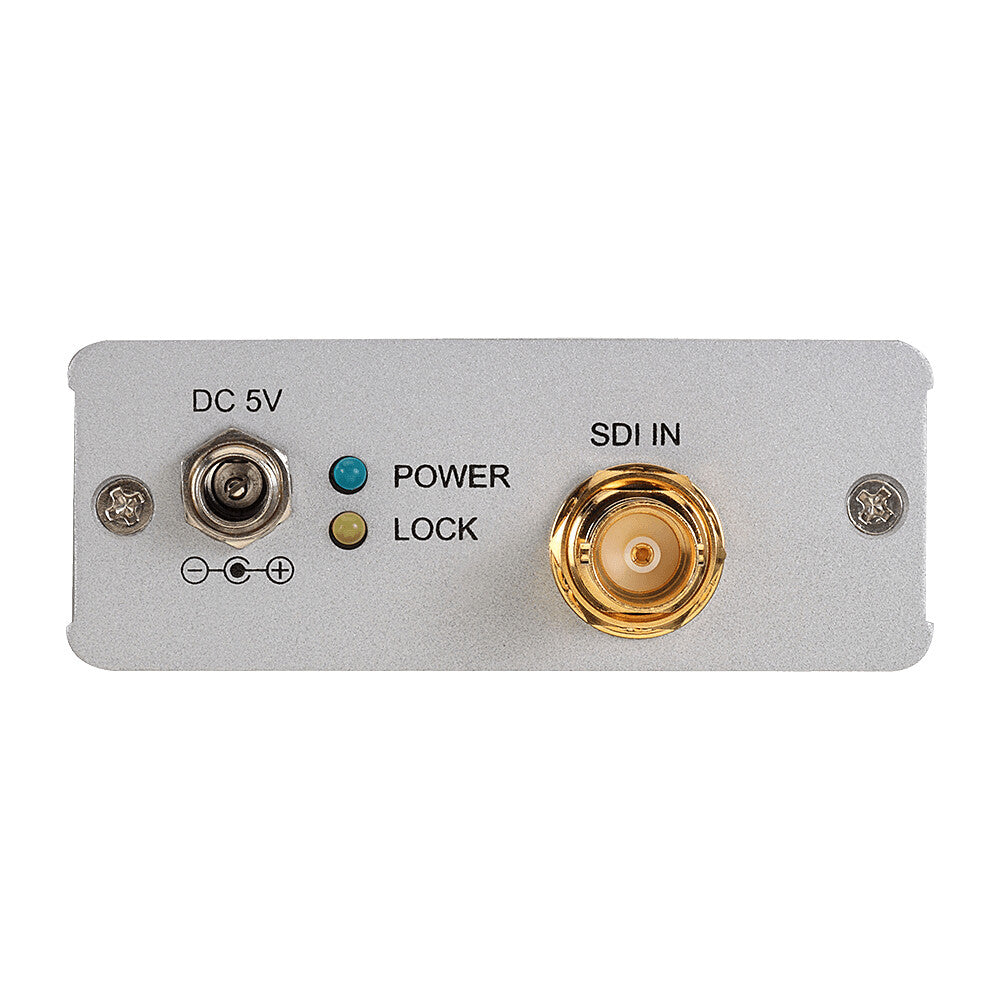

Lindy 3G SDI to DVI-D Converter/Extender
Couldn't load pickup availability
- Active video converter
- 1920 x 1080 pixels
- Plug and Play
- Host interface: 3G SDI Output interface: DVI-D
- Silver
Display SDI, HD-SDI and 3G-SDI signals on a DVI display!
- Cost effective solution for converting broadcast quality SDI video into a DVI compatible signal
- Can be used with any suitable DVI display device
- Support resolutions up to 1080p
- Built-in 3.5mm stereo audio output for synchronised audio
- Auto-video mode detection (SD/HD/3G)
- Plug & Play - simple to install and use
The LINDY 3G SDI to DVI-D Converter/Extender allows you to view SDI video on low cost DVI displays. Supporting resolutions up to 1080p and with built-in 3.5mm stereo audio output the converter allows you to enjoy synchronised analogue audio along with HD digital video. This is an ideal product for professional level camera feed distribution, as well as extending or displaying HD-SDI feeds on DVI monitors.
| Features | |
|---|---|
| Certification | CE, FCC, REACH & RoHS |
| Product colour | Silver |
| LED indicators | Yes |
| Plug and Play | Yes |
| Converter type | Active video converter |
| Video | |
|---|---|
| Supported video modes | 1080i, 1080p, 480i, 576i, 720p |
| Maximum video resolution | 1920 x 1080 pixels |
| Ports & interfaces | |
|---|---|
| Host interface | 3G SDI |
| Output interface | DVI-D |
| Power | |
|---|---|
| Operating current | 2.6 A |
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 360 g |
| Height | 120 mm |
| Depth | 30 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package weight | 510 g |
| Package height | 60 mm |
| Package depth | 115 mm |
| Package width | 210 mm |
| Quantity | 1 |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
