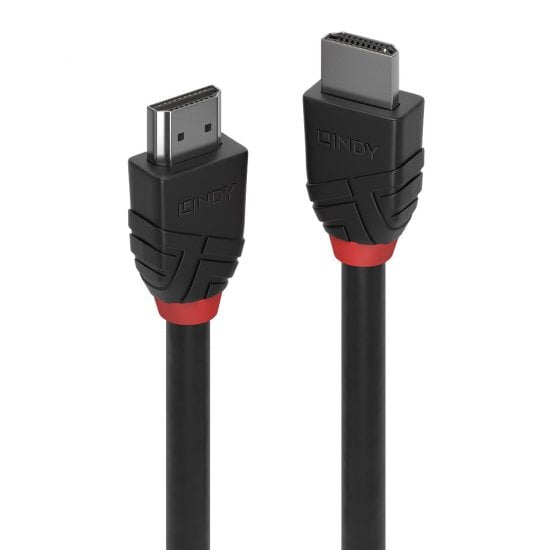

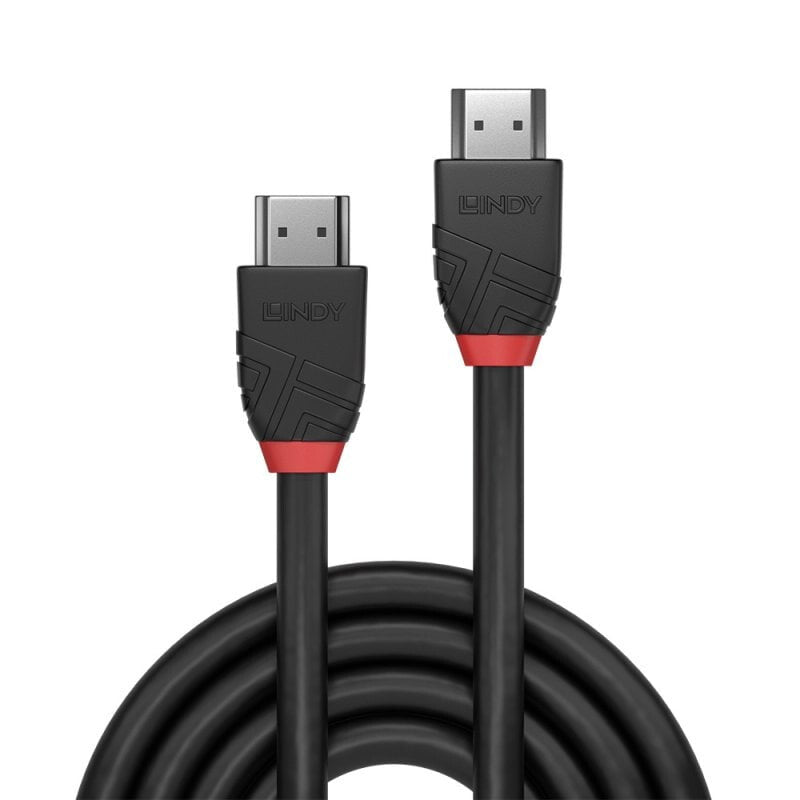

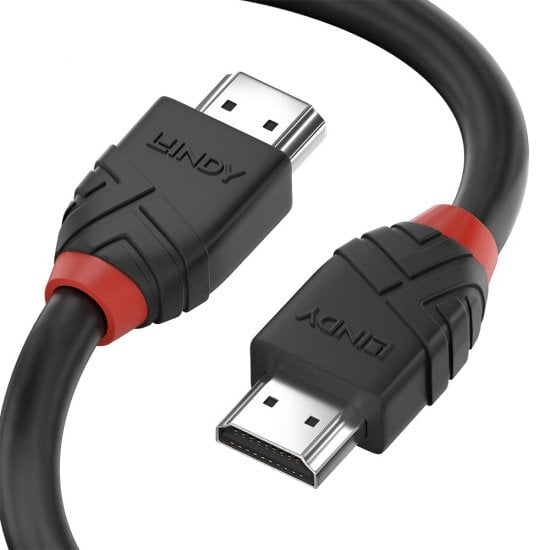

Lindy 36501 HDMI cable 0.5 m HDMI Type A (Standard) Black
Couldn't load pickup availability
- Supports UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit
- Minimises toxic emissions with LSZH (Low Smoke Zero Halogen) jacket
- Double shielded cable, 30AWG Copper
- Supports 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby True HD, DTS-HD Master Audio
The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions. Ideal for safety-critical installations, this cable is perfectly suited for public environments such as schools, transport hubs, and government buildings, anywhere safety compliance and performance are essential.
The cable features a double shielded construction with 30AWG bare copper for premium performance featuring gold connectors and gold flashed contacts to maintain signal integrity and reliability.
Supporting 18Gbps bandwidth the Lindy LSZH HDMI® Cable can support UHD resolutions up to 3840x2160@60Hz 4:4:4 8bit. Whilst also transmitting up to 32 Channel audio including Dolby® True HD & DTS-HD Master Audio.
The Lindy LSZH HDMI® Cable is available in lengths from 0.5m to 10m.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
| Features | |
|---|---|
| Nominal attenuation | 300kHz~825MHz |
| Colour sampling | 4:4:4 |
| Plug and Play | Yes |
| Bending radius (min) | 6 cm |
| Shield material | Aluminium |
| Magnetically shielded | Yes |
| Cable jacket material | Low smoke zero halogen (LSZH), Polyvinyl chloride (PVC) |
| Cable type | Round cable |
| Cable material | Copper |
| Connector contacts plating | Gold |
| AWG wire size | 30 |
| Maximum refresh rate | 60 Hz |
| Supported digital audio channels (uncompressed) | 32 |
| Data transfer rate | 18 Gbit/s |
| Dolby technologies | DTS-HD Master Audio, Dolby TrueHD |
| Supported video modes | 2160p |
| Supported graphics resolutions | 3840 x 2160 |
| 3D | Yes |
| Product colour | Black |
| HDMI cable type | High Speed HDMI cable |
| Connector 2 form factor | Straight |
| Connector 1 form factor | Straight |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 | HDMI Type A (Standard) |
| Cable length | 0.5 m |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | -10 - 80 °C |
| Sustainability | |
|---|---|
| Doesn't contain | Halogen |
| Certificates | |
|---|---|
| Compliance certificates | REACH, RoHS |
| Weight & dimensions | |
|---|---|
| Cable diameter | 5.5 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
