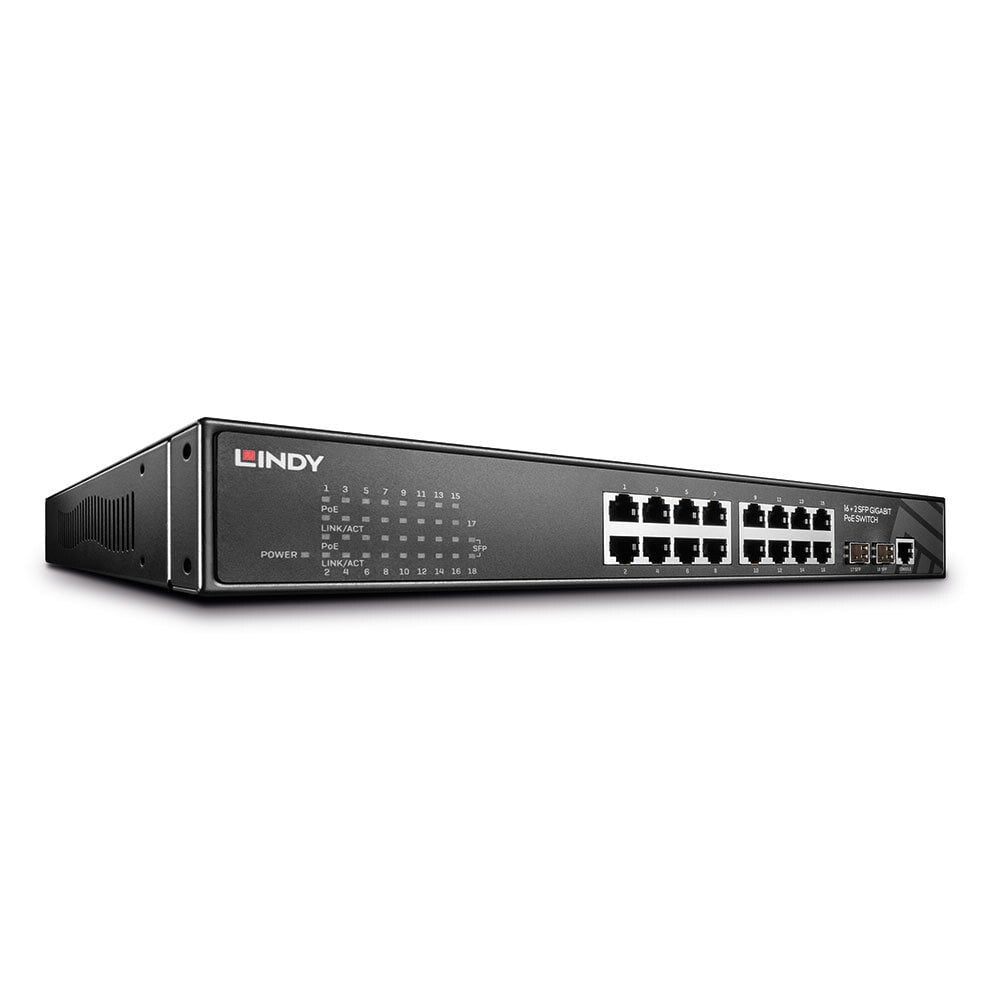

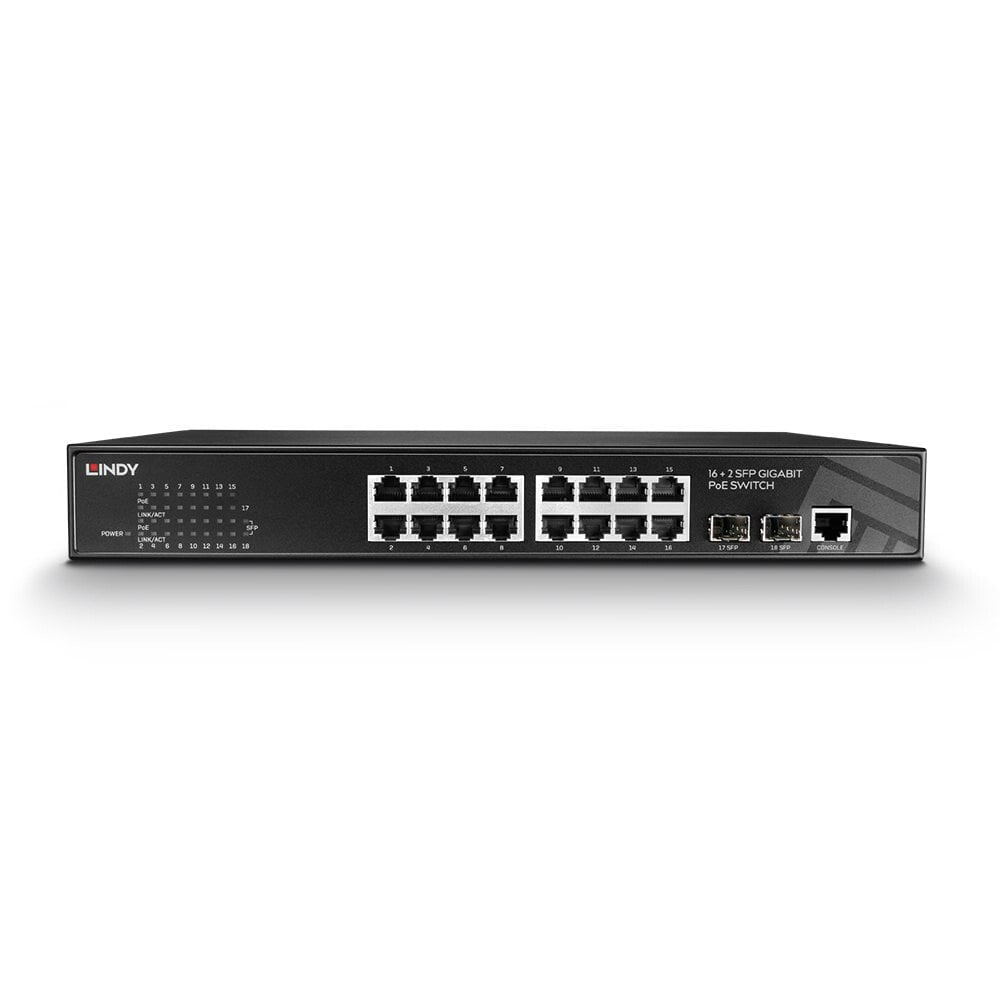

Lindy 16 Port + 2 SFP Gigabit Managed Switch PoE
Couldn't load pickup availability
- Add 16 Gigabit ports to a network infrastructure using a convenient fibre uplink via 2 SFP slots, while providing power to compatible devices using PoE
- Professional Layer 2 management features for superior network traffic optimisation and control
- Features Jumbo Frame support and IGMP snooping for effective AV Over IP installation integration
- DDM for consistent critical information monitoring of the transmitted and received signals
Add 16 Gigabit ports to a network infrastructure using a convenient fibre uplink via 2 SFP+ slots, while providing power to compatible devices using PoE
Professional Layer 2 management features for superior network traffic optimisation and control
Features Jumbo Frame support and IGMP snooping for effective AV Over IP installation integration
DDM for consistent critical information monitoring of the transmitted and received signals
2 Year Warranty
This advanced Lindy 16 Port Gigabit switch with PoE provides a high performance, intelligent expansion to a distributed IP network, while utilising dual SFP+ module slots for longer distance uplink, ideal for larger scale or multi-building installations. All RJ-45 ports are PoE IEEE 802.3at/af compliant providing up to 30W of power to compatible devices, simplifying the whole installation.
Supporting full Layer 2 management, traffic can be separated and managed effectively via advanced VLAN features, alongside QoS for independent traffic prioritisation and IGMP Snooping for optimised multicast stream listening, while the user can efficiently control the network via Web Gui, Telnet or command line. Featuring virtual stacking, this switch can also be integrated alongside multiple switches for even larger scale installations, while controlled and managed as a single switch.
Optical Digital Diagnostic Monitoring support also ensures the user is provided with consistent critical information regarding the status of both the transmitter and received signals, ensuring faults can be identified and resolved with minimum disruption to the system.
| Management features | |
|---|---|
| System event log | Yes |
| Configuring Location Settings (CLI) | Yes |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Ports & interfaces | |
|---|---|
| Mini-SAS stacking port data rate (max) | 36 Gbit/s |
| Console port | RS-232 |
| SFP module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Network | |
|---|---|
| Virtual LAN features | Protocol-based VLAN, Voice VLAN |
| VLAN support | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Broadcast storm control | Yes |
| Spanning tree protocol | Yes |
| Full duplex | Yes |
| Port mirroring | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Optical fiber | |
|---|---|
| Fiber ethernet cabling technology | 1000BASE‑LX, 1000BASE‑SX |
| Data transmission | |
|---|---|
| Packet buffer memory | 4 MB |
| Jumbo frames | 9600 |
| Jumbo frames support | Yes |
| Forwarding rate | 14.88 Mpps |
| Switching capacity | 36 Gbit/s |
| MAC address table | 8000 entries |
| Security | |
|---|---|
| Security algorithms | SSH-2, SSL/TLS |
| Authentication | Port-based authentication |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| DHCP features | DHCP relay, DHCP server, DHCP snooping |
| Design | |
|---|---|
| LED indicators | Activity, Link, PoE, Power |
| Housing material | Metal |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
|---|---|
| Firmware upgradeable | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 15 W |
| AC input frequency | 50 Hz |
| AC input voltage | 100 - 240 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
|---|---|
| Total Power over Ethernet (PoE) budget | 235 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) ports quantity | 16 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.52 kg |
| Height | 44 mm |
| Depth | 210 mm |
| Width | 330 mm |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| User guide | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Certificates | |
|---|---|
| Certification | CE, UKCA, FCC, RoHS 2.0, REACH |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
