£19.99

Stock Available: 0

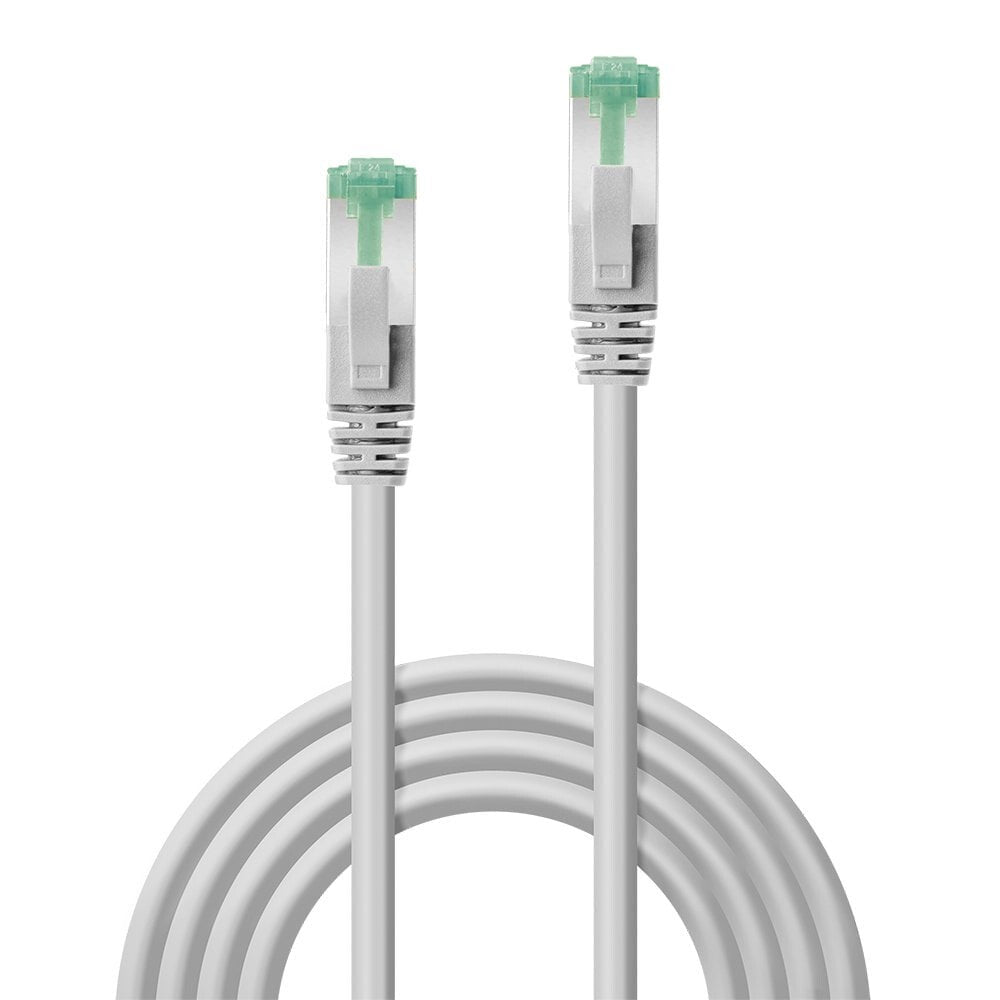

  • Twisted Pair Patch Cable with RJ45 connectors
  • Cat.6A S/FTP PIMF, TPE
  • Fully GRS Certified, Made from 50% Recycled Materials
  • Integrated snagless connector for latch protection

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 Gigabit Ethernet (10GBaseT). The TPE Jacket is a more flexible alternative than PVC cables with a flex rating of 10 million it has high impact and tear resistance making it a very durable jacket material and easy to install. Each cable is packaged in recycled material, supporting a greener planet and reducing our carbon footprint.

This GRS certified ecological patch cord comes from the reuse of recycled raw materials and has received GRS (Global Recycled Standard) certification. With more than 50% of the weight of the patch cord made of recycled materials. The cord sheath and the pair insulation are made with quality recycled materials, these cables fulfil strict GRS certification criteria.

Cat.6A cable, offers enhanced shielding to reduce interference and ensure optimal performance, especially in environments with high electromagnetic interference (EMI). The cable's shielding is achieved using an overall braid as well as a foil shield on each of the twisted pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a recycled polybag utilising 100% GRS certified recycled materials.

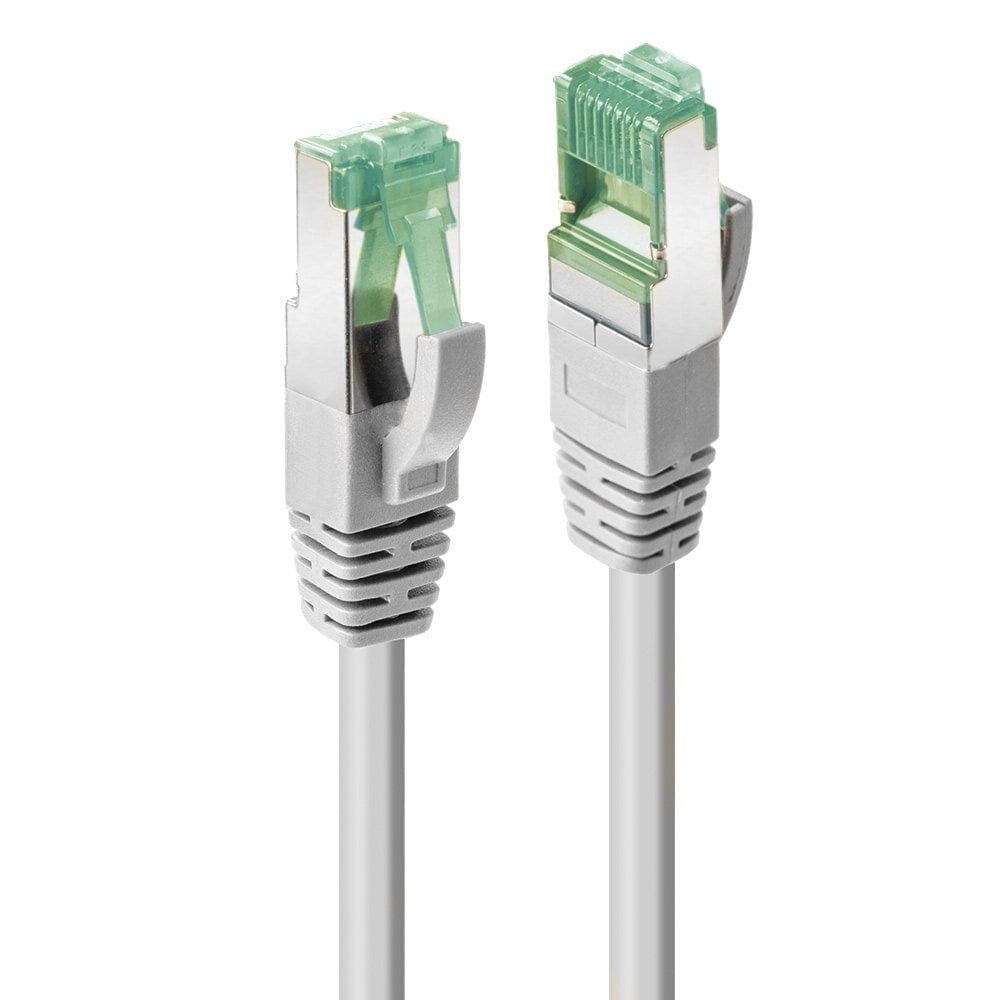

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

Available lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m.

Features
Cable length 15 m
Cable standard Cat6a
Cable shielding S/FTP (S-STP)
Product colour Grey
Connector 1 RJ-45
Connector 2 RJ-45
Connector 2 form factor Straight
Connector 1 form factor Straight
Connector 2 gender Male
Connector 1 gender Male
Connector contacts plating Nickel/Gold
Connector shielding Yes
Connector shield material Aluminium
Jacket material Thermoplastic elastomer (TPE)
Cable shape Round
Conductor material Copper
Connector housing material Polycarbonate (PC)
Cabling technology 10GBase-T
AWG wire size 27
Frequency 500 MHz
Bend radius (min) 6.9 cm
Operational conditions
Operating temperature (T-T) -10 - 60 °C
Storage temperature (T-T) -20 - 75 °C
Sustainability
Doesn't contain Halogen
Certificates
Compliance certificates REACH, RoHS, UL
Certification RoHS, REACH, UL, California Proposition 65
Weight & dimensions
Width 11.6 mm
Depth 22.8 mm
Height 8.3 mm
Outer diameter 5.8 mm
Packaging content
Quantity per pack 1 pc(s)
Manual Yes
Packaging data
Package type Polybag
Technical details
Sustainability compliance Yes
Logistics data
Warranty period 10 year(s)
