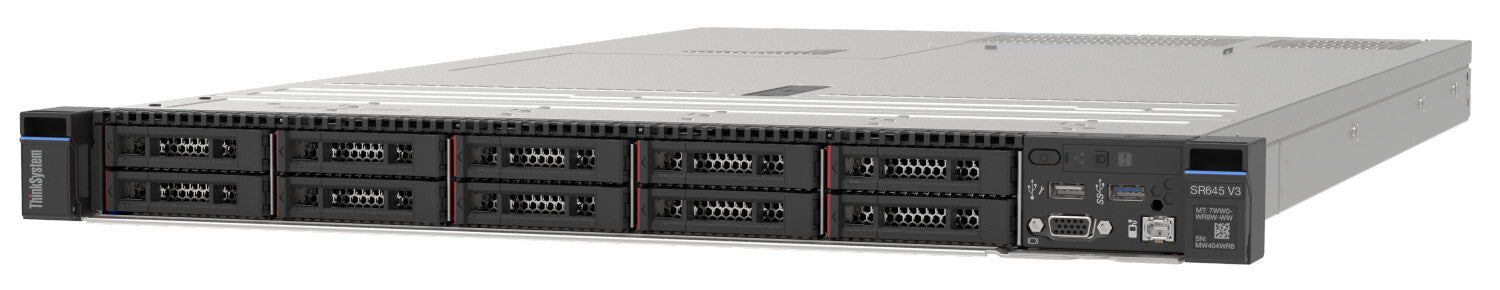

Lenovo ThinkSystem SR645 V3 9135 32GB server 0 GB Rack (1U) AMD EPYC 3.65 GHz DDR5-SDRAM 750 W
£6,813.99
Couldn't load pickup availability
- No OS
- AMD EPYC 9135 (64MB Cache, 3.65GHz)
- 32GB (4800MHz) DDR5-SDRAM (1 x 32)
The Lenovo ThinkSystem SR645 V3 is a 2-socket 1U server that features the AMD EPYC 9004 "Genoa" family of processors. With up to 128 cores per processor and support for the new PCIe 5.0 standard for I/O, the SR645 V3 offers the ultimate in two-socket server performance in a 1U form factor.
This product guide provides essential pre-sales information to understand the ThinkSystem SR645 V3 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR645 V3 and consider its use in IT solutions.
| Processor | |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD EPYC |
| Processor model | 9135 |
| Processor frequency | 3.65 GHz |
| Processor boost frequency | 4.3 GHz |
| Processor cores | 16 |
| Processor cache | 64 MB |
| Number of processors installed | 1 |
| Thermal Design Power (TDP) | 200 W |
| Memory | |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 32 GB |
| Memory clock speed | 4800 MHz |
| ECC | Yes |
| Storage | |
|---|---|
| Total storage capacity | 0 GB |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, 50, 60 |
| Supported RAID controllers | 940-8i 4GB |
| Internal drive bays | 8 |
| Supported storage drive interfaces | SAS |
| Optical drive type | No |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Maximum graphics card memory | 16 MB |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Design | |
|---|---|
| Chassis type | Rack (1U) |
| Product colour | Black, Metallic |
| Redundant fans support | Yes |
| Performance | |
|---|---|
| Performance management | XClarity Controller Platinum |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Software | |
|---|---|
| Operating system installed | No |
| Compatible operating systems | Microsoft Windows Server, Microsoft Windows 10 & 11, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server. |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Power supply | 750 W |
| Number of redundant power supplies supported | 2 |
| Number of redundant power supplies installed | 2 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Certificates | |
|---|---|
| 80 PLUS certification | 80 PLUS Titanium |
| General | |
|---|---|
| Product family | ThinkSystem |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Height | 43 mm |
| Depth | 773 mm |
| Weight | 20.2 kg |
| Technical details | |
|---|---|
| Supported storage drives form factor (internal) | 2.5" |
