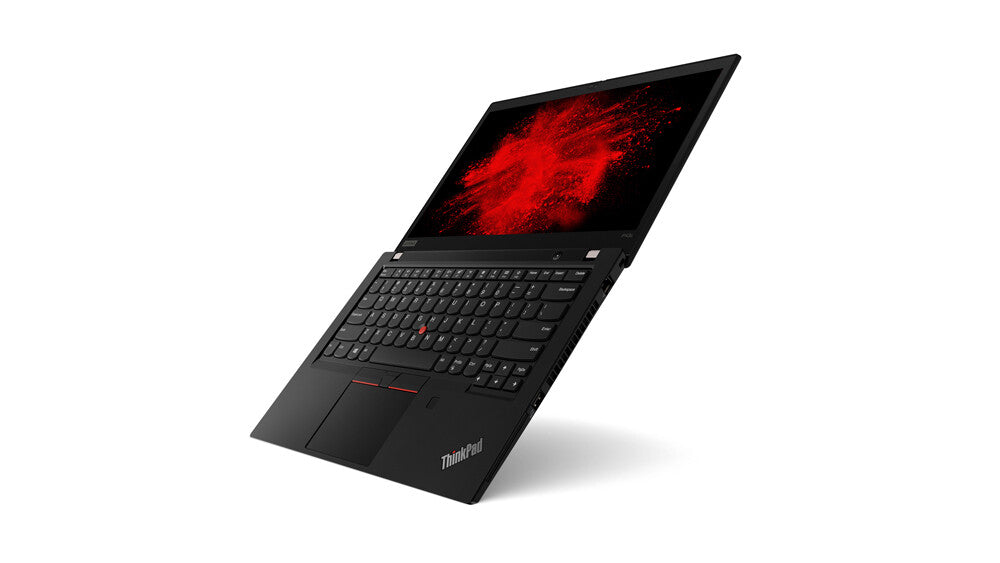

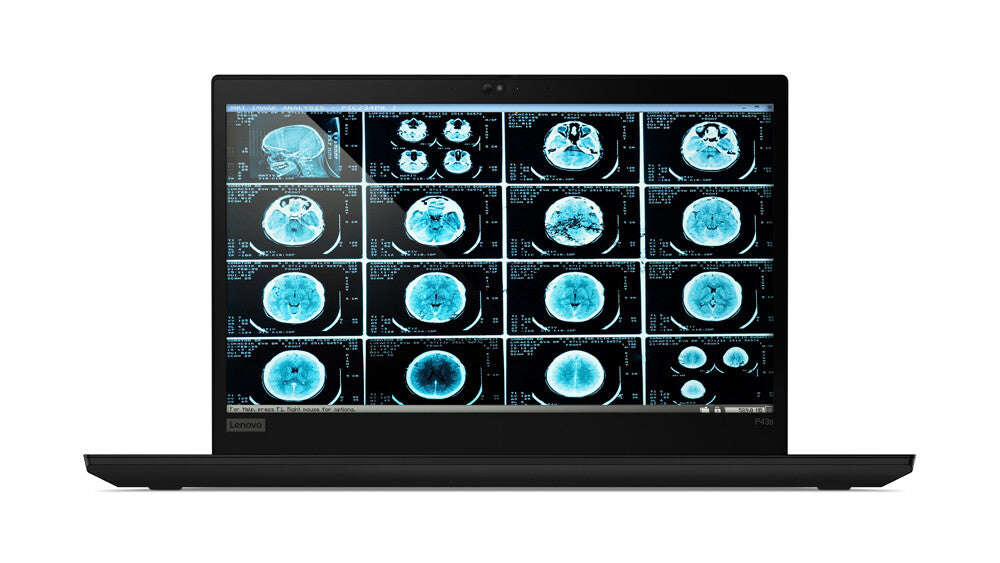

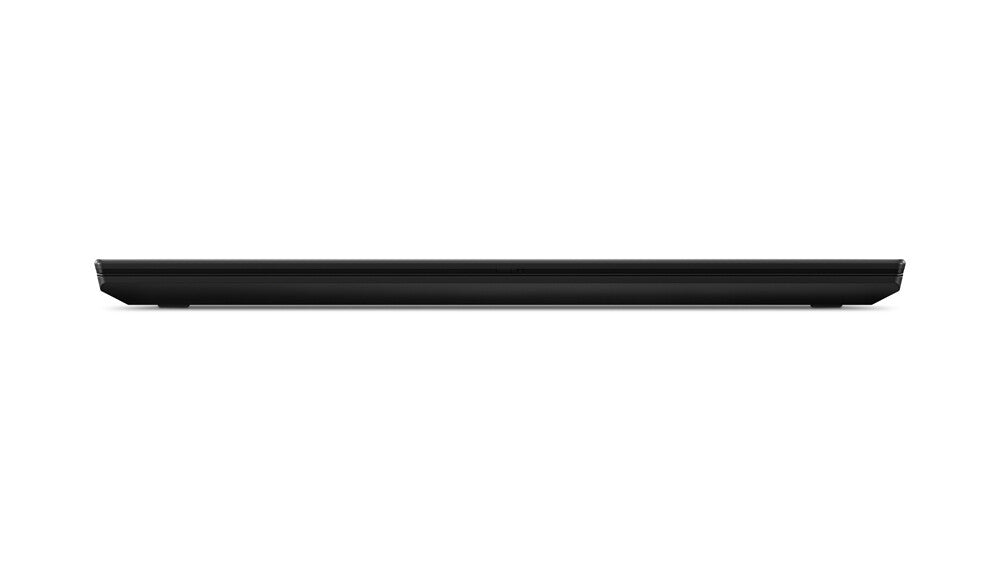

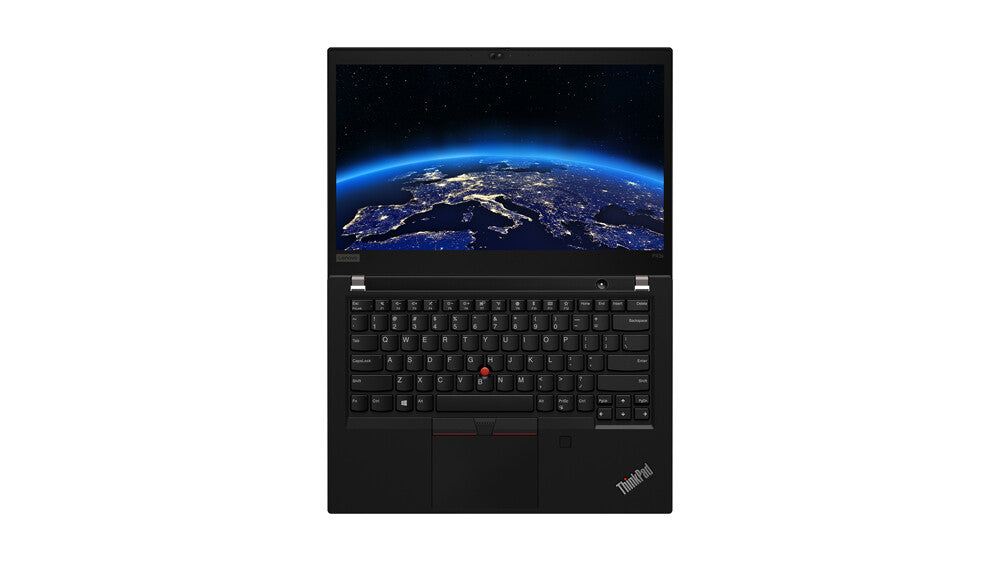

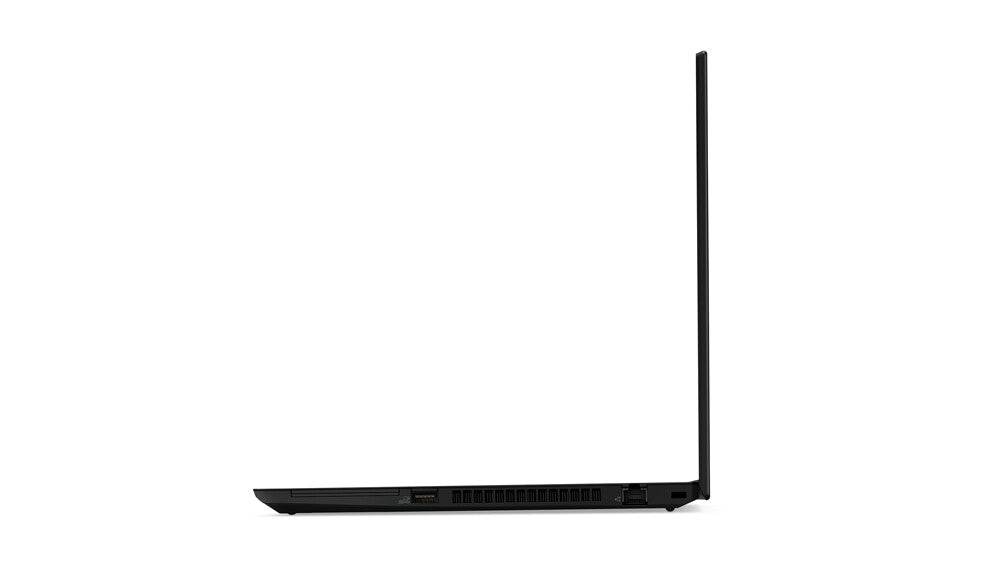

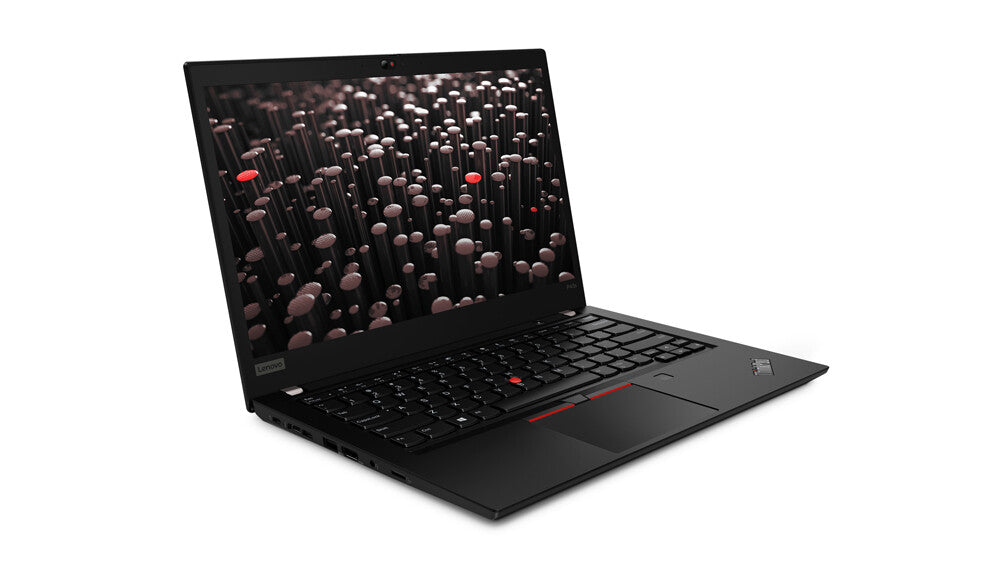

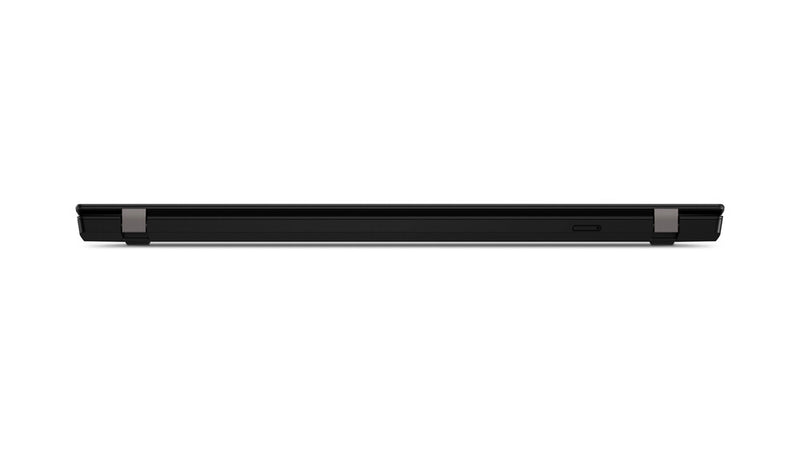

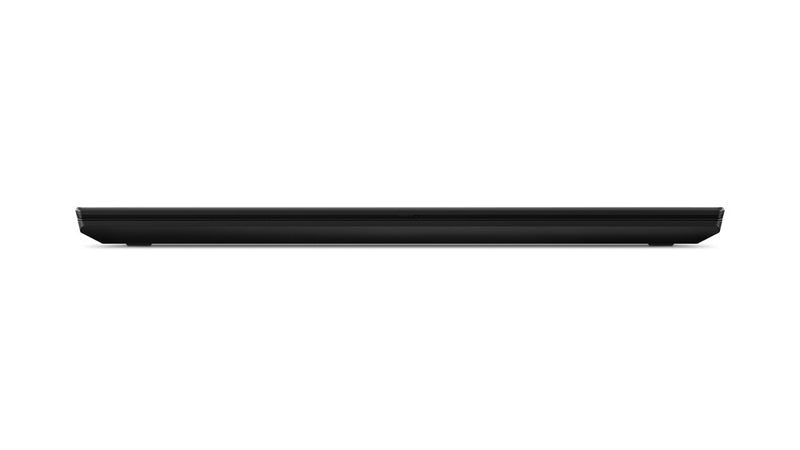

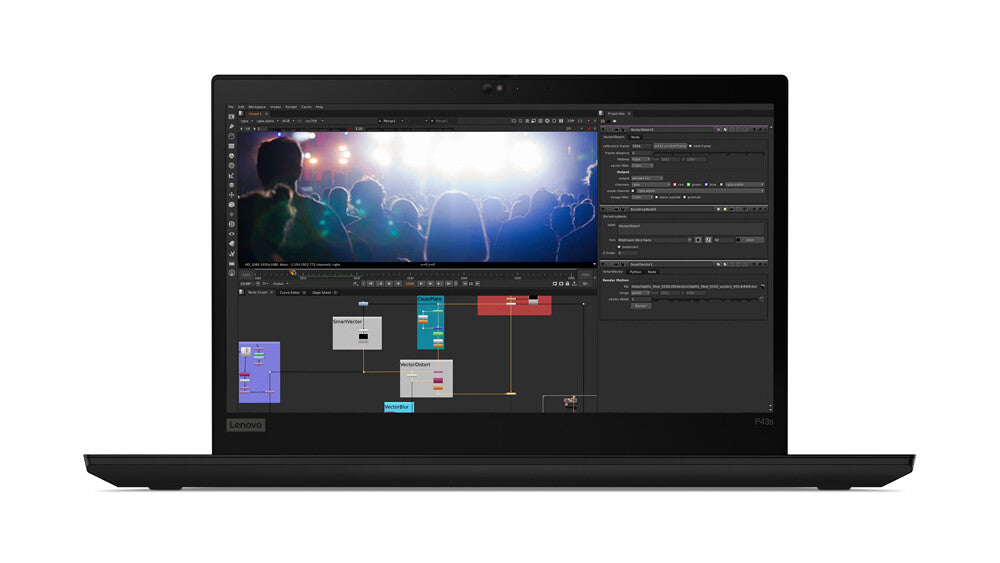

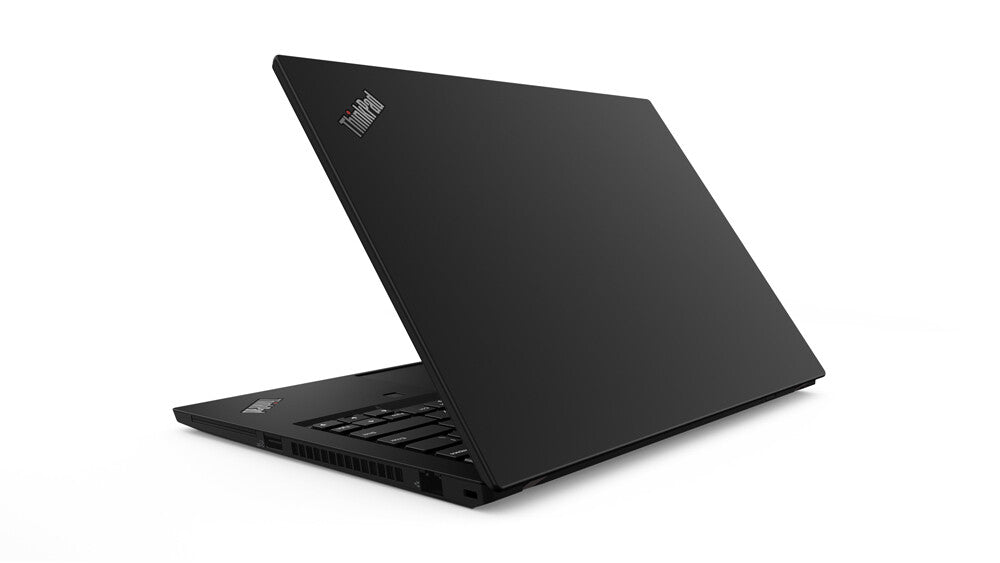

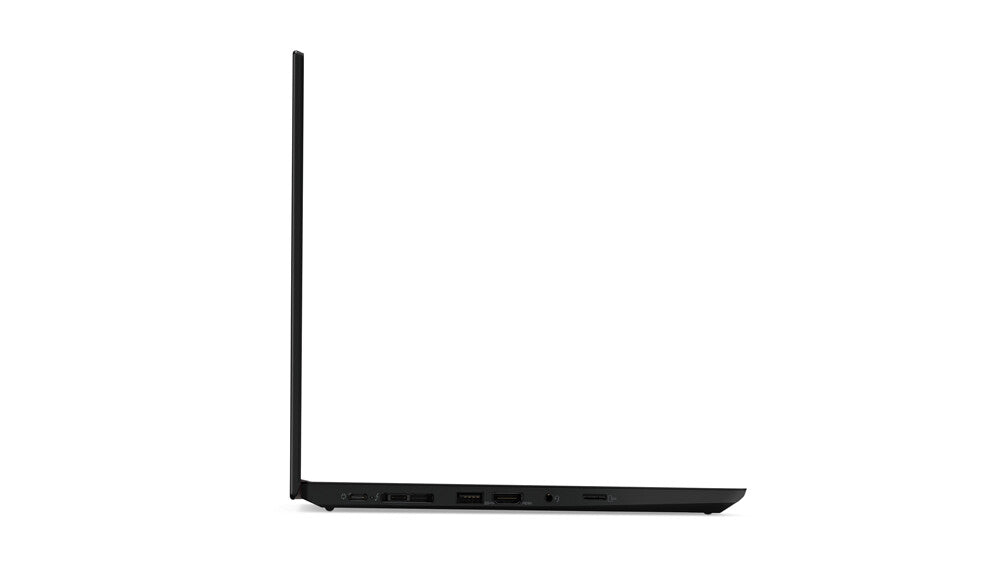

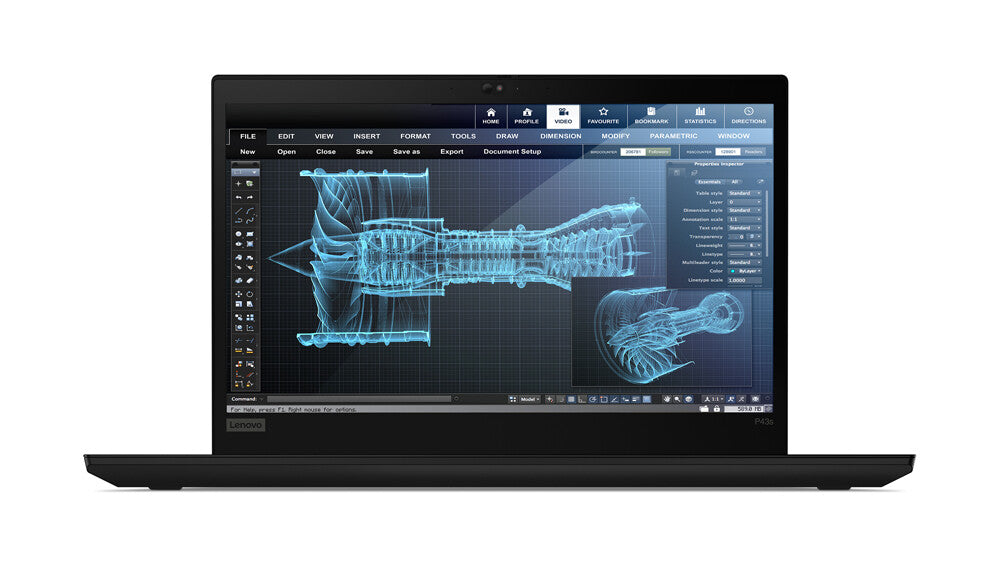

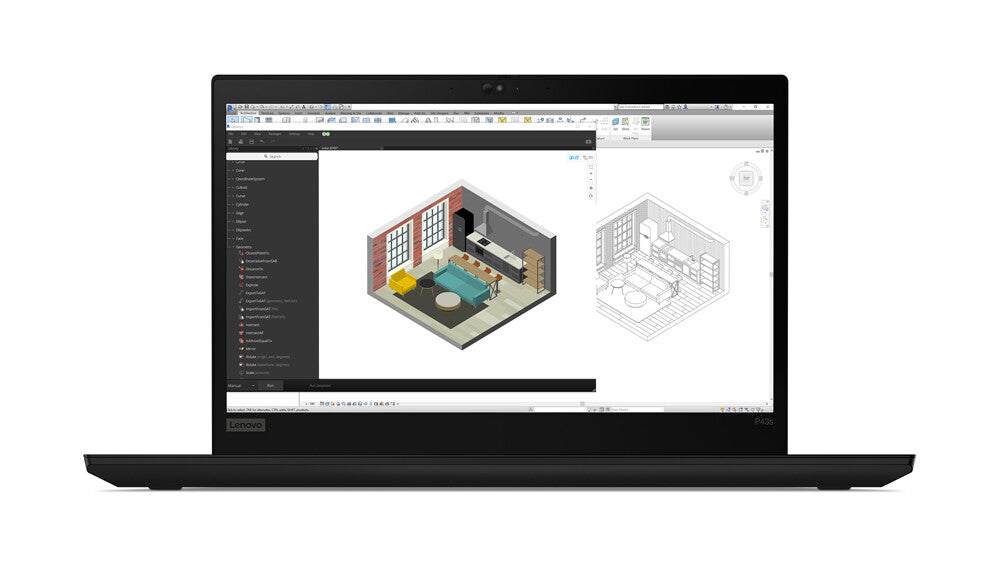

Lenovo ThinkPad P43s Intel® Core™ i7 i7-8565U Mobile workstation 35.6

Lenovo

£1,189.99

Stock Available: 0

Product Information

Windows 10 Pro 64-bit
Intel Core i7-8565U (1.8GHz)
14" Full HD 1920 x 1080 IPS
8GB DDR4-SDRAM & 256GB SSD

Power that moves
At 17.9mm / 0.70” and 1.47kg, ThinkPad P43s is Lenovo’s smallest and lightest mobile workstation. Get the power of the latest Intel® Core™ processors and NVIDIA® Quadro® professional graphics, plus epic battery life, all in a compact 14" laptop. Striking a balance between power and mobility, this workstation is perfect for highly mobile users and allows students, engineers, and designers to be creative anytime, anywhere.

Product Specifications

Design
Intel® vPro™ Platform Eligibility	No
Form factor	Clamshell
Product colour	Black
Product type	Mobile workstation

Display
Contrast ratio (typical)	700:1
Dual-screen	No
Display brightness	250 cd/m²
Native aspect ratio	16:9
LED backlight	Yes
Panel type	IPS
HD type	Full HD
Touchscreen	No
Display resolution	1920 x 1080 pixels
Display diagonal	35.6 cm (14")

Processor
Maximum number of PCI Express lanes	16
PCI Express slots version	3.0
PCI Express configurations	1x4, 2x2
Tjunction	100 °C
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Configurable TDP-up	25 W
Configurable TDP-up frequency	2 GHz
Thermal Design Power (TDP)	15 W
Bus type	OPI
Processor codename	Whiskey Lake
Processor operating modes	64-bit
Processor lithography	14 nm
Processor socket	BGA 1528
Processor cache type	Smart Cache
Processor cache	8 MB
System bus rate	4 GT/s
Processor frequency	1.8 GHz
Processor boost frequency	4.6 GHz
Processor threads	8
Processor cores	4
Processor model	i7-8565U
Processor generation	8th gen Intel® Core™ i7
Processor family	Intel® Core™ i7
Processor manufacturer	Intel

Memory
Maximum internal memory	48 GB
Memory slots	1x SO-DIMM
Memory clock speed	2400 MHz
Memory form factor	On-board + SO-DIMM
Internal memory type	DDR4-SDRAM
Internal memory	8 GB

Storage
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Optical drive type	No
SSD form factor	M.2
SSD interface	PCI Express
SSD capacity	256 GB
Number of SSDs installed	1
Total SSDs capacity	256 GB
Storage media	SSD
Total storage capacity	256 GB

Graphics
On-board graphics card ID	0x3EA0
On-board graphics card OpenGL version	4.5
On-board graphics card DirectX version	12.0
On-board graphics card base frequency	300 MHz
Maximum on-board graphics card memory	32 GB
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card model	Intel® UHD Graphics
On-board graphics card family	Intel® UHD Graphics
Discrete graphics memory type	GDDR5
Discrete graphics card memory	2 GB
Discrete graphics card model	NVIDIA Quadro P520
Discrete graphics card	Yes
On-board graphics card	Yes

Audio
Built-in microphone	Yes
Number of microphones	2
Speaker power	2 W
Number of built-in speakers	2
Audio system	Dolby Audio Premium
Audio chip	Realtek ALC3287

Camera
Front camera HD type	HD
Front camera signal format	720p
Front camera	Yes

Network
Bluetooth version	5.0
Bluetooth	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN	Yes
WLAN controller model	Intel Dual Band Wireless-AC 9560
Antenna type	2x2
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi	Yes

Ports & interfaces
USB Sleep-and-Charge ports	1
USB Sleep-and-Charge	Yes
USB Type-C DisplayPort Alternate Mode	Yes
Docking connector	Yes
Combo headphone/mic port	Yes
HDMI version	1.4b
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Keyboard
Full-size keyboard	Yes
Spill-resistant keyboard	Yes
Numeric keypad	No
Keyboard backlit	Yes
Pointing device	ThinkPad UltraNav

Software
Operating system architecture	64-bit
Operating system installed	Windows 10 Pro

Processor special features
CPU configuration (max)	1
Enhanced Intel SpeedStep Technology	Yes
Intel Clear Video Technology	Yes
Intel TSX-NI	No
Intel 64	Yes
Intel® Smart Response Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	2.0
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel Enhanced Halt State	Yes
Intel® Secure Key	Yes
Intel® OS Guard	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Thermal Monitoring Technologies	Yes
Processor package size	46x24 mm
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel TSX-NI version	0.00
Intel Identity Protection Technology version	1.00
Intel Smart Response Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Execute Disable Bit	Yes
Processor ARK ID	149091
Embedded options available	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel Virtualization Technology (VT-x)	Yes
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Intel Software Guard Extensions (Intel SGX)	Yes
Idle States	Yes

Battery
Fast charging	Yes
Battery life (max)	14.7 h
Battery capacity	50 Wh
Battery technology	Lithium-Ion (Li-Ion)

Power
USB Power Delivery (USB PD)	Yes
USB Type-C charging port	Yes
AC adapter input voltage	100 - 240 V
AC adapter frequency	50 - 60 Hz
AC adapter power	65 W

Security
Password protection type	HDD, Power on, Supervisor
Password protection	Yes
Trusted Platform Module (TPM)	Yes
Smart card reader	Yes
Fingerprint reader	Yes
Cable lock slot	Yes

Certificates
Compliance certificates	RoHS

Sustainability
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions
Height	17.9 mm
Depth	227 mm
Width	329 mm
Weight	1.55 kg

General
Product family	ThinkPad
Product series	P

Packaging content
AC adapter included	Yes

Lenovo ThinkPad P43s Intel® Core™ i7 i7-8565U Mobile workstation 35.6 cm (14") Full HD 8 GB DDR4-SDRAM 256 GB SSD NVIDIA Quadro P520 Wi-Fi 5 (802.11ac) Windows 10 Pro Black
