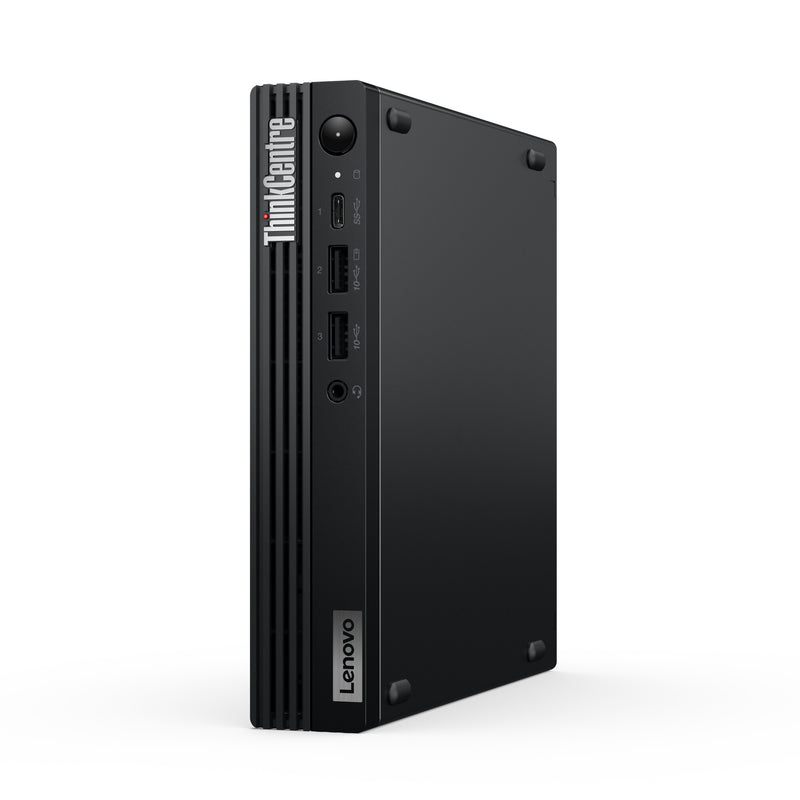

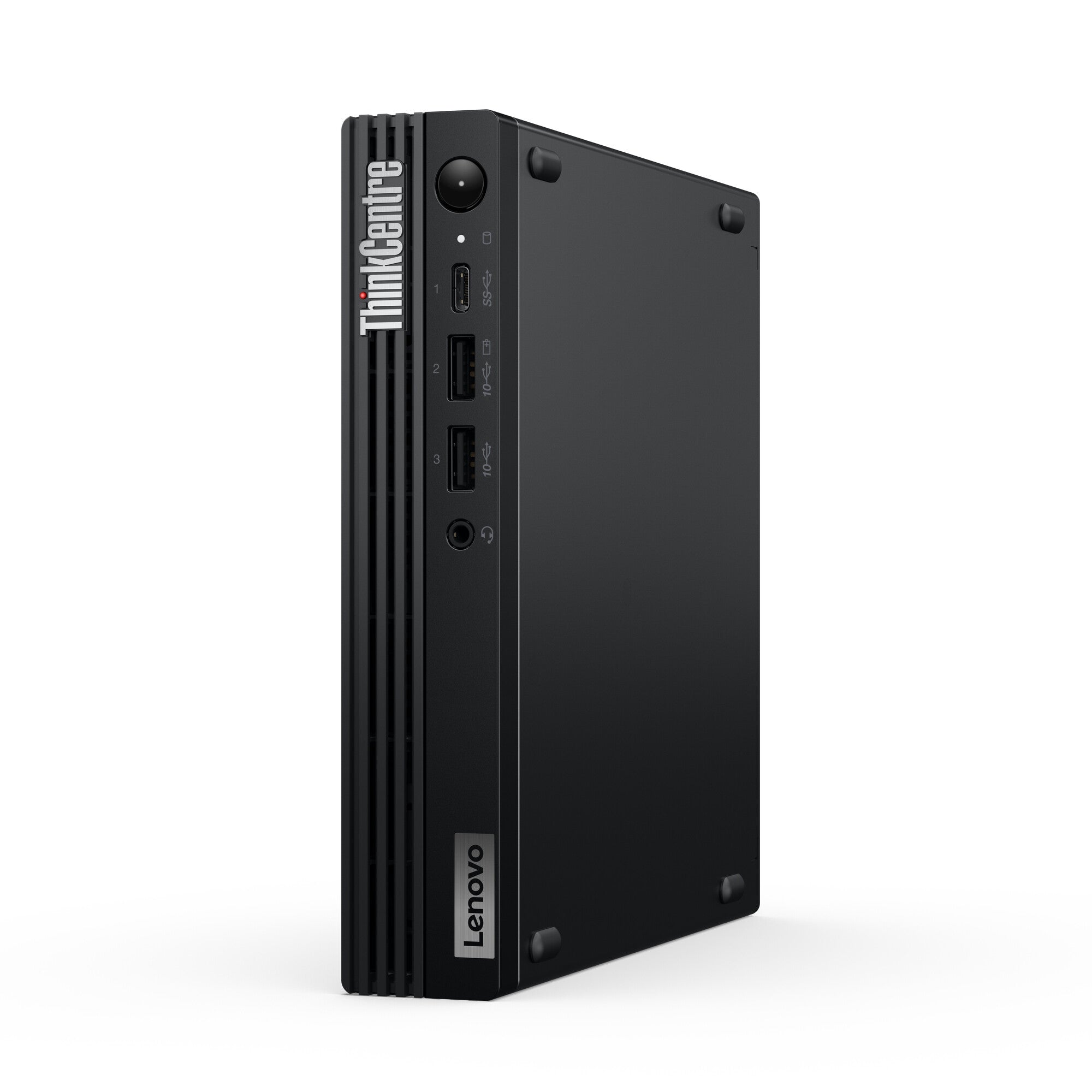

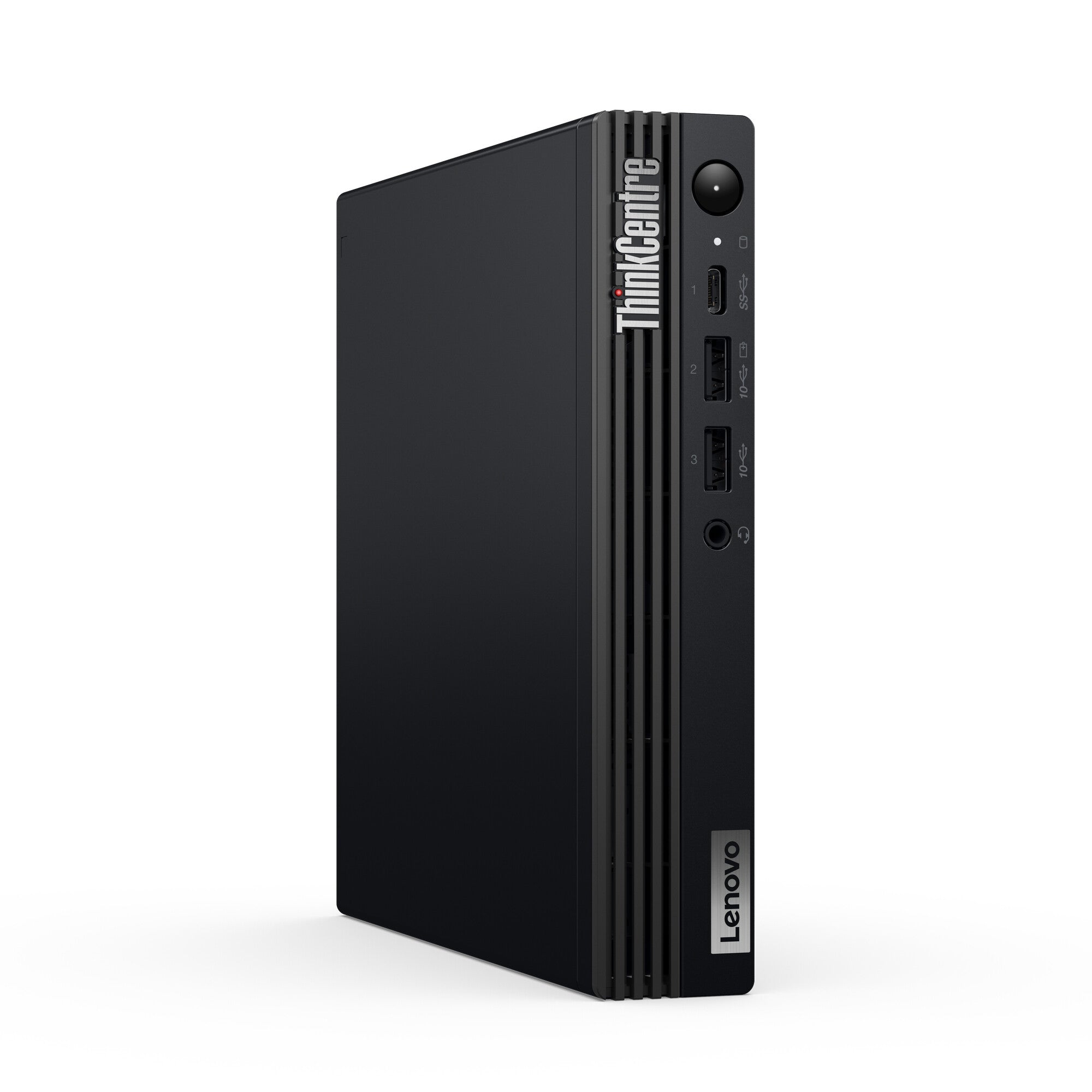

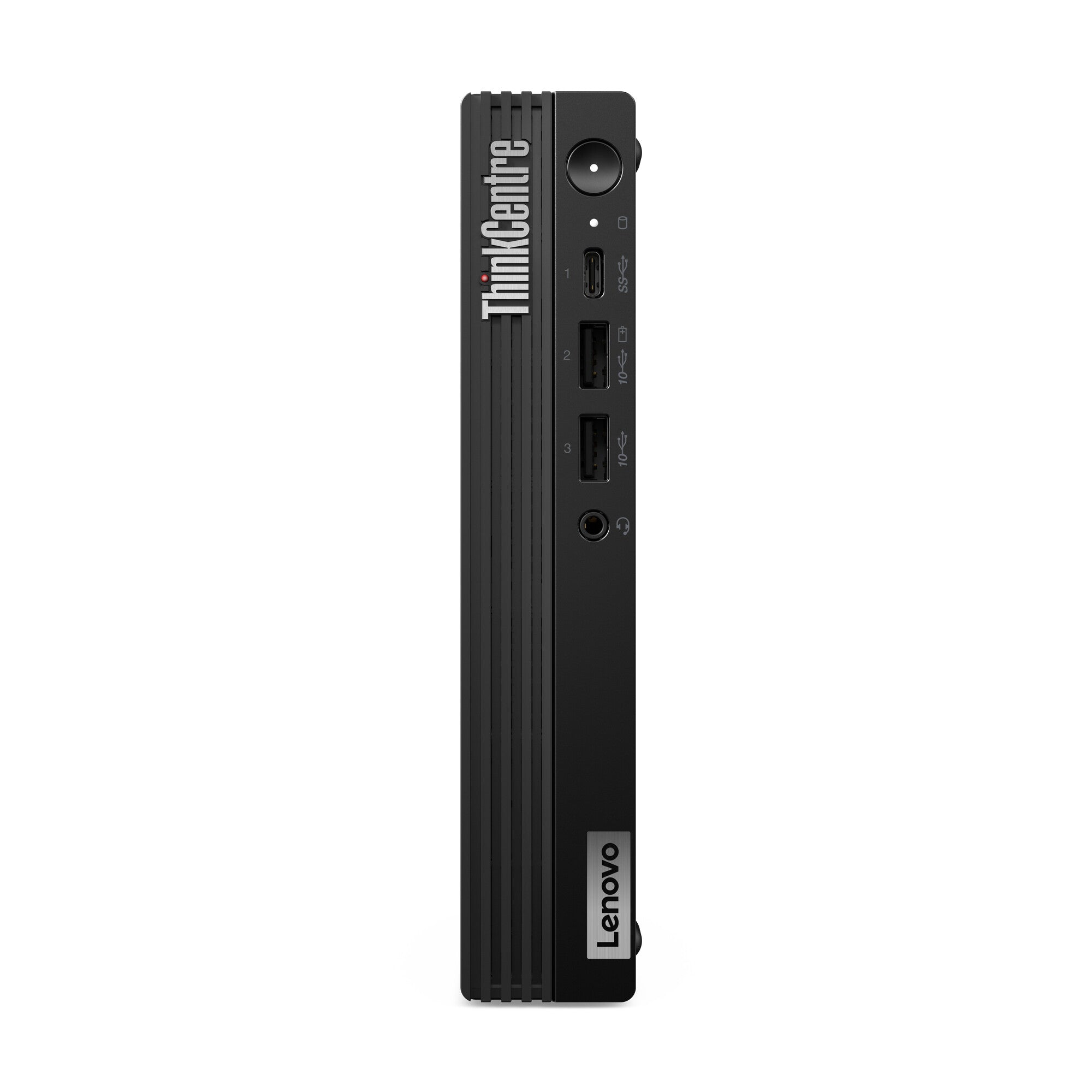

ThinkCentre M70q Gen 5 (Intel)|Powerful Tiny Desktop

Lenovo ThinkCentre M70q Gen 5 Intel® Core™ i5 i5-14400T 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Lenovo

iFrame

£647.39

Stock Available: 573

Product Information

Intel Core i5-14400T, 10C (6P + 4E)/16T, P-core 1.5/4.5GHz, E-core 1.1/3.2GHz, 20MB
1x 16GB SO-DIMM DDR5-4800
512GB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
Intel UHD Graphics 730
Windows 11 Pro

Big Performance in a Compact PC
- High-performing business desktop that fits anywhere, even horizontally positioned
- Optimized workloads with up to Intel® Core™ performance
- Fast data processing with dual-channel memory
- Enhanced privacy & enterprise-grade security

360

Product Specifications

Processor
Processor base power	35 W
Maximum turbo power	82 W
Number of processors installed	1
Processor cache type	Smart Cache
Processor cache	20 MB
Efficient-core base frequency	1.1 GHz
Performance-core base frequency	1.5 GHz
Efficient-core Max Turbo Frequency	3.2 GHz
Performance-core Max Turbo Frequency	4.5 GHz
Efficient cores	4
Performance cores	6
Processor boost frequency	4.5 GHz
Processor threads	16
Processor cores	10
Processor model	i5-14400T
Processor generation	Intel® Core™ i5 (14th gen)
Processor family	Intel® Core™ i5
Processor manufacturer	Intel

Memory
Memory channels	Dual-channel
ECC	No
Non-ECC	Yes
Memory clock speed	4800 MHz
Memory slots	2x DIMM
Memory layout (slots x size)	1 x 16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Internal memory	16 GB

Storage
Card reader integrated	No
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
SSD interface	PCI Express 4.0
NVMe	Yes
SSD capacity	512 GB
Number of SSDs installed	1
Total SSDs capacity	512 GB
Number of storage drives installed	1
Storage media	SSD
Optical drive type	No
Total storage capacity	512 GB

Graphics
On-board graphics card model	Intel UHD Graphics 730
On-board graphics card family	Intel® UHD Graphics
On-board GPU manufacturer	Intel
Discrete graphics card model	Not available
On-board graphics card	Yes
Discrete graphics card	No

Network
Bluetooth version	5.3
Bluetooth	Yes
Antenna type	2x2
WLAN controller model	Intel Wi-Fi 6E AX211
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	100,1000 Mbit/s
Ethernet LAN	Yes

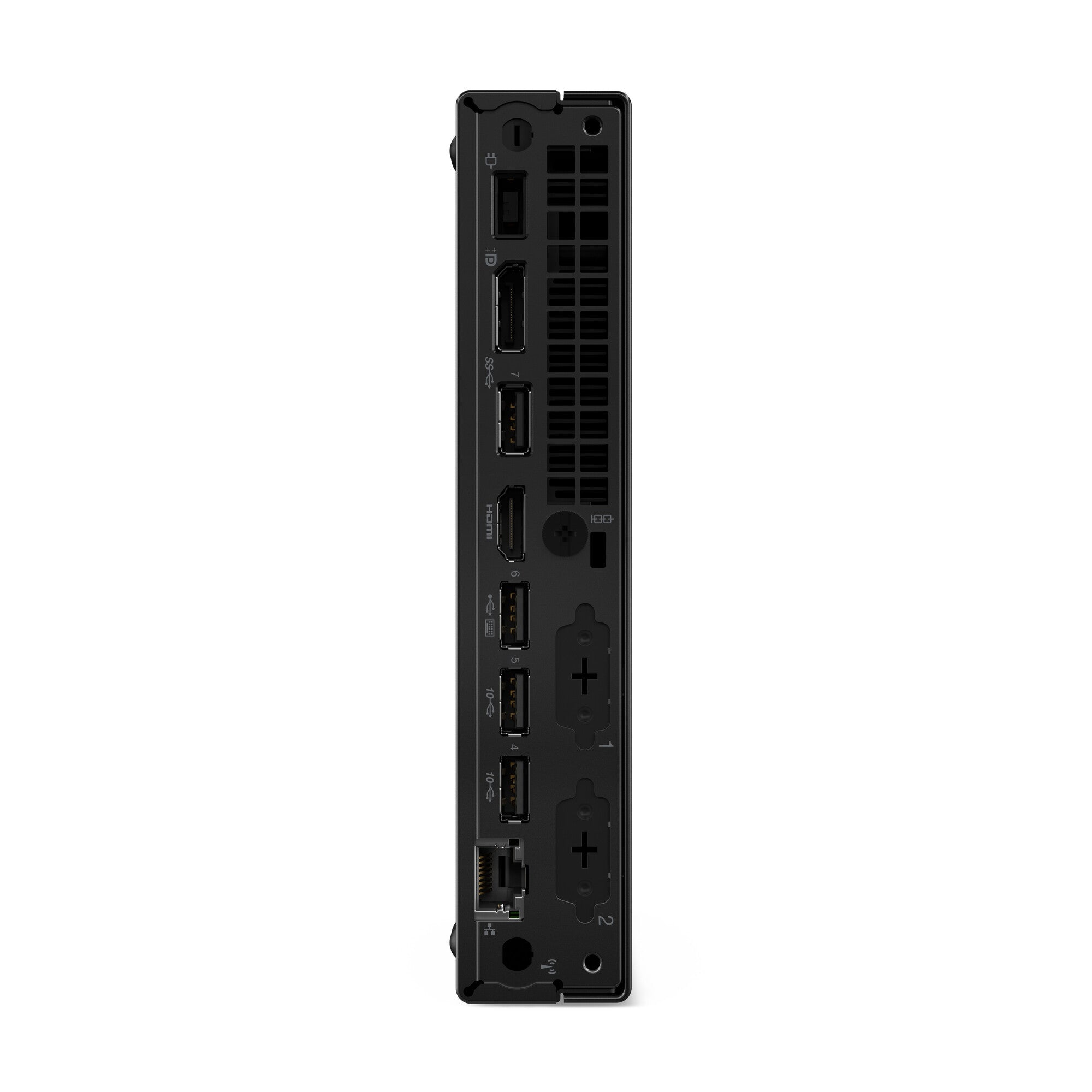

Ports & interfaces
Number of front audio ports	1
M.2 card slot (wireless)	1
M.2 card slot (storage)	2
Number of rear USB ports	4
Number of front USB ports	3
Combo headphone/mic port	Yes
Ethernet LAN (RJ-45) ports	1
DisplayPort version	1.4a
DisplayPorts quantity	1
HDMI version	2.1
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 2.0 ports quantity	1

Design
Product colour	Black
Cable lock slot type	Kensington
Cable lock slot	Yes
VESA mounting	Yes
Volume	1 L
Colour name	Black
Chassis type	Mini PC

Performance
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection type	BIOS, HDD, Power on, Supervisor
Password protection	Yes
Number of speakers	1
Built-in speaker(s)	Yes
Audio system	High Definition Audio
Audio chip	Realtek ALC233VB
Motherboard chipset	Intel Q670
Product type	Mini PC

Software
Operating system language	English
Operating system architecture	64-bit
Operating system installed	Windows 11 Pro

Power
Power supply input frequency	50/60 Hz
Power supply input voltage	100 - 240 V
Power supply	90 W

Operational conditions
Non-operating altitude	0 - 12192 m
Operating altitude	0 - 3048 m
Storage relative humidity (H-H)	10 - 90%
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Certificates
Compliance certificates	RoHS

Sustainability
Sustainability certificates	ENERGY STAR, EPEAT Silver, ErP, GREENGUARD, TCO

Weight & dimensions
Package weight	3.2 kg
Package height	250 mm
Package depth	128 mm
Package width	490 mm
Weight	1.25 kg
Height	36.5 mm
Depth	182.9 mm
Width	179 mm

Packaging content
Keyboard included	Yes
Keyboard connectivity	Wired
Mouse included	Yes
Mouse connectivity	Wired
Display included	No

General
Product family	ThinkCentre
Product series	M
