Lenovo FC5022 Managed Gigabit Ethernet (10/100/1000) Black

Lenovo FC5022 Managed Gigabit Ethernet (10/100/1000) Black

Lenovo
£8,259.99
Stock Available: 0
  • Managed SNMP v1
  • Basic switching RJ-45 Ethernet ports quantity: 2 Console port: RS-232
  • Switching capacity: 16 Gbit/s
  • Stackable

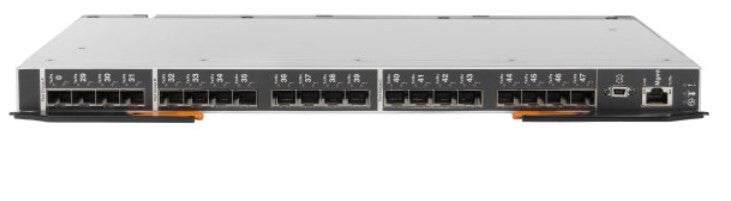

The IBM Flex System™ FC5022 16Gb SAN Scalable Switch is a Gen 5 Fibre Channel (FC) high-density, 48-port switch that operates at 16 and 8 Gbps FC speeds and is used in the IBM Flex System chassis. The switch provides 28 internal ports to compute nodes by way of the Flex midplane and 20 external SFP+ ports, as shown in Figure 1. The FC5022 SAN switch module delivers a scalable embedded option for IBM Flex System users connecting to 8 or 16 Gbps FC storage, deploying a new storage area network (SAN) or connecting to an existing SAN in their enterprise. The switch offers end-to-end 16 Gb with backwards compatibility to 8 Gb and 4 Gb to the SAN connectivity. Monitoring and management are simplified using end-to-end Brocade tools, such as Web Tools and the Brocade Network Advisor (BNA).

Management features
Switch type Managed
Ports & interfaces
Console port RS-232
Fiber optic connector FC
Fiber ports quantity 28
SFP+ module slots quantity 20
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity 2
Network
Full duplex Yes
10G support No
Networking standards IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Data transmission
Switching capacity 16 Gbit/s
Security
Security algorithms SSH-2
SSH/SSL support Yes
Protocols
Management protocols SNMP v1
Design
LED indicators Yes
Product colour Black
Stackable Yes
Operational conditions
Storage relative humidity (H-H) 8 - 80%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) 5 - 45 °C
Operating temperature (T-T) 0 - 35 °C
Weight & dimensions
Weight 3.2 kg
Height 30 mm
Depth 317 mm
Width 401 mm
Packaging content
Quick start guide Yes
Logistics data
Harmonized System (HS) code 85176990
