Lenovo 4Y37A93012 RAID controller PCI Express x8 12 Gbit/s
£346.99
Couldn't load pickup availability
- Supported storage drive interfaces: PCI Express 4.0
- Host interface: PCI Express x8
- RAID levels: 0, 1, 10
- 12 Gbit/s
- SSD support
- Number of devices supported: 8

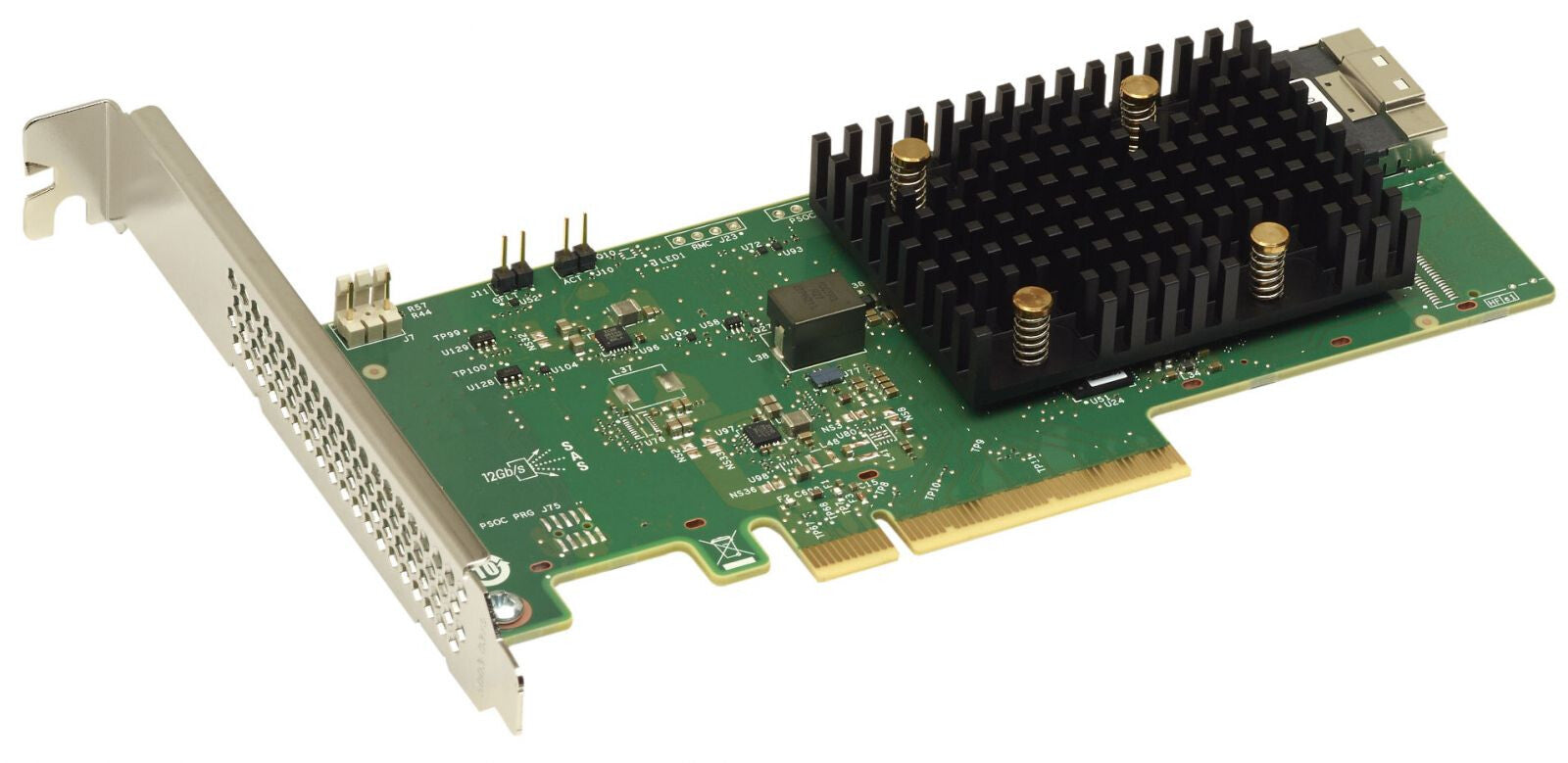

The ThinkSystem RAID 540/545 PCIe Gen4 12Gb Adapters are an entry-level 12 Gb SAS/SATA family of internal RAID adapters that offer a cost-effective RAID solution for small to medium business customers. These cacheless adapters support RAID levels 0, 1 and 10, and include an extensive list of RAS and management features.
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | PCI Express 4.0 |
| Performance | |
|---|---|
| Certification | USA (FCC 47 CFR part 15 Subpart B, class B)Canada (ICES -003, Class B)Taiwan (CNS 13438)Japan (VCCI V-3)Australia/New Zealand (AS/NZS CISPR 22)Korea (RRA no 2013-24 & 25)Europe (EN55022/EN55024)Safety: EN/IEC/ UL 60950; RoHS; WEEE |
| Hot-swap | Yes |
| S.M.A.R.T. support | Yes |
| Number of devices supported | 8 |
| JBOD function | Yes |
| Chipset | SAS3808 |
| SSD support | Yes |
| Form factor | Low Profile PCIe |
| Data transfer rate | 12 Gbit/s |
| RAID levels | 0, 1, 10 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 55 °C |
