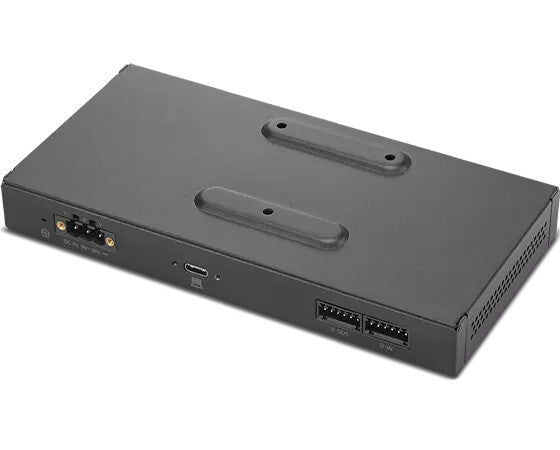

Lenovo 4XH1C95567 laptop dock/port replicator Wired USB 3.2 Gen 1 (3.1 Gen 1) Type-C Black
£242.99
Couldn't load pickup availability
- Wired
- Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
- Ethernet LAN
- Full duplex

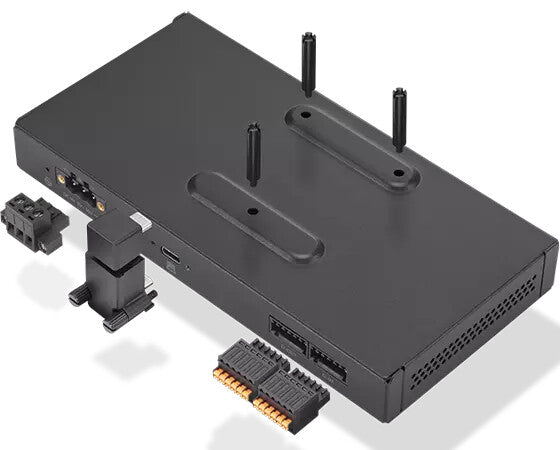

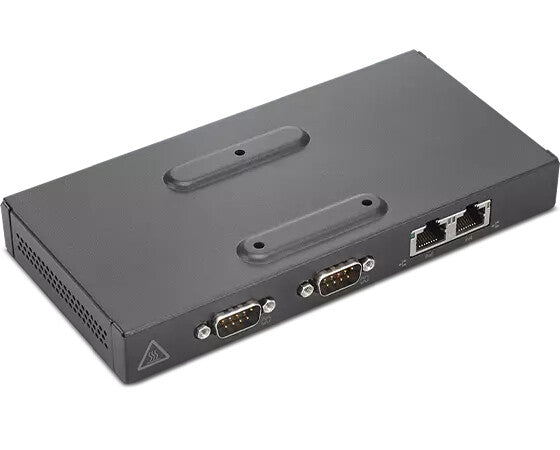

The ThinkEdge SE30 IOBOX connects to ThinkEdge SE30 via a Type-C connection, providing extra vertical IO offerings such as Power over Ethernet (PoE), Digital Input/Output, and a Serial port (RS232/422/485) offering flexibility and adaptability during Retail, Manufacturing, and Smart Building system integration. One DC cable provides voltage input to the IOBOX and PC device simultaneously, saving customers the extra burden of an AC/DC power transfer in industrial DC power supply environments.
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 2 |
| Microphone in | No |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Full duplex | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Certification | CE,FCC,cTUVus，ICES,RCM，KCC,VCCI,BSMI,EAC，MOROCCO |
| Brand compatibility | Lenovo |
| LED indicators | Power |
| Card reader integrated | No |
| Product colour | Black |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10 x64 |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Weight | 506 g |
| Height | 25.6 mm |
| Depth | 88 mm |
| Width | 178 mm |
| Packaging data | |
|---|---|
| Package weight | 650 g |
| Package height | 31 mm |
| Package depth | 175 mm |
| Package width | 227 mm |
| Packaging content | |
|---|---|
| User guide | Yes |
| Warranty card | Yes |
| Other features | |
|---|---|
| Overload protection | Yes |
