Lenovo 4XC1V64416 network card Internal WWAN
£217.99
Couldn't load pickup availability
- Size: 52 x 30 x 2.3 mm
- Weight: approx. 0.065 kg
- PCIe 3.0 interface
- Support:
- 5G 5GNR Sub 6GHZ
- 4G LTE FDD/TDD
- 3G WCDMA/HSDPA/HSUPA/HSPA+, GNSS

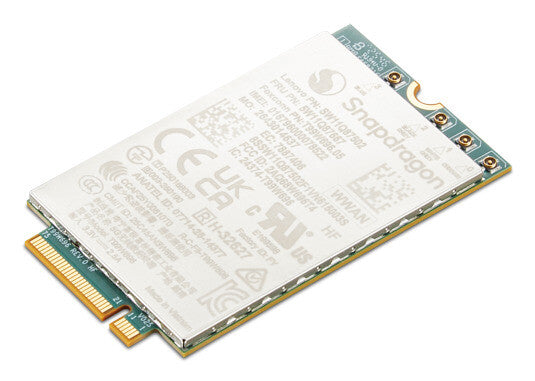

ThinkPad Foxconn SDX61 5G Sub6 PCIE M.2 3052 WWAN module for X1 G14 is a wireless communication module with receive diversity. It helps provide data connectivity and network with standard PCIe Gen3.0 interface. Supporting 5G, this SDX61 WWAN Module enhances the network reliability and availability of your ThinkPad, and provides a great cellular solution for travelers to sustain mobility while using PC devices.
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WWAN |
| PCI version | 3.0 |
| Network | |
|---|---|
| Mobile network generation | 5G |
| Design | |
|---|---|
| Internal | Yes |
| Component for | Laptop |
| Form factor | M.2 3052 |
| Certification | ENACOM, RCM, CE, TRA, ANATEL, ISED, SRRC, CTA, CCC, NTRA, SDPPI, TELEC, JATE, SIRIM, ANRT, MTC, NTC, IMDA, ICASA, KCC, NCC, NBTC, TDRA, FCC, URSEC, UCRT, CA |
| Compatible products | ThinkPad X1 G14 |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 11 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -30 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
|---|---|
| Width | 52 mm |
| Depth | 30 mm |
| Height | 2.3 mm |
| Weight | 65 g |
| Packaging data | |
|---|---|
| Package width | 157 mm |
| Package depth | 58 mm |
| Package height | 17 mm |
