Lenovo 4XB7A95056 internal solid state drive 3.2 TB 2.5" U.3 NVMe 3D TLC NAND
£7,429.99
Couldn't load pickup availability
- 3.2 TB 2.5" U.3
- Read speed: 6800 MB/s 1100000 IOPS
- Write speed: 5300 MB/s 390000 IOPS
- 3D TLC NAND NVMe
- S.M.A.R.T. support
- Component for: Server

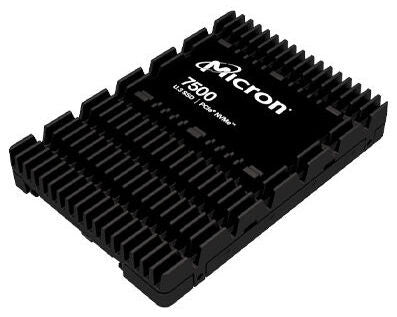

The ThinkSystem 7500 MAX Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
| Features | |
|---|---|
| SSD capacity | 3.2 TB |
| SSD form factor | 2.5" |
| Interface | U.3 |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| Component for | Server |
| Read speed | 6800 MB/s |
| Write speed | 5300 MB/s |
| Random read (4KB) | 1100000 IOPS |
| Random write (4KB) | 390000 IOPS |
| Read latency | 70 µs |
| Write latency | 15 µs |
| S.M.A.R.T. support | Yes |
| Hot-swap | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Drive writes per day (DWPD) | 3 |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS |
| Power | |
|---|---|
| Power consumption (read) | 12.8 W |
| Power consumption (write) | 15.5 W |
| Weight & dimensions | |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 200 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Non-operating shock | 1500 G |
| Maximum operating altitude | 3050 m |
