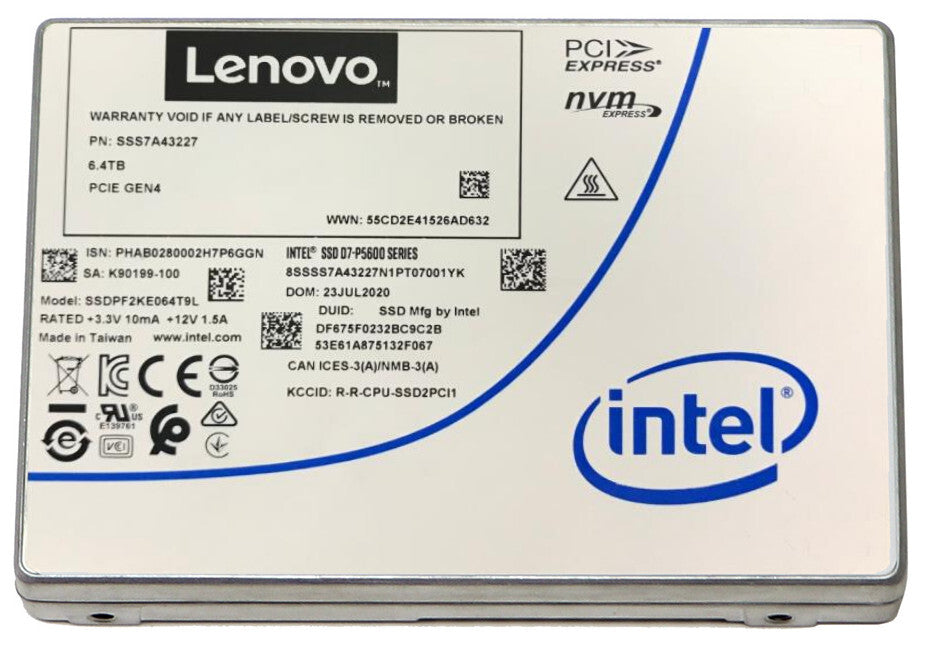

Lenovo 4XB7A17133 internal solid state drive 6.4 TB 2.5" PCI Express 4.0 NVMe TLC 3D NAND
Couldn't load pickup availability
- 6.4 TB 2.5" PCI Express 4.0
- Read speed: 7100 MB/s 1100000 IOPS
- Write speed: 4200 MB/s 390000 IOPS
- TLC 3D NAND NVMe
- Hardware encryption
- Component for: Server/workstation
The ThinkSystem P5620 Mixed Use NVMe SSDs are advanced data center SSDs optimized for mixed read-write performance, endurance, and strong data protection for Lenovo servers. With a PCIe 4.0 x4 interface, they are designed for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.
This product guide introduces the drives and describes their features and specifications, and provides compatibility information. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the P5620 SSDs and consider their use in IT solutions.
| Features | |
|---|---|
| SSD capacity | 6.4 TB |
| SSD form factor | 2.5" |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | TLC 3D NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Read speed | 7100 MB/s |
| Write speed | 4200 MB/s |
| Random read (4KB) | 1100000 IOPS |
| Random write (4KB) | 390000 IOPS |
| Random latency - read (up to) | 75 µs |
| Random latency - write (up to) | 15 µs |
| Sequential latency - read (up to) | 10 µs |
| Sequential latency - write (up to) | 13 µs |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Certification | FCC Title 47, Part 15B, Class B CA/CSA-CEI/IEC CISPR 22:02 EN 55024: 1998 EN 55022: 2006 EN-60950-1 2nd Edition UL/CSA EN-60950-1 2nd Edition Low Voltage Directive 2006/95/EC C-Tick: AS/NZS3584 BSMI: CNS 13438 KCC Article 11.1 RoHS DIRECTIVE 2011/65/EU WEEE Directive 2002/96/EC |
| Power | |
|---|---|
| Power consumption (read) | 18 W |
| Power consumption (write) | 18 W |
| Weight & dimensions | |
|---|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 15 mm |
| Weight | 146 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
| Maximum operating altitude | 3048 m |
| Other features | |
|---|---|
| Endurance rating | 35 PB |
