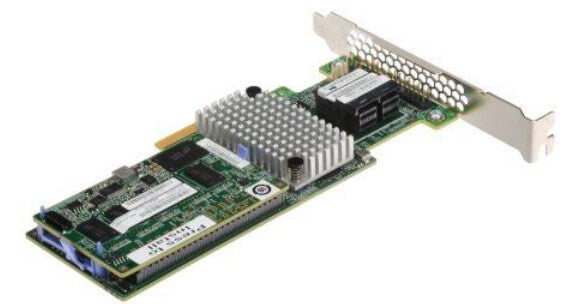

Lenovo 46C9110 RAID controller PCI Express x8 3.0 12 Gbit/s
£425.99
Couldn't load pickup availability
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 10
- 12 Gbit/s
- SSD support
The ServeRAID M5210 and M5210e SAS/SATA Controllers are high performance 12 Gb SAS controllers for internal disk storage. They are part of the ServeRAID M Series family that offers a complete server storage solution consisting of RAID controllers, cache/flash modules, energy packs, and software feature upgrades in an ultra-flexible offerings structure. These products are optimized to deliver the performance that is demanded by the ever-growing I/O requirements of today's enterprises. The M5210 is a low profile PCIe adapter, and the M5210e is integrated in servers such as the x3750 M4 and x3650 M4 HD. The two controllers share a common set of upgrades, simplifying inventory management.
| Ports & interfaces | |
|---|---|
| Internal mini-SAS ports | 2 |
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Performance | |
|---|---|
| Compatible products | Microsoft Windows Server 2008 R2Microsoft Windows Server 2008, Datacenter x64 EditionMicrosoft Windows Server 2008, Datacenter x86 EditionMicrosoft Windows Server 2008, Enterprise x64 EditionMicrosoft Windows Server 2008, Enterprise x86 EditionMicrosoft Windows Server 2008, Web x64 EditionMicrosoft Windows Server 2012Microsoft Windows Server 2012 R2Microsoft Windows Server 2016Red Hat Enterprise Linux 5 Server with Xen x64 EditionRed Hat Enterprise Linux 5 Server x64 EditionRed Hat Enterprise Linux 6 Server EditionRed Hat Enterprise Linux 6 Server x64 EditionRed Hat Enterprise Linux 7SUSE Enterprise Linux Server (SLES) 12SUSE LINUX Enterprise Server 11 for AMD64/EM64TSUSE LINUX Enterprise Server 11 for x86VMware vSphere 5.0 (ESXi)VMware vSphere 5.1 (ESXi)VMware vSphere 5.5 (ESXi)VMware vSphere 6.0 (ESXi) |
| Certification | UL, cUL, IEC60950, EMC, FCC, TUV, CE, VCCI, BSMI, C-tick, KC |
| S.M.A.R.T. support | Yes |
| Memory clock speed | 1866 MHz |
| Internal memory type | DDR3 |
| SSD support | Yes |
| Data transfer rate | 12 Gbit/s |
| RAID levels | 0, 1, 10 |
| System requirements | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 8 - 93% |
| Operating temperature (T-T) | 5 - 40 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 320 g |
| Package dimensions (WxDxH) | 143 x 238 x 51 mm |
| Weight | 99 g |
| Height | 15 mm |
| Depth | 168 mm |
| Width | 69 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| PCI Card form factor | Half-height (low-profile) |
