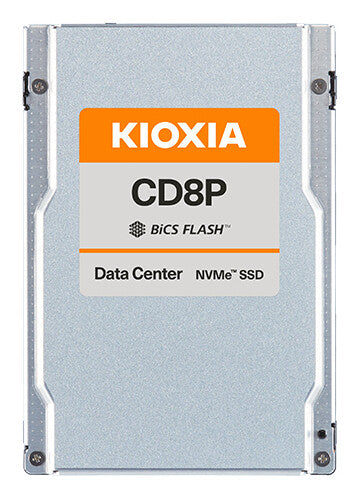

Kioxia SSD KCD8DPUG7T68 7.68T 2.5 PCIe5 CD8P-R SDF7243GEB 1 DWPD SED Bare 7.68 TB 2.5" PCI Express 5.0 NVMe BiCS FLASH TLC
Spread the cost with Klarna, Float or SnapFrom 3 interest-free payments of £1,498.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- PCIe® 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Data Center NVMe™ Read Intensive SSD
KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series).
Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.
Specifications
Features
| SSD capacity | 7.68 TB |
|---|---|
| SSD form factor | 2.5" |
| Interface | PCI Express 5.0 |
| NVMe | Yes |
| NVMe version | 2.0 |
| Memory type | BiCS FLASH TLC |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| Read speed | 12000 MB/s |
| Write speed | 5500 MB/s |
| Random read (4KB) | 2000000 IOPS |
| Random write (4KB) | 200000 IOPS |
| Mean time between failures (MTBF) | 2500000 h |
Power
| Operating voltage | 12 V |
|---|---|
| Power consumption (average) | 21 W |
| Power consumption (standby) | 5 W |
Show all 25 specificationsShow fewer specifications
Weight & dimensions
| Width | 69.8 mm |
|---|---|
| Depth | 100.4 mm |
| Height | 15 mm |
| Weight | 130 g |
Operational conditions
| Operating temperature (T-T) | 0 - 73 °C |
|---|---|
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating vibration | 2.17 G |
| Operating shock | 1000 G |
