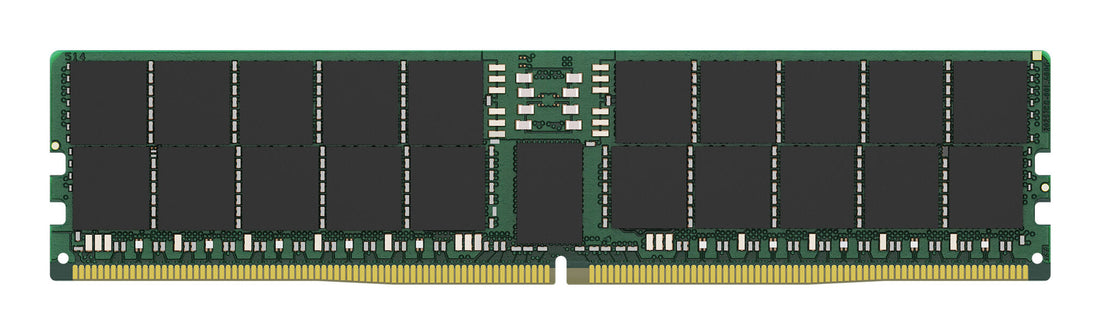

Kingston Technology KSM64R52BD4-96MC memory module 96 GB 1 x 96 GB DDR5 6400 MT/s 288-pin DIMM ECC

Kingston Technology KSM64R52BD4-96MC memory module 96 GB 1 x 96 GB DDR5 6400 MT/s 288-pin DIMM ECC

Kingston Technology
£3,259.99
Stock Available: 0
  • Server 96 GB DDR5 6400 MT/s
  • 288-pin DIMM 1 x 96 GB
  • CAS latency: 52
  • 1.1 V
  • ECC

Kingston's KSM64R52BD4-96MC is a 12G x 80-bit (96GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 6G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features
Buffered memory type Registered (buffered)
Internal memory 96 GB
Memory layout (modules x size) 1 x 96 GB
Internal memory type DDR5
Component for Server
Memory form factor 288-pin DIMM
ECC Yes
On-Die ECC Yes
CAS latency 52
Memory data transfer rate 6400 MT/s
Memory ranking 2
Memory voltage 1.1 V
Row cycle time 48 ns
Refresh row cycle time 410 ns
Row active time 32 ns
Row Precharge Time (TRP) 16
JEDEC standard Yes
Operational conditions
Operating temperature (T-T) 0 - 95 °C
Operating relative humidity (H-H) -55 - 100%
Sustainability
Doesn't contain Halogen
Technical details
Compliance certificates RoHS
Weight & dimensions
Height 31.2 mm
