Kingston Technology 8GB DDR4 3200MT/s ECC Registered DIMM CL22 1Rx8 1.2V 288-pin 8Gbit Micron R
£126.99
Couldn't load pickup availability
- Server 8 GB DDR4 3200 MT/s
- 288-pin DIMM 1 x 8 GB
- CAS latency: 22
- 1.2 V
- ECC

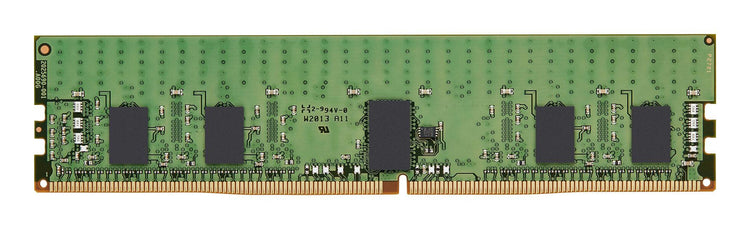

Kingston's KSM32RS8/8MR is a 1G x 72-bit (8GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM) registered w/ parity, 1Rx8, ECC, memory module, based on nine 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
| Features | |
|---|---|
| Buffered memory type | Registered (buffered) |
| Internal memory | 8 GB |
| Memory layout (modules x size) | 1 x 8 GB |
| Internal memory type | DDR4 |
| Component for | Server |
| Memory form factor | 288-pin DIMM |
| ECC | Yes |
| CAS latency | 22 |
| Memory data transfer rate | 3200 MT/s |
| Memory ranking | 1 |
| Memory voltage | 1.2 V |
| Row cycle time | 45.75 ns |
| Refresh row cycle time | 350 ns |
| Row active time | 32 ns |
| Programming power voltage (VPP) | 2.5 V |
| Product colour | Green |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -55 - 100 °C |
