• Adapter plate with in the sizes 50 x 50, 54 x 54, 55 x 55 mm included in delivery
• mounting without tools
• Input: RJ45 (HDBaseT compatible)
• Output: HDMI (socket)
• Supports HDCP, EDID, HDMI 1.4, 3D and 4K x 2K
• Status LED for connection (link)
• PoC (Power over Cable), i. e. only one voltage supply for transmitter and receiver is needed, e. g. power supply with a plug (7488 000 027) or in-wall solution (5555 000 119)
• Requires 2-fold socket system and a deep 2-gang in-wall casing (7441 000 008)
• Also available as floor box version (7445 000 012)

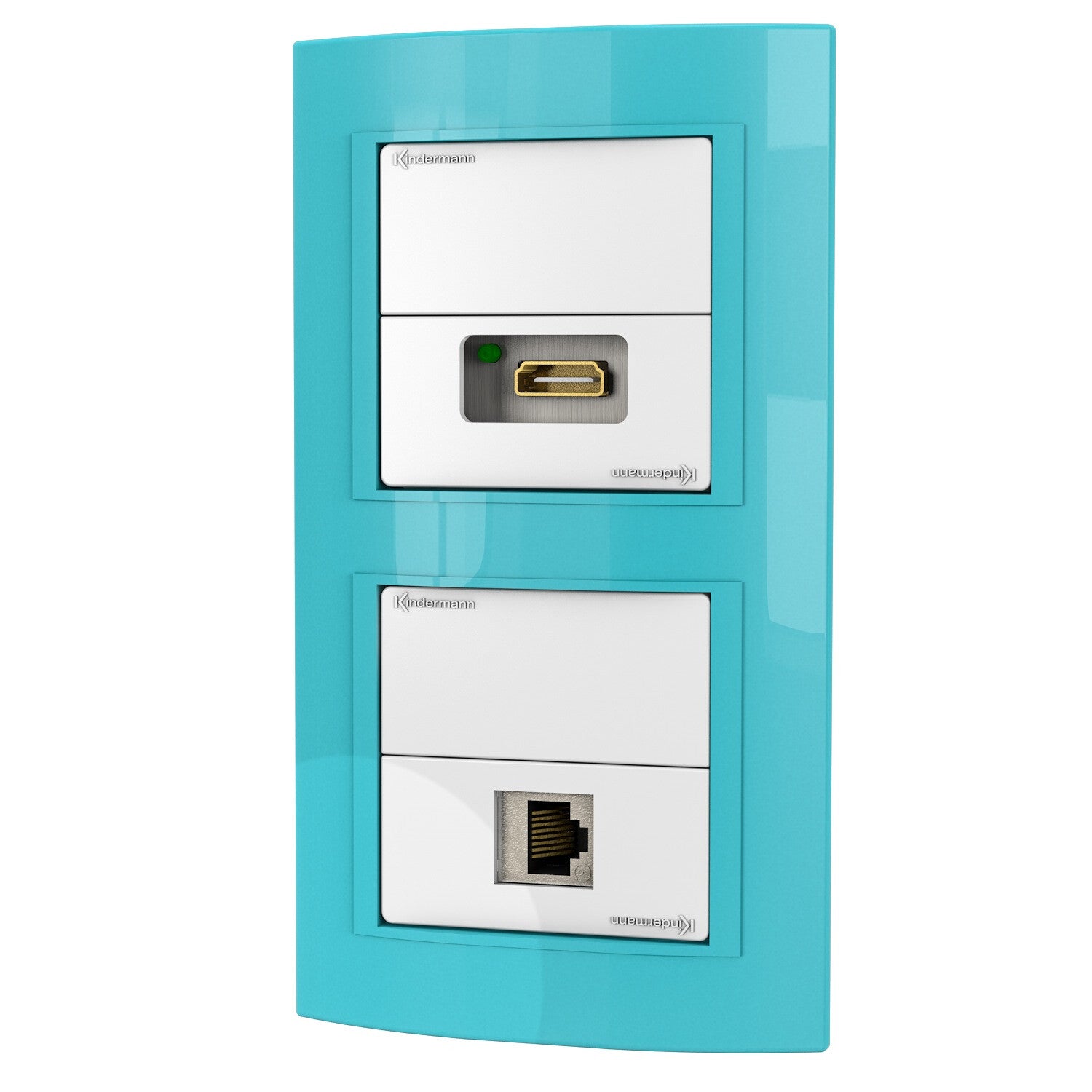

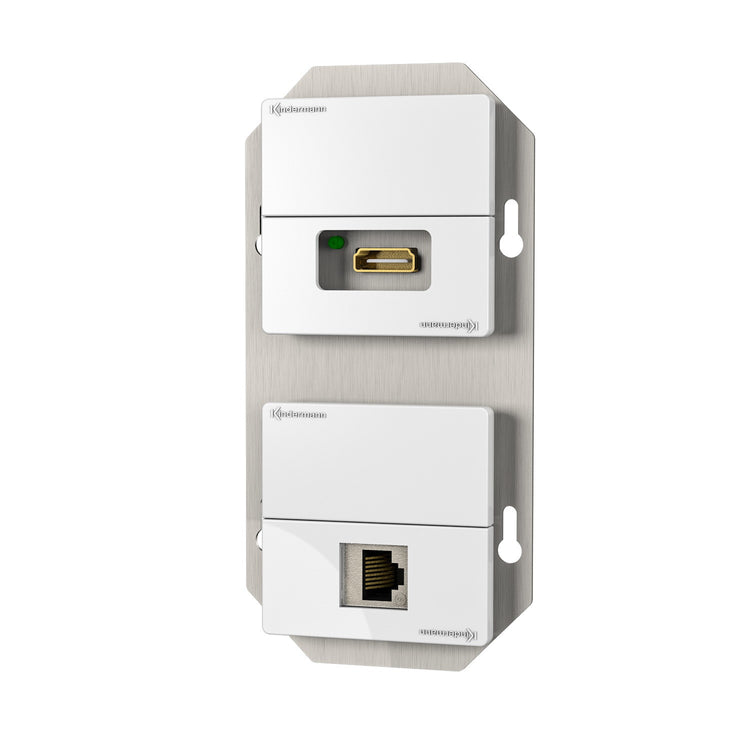

Wall plate receiver. Accepts an HDBaseT compatible twisted-pair signal for output as HDMI over up to 70 m via Cat-5E/6 cable, Cat-6 gender changer connection, double full size plate, plastic cover RAL 9010 white

• manual pdf
