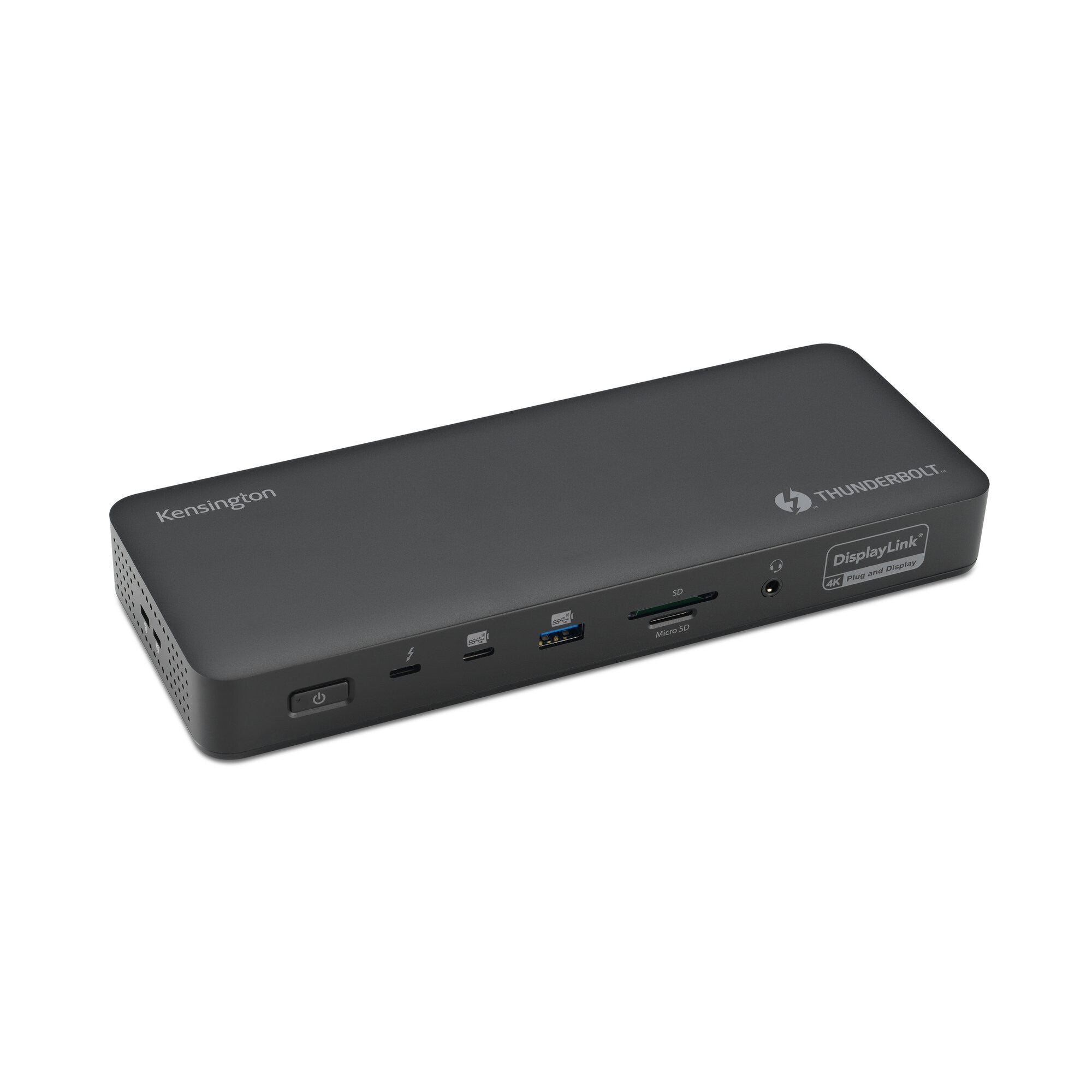

Kensington SD5920T EQ Thunderbolt 4 Quad 4K Hybrid Dock with DisplayLink Technology
Couldn't load pickup availability

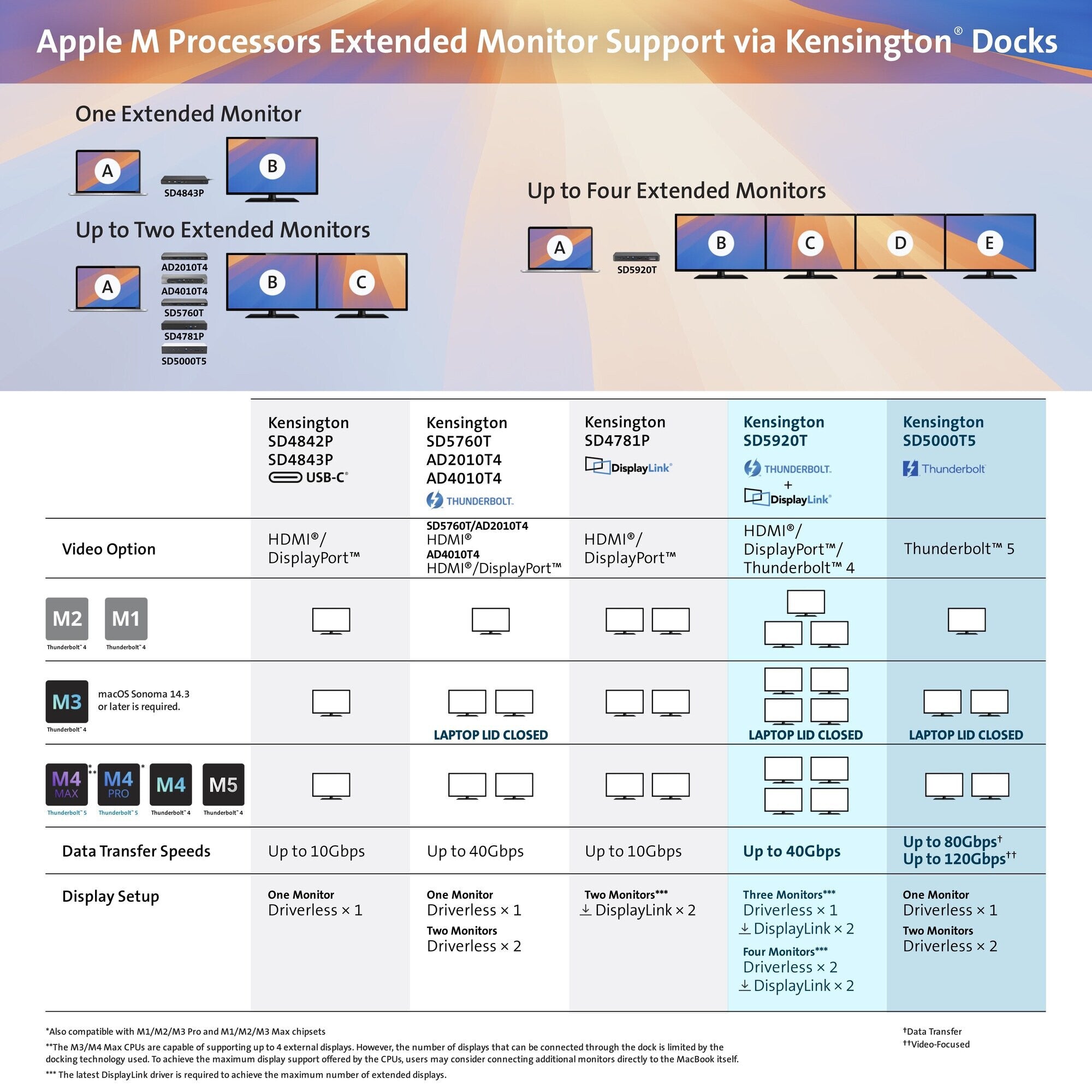

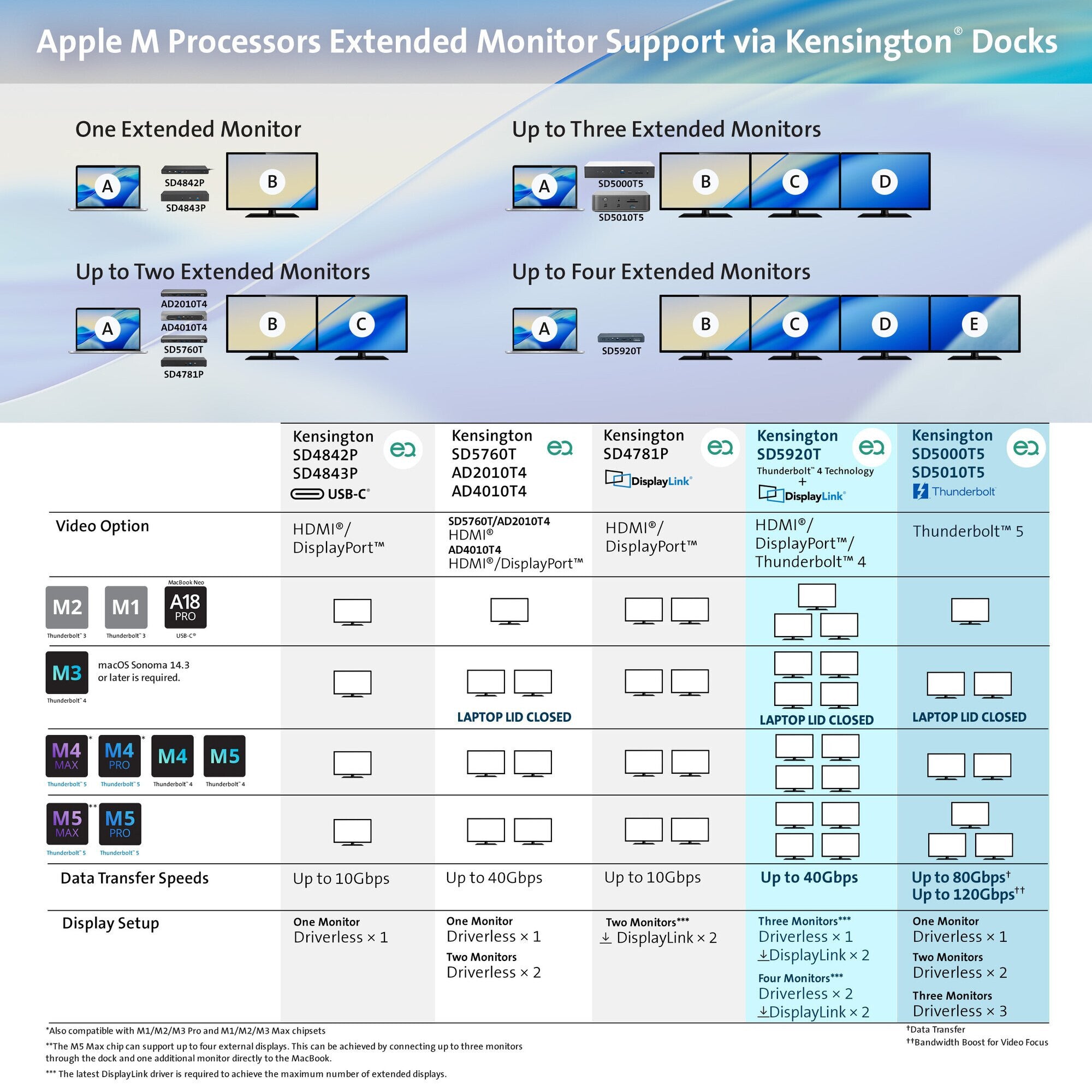

- Supports up to Quad 4K @ 60Hz for Thunderbolt™ 4 laptops and devices via plug-and-play TB4 port and MacBook* models with M1/M2/M3 Pro and Max chipsets via DisplayLink®. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
- Optimised for Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices running Windows (10 or later), macOS (11 or later) and ChromeOS (116 or later).

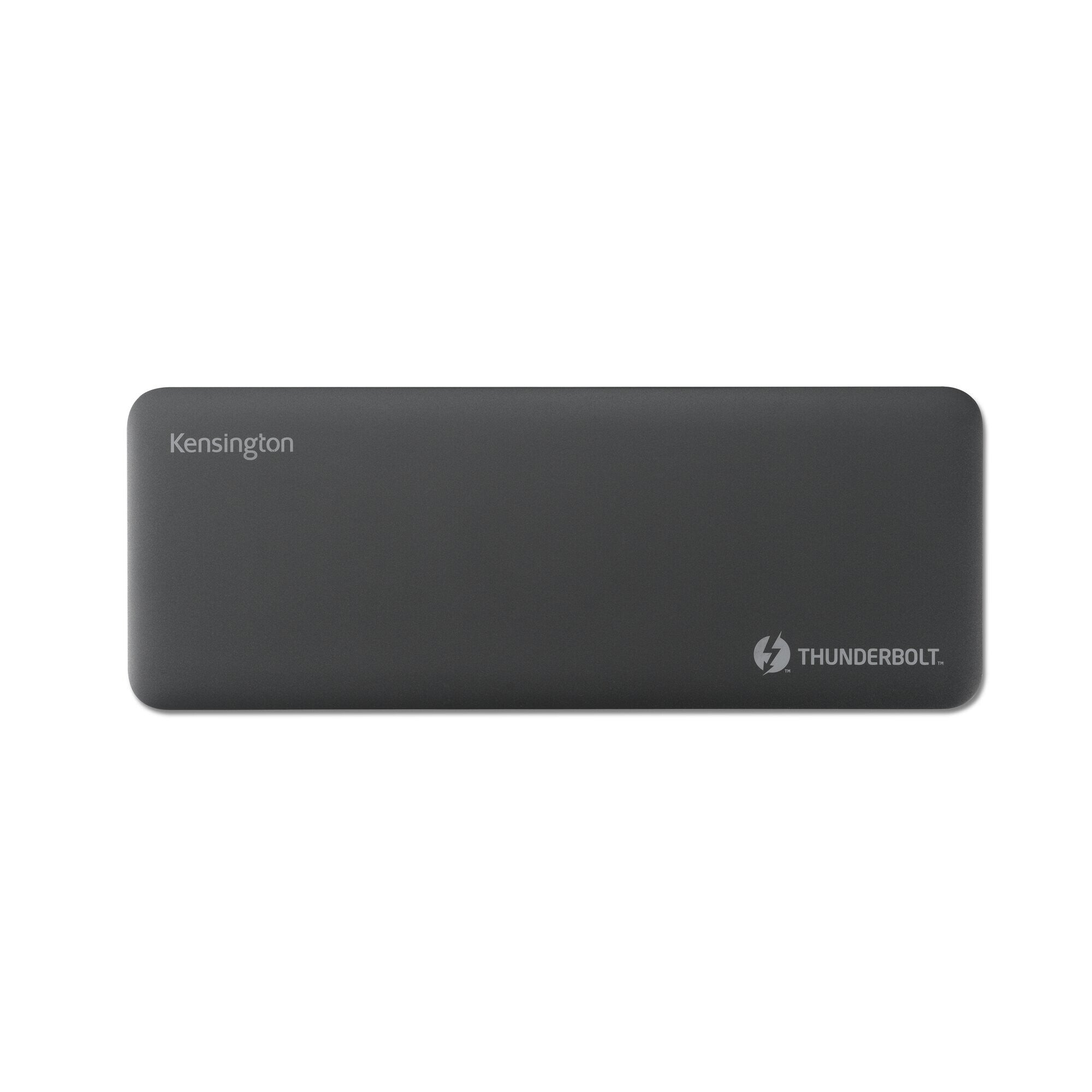

- Composed of 100% post-consumer recycled (PCR) aluminium* and delivered in FSC® certified packaging. * The outer casing of the docking station is made of aluminium. The PCBA and any related inner components are not made of aluminium.
- Combines Thunderbolt™ with DisplayLink® to provide next-level productivity experiences, including up to 40Gbps of data, video and audio, daisy chain support, together with Intel VT-d DMA protection.
- Up to 100W Charging (96W certified) to power your laptop and connected accessories.

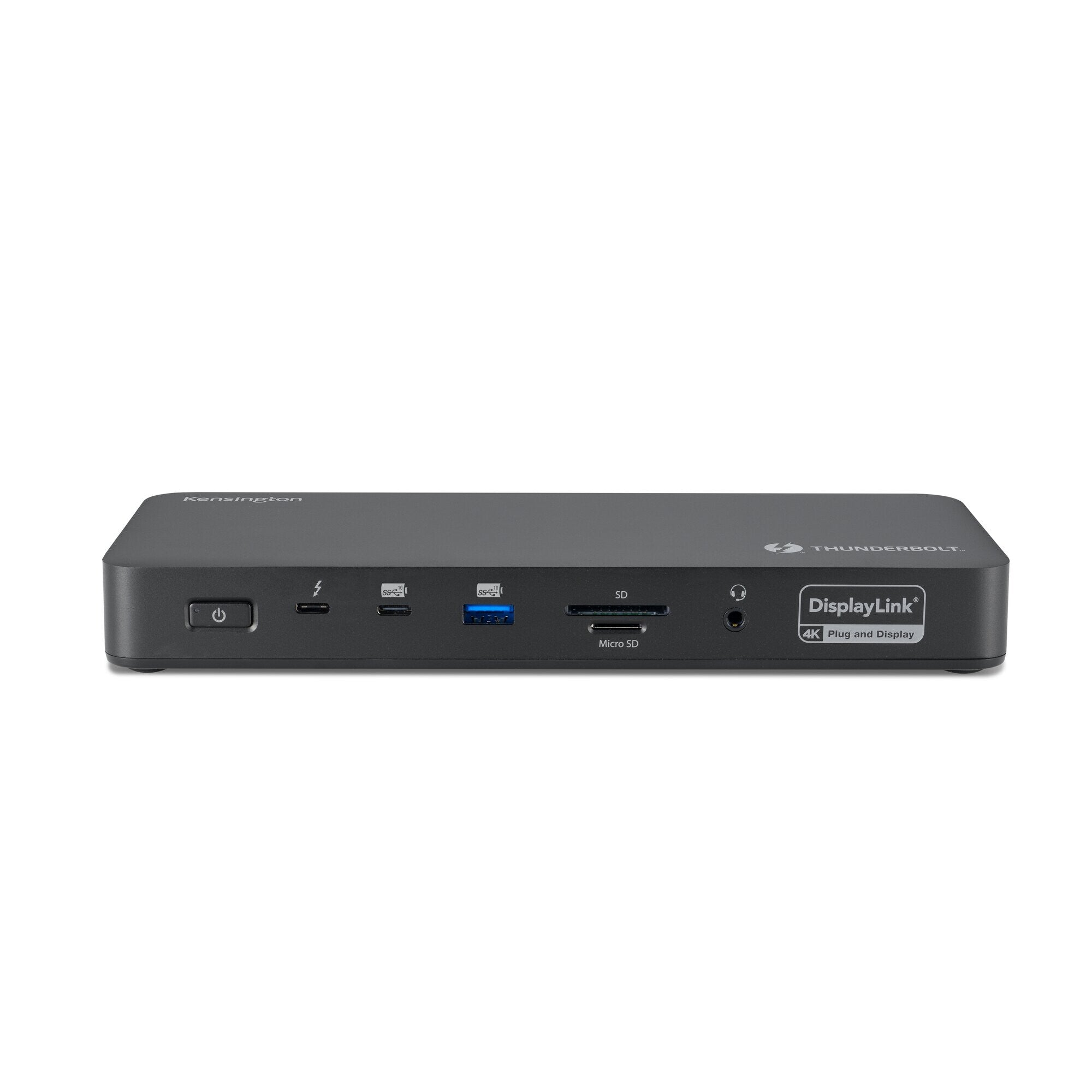

- Productive 16-in-1 design allows users to work more efficiently and connect to a variety of setups.
- Zero-footprint mounting option support a tidier workspace.

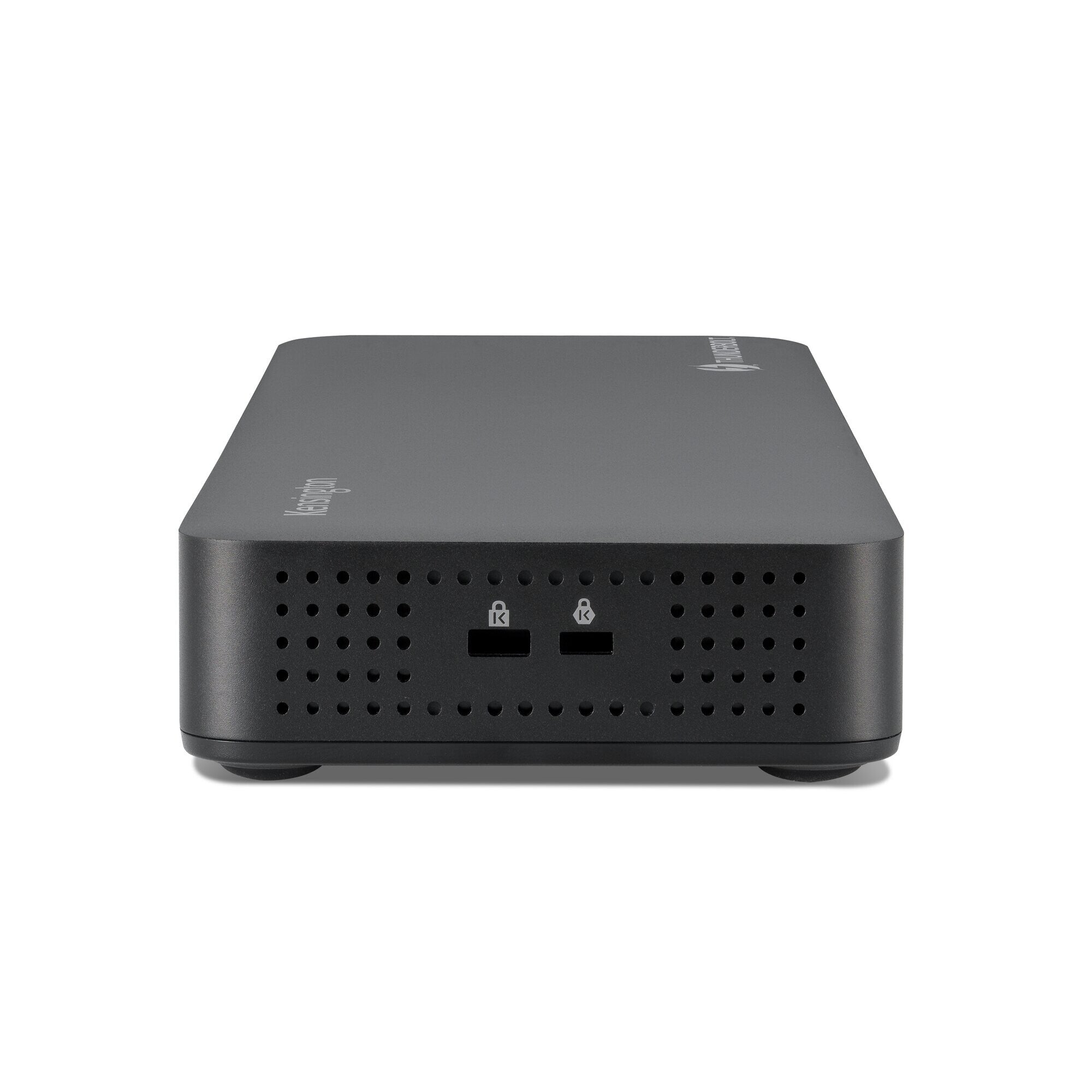

- Security cable lock slots support device protection.
- 3-Year limited warranty.

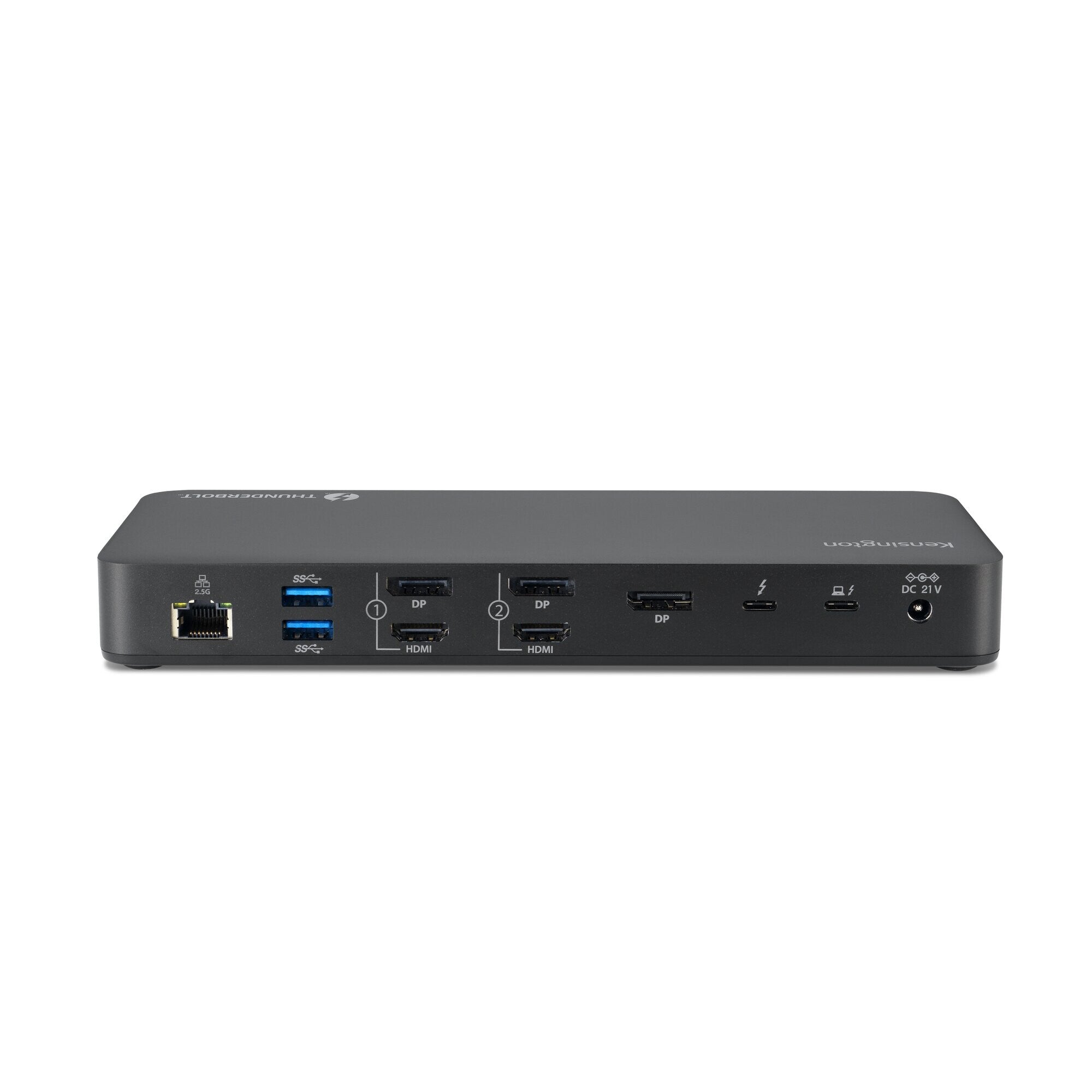

Supporting up to four external displays on laptops running Windows, macOS and ChromeOS, the SD5920T EQ Thunderbolt™ 4 Quad 4K Hybrid Dock with DisplayLink® Technology is a versatile docking station for unlocking the full potential of Thunderbolt™ 4, Thunderbolt™ 3, USB4® and USB-C® devices. Flexible video connections include 2 x HDMI®/DP ports, 1 x DP port and 1 x Thunderbolt™ 4 port, supporting up to Quad 4K @ 60Hz. Focused on productivity, the SD5920T supports up to 100W Charging (96W certified) to the laptop, 40Gbps data transfer speeds and includes 16 connectivity ports. Partially made with recycled materials. Includes security cable lock slots and 3-year limited warranty. * For MacBook M1/M2/M3/M4 with Pro and Max chipsets (and M3 base chipset when laptop lid is closed), this dock supports up to quad 4K @ 60Hz. It also supports up to triple 4K @ 60Hz for M1/M2 base chipsets.
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 2 |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 2 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 96 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Host interface | Thunderbolt 4 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Country of origin | Vietnam |
| LED indicators | Yes |
| Plug and Play | Yes |
| Housing material | Aluminium, Plastic |
| On/off switch | Yes |
| Cable lock slot type | Nano, Kensington |
| Cable lock slot | Yes |
| Number of displays supported | 4 |
| Maximum digital resolution | 7680 x 4320 pixels |
| HD type | 8K Ultra HD |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Output voltage | 21 V |
| Output current | 7.1 A |
| Input current | 2.5 A |
| AC input voltage | 100 - 240 V |
| Power source type | DC |
| Software | |
|---|---|
| Other operating systems supported | ChromeOS |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 55% |
| Storage temperature (T-T) | -18 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 600 g |
| Height | 22 mm |
| Depth | 85 mm |
| Width | 2250 mm |
| Packaging data | |
|---|---|
| Package weight | 1.5 kg |
| Package height | 94 mm |
| Package depth | 107 mm |
| Package width | 245 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|

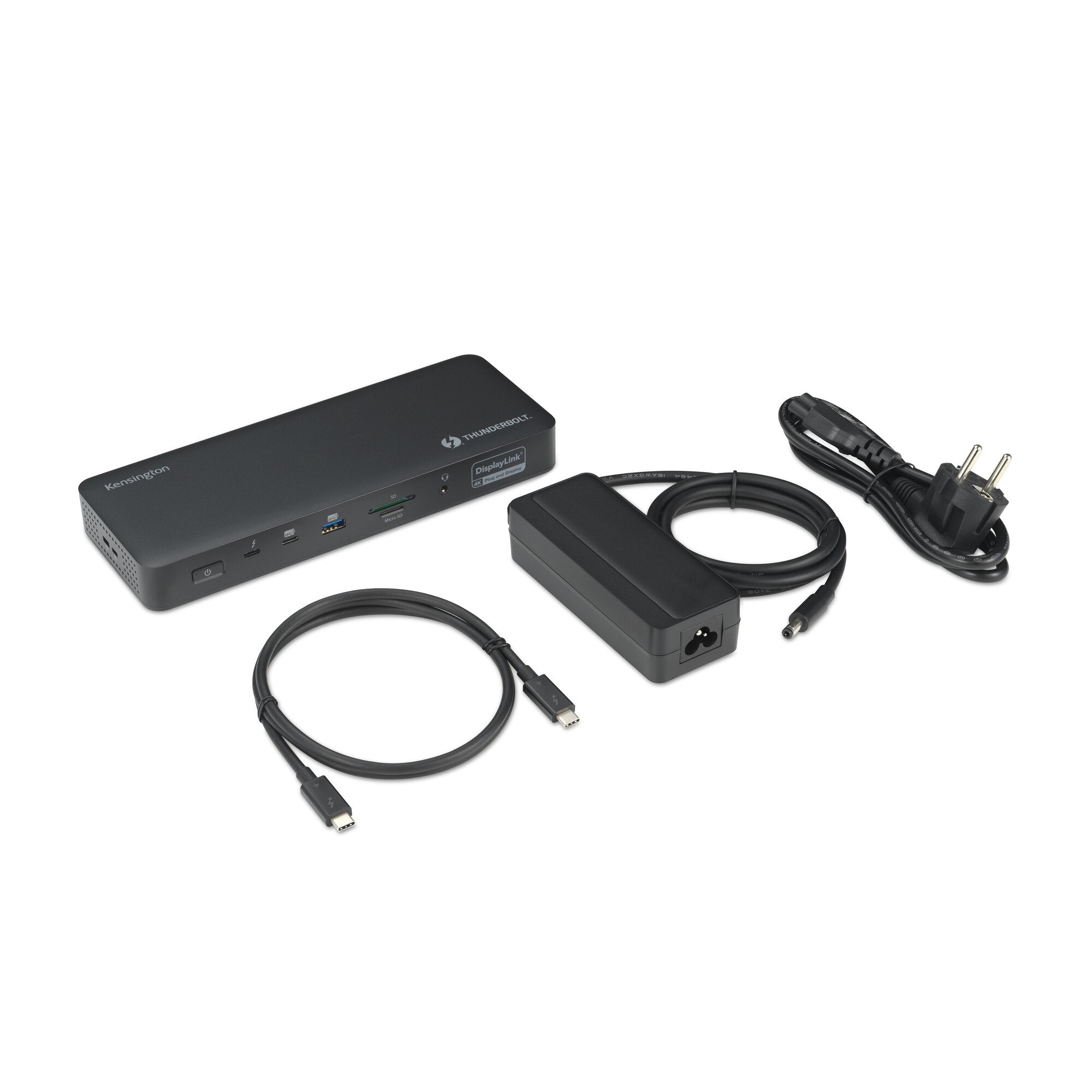

| Cables included | AC, Thunderbolt |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 9.63 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 495 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 9.63 kg |
| Other features | |
|---|---|
| USB ports quantity | 4 |
| Special features | EQ |
| Compatible operating systems | Windows 10 or above; Chrome OS 116 or above; macOS 11 or above |
