Kensington AD4010T4 Thunderbolt 4 and USB4 Quad Video Docking Station - 98W PD - DP/HDMI - Windows/macOS
Couldn't load pickup availability
- Plug-and-play solution for Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices running Windows (10 or later) or macOS (11 or later).
- Transfers 40Gbps of data, video, and audio.

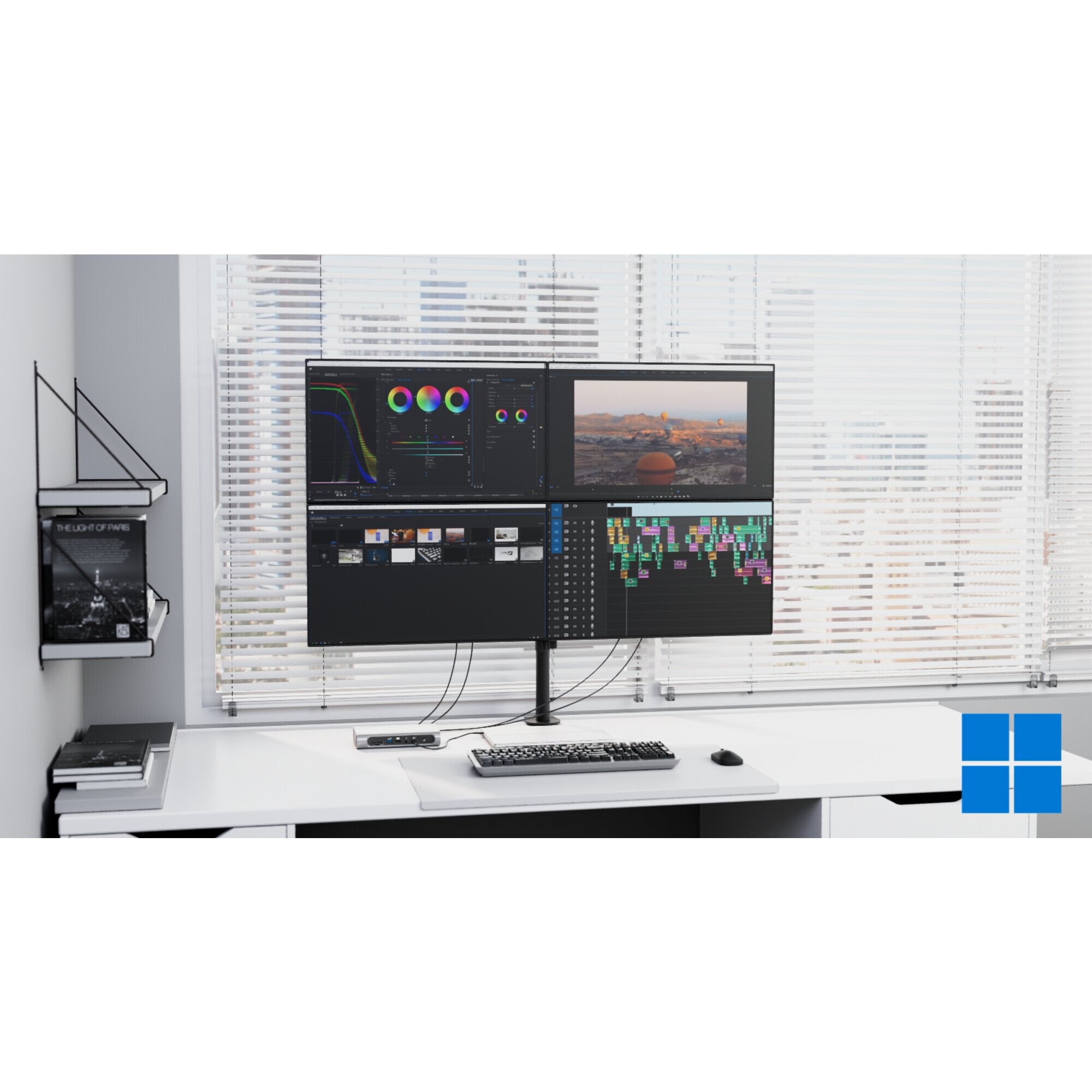

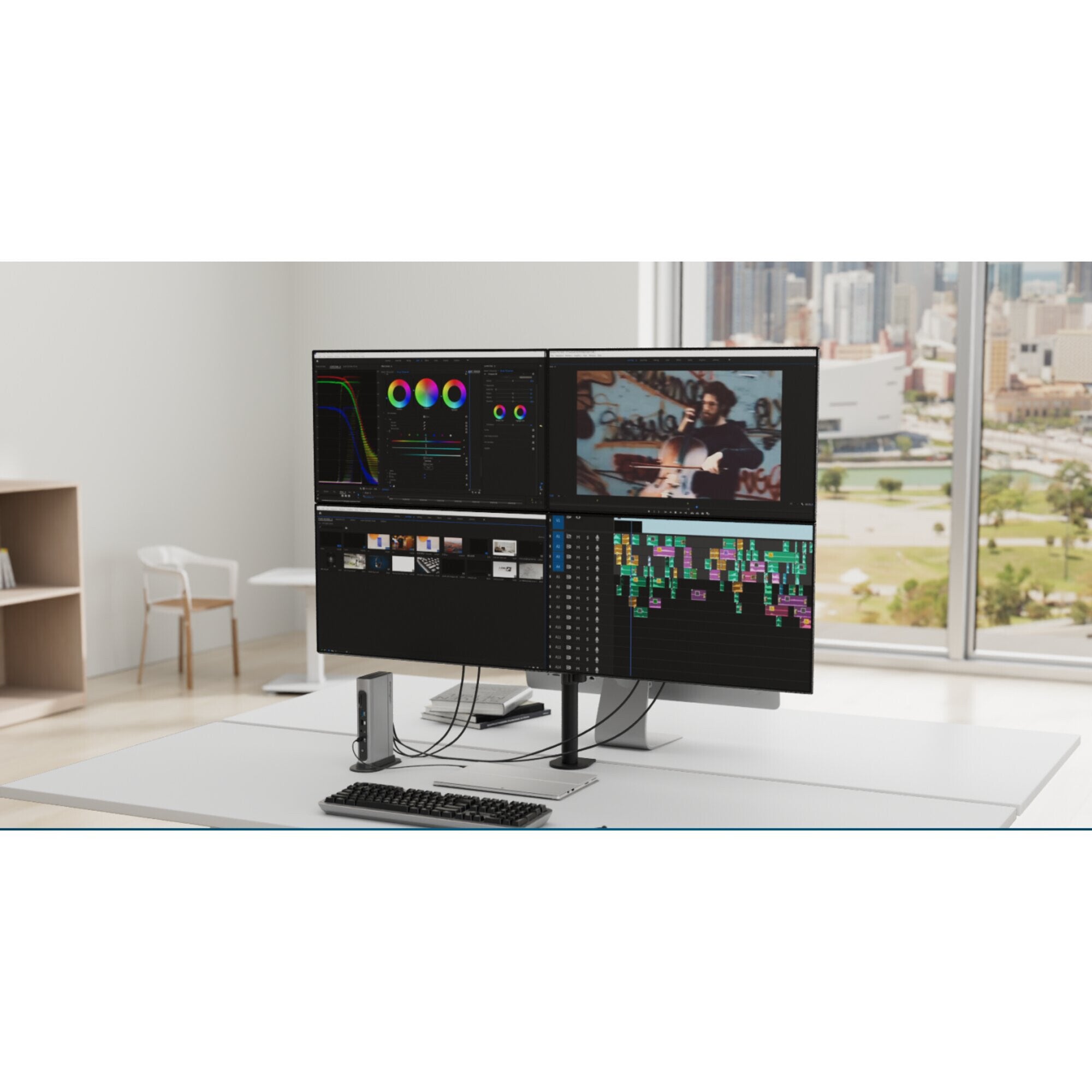

- Supports up to Quad 4K video for Windows and up to Dual 6K for MacBook.
- Delivers up to 98W Power Delivery to the host and connected accessories.

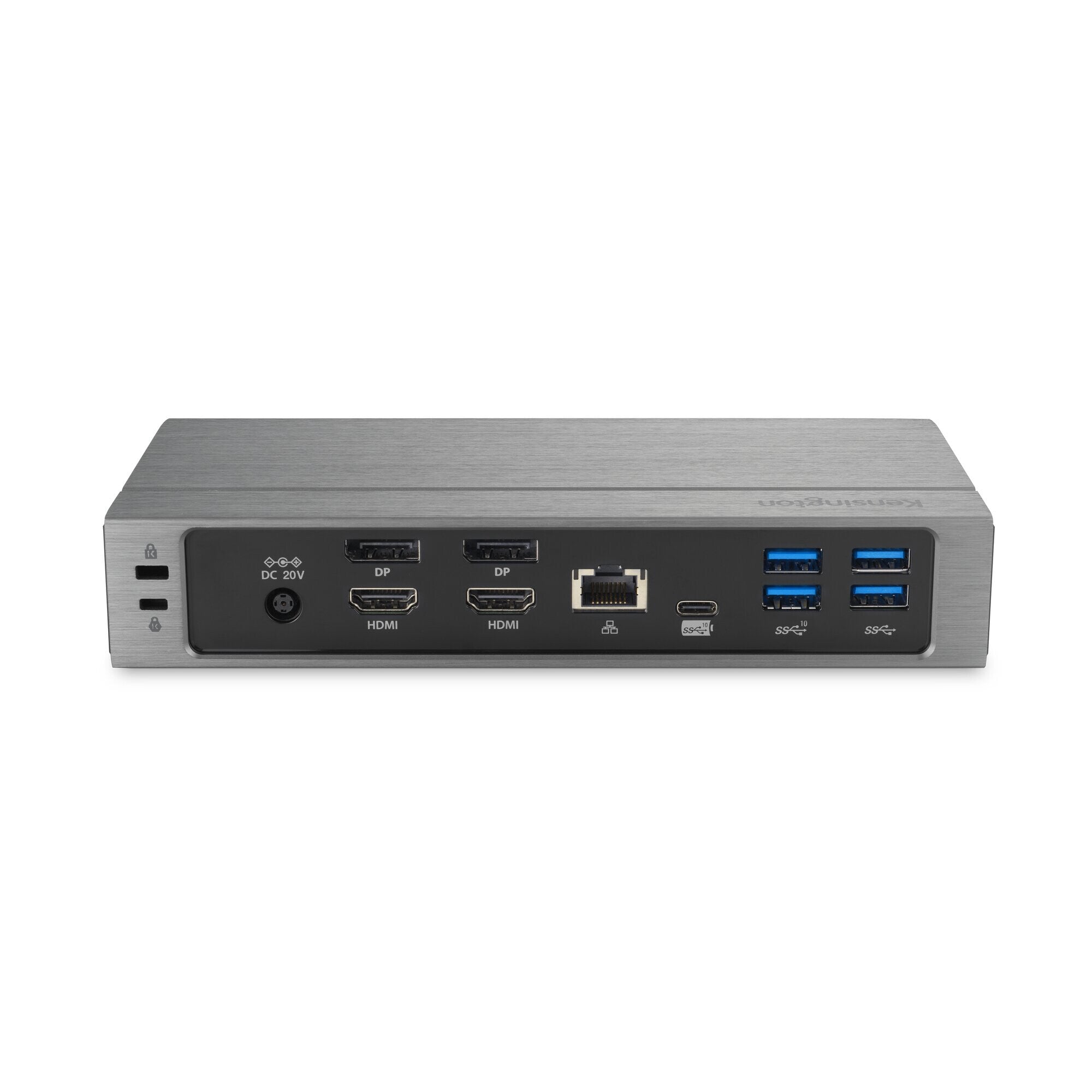

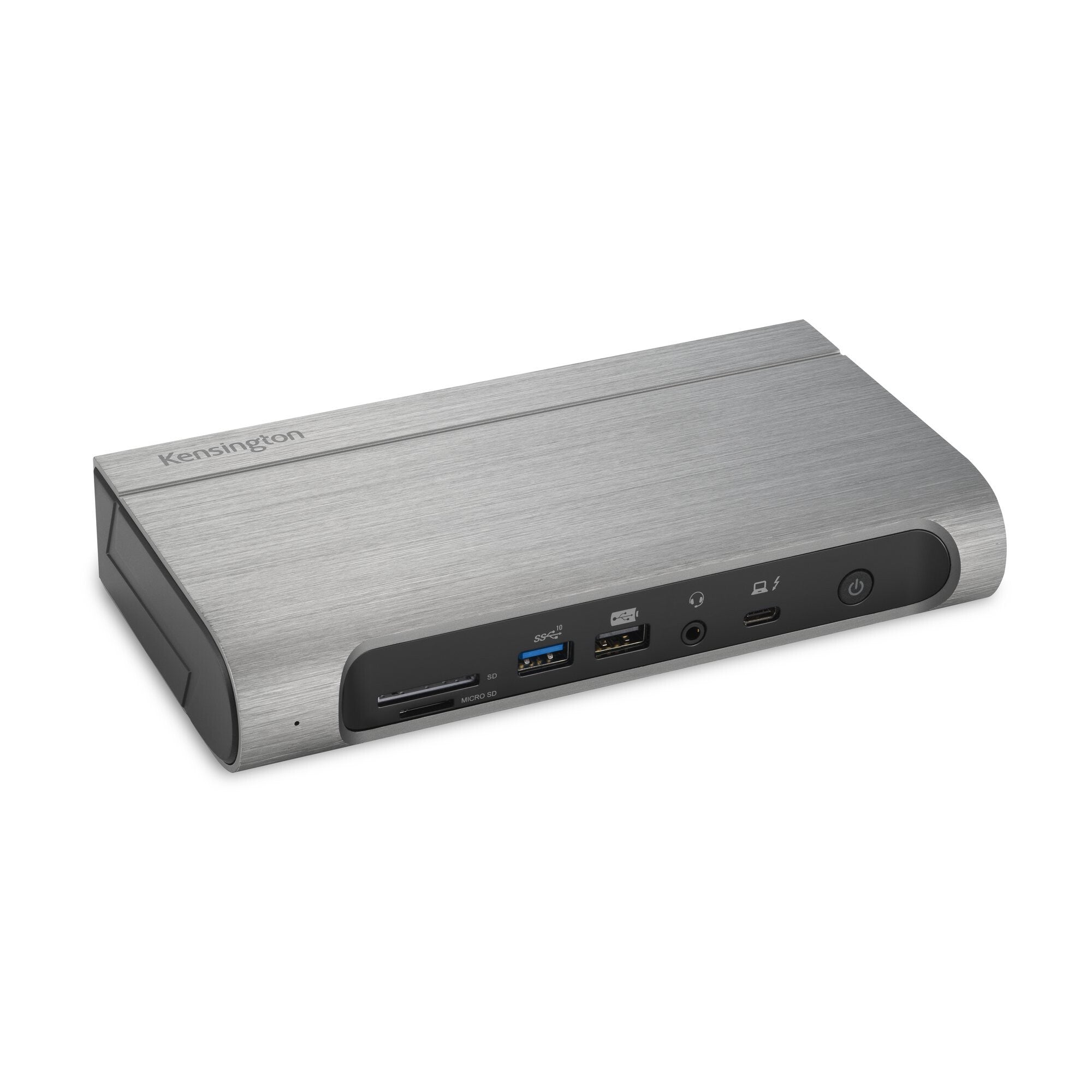

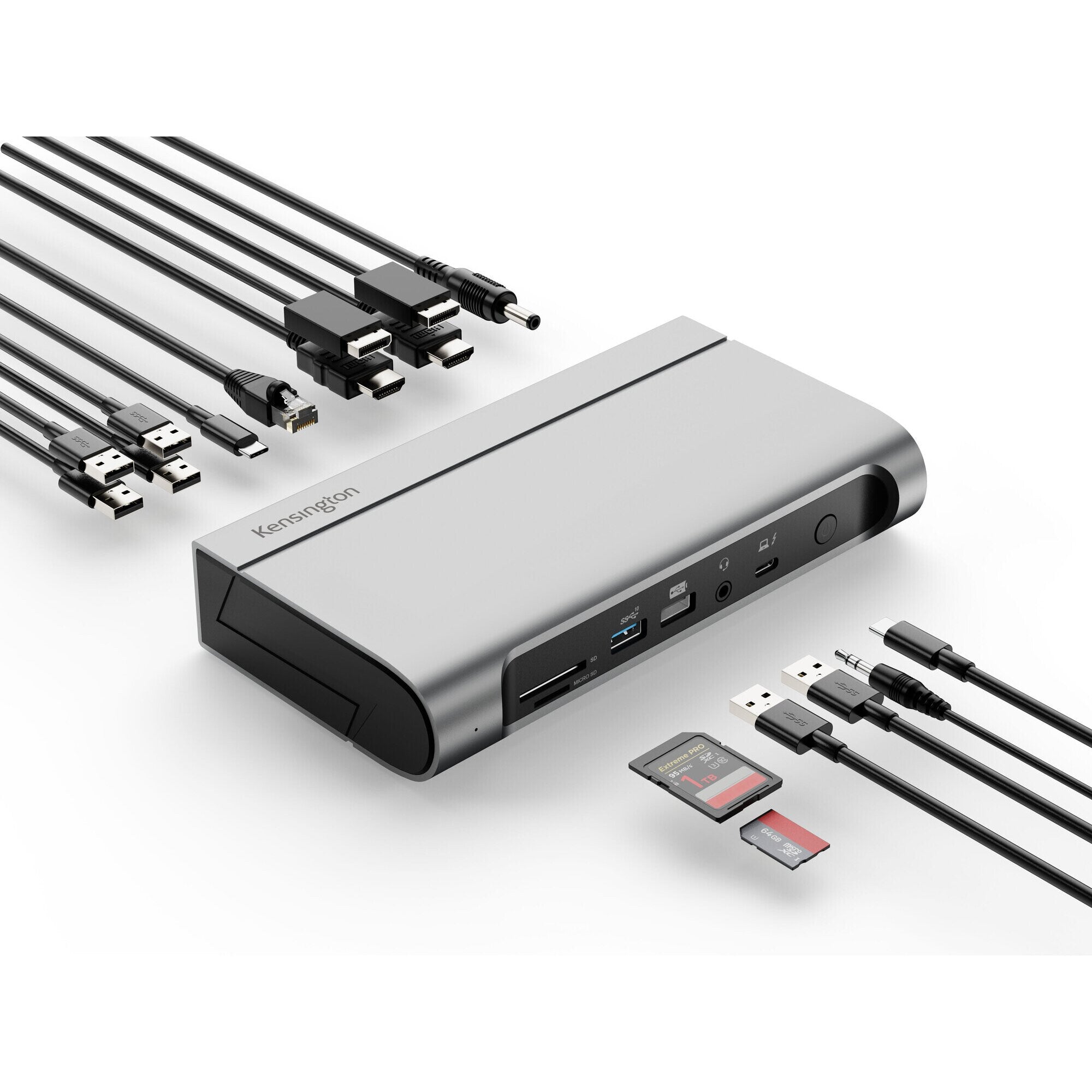

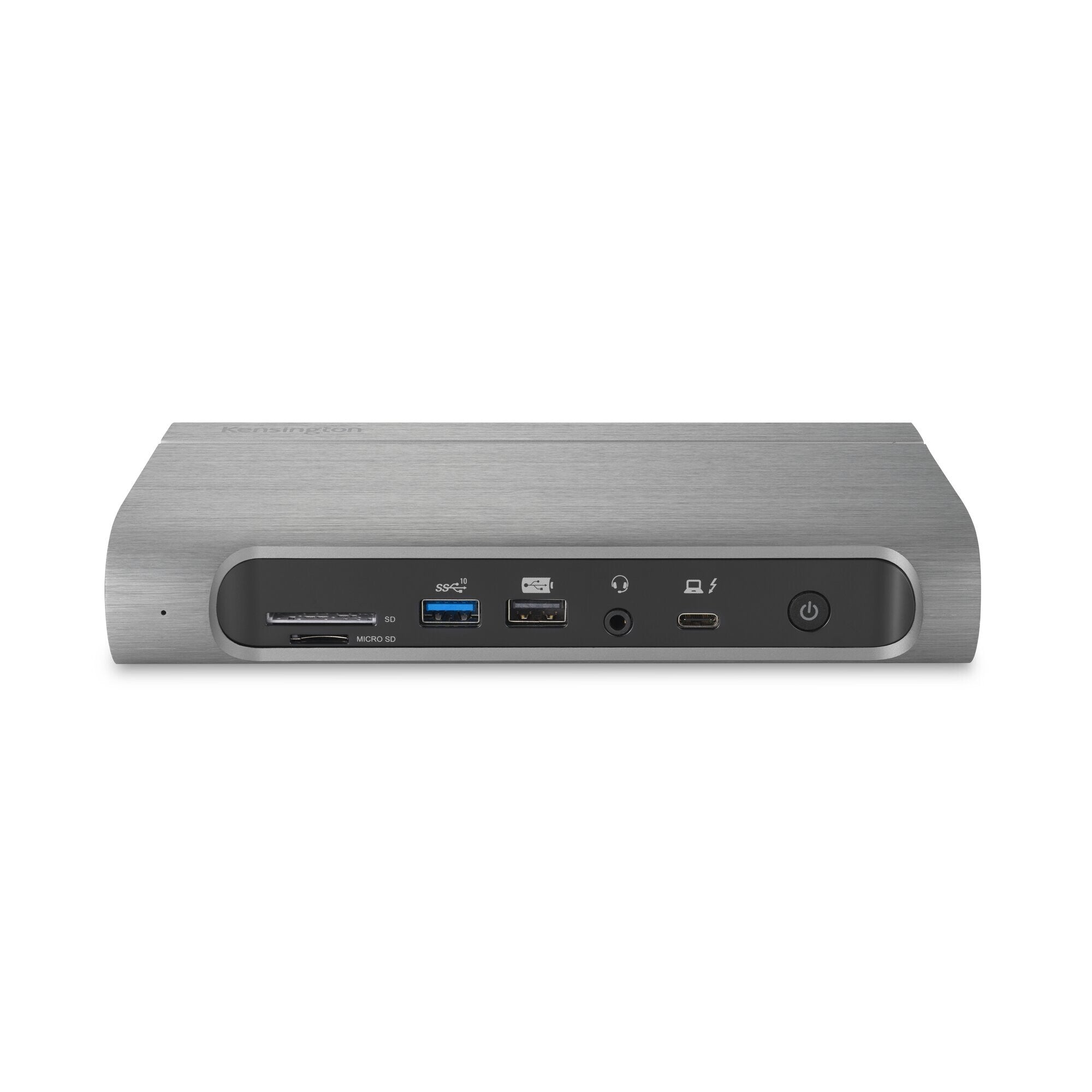

- Includes 16 productivity ports—2 x HDMI, 2 x DP, 1 x Thunderbolt™ host, 1 x USB-C®, 6 x USB-A, 1 x SD Card Reader, 1 x Micro Card Reader, 1 x combo audio jack, and 1 x 2.5Gbps Ethernet.
- Transfers files at ultra-fast speeds via built in UHS-II SD and Micro SD card readers.
- Supports Zero-Footprint Mounting and includes Kensington Security Cable Lock Slots.
- Includes 3-year limited warranty and Kensington DockWorks™ Software.

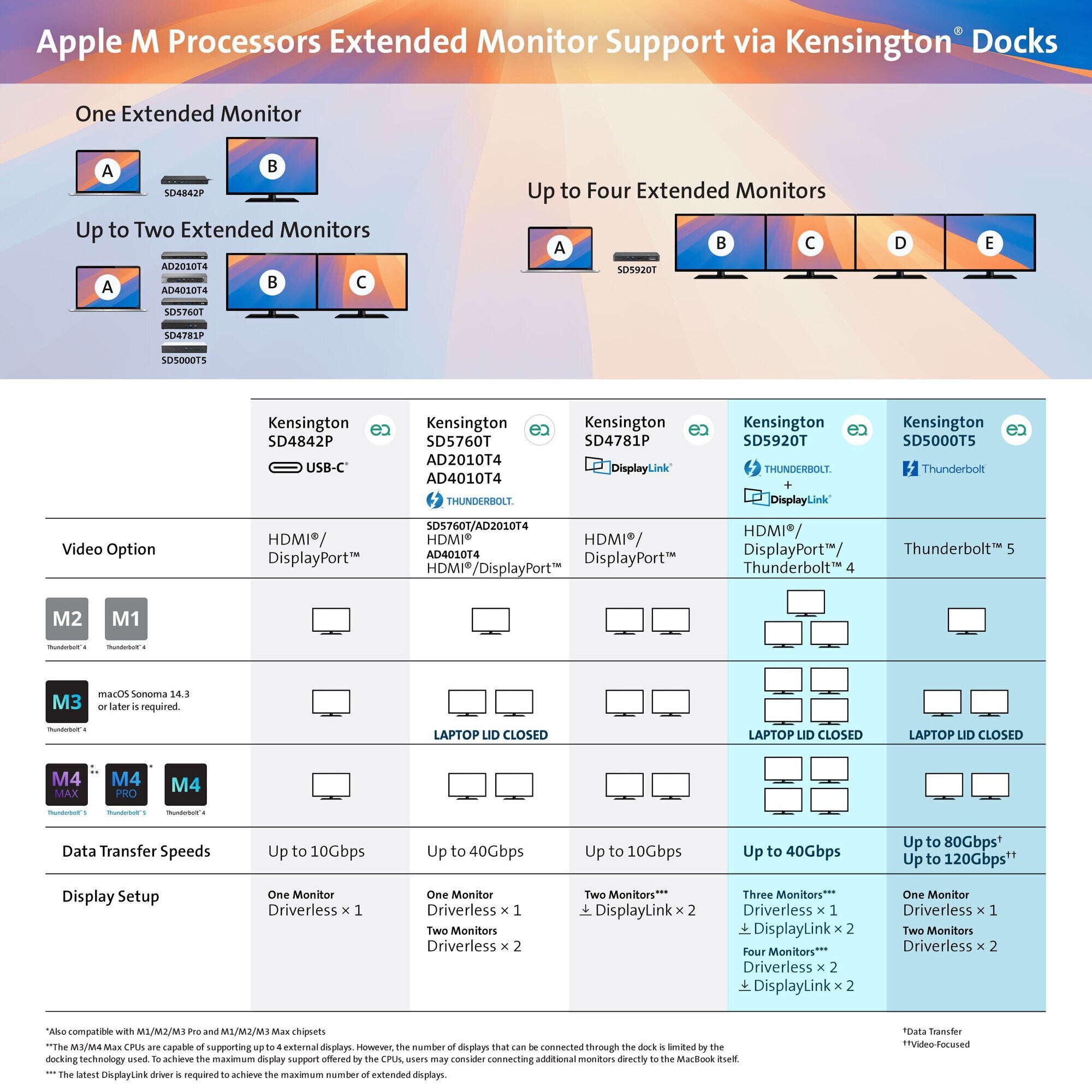

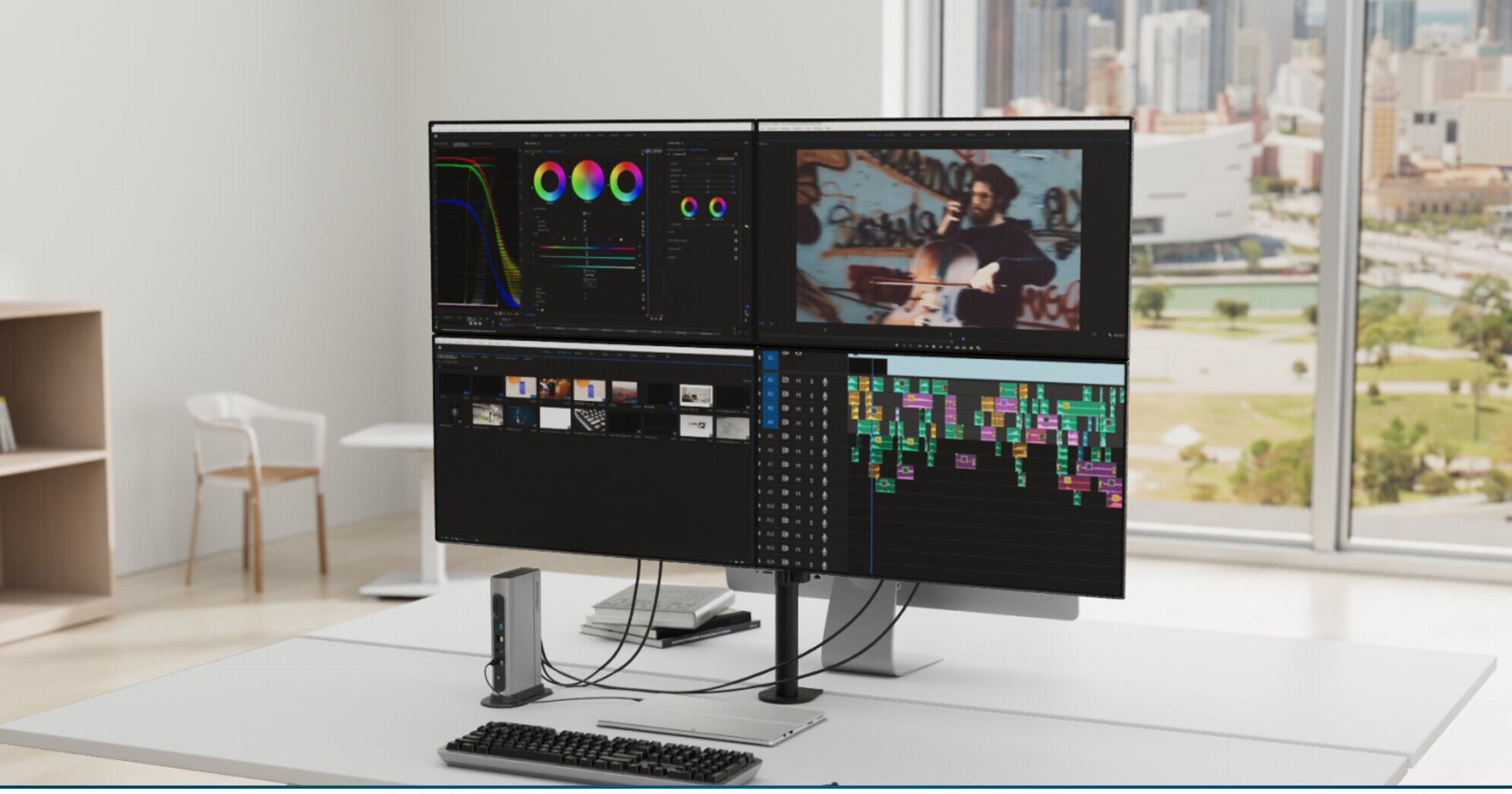

The AD4010T4 Thunderbolt™ 4 and USB4® Quad Video Docking Station offers a powerful experience that unlocks the full potential of premium laptops. Providing a true plug-and-play experience with no drivers or downloads required, the AD4010T4 works with Windows and macOS, as well as Thunderbolt™ 4, Thunderbolt™ 3, USB4®, and USB-C® devices. Two HDMI® and two DP ports support Quad 4K @ 60Hz with DSC enabled for Windows laptops and Dual 6K @ 60Hz for MacBook models with M1 Pro, M1 Max, M2 Pro, and M2 Max chipsets. Focused on productivity, the AD4010T4 supports up to 98W Power Delivery, 40Gbps data transfer speeds, and includes 16 connectivity ports. Includes Kensington DockWorks™ Software and 3-year limited warranty.
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Thunderbolt 4 ports quantity | 1 |
| Thunderbolt 3 Power Delivery | Yes |
| DisplayPort version | 1.4 |
| DisplayPorts quantity | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Host interface | Thunderbolt 4 |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Brand compatibility | Universal |
| Plug and Play | Yes |
| Cable lock slot type | Nano, Kensington |
| Cable lock slot | Yes |
| Number of displays supported | 4 |
| HD type | 8K Ultra HD |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | SD |
| Card reader integrated | Yes |
| Product colour | Grey |
| Power | |
|---|---|
| Power connector | USB Type-C |
| Power source type | DC |
| Software | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Packaging data | |
|---|---|
| Package weight | 1.89 kg |
| Package height | 36 mm |
| Package depth | 195 mm |
| Package width | 104 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 12.1 kg |
| Products per master (outer) case | 6 pc(s) |
| Master (outer) case width | 290 mm |
| Master (outer) case length | 525 mm |
| Master (outer) case height | 200 mm |
| Master (outer) case gross weight | 12.1 kg |
| Other features | |
|---|---|
| USB ports quantity | 7 |
| Compatible operating systems | Windows 10 or above; macOS 11 or above |
