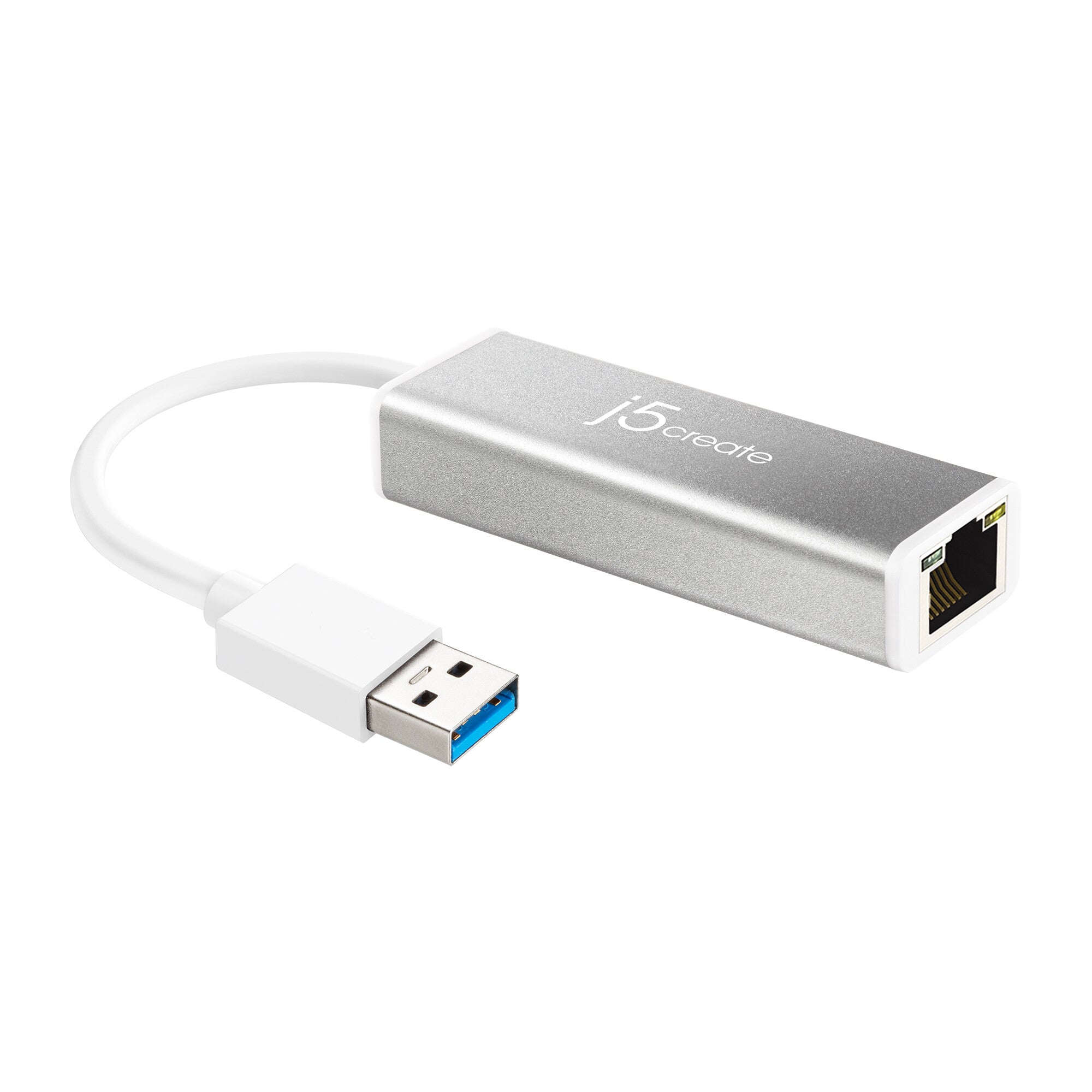

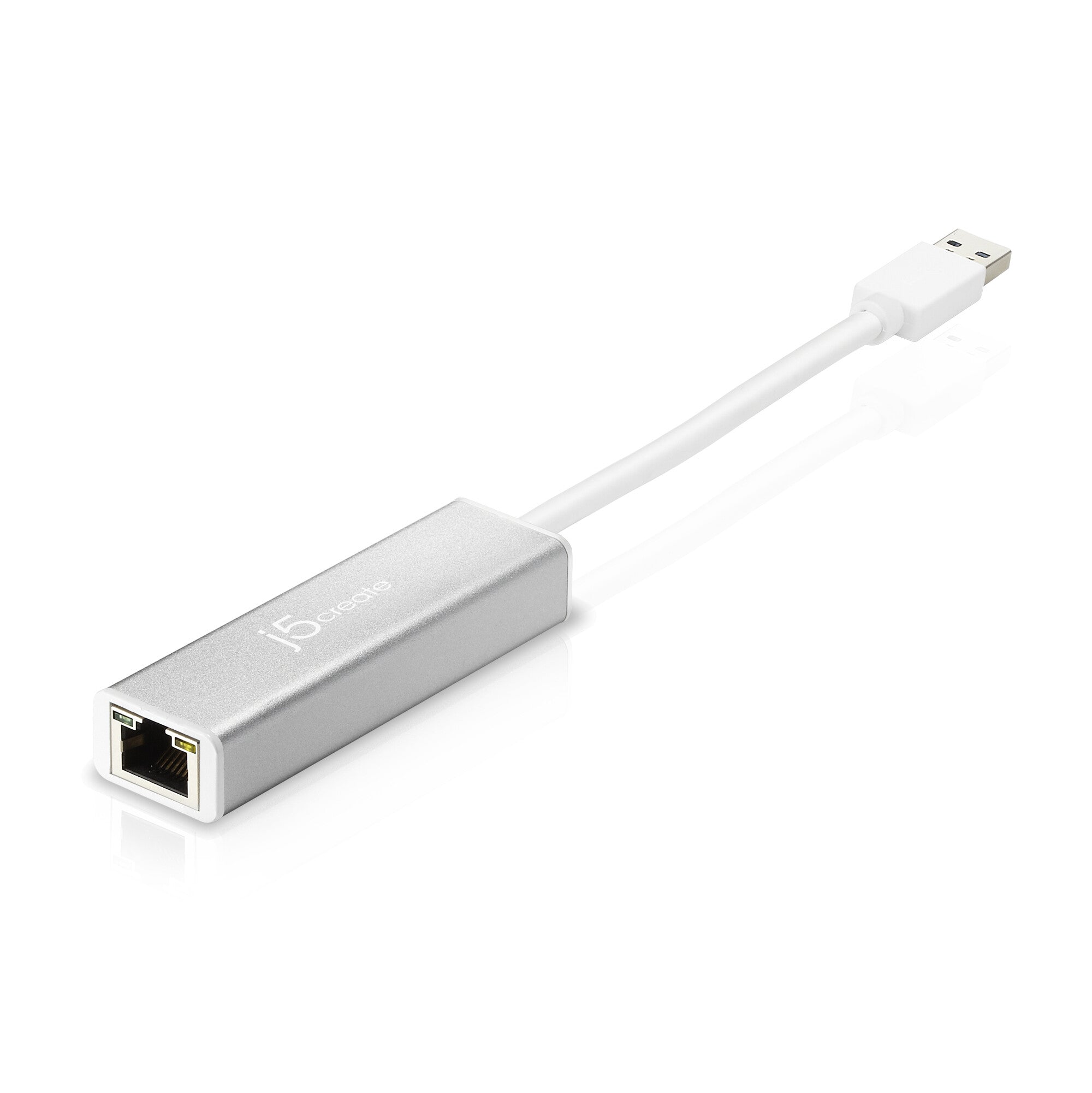

j5create JUE130 USB™ 3.0 Gigabit Ethernet Adapter, Silver and White
Couldn't load pickup availability
- Instant connection to a wired network over USB™
- USB™ 3.0 provides up to 5 Gbps transfer rate, which is 10x faster than USB™ 2.0
- Backwards compatible with USB™ 3.0, 2.0, and 1.1 hosts and devices
- LED activity indicator
The USB™ 3.0 Gigabit Ethernet Adapter gives you the ability to add a Gigabit Ethernet port to your laptop or MacBook® though a single USB™ 3.0 Type-A port, supporting 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3/az/u/ab/x standards.
This ethernet adapter provides full gigabit bandwidth and offers backward compatibility with USB™ 2.0. It also supports features such as IPv4/IPv6/TCP/UDP packet Checksum Offload Engine (COE) and TCP Large Send Offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation, VLAN tagging and 2 VLAN ID filtering are also supported, making this an ideal replacement LAN adapter or laptop accessory in areas without Wi-Fi® or if you just want to increase your Internet speed.
| Ports & interfaces | |
|---|---|
| Host interface | USB |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Compatibility | Backwards compatible with USB™ 3.0, 2.0, and 1.1 hosts and devices, Instant connection to a wired network over USB™Devices include:Macbook™ Pro (Up to model year 2015)Macbook™ Air (Up to model year 2017)Surface Pro™ 7Surfacebook™ |
| Country of origin | Taiwan |
| LED indicators | Activity, Link |
| Housing material | Aluminium |
| Data transfer rate | 5 Gbit/s |
| Product colour | Silver, White |
| Power | |
|---|---|
| Power consumption (typical) | 1 W |
| Output voltage | 5 V |
| Output current | 0.2 A |
| Software | |
|---|---|
| Other operating systems supported | ChromeOS |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -42 - 82 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 35 g |
| Height | 23 mm |
| Depth | 14.5 mm |
| Width | 68 mm |
| Packaging data | |
|---|---|
| Package weight | 76.5 g |
| Package height | 25 mm |
| Package depth | 97 mm |
| Package width | 120 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Batteries included | No |
| Quick start guide | Yes |
| Packaging content | 1 x JUE130 USB™ 3.0 Gigabit Ethernet Adapter, 1 x Quick Installation Guide, 1 x Driver Installation CD |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795080241 |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 280 mm |
| Master (outer) case length | 210 mm |
| Master (outer) case height | 145 mm |
| Master (outer) case gross weight | 2.17 kg |
| Other features | |
|---|---|
| Contents | 1 x JUE130 USB™ 3.0 Gigabit Ethernet Adapter, 1 x Quick Installation Guide |
| Interface | Ethernet |
| Compatible operating systems | Windows, Mac, Linux |
| Maximum data transfer rate | 1000 Mbit/s |
| Cable type | USB 3.0 |
| Cable length | 0.145 m |
