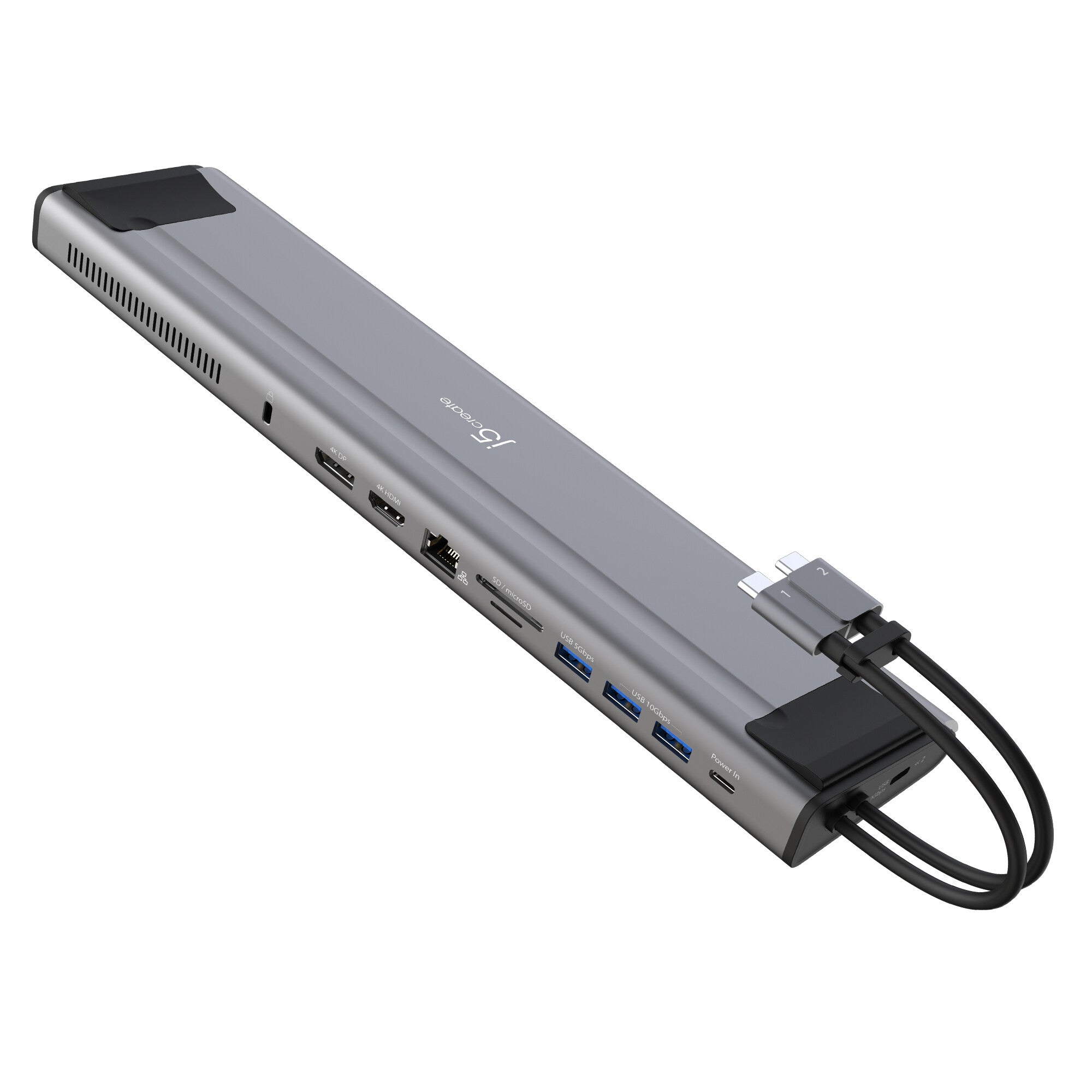

j5create JCD552 M.2 NVMe® USB-C® Gen 2 Docking Station, Silver and Black
Couldn't load pickup availability
- DUAL 4K 60 HZ DISPLAYS: Supports extended dual 4K displays (HDMI™ & DisplayPort™) on Intel® MacBook Pro® and MacBook Air® / Supports single display via HDMI™ on other USB-C® compatible laptops connected via one USB-C® port
- HIGH-PERFORMANCE STORAGE: Built-in M.2 NVMe®/SATA PCIe® SSD Slot (Supports M.2 NVMe® or SATA M key 2230/2242/2260/2280) to expand storage space, convenient SD™ & microSD™ access, and one USB-C® 10 Gbps port to connect an external hard drive
- HIGH-SPEED PERFORMANCE: Provides three SuperSpeed USB™ 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) to connect peripherals
- 100W POWER DELIVERY PASS-THROUGH: Charge your laptop and power connected peripherals when used with a USB-C® power adapter
- DETACHABLE MAGNETIC CONNECTORS: The flexible design gives you the ability to connect to a variety of compatible devices
- ANTI-THEFT PROTECTION: Security slot to prevent equipment theft in a wide range of business or institutional environments
Increase your productivity with the M.2 NVMe USB-C Gen 2 Docking Station, transforming your Thunderbolt 3 or USB-C compatible laptop into a dual 4K workstation with up to 10 Gbps. This high-performance dock features a M.2 NVMe/SATA PCIe SSD Slot to expand your internal storage space, three SuperSpeed USB™ 10 Gbps ports (one USB-C and two USB™ Type-A), a Gigabit Ethernet port, SD & microSD™ memory card reader/writer, and a USB™ Type-A 5 Gbps port.
This USB-C Gen 2 docking station supports 100W Power Delivery pass-through to power and charge your laptop, while powering all connected devices. With the built-in PCIe M.2 SSD enclosure and extra storage you can access through an SD™ and microSD™ card, this is a must-have for creative professionals using a Mac.
Dual 4K Monitor Setup
Supports up to dual 4K @ 60 Hz monitors, allowing resource-demanding applications to run on independent displays without affecting system performance
*Dual displays via two USB-C ports supporting DP Alt Mode or a single 4K HDMI™ display with one USB-C port supporting DP Alt Mode

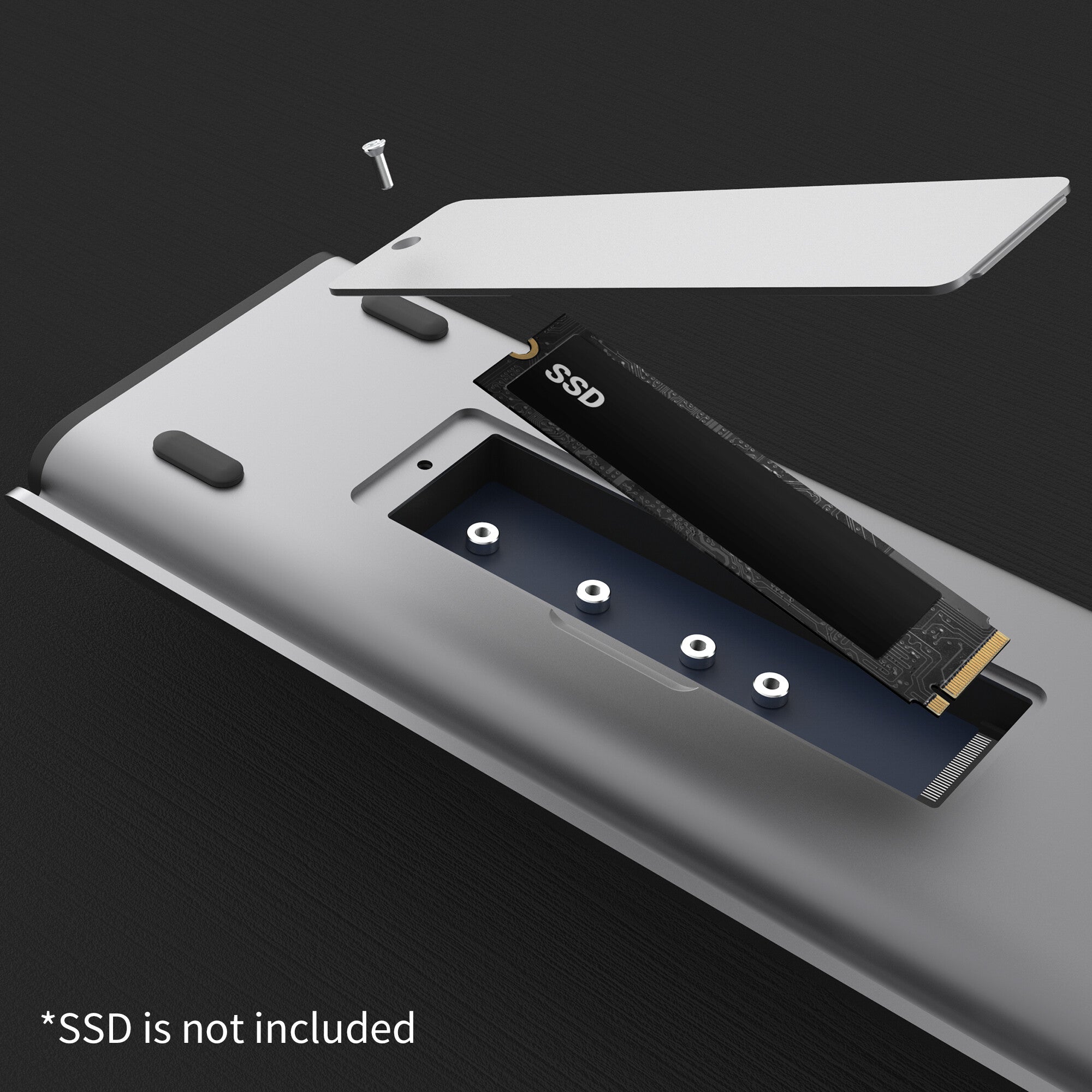

Enhanced Data Storage
Built-in M.2 expansion SSD slot supports 2230, 2242, 2260, and 2280 M.2 NVMe® SSD with ultra-fast read and write speeds
High-Speed Performance
Connect your latest and legacy devices with three SuperSpeed USB™ 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) and a SuperSpeed USB™ 5 Gbps port
100W Power Delivery Pass-Through
Use with a USB-C power adapter for the added ability to charge your laptop and power connected peripherals

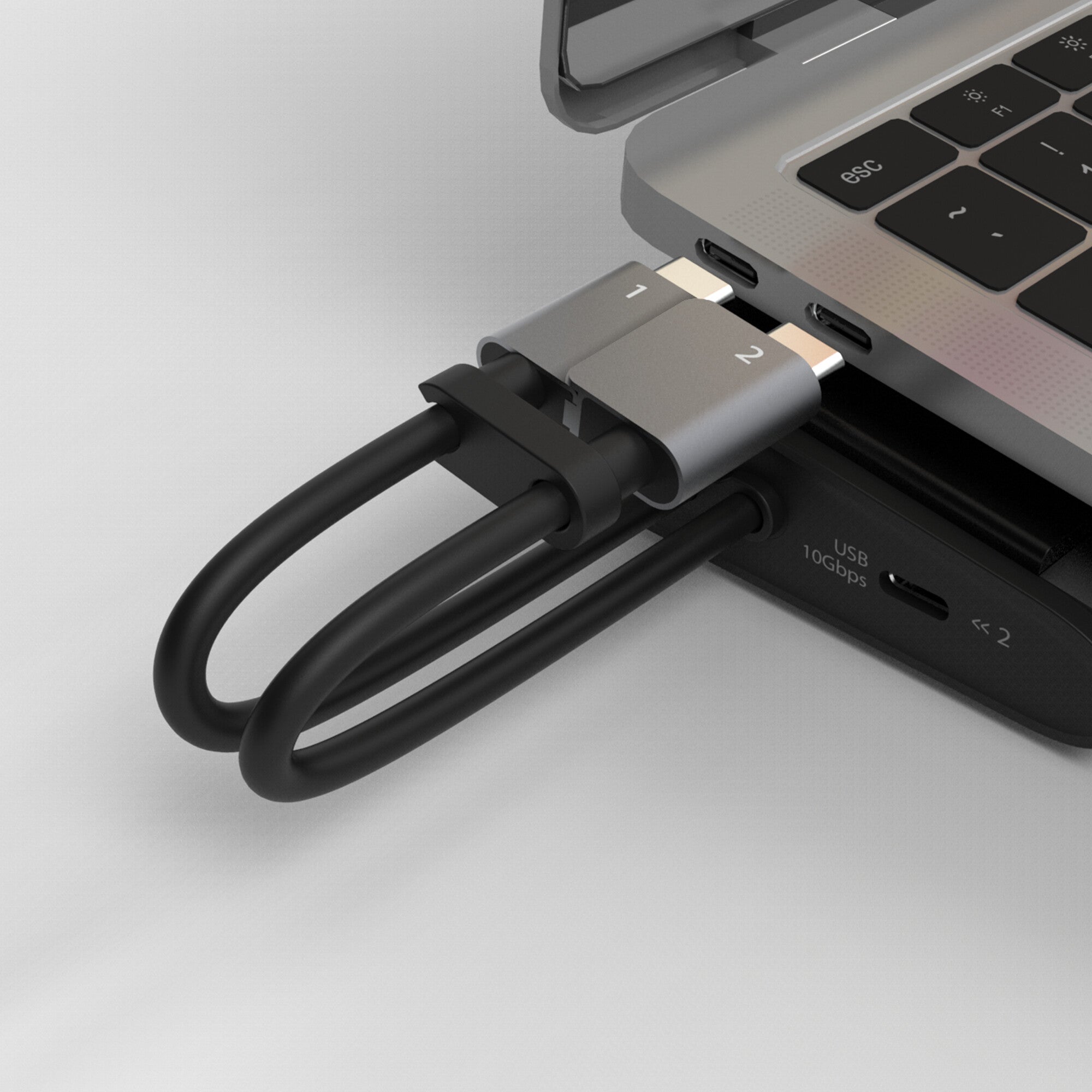

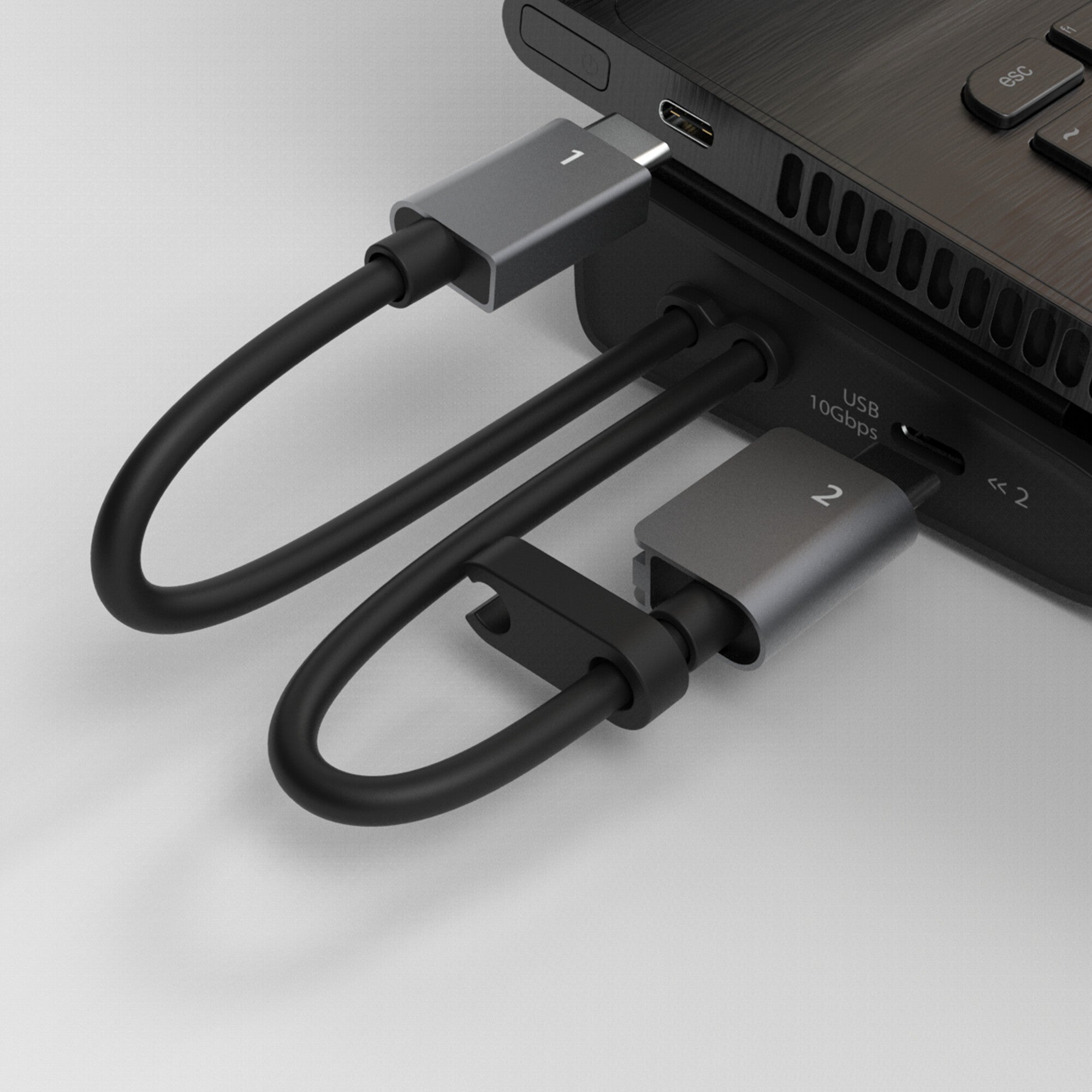

Detachable Magnetic Connectors
Its flexible design and universal USB-C connectors (Thunderbolt 3 compatible) make the docking station compatible with a wide range of devices and operating systems
Flexible Display Connections
DisplayPort alternate mode allows you to connect two 4K 60 Hz displays via HDMI and DisplayPort or add a single 4K HDMI™ display when the docking station is connected to only one USB-C host
Anti-Theft Protection
Security slot to prevent equipment theft in a wide range of business or institutional environments.

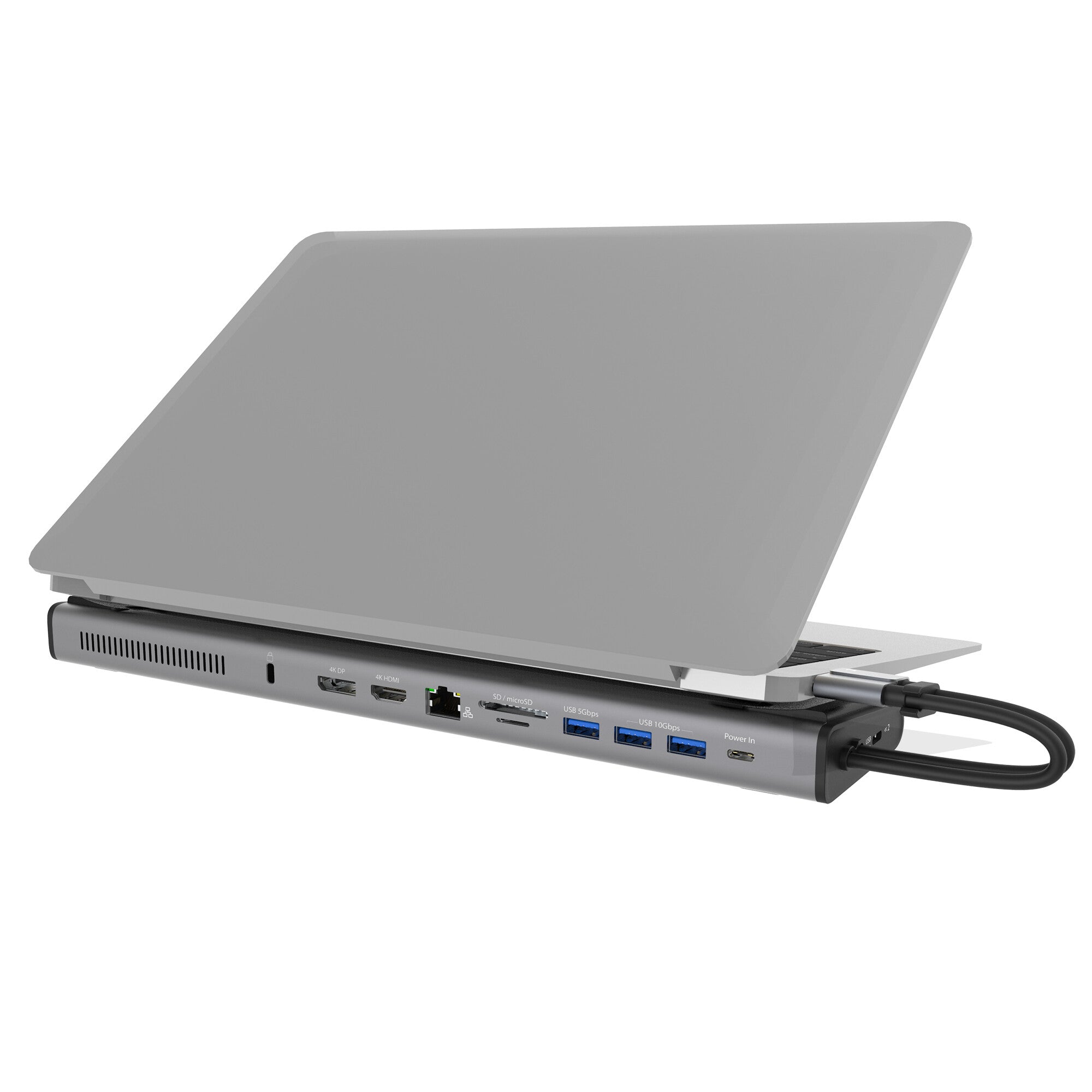

Ideal Accessory for MacBook Pro/Macbook Air
Great for working with graphics-intensive images and video editing
| Ports & interfaces | |
|---|---|
| Microphone in | No |
| DisplayPorts quantity | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Compatibility | Mac / Windows laptop |
| Country of origin | Taiwan |
| Housing material | Aluminium |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 10 Gbit/s |
| NVMe | Yes |
| Supported SSD sizes | M.2 |
| SSD enclosure | Yes |
| Built-in SSD | No |
| Supported storage drive types | SSD |
| Number of storage drives supported | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Colour name | Silver & Black |
| Product colour | Black, Silver |
| Power | |
|---|---|
| Power cable length | 0.15 m |
| USB cable length | 0.15 m |
| Power consumption (typical) | 3.75 W |
| Output voltage | 5 V |
| Output current | 0.75 A |
| Power connector | USB Type-C |
| Power source type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 480.5 g |
| Height | 26 mm |
| Depth | 318 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package weight | 606.5 g |
| Package height | 33 mm |
| Package depth | 377.5 mm |
| Package width | 90 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795086137 |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case width | 150 mm |
| Master (outer) case length | 398 mm |
| Master (outer) case height | 123 mm |
| Master (outer) case gross weight | 2.7 kg |
| Other features | |
|---|---|
| Special features | 12-in-1 functions, M.2 Expansion slot, USB 3.2, HDMI/DP 4K @ 60, 100W power delivery Passthrough |
