j5create JCD395 4K60 Elite Pro USB4® Hub with MagSafe® Kit
Couldn't load pickup availability
- Ultra slim and light weight with a stylish design
- Designed for MacBook Pro® 2021/2022, compatible with MacBook Pro® with Intel® CPU

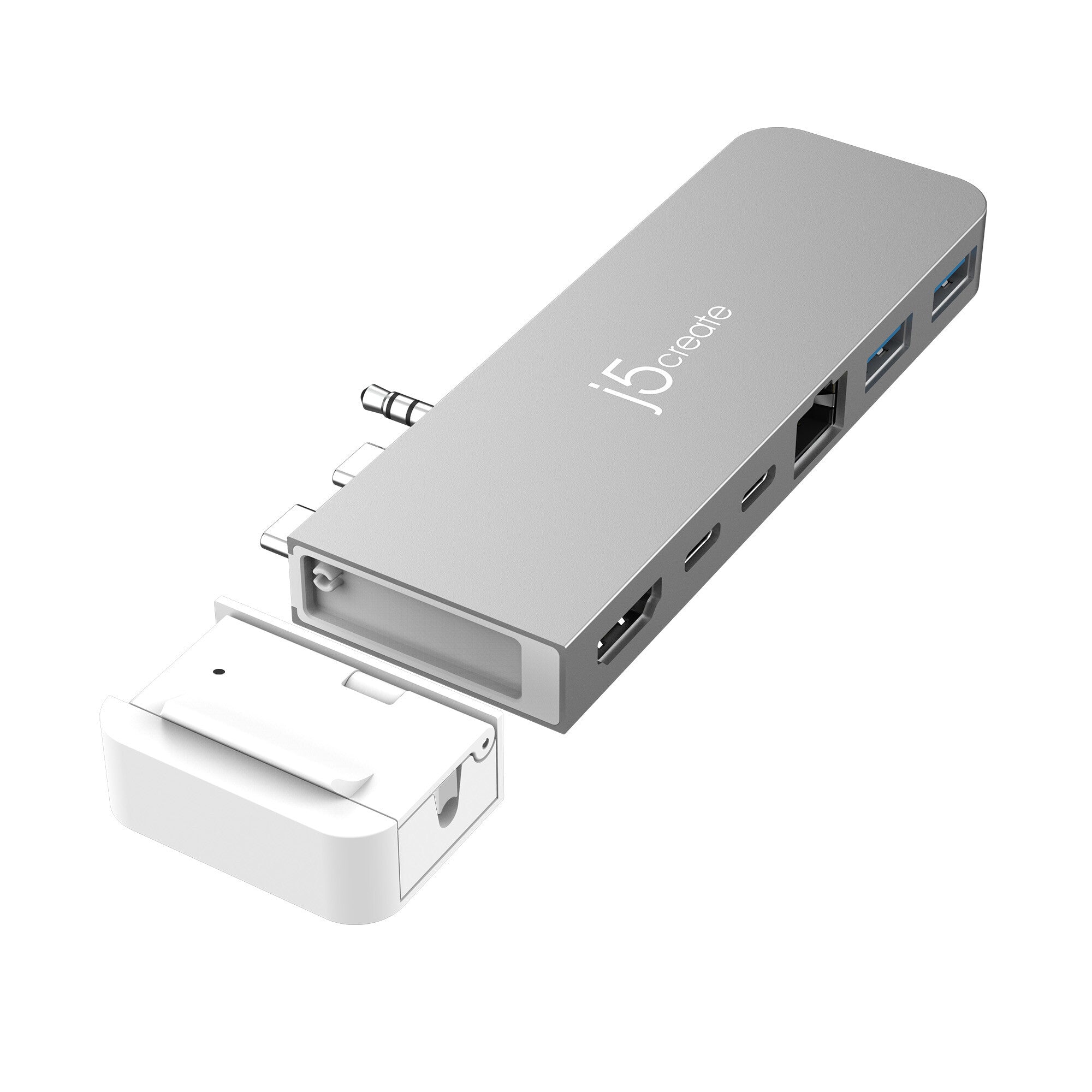

- Magnetic dongle for storage MagSafe® 3

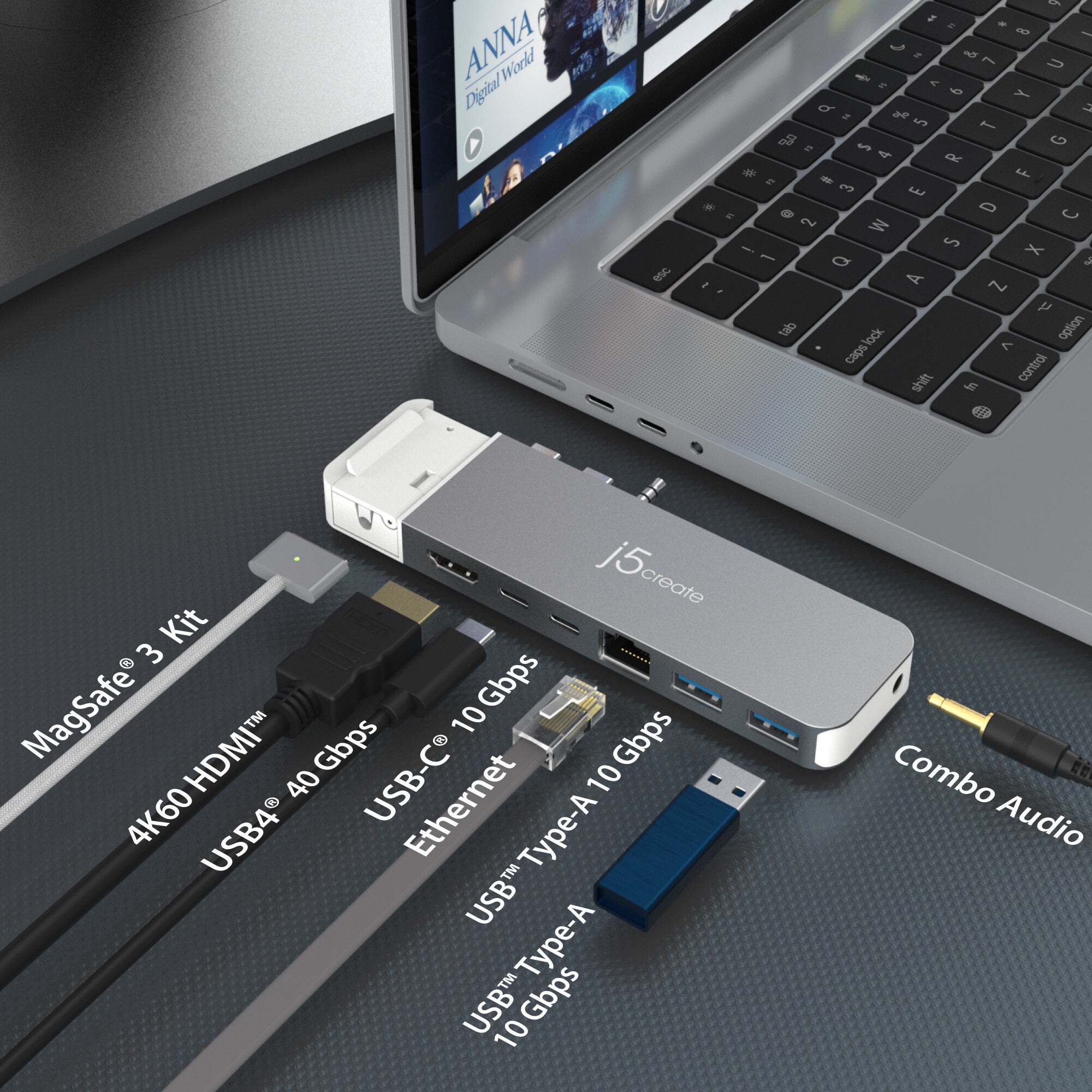

- 1 x USB4® port capable of the following:
- 1) 6K60 resolution display
- 2) 40Gbps data transmission
- 3) PD charging through up to 100W
- Supports HDMI™ resolutions up to 4K @ 60 Hz
- 2 x USB™ Type-A 3.2 Gen 2 ports provide up to 10Gbps transfer speed
- 1 x USB-C® 3.2 Gen 2 ports provide up to 10Gbps transfer speed
- Easily add a wired network connectivity with the Gigabit Ethernet port
- 3.5 mm audio / mic combo jack allows you to connect your headphone set or speakers
- Plug-and-play, no driver installation required

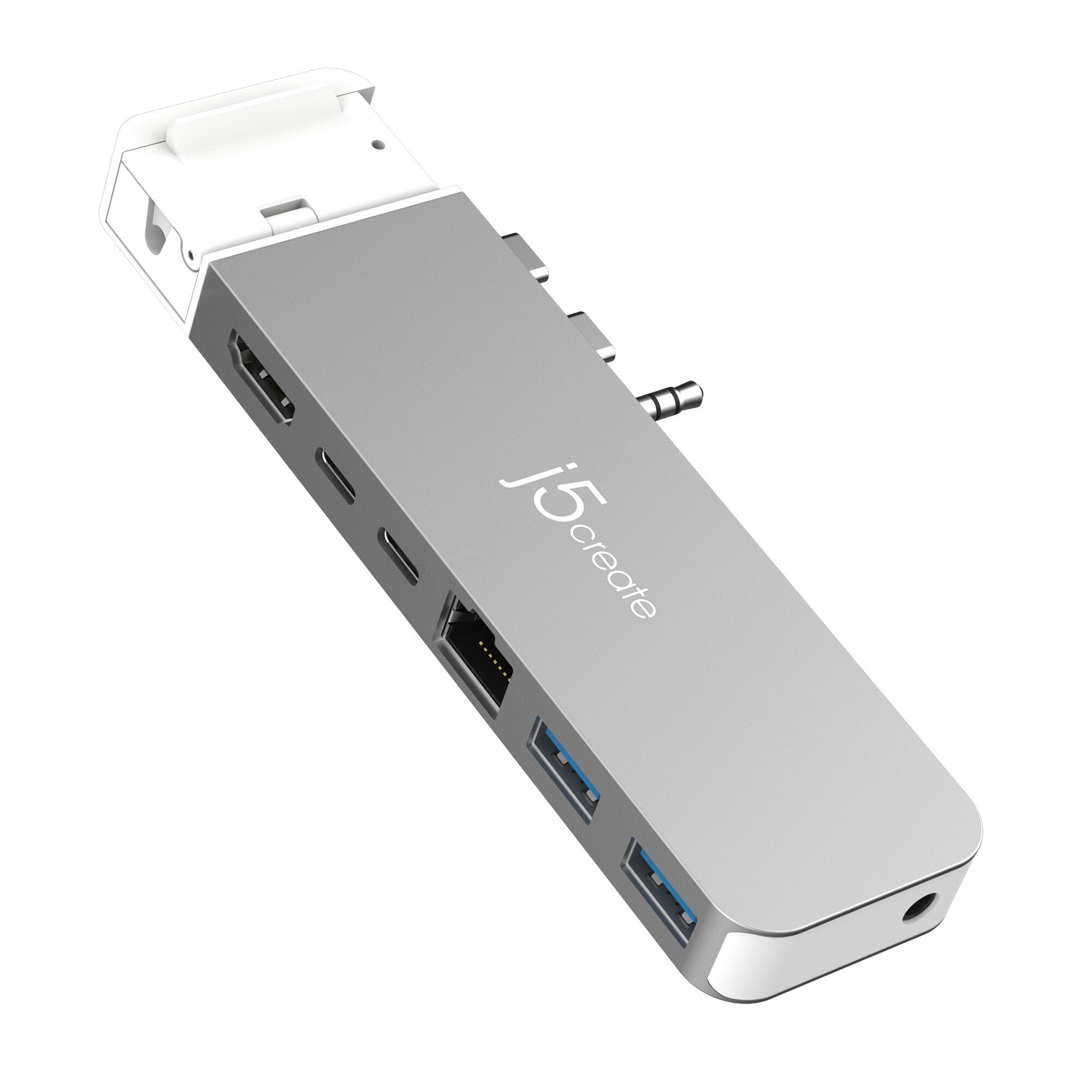

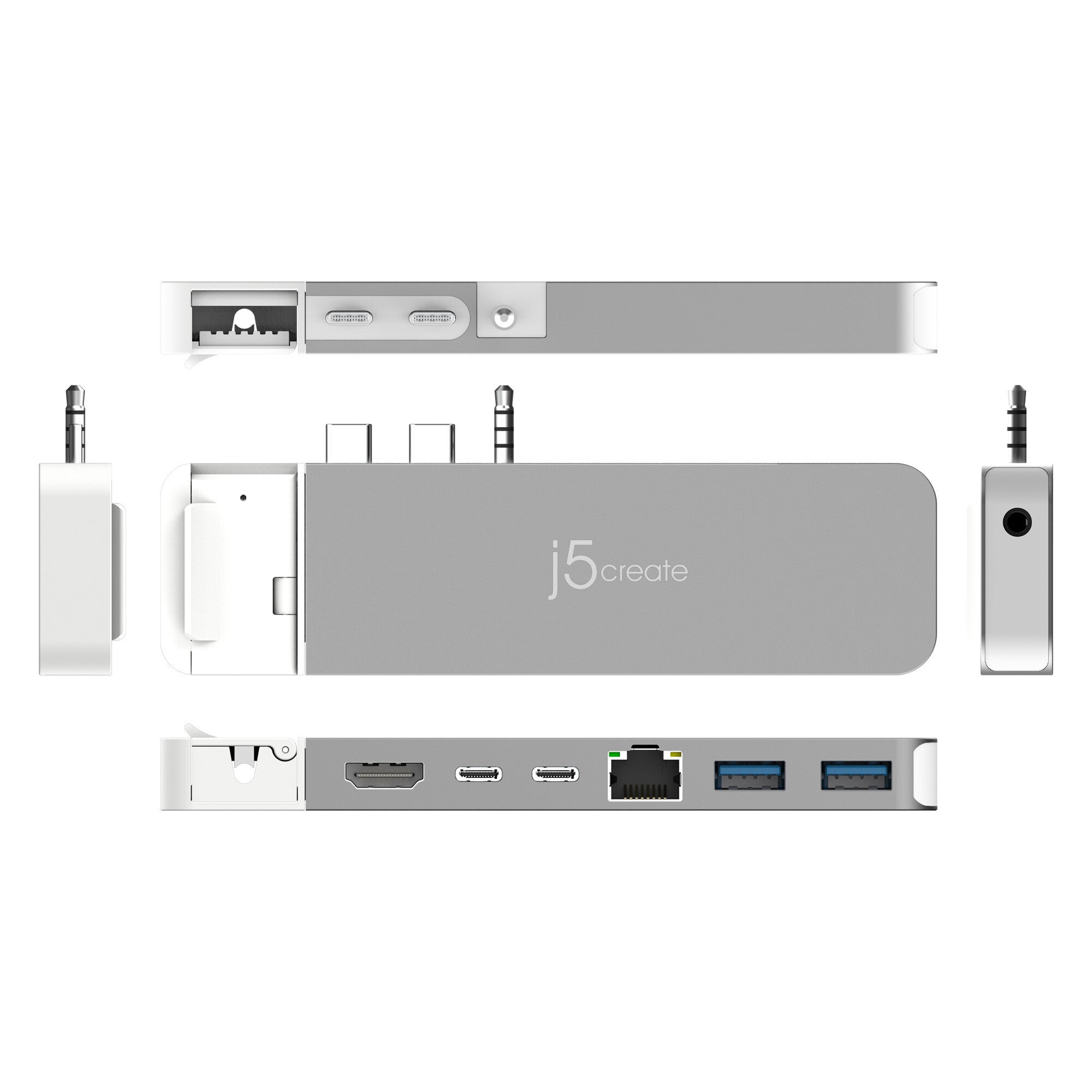

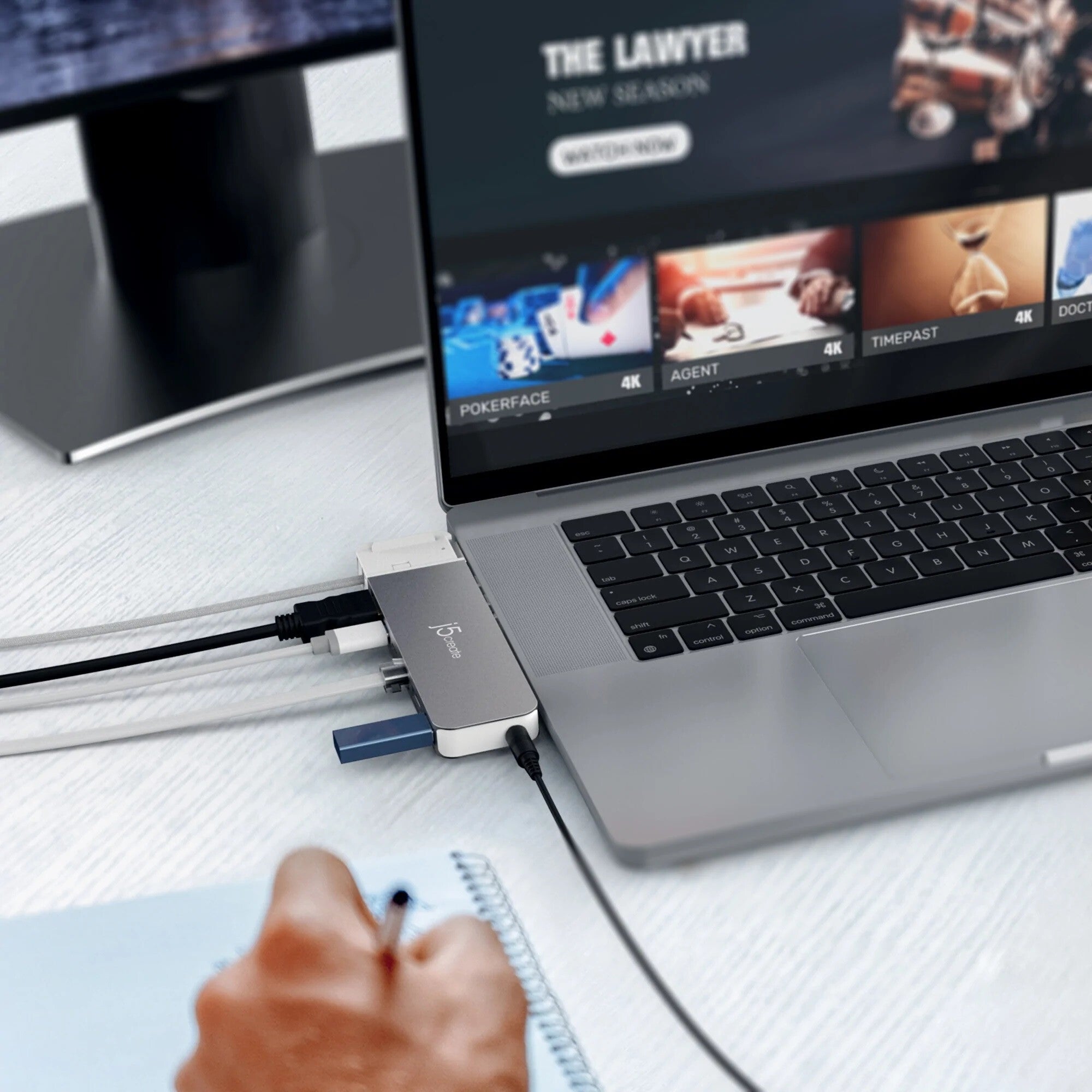

The 4K60 Elite Pro USB4® Hub with MagSafe® Kit expands your computer’s connectivity. Seamlessly connect peripherals such as a keyboard, mouse, or USB™ flash drive to this pocket-sized multi-adapter, which has two USB™ Type-A 3.2 Gen 2 ports and one USB-C® port. Data transfer is quick and easy with the included Gigabit Ethernet port to access a wired network. Transfer files from one media to another with the 10Gbps USB™ connections. You can use the HDMI™ port to connect to a 4K UHD HDTV, monitor, or projector.

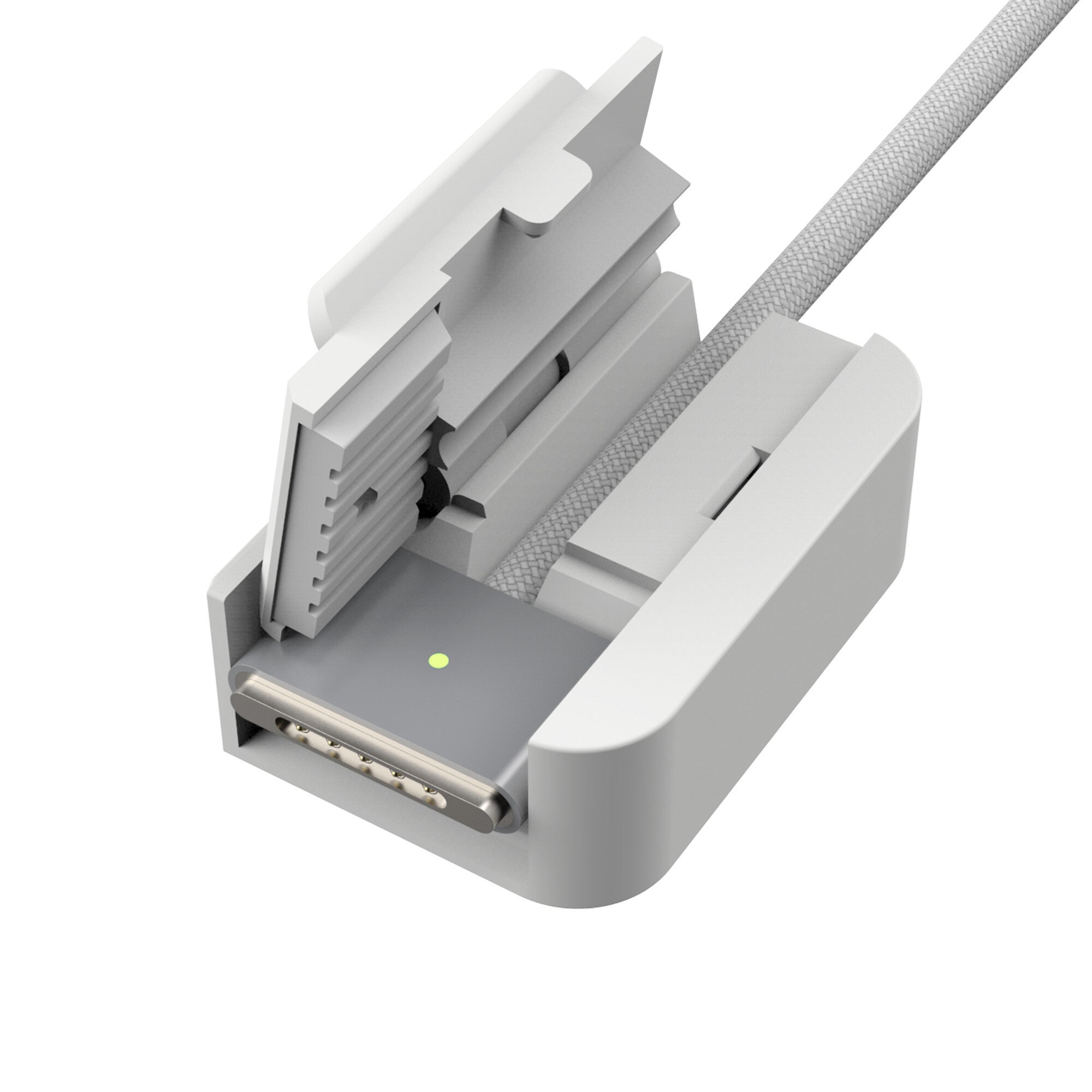

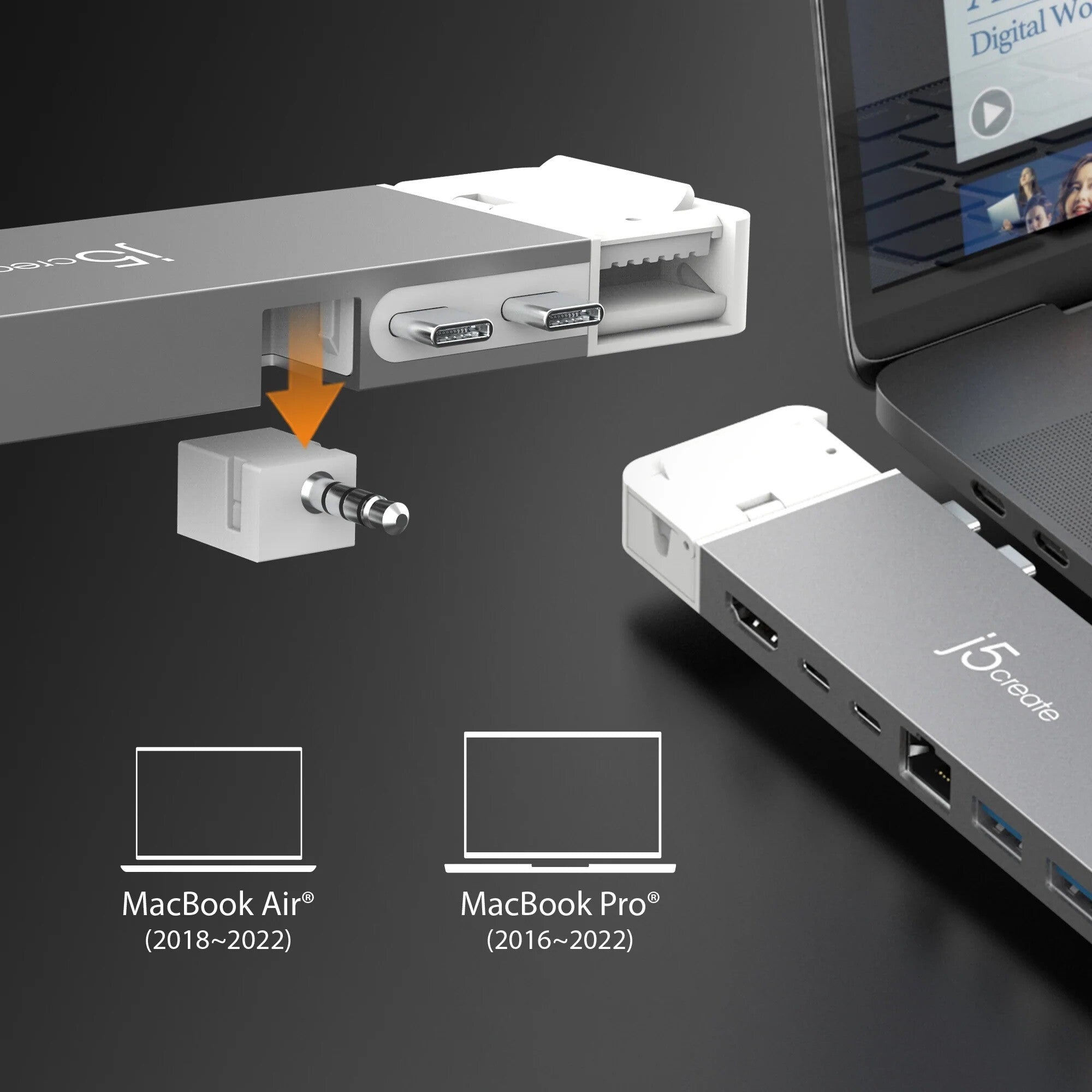

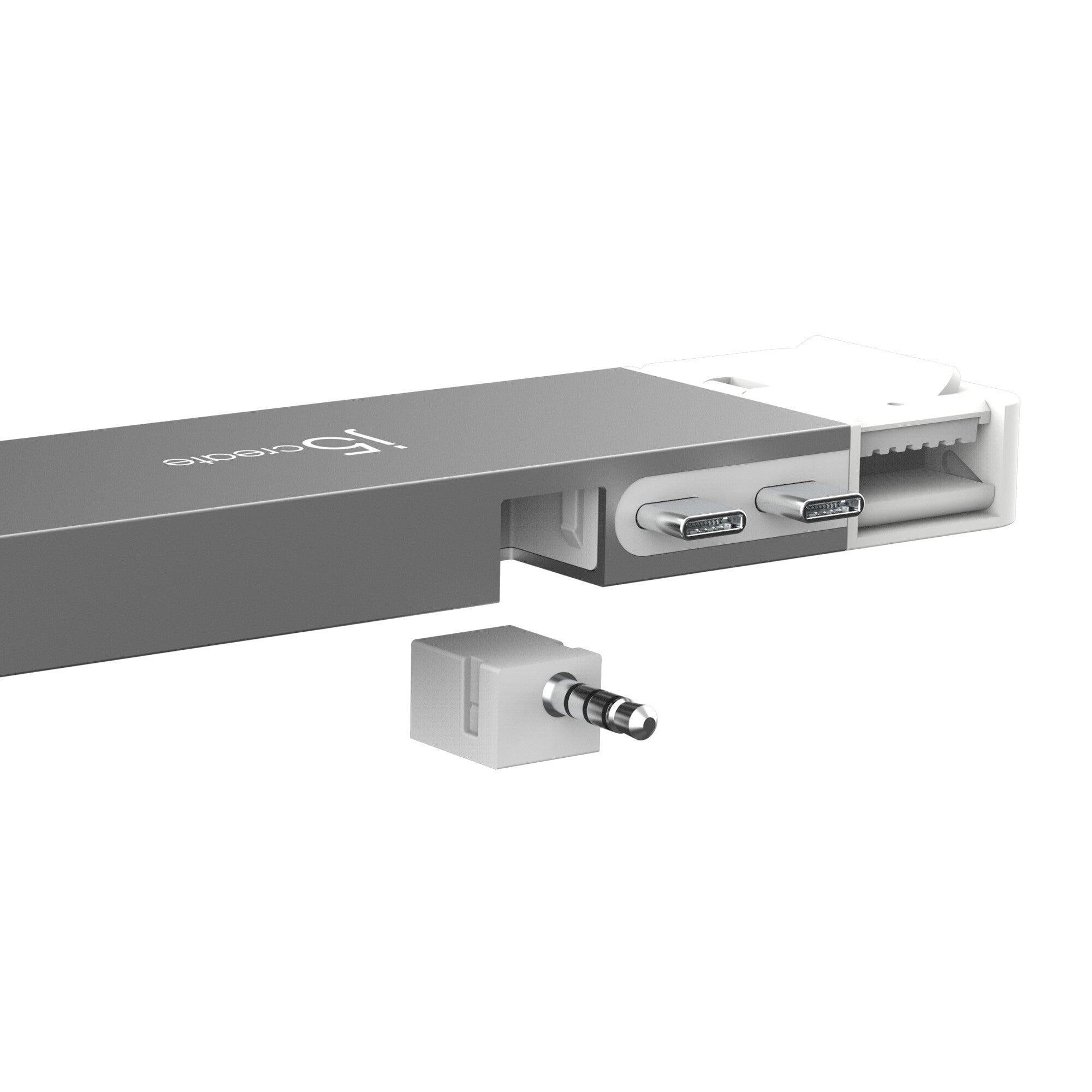

Equipped with a USB4® port it provides 6K60 resolution, 40Gbps data transfer, and charging up to 100W of power for charging your computer when a USB-C® power adapter is connected. You can connect your headphones or speakers to the audio/mic combo jack. The MagSafe® dongle is a convenient way to store your original MacBook® MagSafe® charger. For Intel® MacBook® models, the audio/mic combo jack may be removed.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Headphone connectivity | 3.5 mm |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB4 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Compatibility | MacBook Pro® with USB-C® portsPerfect for MacBook Pro® 2021 or later / MacBook Air® M2 |
| Country of origin | Taiwan |
| Plug and Play | Yes |
| Hub weight | 74 g |
| Display modes | Extended, Mirror, Primary display |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Card reader integrated | No |
| Colour name | Space Grey / White |
| Product colour | Grey, White |
| Power | |
|---|---|
| Output voltage | 20 V |
| Output current | 5 A |
| Input current | 5 A |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating temperature (T-T) | -1 - 41 °C |
| Weight & dimensions | |
|---|---|
| Weight | 74 g |
| Height | 16 mm |
| Depth | 52 mm |
| Width | 139 mm |
| Packaging data | |
|---|---|
| Package weight | 141 g |
| Package height | 25 mm |
| Package depth | 95 mm |
| Package width | 155 mm |
| Quantity per pack | 1 pc(s) |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Logistics data | |
|---|---|
| Shipping (inner) case height | 16.5 cm |
| Shipping (inner) case length | 21.8 cm |
| Shipping (inner) case width | 10.3 cm |
| Export Control Classification Number (ECCN) | EAR99 |
| Products per shipping (inner) case | 8 pc(s) |
| Products per master (outer) case | 32 pc(s) |
| Master (outer) case width | 230 mm |
| Master (outer) case length | 435 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 4.9 kg |
| Other features | |
|---|---|

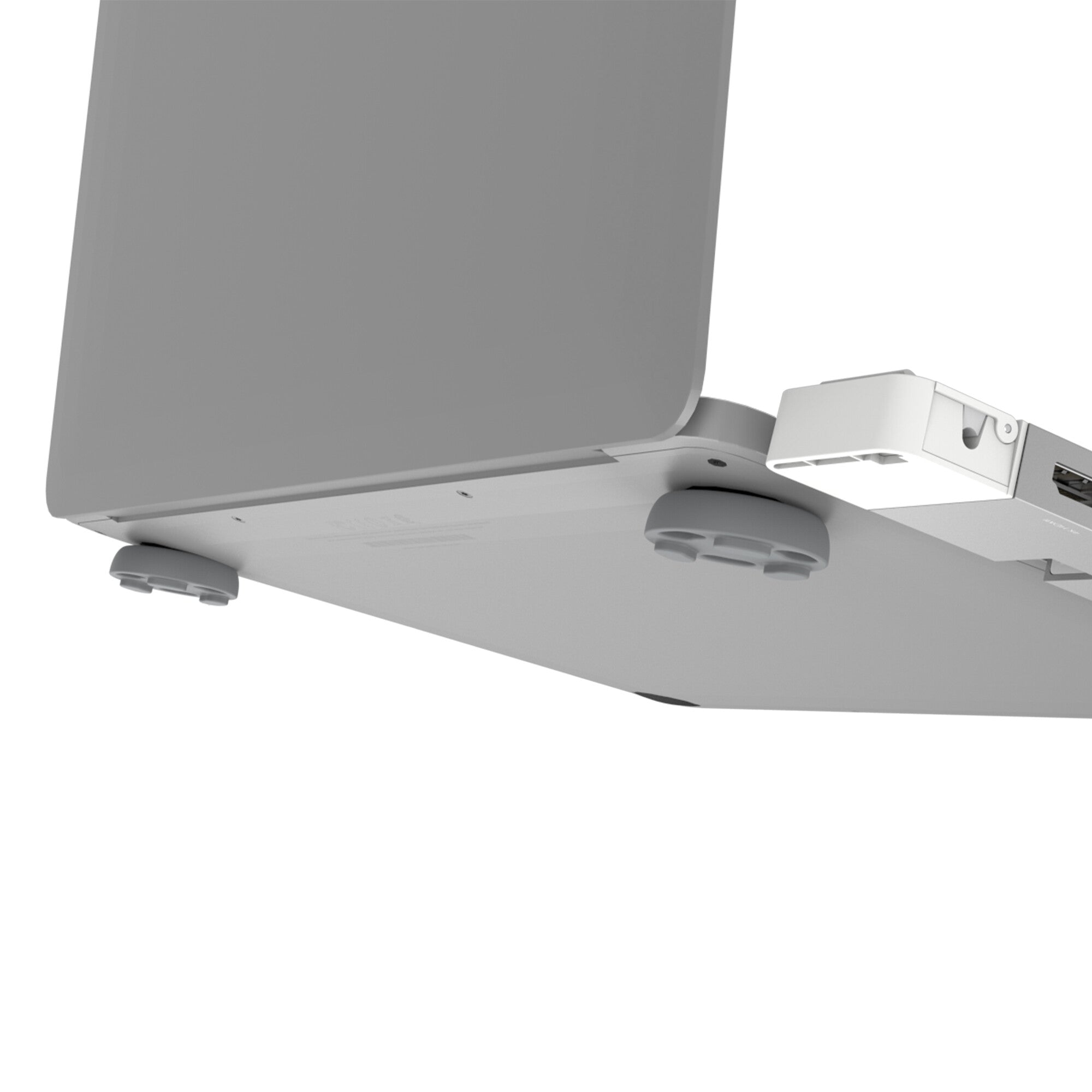

| Contents | 1 - 4K60 Elite Pro USB4® Hub with MagSafe® Kit (JCD395) 2 - Silicone Pads 1 - Quick Installation Guide (QIG) |
| Special features | 1 x USB4® port capable of the following:1) 6K60 resolution display2) 40Gbps data transmission3) PD charging through up to 100WMax Display ResolutionUSB4®: 6016 x 3384HDMI™: 3840 x 2160 |
