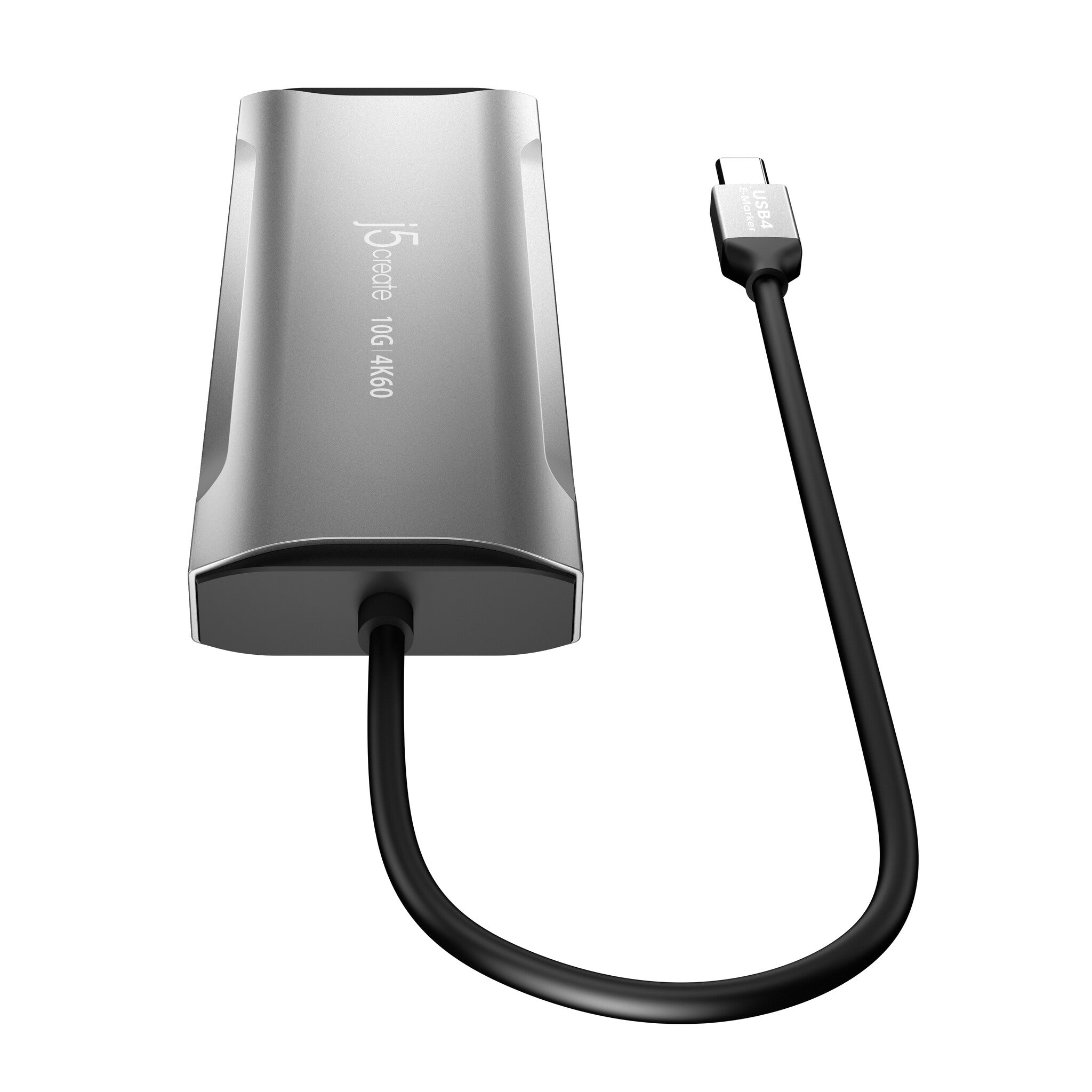

j5create JCD392 4K60 Elite USB-C® 10Gbps Travel Dock, Space Grey
£71.99
Couldn't load pickup availability
- Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility
- Backwards compatible with USB™ 3.2/3.1

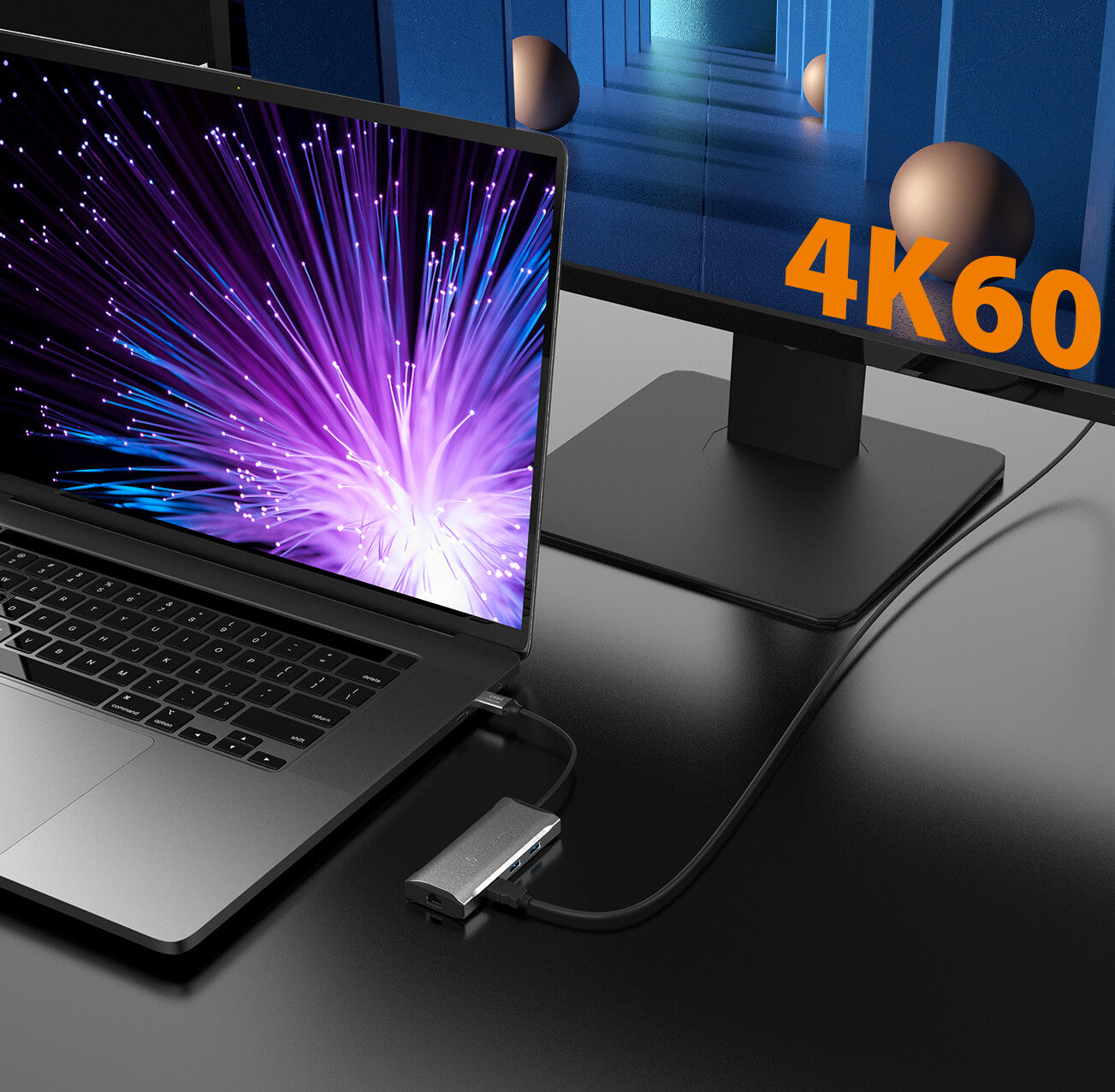

- Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz
- Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh rate
- Extending one display up to 3840 x 2160 @ 60, easily switch to a higher refresh rate of 2560 x 1440 @ 120 Hz via HDMI™ port to enjoy your gaming under Windows® OS

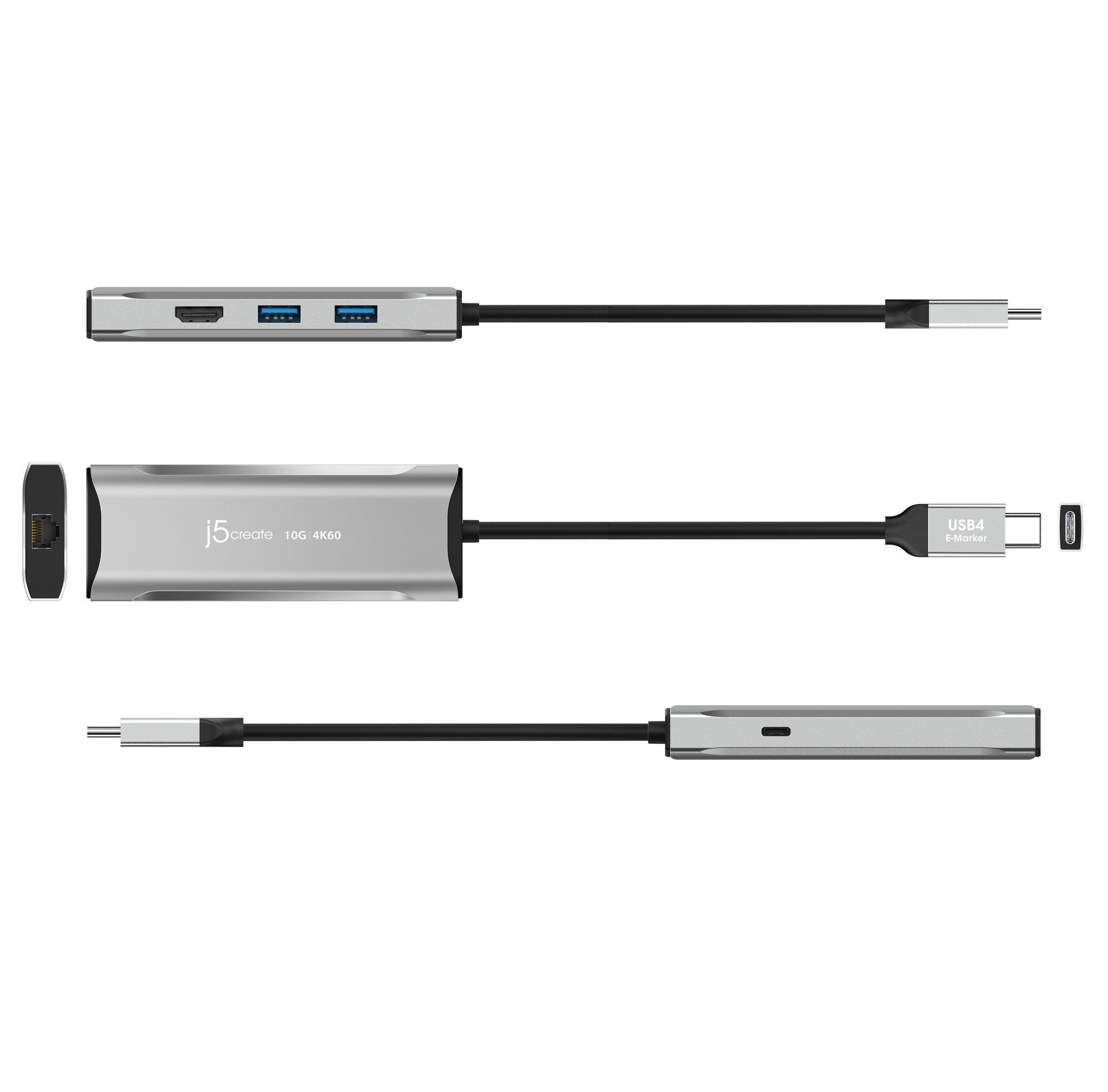

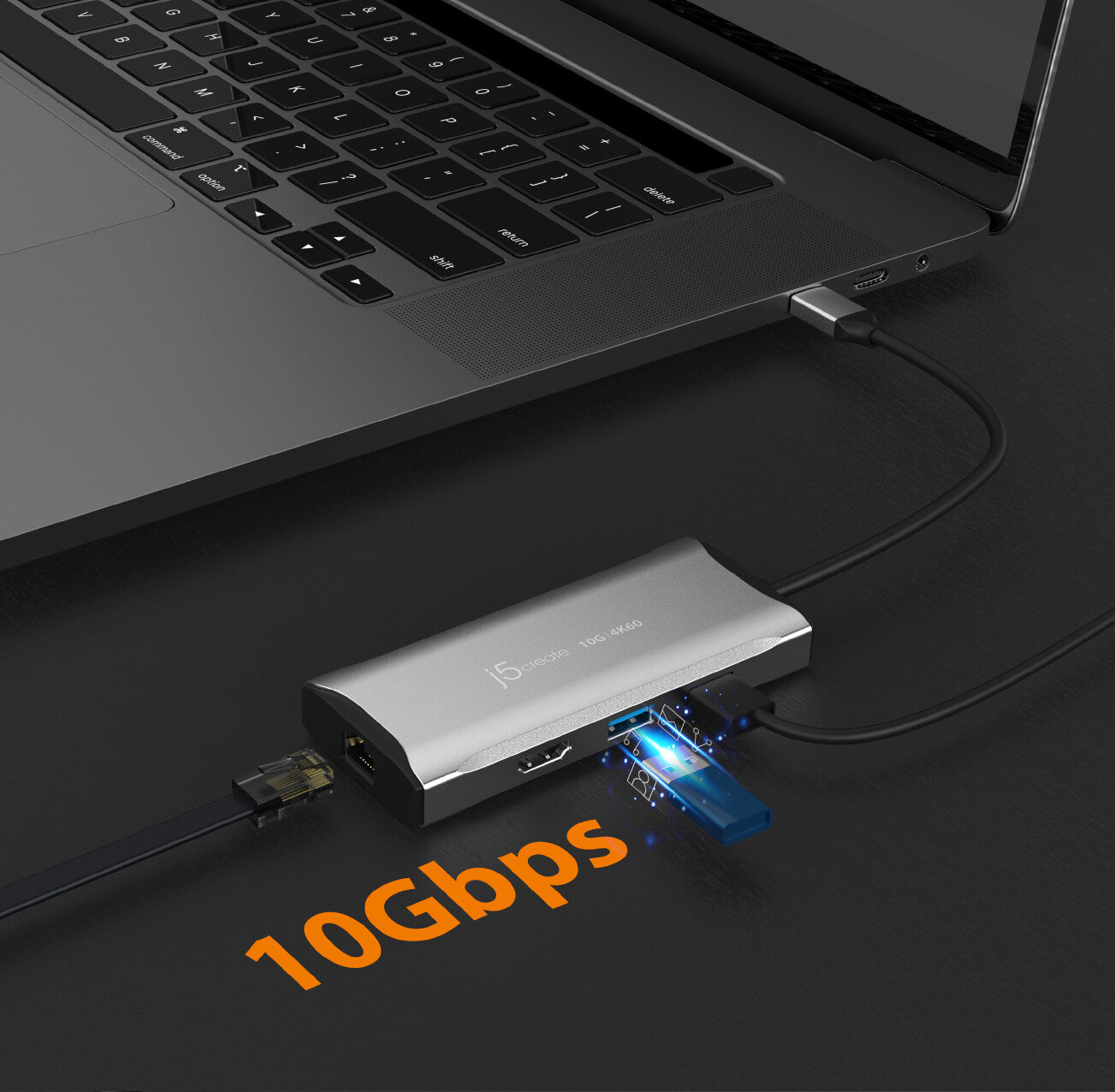

- Three SuperSpeed USB™ 10Gbps downstream ports (1 USB-C® and 2 Type-A) to connect peripherals

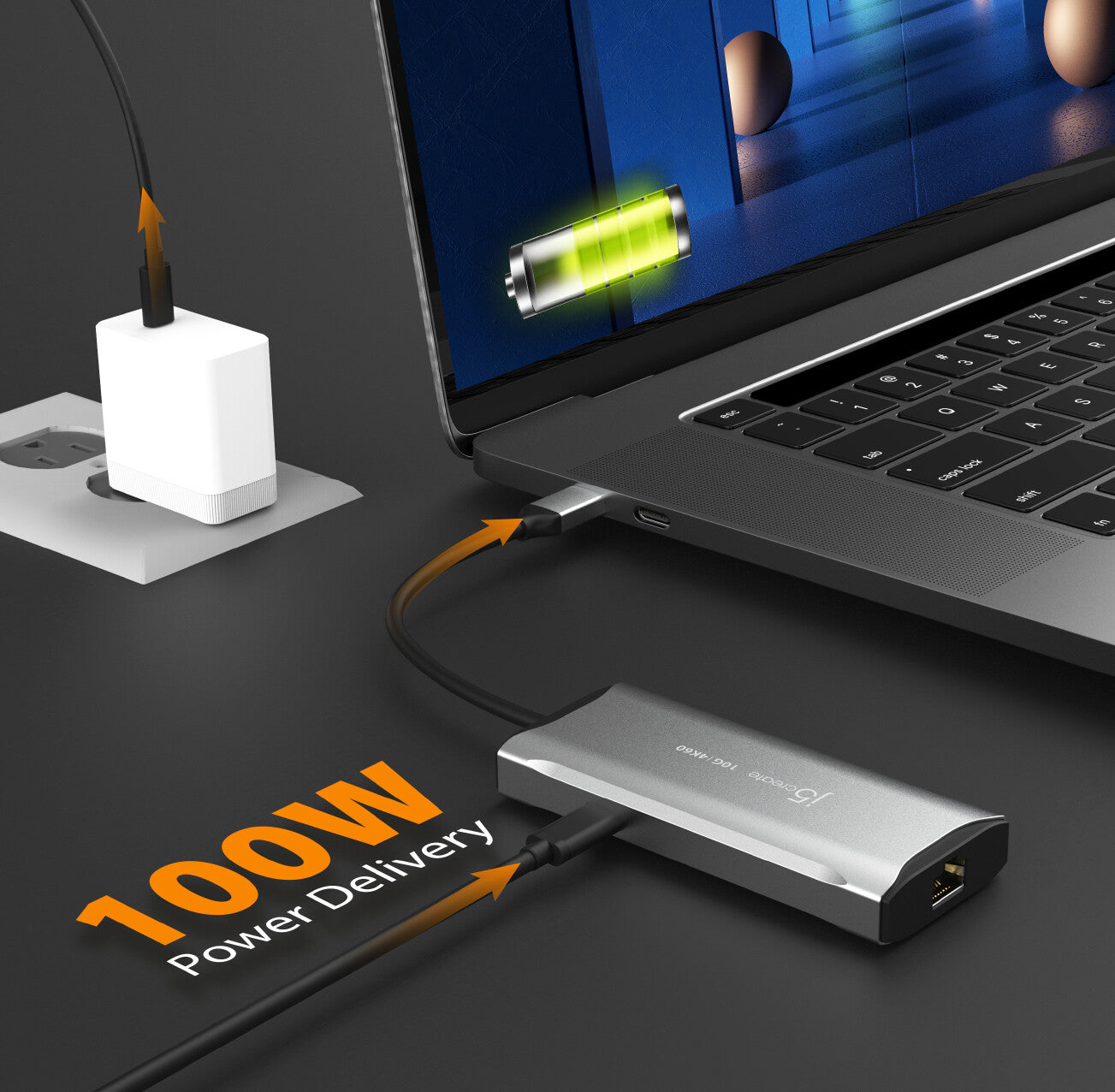

- Charge and power connected laptop and peripherals with 100W Power Delivery

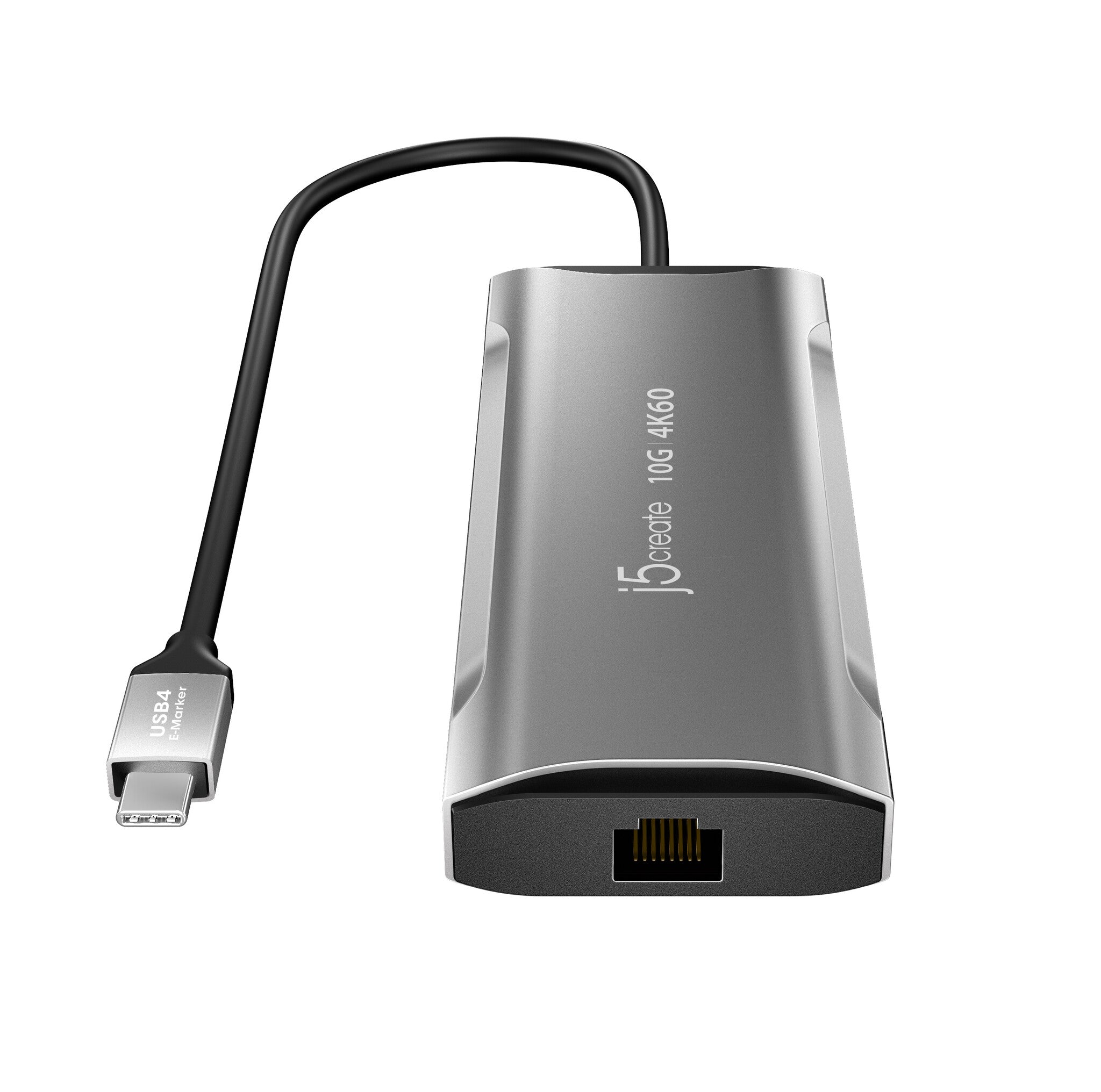

- Easily add a wired network connectivity with the Gigabit Ethernet port
- Plug-and-play, no driver installation required

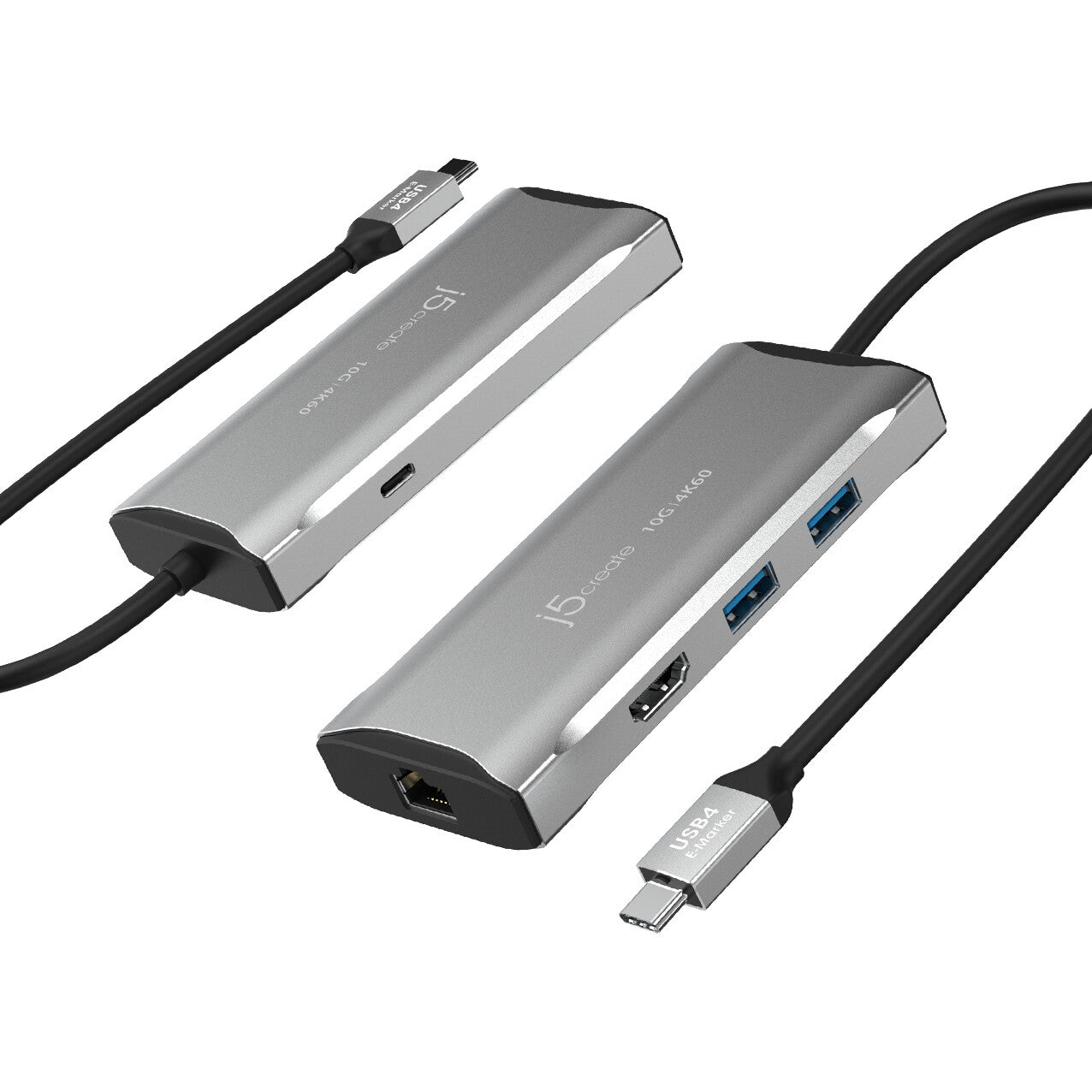

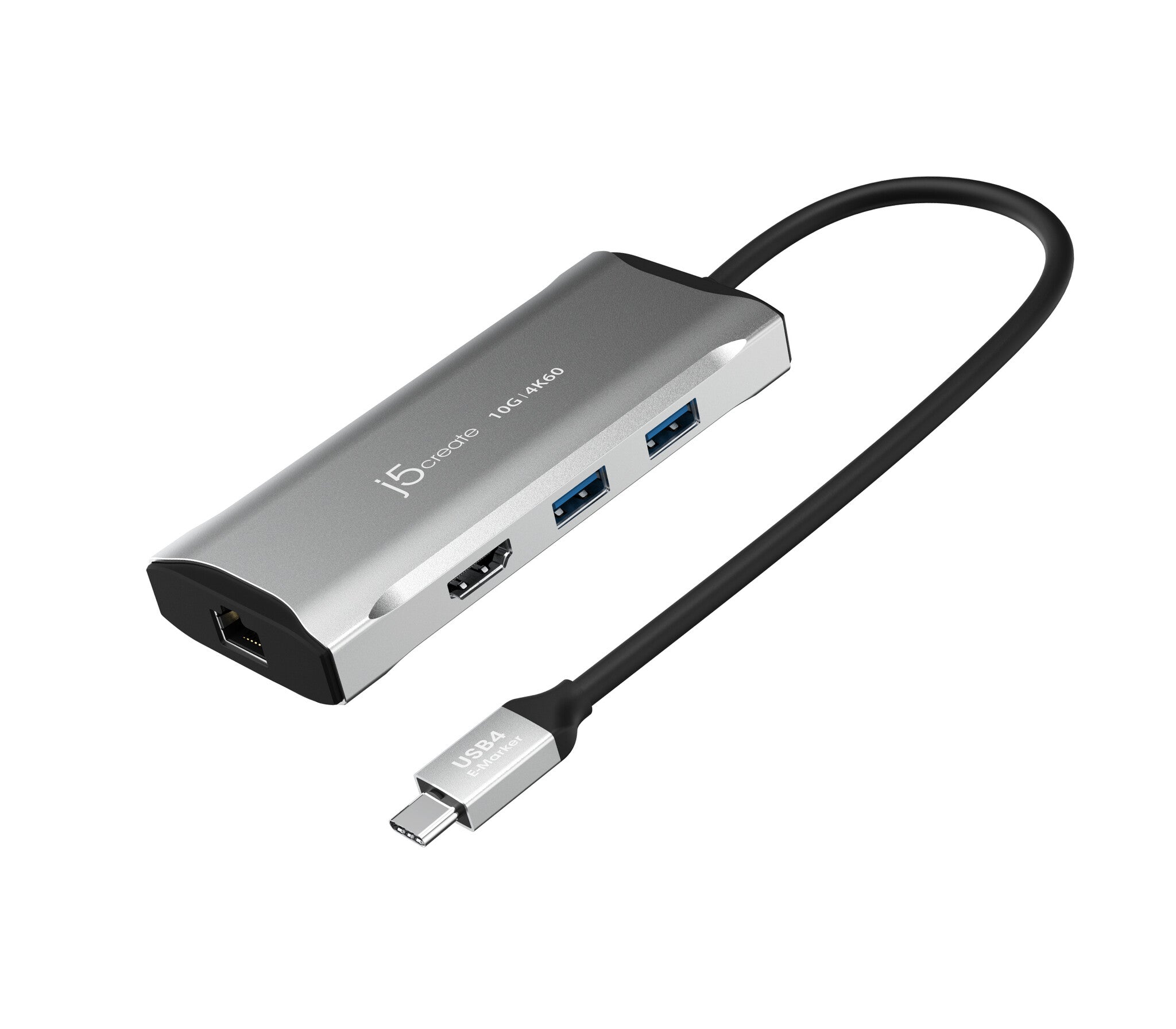

Featuring all the ports you need, the 4K60 Elite USB-C® 10Gbps Travel Dock is equipped with an advanced USB-C® E-Mark chip for compatibility with USB4™, Thunderbolt™ 3, and Thunderbolt™ 4 hosts and devices.
It supports DisplayPort™ 1.4 allowing you to add a 4K 60Hz HDMI™ display and has a Gigabit Ethernet port for adding a wired network. It includes three USB™ SuperSpeed 10 Gbps ports (1 USB-C® and 2 USB™ Type-A) for peripheral connectivity or downstream charging. The USB-C® port also offers up to 100W of power pass-through when connected to a power adapter.
| Ports & interfaces | |
|---|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
| Microphone in | No |
| HDMI ports quantity | 1 |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0 |
| Country of origin | Taiwan |
| Charging function | Yes |
| Plug and Play | Yes |
| Housing material | Aluminium |
| Maximum refresh rate | 144 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 10 Gbit/s |
| Card reader integrated | No |
| Colour name | Space Grey |
| Product colour | Grey |
| Power | |
|---|---|
| USB cable length | 0.15 m |
| Power consumption (typical) | 1.96 W |
| Output voltage | 20 V |
| Output current | 0.38 A |
| AC input voltage | 20 V |
| Power connector | USB Type-C |
| Power source type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 100 g |
| Height | 16 mm |
| Depth | 47 mm |
| Width | 110 mm |
| Packaging data | |
|---|---|
| Package weight | 160 g |
| Package height | 25 mm |
| Package depth | 95 mm |
| Package width | 145 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick start guide | Yes |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795086335 |
| Logistics data | |
|---|---|
| Shipping (inner) case net weight | 870 g |
| Shipping (inner) case height | 16 cm |
| Shipping (inner) case length | 15 cm |
| Shipping (inner) case width | 10.5 cm |
| Export Control Classification Number (ECCN) | EAR99 |
| Products per shipping (inner) case | 5 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case width | 225 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 180 mm |
| Master (outer) case gross weight | 3.8 kg |
| Other features | |
|---|---|
| Special features | Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a 4K HDMI™ output, supporting video resolutions up to 3840 x 2160 at 60 Hz |
