j5create JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter-UK, Black
Couldn't load pickup availability

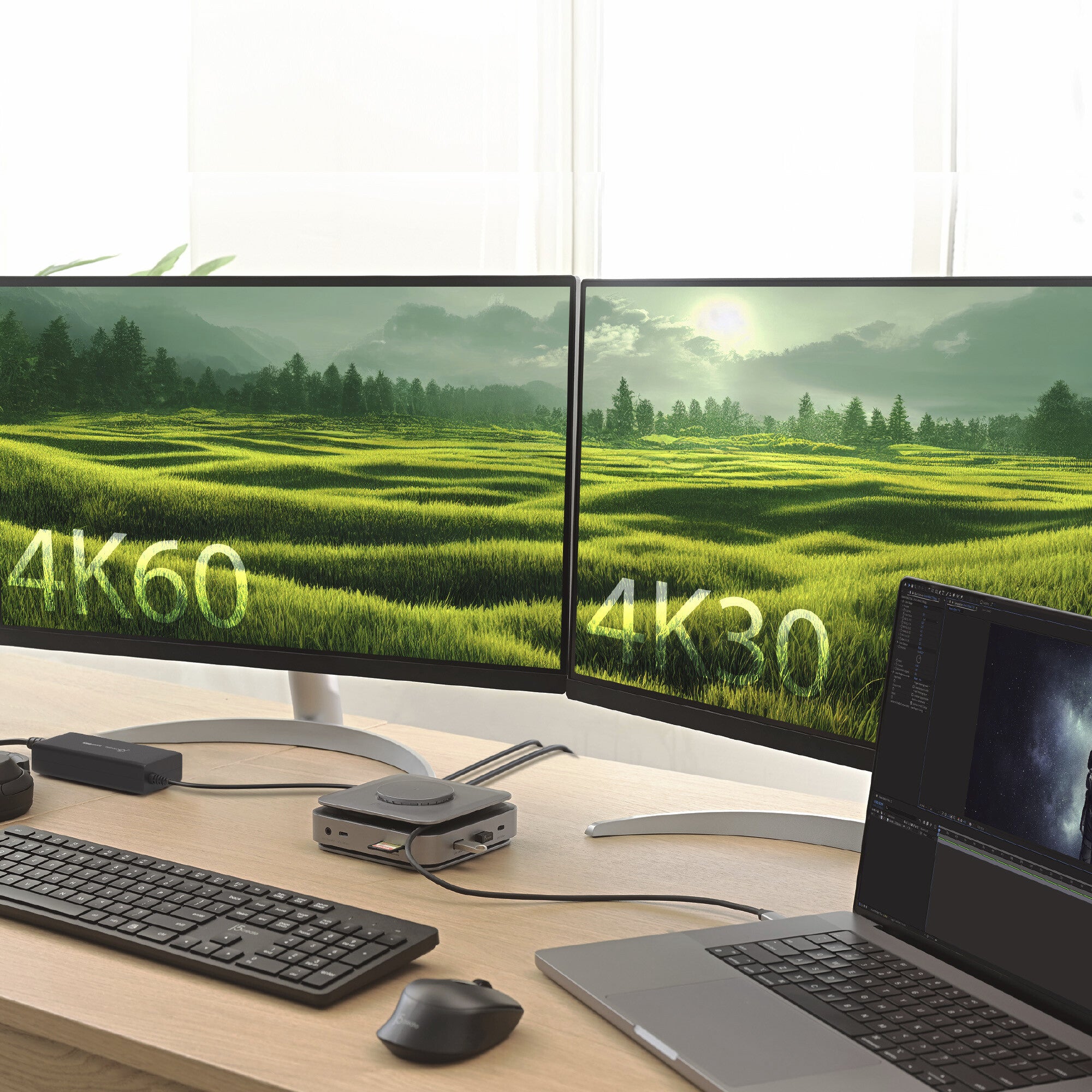

- Supports dual 4K HDMI™ (4K@60Hz + 4K@30 Hz)
- Supports Power Delivery 3.1 140W power in

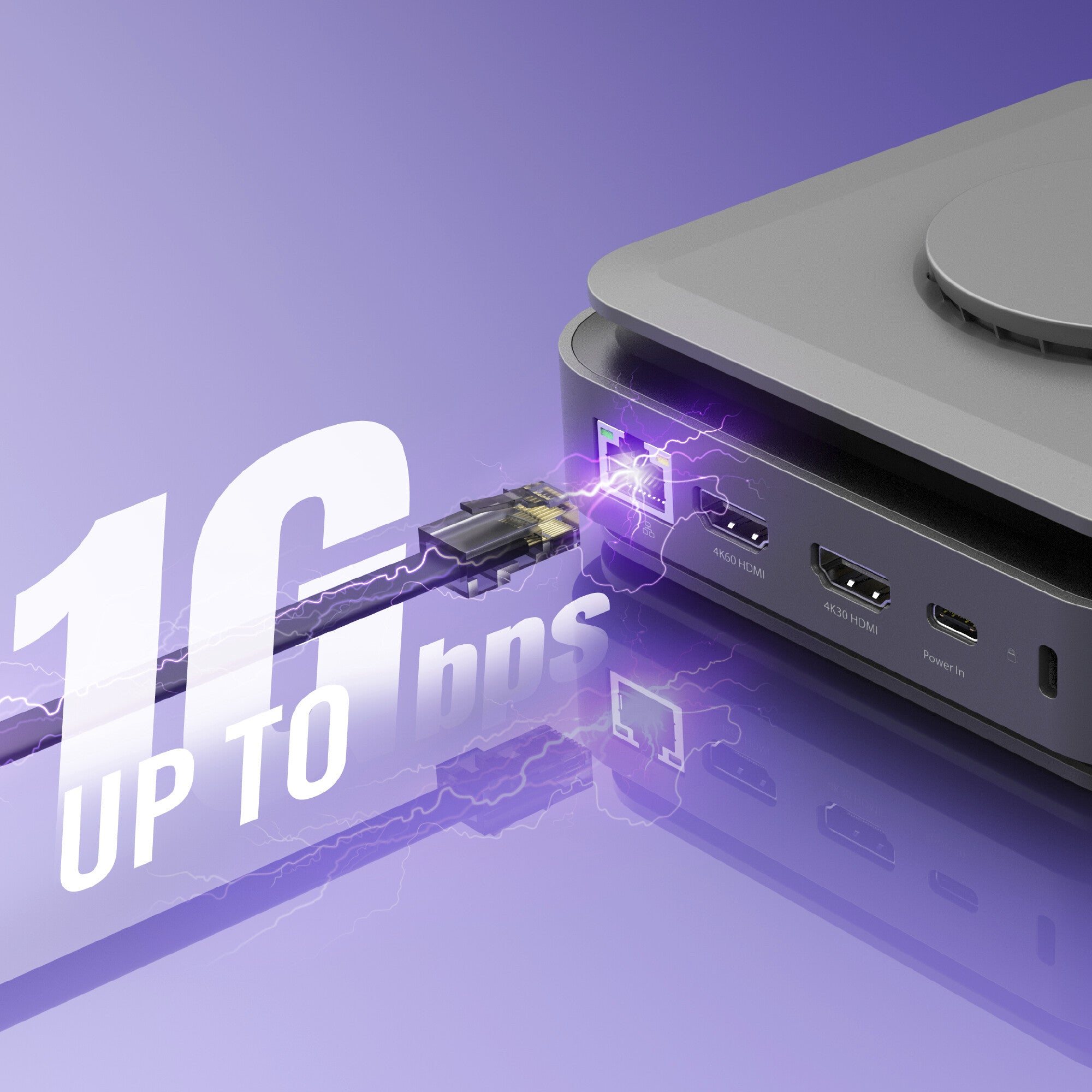

- Reliable network connectivity via the Gigabit Ethernet

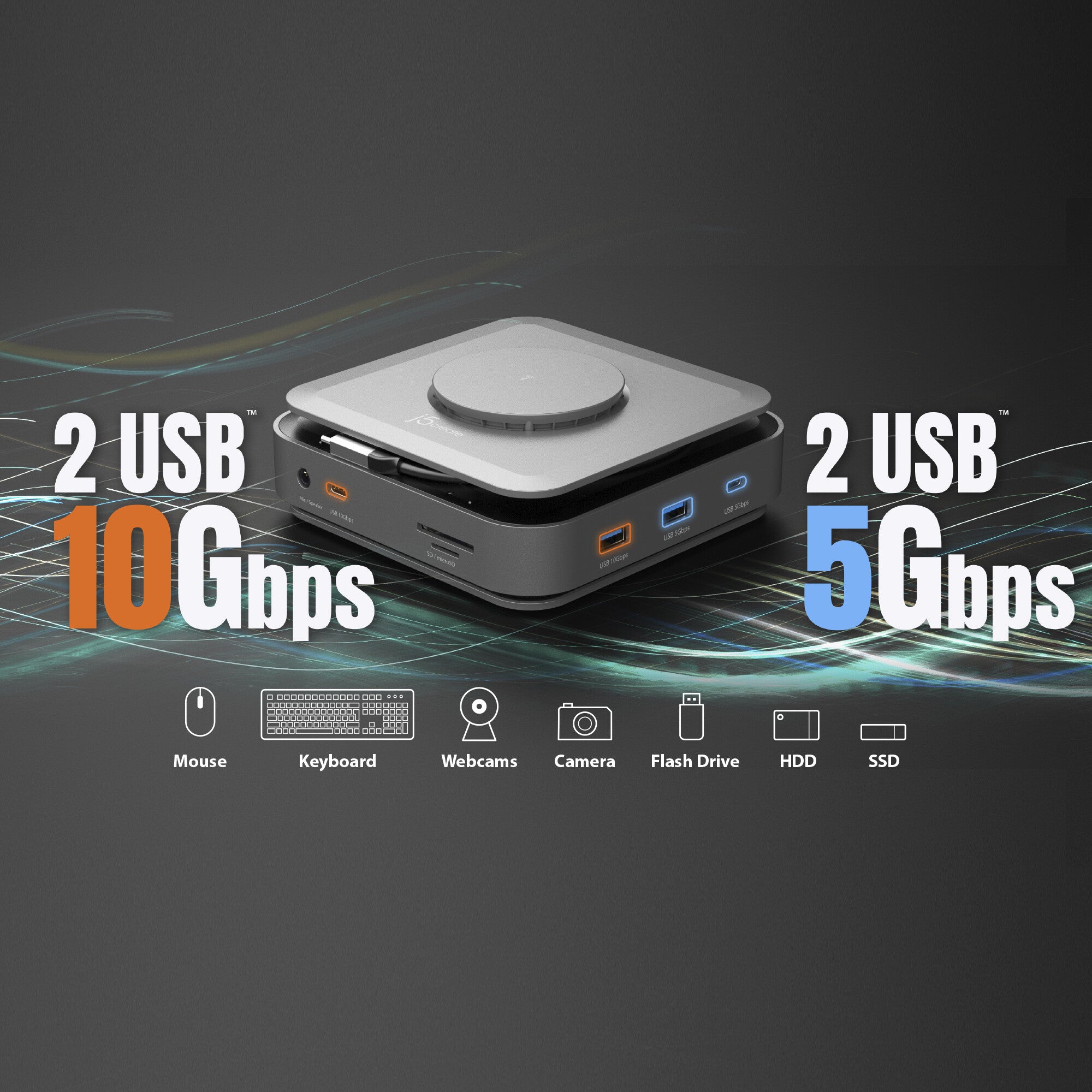

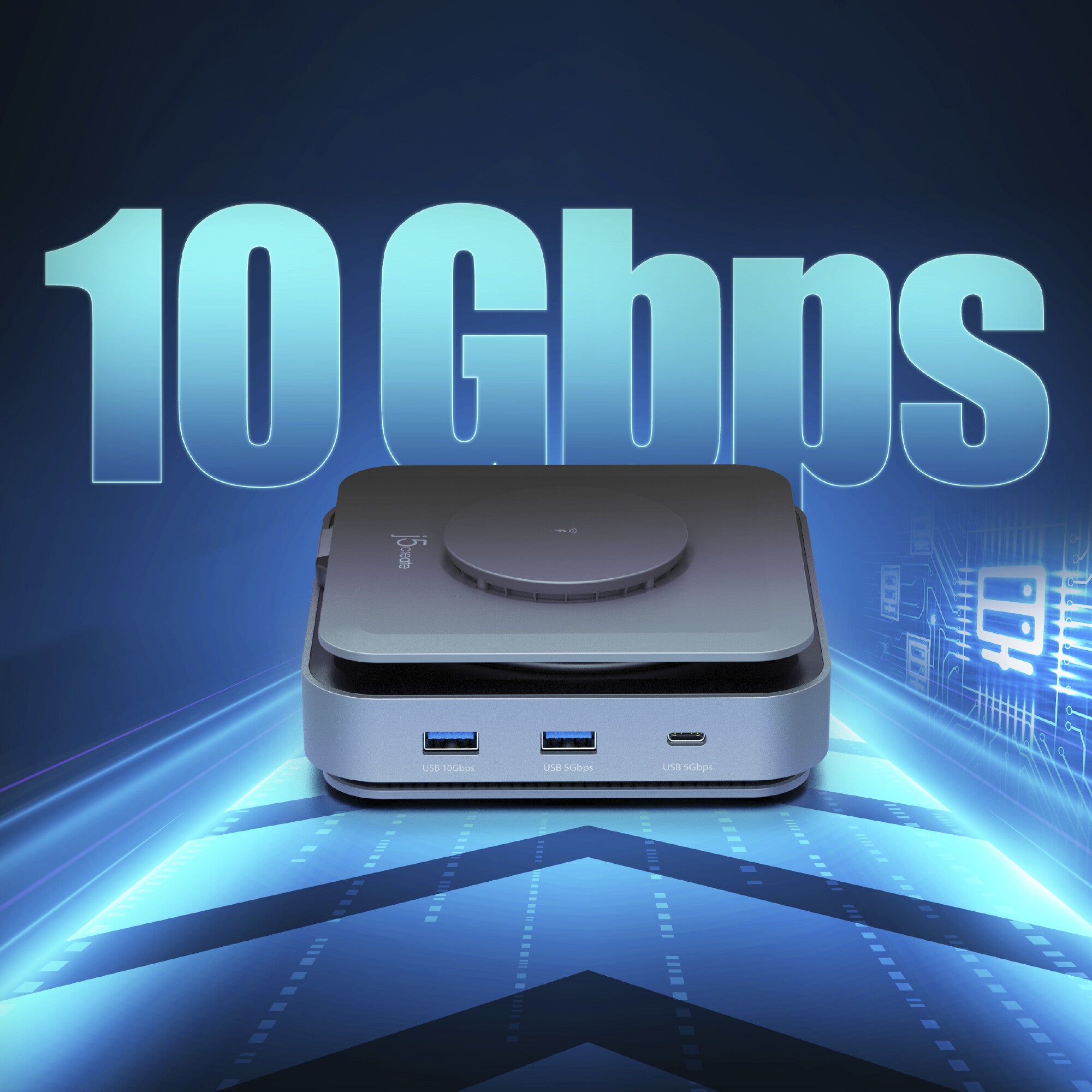

- Two USB™ 10Gbps and two USB™ 5Gbps ports for connecting peripherals

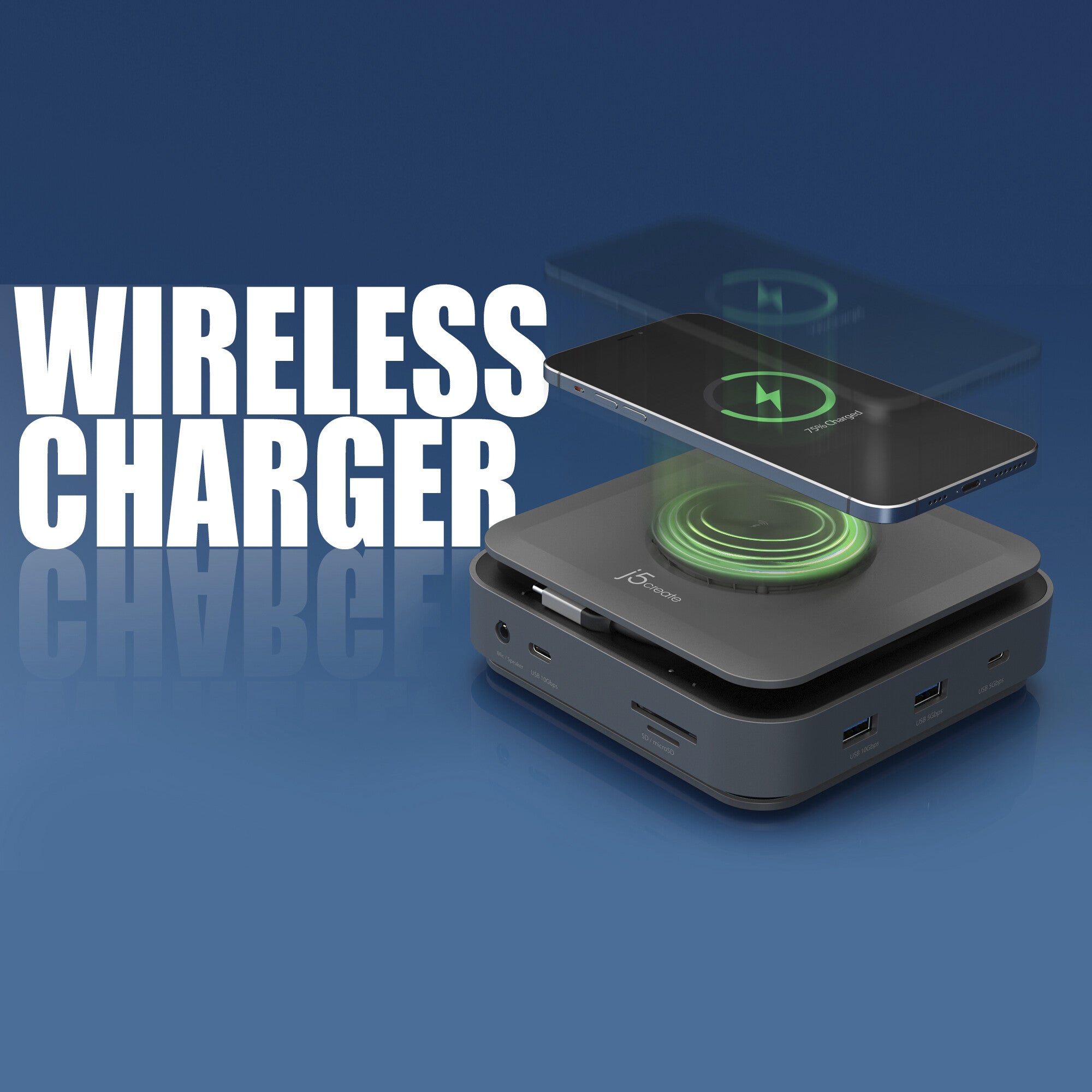

- Built-in a magnetic wireless charger provides up to 15W fast wireless charging. Compatible with iPhone®
- MagSafe®, Samsung® S23/S22/S21, Google™ Pixel™ 5/6/7, AirPods®
- , and more
- The 15W wireless charging will only work when a USB-C® power adapter over 60W is connected to the dock
- Includes SD™/microSD™ card reader
- Cable storage compartment
- Security lock

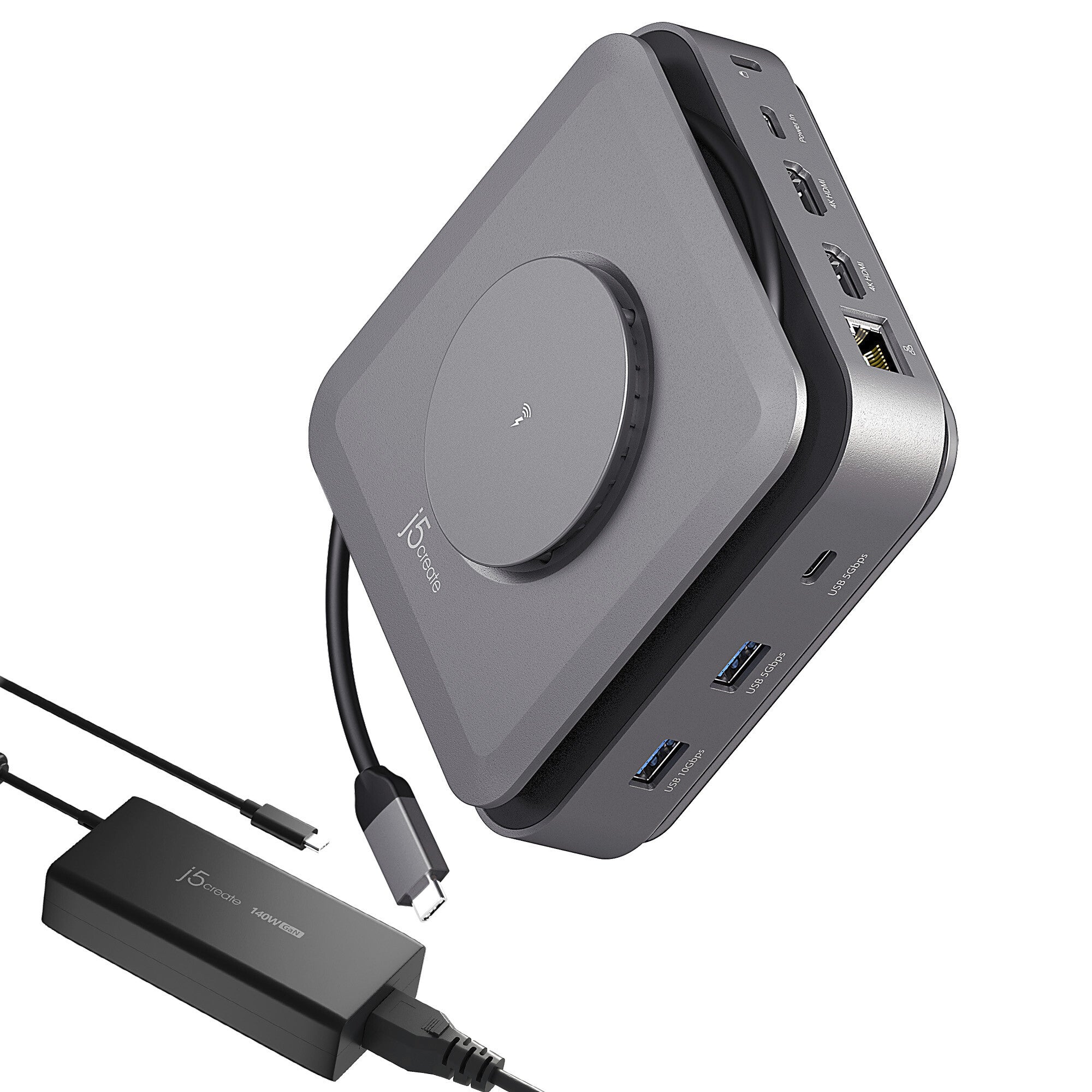

- Detachable a 140W GaN PD3.1 USB-C® 1-Port Charger

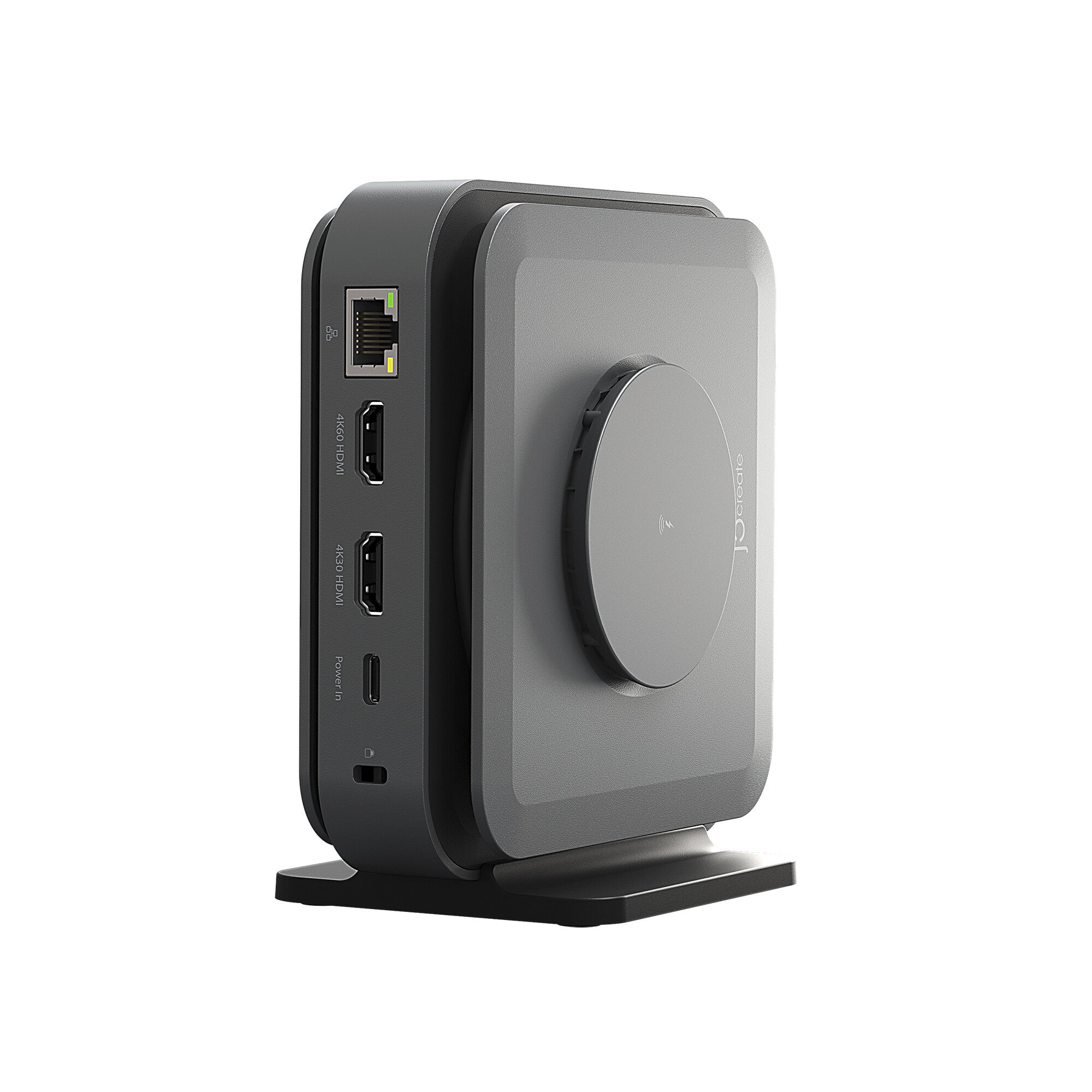

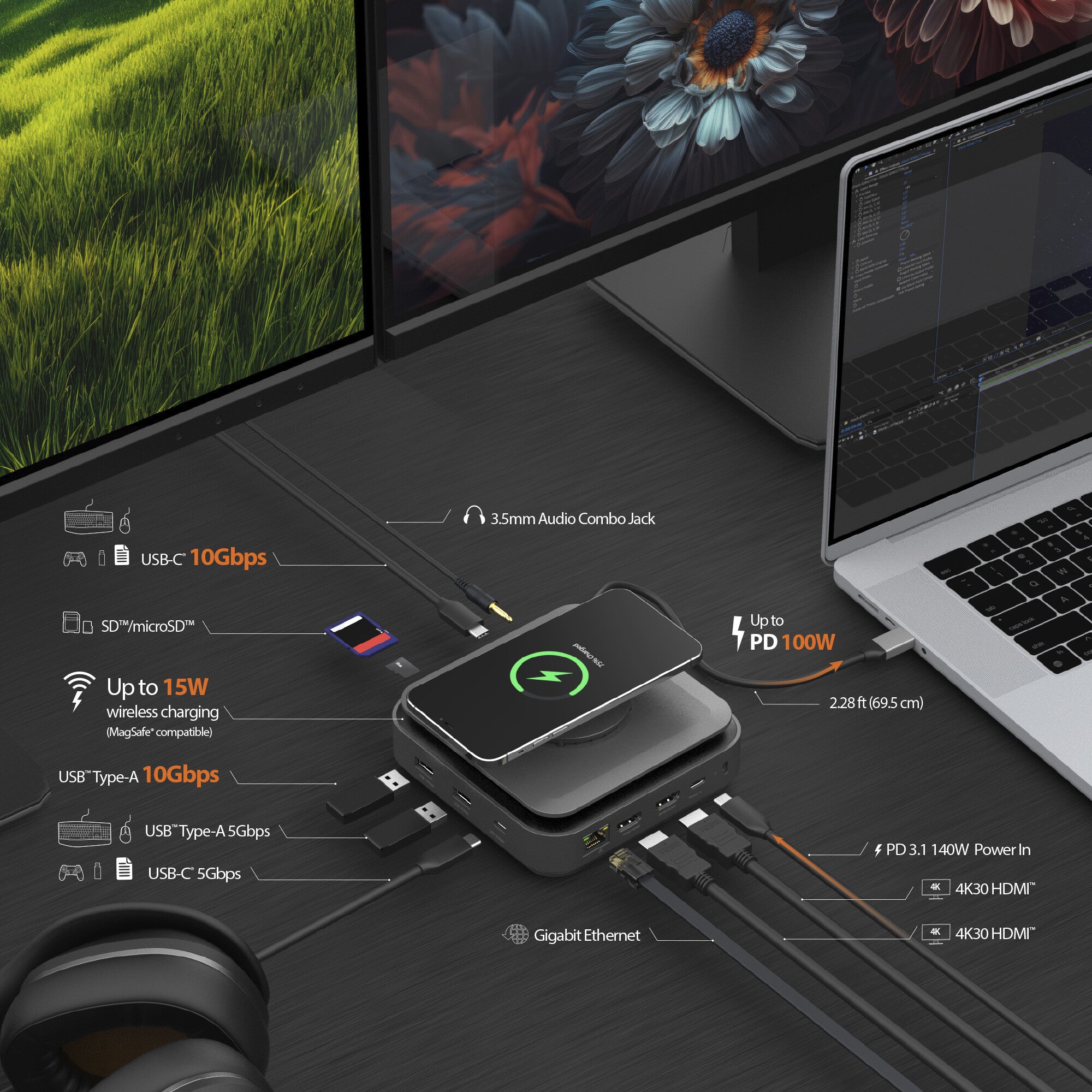

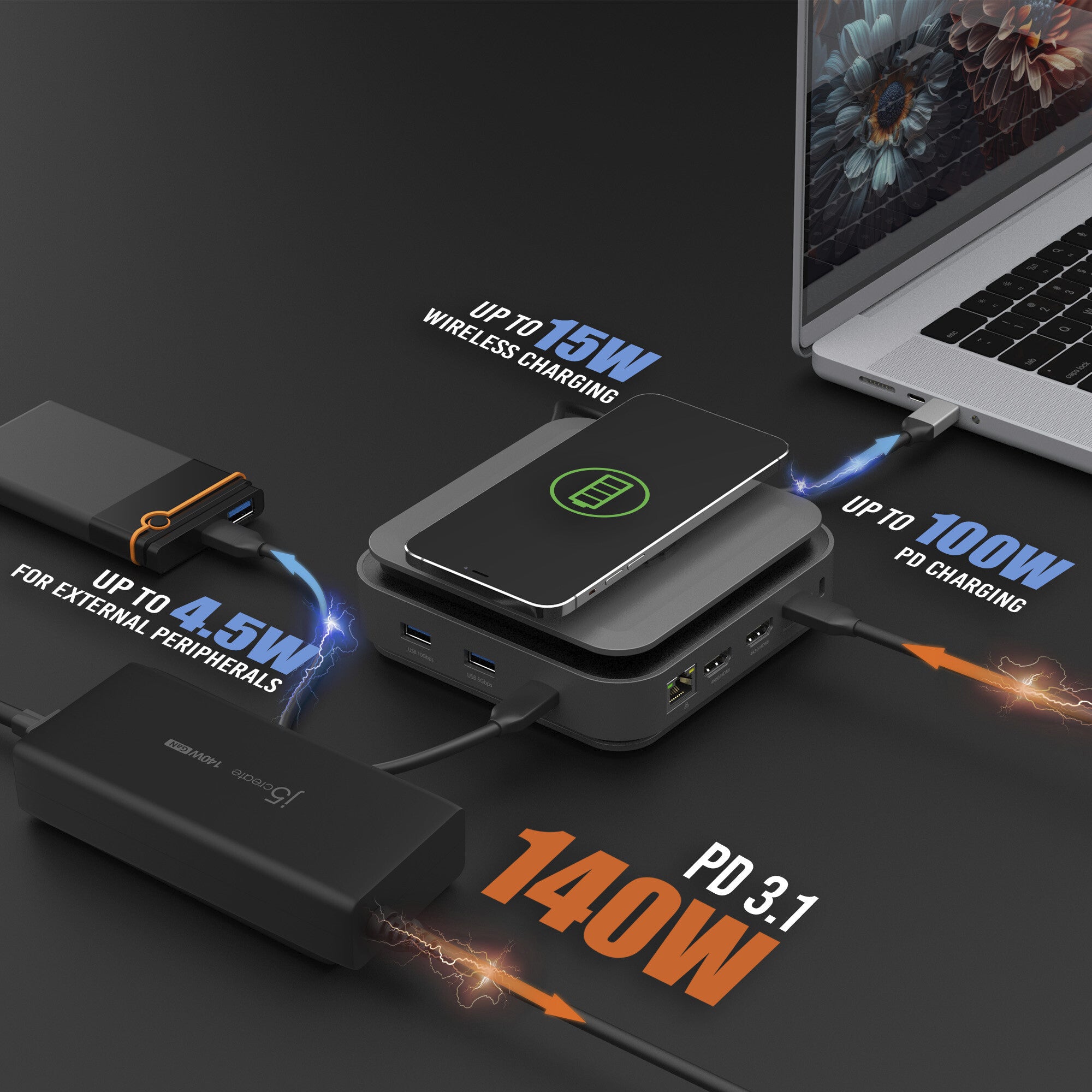

This compact multi-port dock is ideal for office application, featuring everything from the essential two HDMI™ outputs, USB™ ports, Gigabit Ethernet, SD™/microSD™ card reader, Audio Jack and an upgraded Power Delivery 3.1 specification. It comes with a mount for saving-space vertical placement and gives you the ability to connect your MacBook® or other USB-C® compatible laptops to a 4K monitor or TV. With USB™ Power Delivery 3.1 it’ll take you to a new flexible power application, you'll be able to charge your laptop and power your peripherals with a single USB-C® power adapter even if your laptop only has one USB-C® port. The top of the dock functions as a wireless charging pad that supports up to 15W fast charging and is also compatible with MagSafe®. Access a wired network through the Gigabit Ethernet port for a fast and stable network connection. It is also equipped with a cable storage compartment ensures an easy connection regardless of your USB-C® port’s location. Through a single USB-C® (Thunderbolt™ 3, 4, and USB4® compatible) host cable, this compact adapter provides all the essential connectivity you need to create a workstation virtually anywhere!
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 2 |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| USB Power Delivery (USB PD) | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| Connectivity technology | Wired |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Performance | |
|---|---|
| Country of origin | Taiwan |
| Housing material | Aluminium, Plastic |

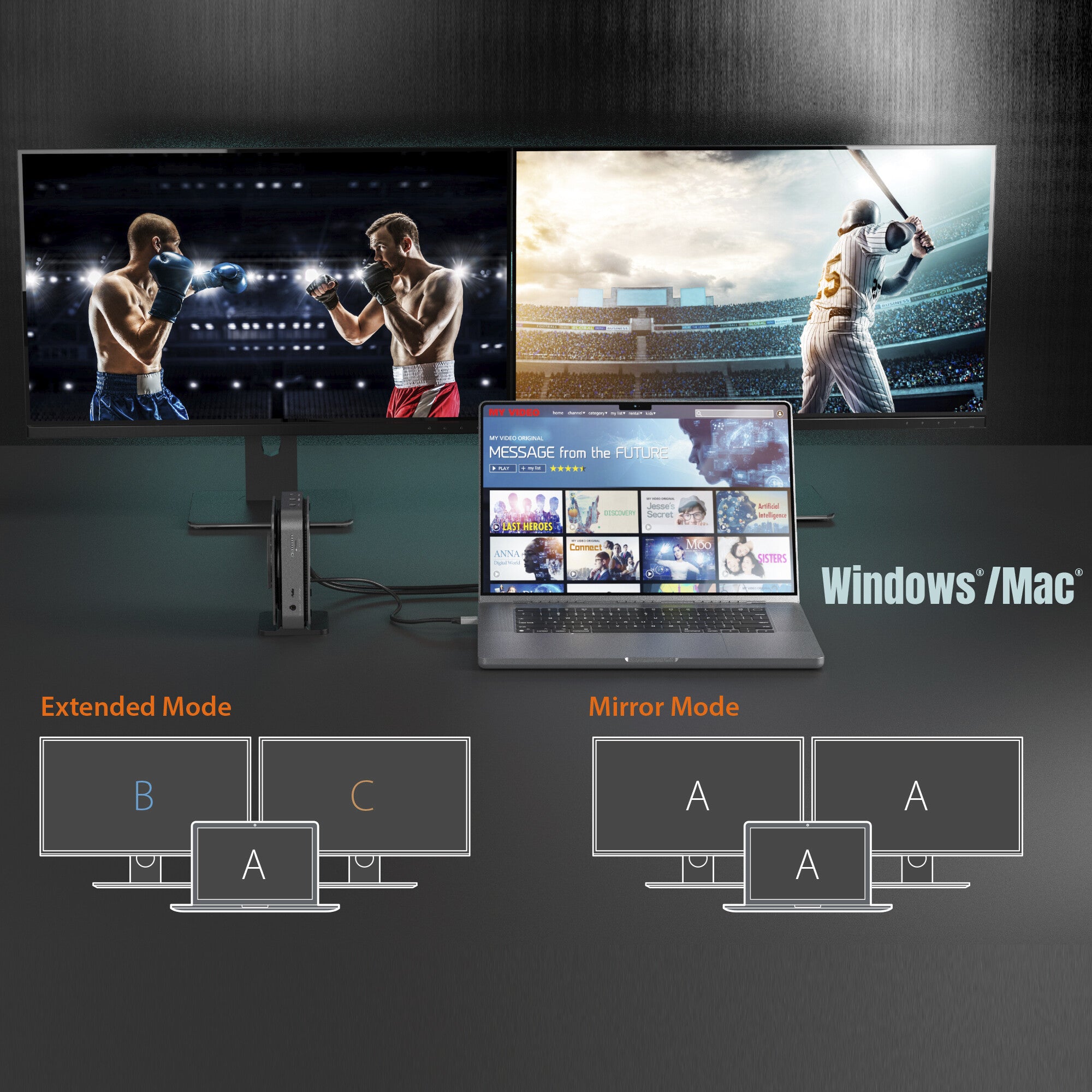

| Display modes | Extended, Mirror |
| Cable lock slot | Yes |
| Number of displays supported | 2 |
| Maximum refresh rate | 60 Hz |
| Maximum digital resolution | 3840 x 2160 pixels |
| HD type | 4K Ultra HD |
| Data transfer rate | 10 Gbit/s |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Card reader integrated | Yes |
| Colour name | Space Grey |
| Product colour | Grey |
| Power | |
|---|---|
| Wireless charging | Yes |
| Wireless charging power | 15 W |
| Compatible power plug types | UK |
| Output voltage | 20 V |
| Output current | 5 A |
| Input current | 5 A |
| Power connector | USB Type-C |
| Power source type | USB |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 11 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 85% |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating temperature (T-T) | -1 - 41 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 877 g |
| Depth | 180 mm |
| Packaging data | |
|---|---|
| Package weight | 1.01 kg |
| Package height | 103 mm |
| Package depth | 175 mm |
| Package width | 154 mm |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC |
| AC adapter included | Yes |
| Packaging content | 1 - JCD3199P USB-C® Dock Dual 4K HDMI™ with 140W GaN PD3.1 Power Adapter1 -140W GaN PD3.1 USB-C® 1-Port ChargerDetachable 3 Pin Power Cord (*Depends on selling area)• 47.24 in /120 cm for US• 39.37in / 100cm for AU/EU/UK1 - Quick Installation Guide (QIG) |
| Technical details | |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Warranty period | 2 year(s) |
| Master (outer) case GTIN (EAN/UPC) | 24712795088575 |
| Logistics data | |
|---|---|
| Master (outer) case net weight | 2.4 kg |
| Export Control Classification Number (ECCN) | EAR99 |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case width | 186 mm |
| Master (outer) case length | 249 mm |
| Master (outer) case height | 174 mm |
| Other features | |
|---|---|
| Cable length | 0.695 m |
