£1,306.99

Stock Available: 0
  • Direct thermal
  • 203 x 203 DPI
  • Maximum printing width: 10.8 cm Print speed: 203 mm/sec
  • Built-in barcodes: 1D, 2D, EAN128, POSTNET
  • Connectivity technology: Wired
  • USB port Ethernet LAN
  • Display: LCD Colour display Backlight display
  • 15.8 kg

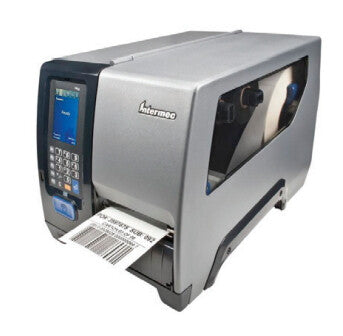

Programmable PM series smart printers offer you reliable performance for uptime assurance, quick deployment and integration, and the fastest throughput in their class – no PC required. The PM43/43c (101.6 mm/4 in) printers and the PM23c (50.8 mm/2 in) model are available in a variety of enclosure sizes and door types to fit your exact application.

Ready

Fast to deploy and easy to integrate, PM series printers fit into virtually any environment.

Reliable

Now on their third generation, the PM43, PM43c, and PM23c printers are members of the well-proven family of PM series mid-range industrial printers.

Fast

Rapid 304 mm/s (12 ips) print speed and consistent barcode printing quality with pin-point accuracy.

Smart

Run apps right inside the printer, control peripherals, and eliminate the need for a connected PC, using either C# for Printers or Fingerprint.

Connected

Flexible conectivity options, plus every PM series printer features a multilingual web interface for simple remote device management.

Vibrant

Avaiable with a large, color, multilingual, tamper-proof touchscreen or intuitive icon user interface.

Flexible

Available with three different enclosure sizes, all with multiple door configurations, to fit your needs plus a wide range of accessories for maximum media compatibility.

RFID Capable

Available in RFID-enabled configurations capable of simultaneously encoding and printing frequency-agile RFID tags.

The PM43/PM43c (101.6 mm/4 in) and PM23c (50.8 mm/2 in) Mid-Range Industrial Printers deliver proven reliability, fast drop-in deployment and integration, and advanced connectivity to maximize your uptime. They're ideal for applications in distribution centers, warehouses, manufacturing operations, and transportation centers.

The PM series was designed for easy integration and fast deployment.

Minimize workforce training and device support needs with intuitive features like a vibrant color touchscreen or intuitive icon user interface. Notifications are displayed right on screen, and the interface can be locked down to eliminate tampering.

And with the broadest connectivity options in their class – including Wi-Fi and Cisco CCX certifications, plus additional Bluetooth® connectivity – PM series quickly interface with virtually any IPv4 or IPv6 network.

PM printers offer outstanding performance in harsh environments thanks to a rugged metal enclosure and the top print speed in their class at 304 mm/s (12 ips). Beyond the productivity of speed, PM printers also enable you to work smarter by reducing labeling errors and increasing process efficiency.

Plus, in-printer apps can directly control other devices such as scanners, scales, keyboard and other peripherals – without the need for an attached computer.

Printing
Maximum printing width 10.8 cm
Print speed 203 mm/sec
Maximum resolution 203 x 203 DPI
Colour No
Print technology Direct thermal
Paper handling
Maximum label width 11.4 cm
Maximum label length 4.8 m
Maximum roll diameter 8 cm
Ribbon length 300 m
Ports & interfaces
RS-232 ports 1
USB 2.0 ports quantity 1
USB port Yes
Ethernet LAN Yes
Connectivity technology Wired
Performance
Certification UL, cUL, cULus, CE, FCC Class A, D Mark CCC, KCC, RCM
Security algorithms EAP-FAST, EAP-PEAP, EAP-TLS, EAP-TTLS, LEAP, WEP, WPA2
Image formats supported BMP, GIF, PCX, PNG
Built-in RFID module Yes
RFID frequency range 865 - 928 MHz
Built-in barcodes 1D, 2D, EAN128, POSTNET
Flash memory 128 MB
Internal memory 128 MB
Page description languages DPL, IPL, XML, ZPL II
Design
Control type Touch
Backlight display Yes
Colour display Yes
Touchscreen Yes
Display LCD
Built-in display Yes
Product colour Black, Silver
Power
Input current 1.5 A
AC adapter output current 2.5 A
AC adapter output voltage 24 V
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
System requirements
Windows operating systems supported Yes
Operational conditions
Operating temperature (T-T) 5 - 40 °C
Storage temperature (T-T) -40 - 60 °C
Storage relative humidity (H-H) 0 - 85%
Operating relative humidity (H-H) 10 - 80%
Weight & dimensions
Weight 15.8 kg
Height 295 mm
Depth 483 mm
Width 284 mm
Packaging data
Quantity per pack 1 pc(s)
Packaging content
Cables included AC
Technical details
Sustainability certificates ENERGY STAR
Other features
Languages support German, English, Spanish, French, Italian, Portuguese, Russian
