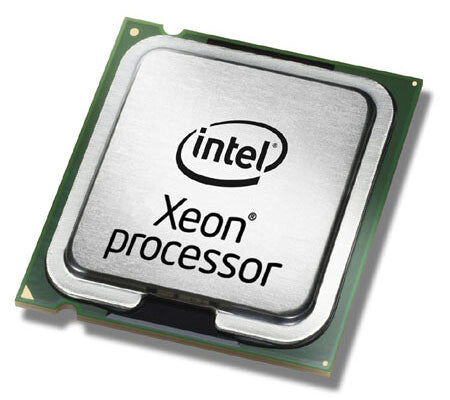

Intel Xeon E5-1650V4 processor 3.6 GHz 15 MB Smart Cache Box
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £216.33 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Out of stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Available now
Overview
- Intel® Xeon® E5 v4 E5-1650V4 3.6 GHz
- 15 MB Smart Cache LGA 2011-v3
- Processor cores: 6 14 nm 64-bit 140 W
- Maximum internal memory supported by processor: 1.53 TB DDR4-SDRAM
- Box Cooler included
Intel Inside®. Responsive Digital Services Outside.
The Intel® Xeon® processor E5 v4 family brings an evolutionary leap in performance and capabilities to your next-gen data center running on software defined infrastructure, supporting an agile cloud architecture and a highly-efficient traditional workload management.
The Intel® Xeon® processor E5-1600 v4 product family provides a professional, high-performance workstation platform ideal for efficient multitasking, advanced model generation, and complex applications.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5-2600 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
Build Your Agile Enterprise with Intel
Intel® Resource Director Technology
Use orchestration and automation features within Intel® RDT to help you better manage shared platform resources dynamically across compute, network, and storage.
Intel® Transactional Synchronization Extensions
Boost performance for online transaction processing (OLTP) and other multi-threaded workloads that are currently slowed by memory locking with Intel® TSX.
Intel® Advanced Vector Extensions 2
Implement Intel® Advanced Vector Extensions 2 (Intel® AVX2) to optimize overall performance for heterogeneous workloads running concurrently, even for applications that don’t use Intel AVX.
Innovative Technology for Diverse Applications and Workloads
Enterprise Cloud
Accelerate your path to a highly efficient, on-premises cloud deployment with innovation based on Intel® architecture.
Software-Defined Infrastructure (SDI)
Use proven, reliable, and innovative Intel technology as the foundation for software-defined infrastructure across your data center.
A Holistic HPC Solution
Fuel your insight with future-ready performance from the Intel® Scalable System Framework (SSF).
High-Performance Computing
Get the performance you need for creating balanced, high-performance computing systems at any scale.
Specifications
Processor
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Xeon® E5 v4 |
| Processor model | E5-1650V4 |
| Processor base frequency | 3.6 GHz |
| Processor cores | 6 |
| Processor socket | LGA 2011-v3 |
| Processor lithography | 14 nm |
| Cooler included | Yes |
| Component for | Server/workstation |
| Processor series | Intel Xeon E5-1600 v4 |
| Processor threads | 12 |
| System bus rate | 0 GT/s |
| Processor operating modes | 64-bit |
| Processor boost frequency | 4 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Thermal Design Power (TDP) | 140 W |
| Stepping | R0 |
| Bus type | QPI |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Processor codename | Broadwell |
| Processor code | SR2P7 |
| Processor ARK ID | 92994 |
Memory
| Maximum internal memory supported by processor | 1.53 TB |
|---|---|
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory channels | Quad-channel |
| ECC | Yes |
Show all 82 specificationsShow fewer specifications
Graphics
| On-board graphics card | No |
|---|
Features
| Thermal Monitoring Technologies | Yes |
|---|---|
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX 2.0 |
| Physical Address Extension (PAE) | Yes |
| CPU configuration (max) | 1 |
| PCI Express CEM revision | 3.0 |
| Embedded options available | No |
| Scalability | 1S |
| Export Control Classification Number (ECCN) | 5A992C |
| Commodity Classification Automated Tracking System (CCATS) | G077159 |
Processor special features
| Intel Flex Memory Access | No |
|---|---|
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Conflict-Free processor | Yes |
| Intel TSX-NI version | 1.00 |
| Intel Enhanced Halt State | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel Demand Based Switching | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel TSX-NI | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
General
| Product family | Xeon |
|---|
Operational conditions
| Tcase | 69 °C |
|---|
Technical details
| Processor cache | 15360 KB |
|---|---|
| Product type | Processor |
| Supported memory types | DDR4-SDRAM |
| Product family | Intel Xeon Processor E5 v4 Family |
| Last change | 63903513 |
| Processor brand name | Intel Xeon |
| Bus type units | GT/s |
| Bus speed | 0 GT/s |
| Status | Launched |
| Launch date | Q2'16 |
| Servicing status | End of Servicing Updates |
| End of servicing updates date | Thursday, June 30, 2022 |
Weight & dimensions
| Processor package size | 45mm x 52.5mm |
|---|
Other features
| Maximum internal memory | 1572864 MB |
|---|
