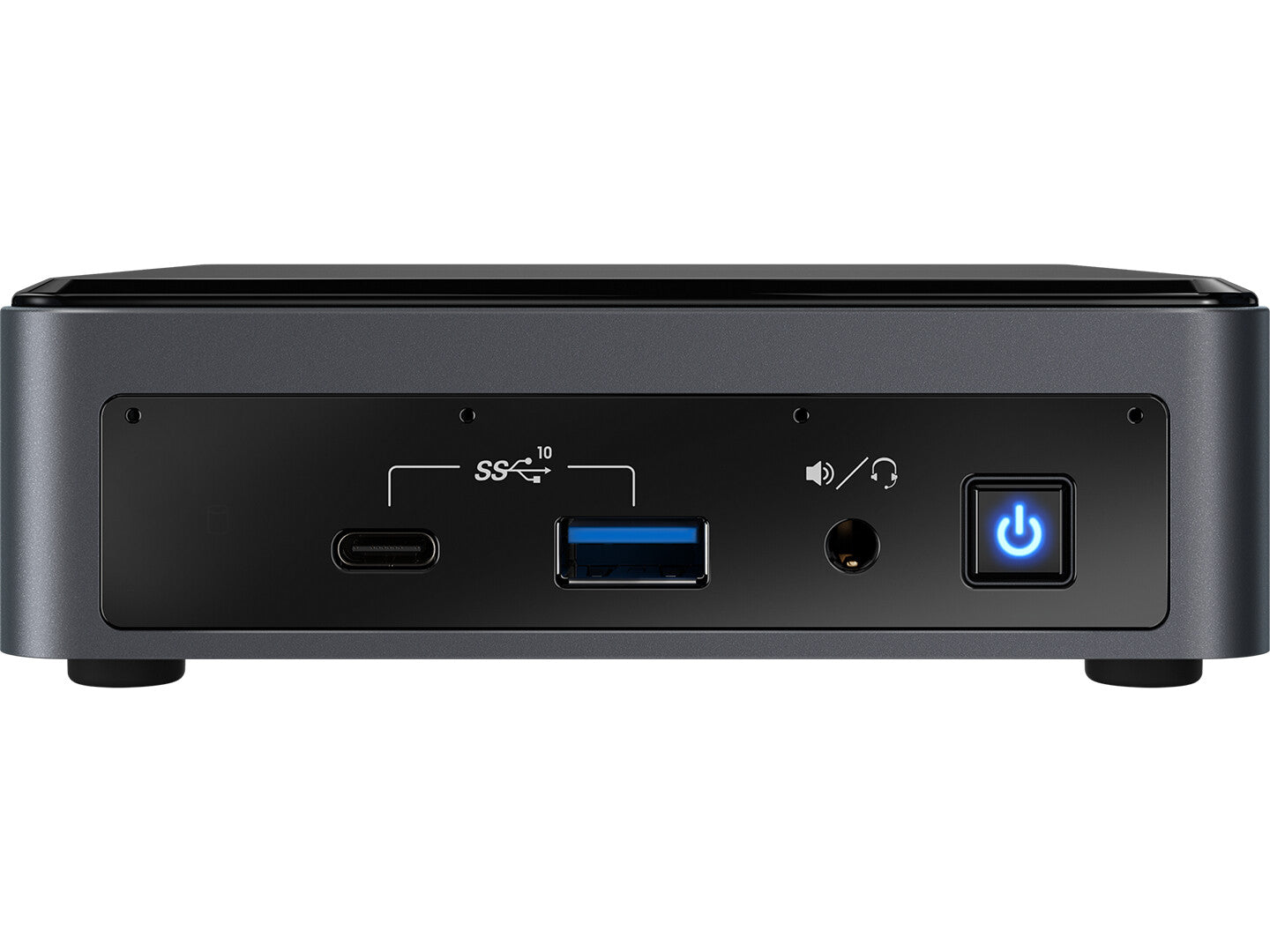

Intel NUC BXNUC10I3FNK3 PC/workstation barebone UCFF Black i3-10110U BGA 1528 2.1 GHz
Couldn't load pickup availability
- UCFF Black
- Built-in processor Intel i3-10110U 2.1 GHz
- 2 SO-DIMM Maximum internal memory: 64 GB DDR4-SDRAM
- SSD M.2
- Intel® UHD Graphics
- Ethernet LAN Wi-Fi
Intel® Optane™ Memory Supported
Intel® Optane™ memory is a revolutionary new class of non-volatile memory that sits in between system memory and storage to accelerate system performance and responsiveness. When combined with the Intel® Rapid Storage Technology Driver, it seamlessly manages multiple tiers of storage while presenting one virtual drive to the OS, ensuring that data frequently used resides on the fastest tier of storage. Intel® Optane™ memory requires specific hardware and software configuration.
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel® HD Audio Technology
Intel® High Definition Audio (Intel® HD Audio) is capable of playing back more channels at higher quality than previous integrated audio formats. In addition, Intel® HD Audio has the technology needed to support the latest and greatest audio content.
Intel® Rapid Storage Technology
Intel® Rapid Storage Technology provides protection, performance, and expandability for desktop and mobile platforms. Whether using one or multiple hard drives, users can take advantage of enhanced performance and lower power consumption. When using more than one drive the user can have additional protection against data loss in the event of hard drive failure. Successor to Intel® Matrix Storage Technology.
Intel® Platform Trust Technology (Intel® PTT)
Intel® Platform Trust Technology (Intel® PTT) is a platform functionality for credential storage and key management used by Windows 8* and Windows® 10. Intel® PTT supports BitLocker* for hard drive encryption and supports all Microsoft requirements for firmware Trusted Platform Module (fTPM) 2.0.
| Processor | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10110U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.1 GHz |
| Processor lithography | 14 nm |
| Processor cache | 4 MB |
| Thermal Design Power (TDP) | 25 W |
| Memory bandwidth supported by processor (max) | 42.6 GB/s |
| Processor codename | Comet Lake |
| CPU configuration (max) | 1 |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of DIMM slots | 2 |
| Number of memory slots | 2 |
| Removable memory card slot | SDXC with UHS-II support |
| Memory bandwidth (max) | 42.6 GB/s |
| Memory voltage | 1.2 V |
| Memory channels | Dual-channel |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | No |
| Storage | |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
| Graphics | |
|---|---|
| On-board graphics card | No |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 3 |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| LAN controller | Intel® I219-V |
| Bluetooth | Yes |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPort version | 1.2 |
| Combo headphone/mic port | Yes |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| M.2 card slot (storage) | 2242/2280 |
| USB ports quantity | 7 |
| Number of SATA III connectors | 2 |
| Thunderbolt 3 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Graphics output | HDMI 2.0b; USB-C (DP1.2) |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Number of M.2 (M) slots | 1 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| Design | |
|---|---|
| Chassis type | UCFF |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Mini PC barebone |
| ARK ID | 195503 |
| Status | Launched |
| Performance | |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1528 |
| Trusted Platform Module (TPM) | No |
| Audio output channels | 7.1 channels |
| Consumer infrared Rx sensor | Yes |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
|---|---|
| Intel® vPro™ Platform Eligibility | No |
| Intel Clear Video Technology | Yes |
| Intel® OS Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Secure Key | Yes |
| Intel TSX-NI | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Thermal Monitoring Technologies | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Rapid Storage Technology | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Execute Disable Bit | Yes |
| Intel Trusted Execution Technology | No |
| Intel Flex Memory Access | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Embedded options available | No |
| General | |
|---|---|
| Product family | NUC |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
| Software | |
|---|---|
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Power | |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 38 mm |
| Packaging content | |
|---|---|
| Processor included | Intel® Core™ i3-10110U Processor (4M Cache, up to 4.10 GHz) |
| Other features | |
|---|---|
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| Processor ARK ID | 196451 |
| Number of SATA connectors | 2 |
| DC input voltage | 19 V |
| Launch date | Q4'19 |
