iiyama TW1023ASC-B3P Signage Display Kiosk design 25.6 cm (10.1") Wi-Fi 385 cd/m² WXGA Black Touchscreen Built-in processor Android 24/7
Couldn't load pickup availability
- Kiosk design Black
- 25.6 cm (10.1") 1280 x 800 pixels 385 cd/m²
- Touchscreen 25 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 3 W

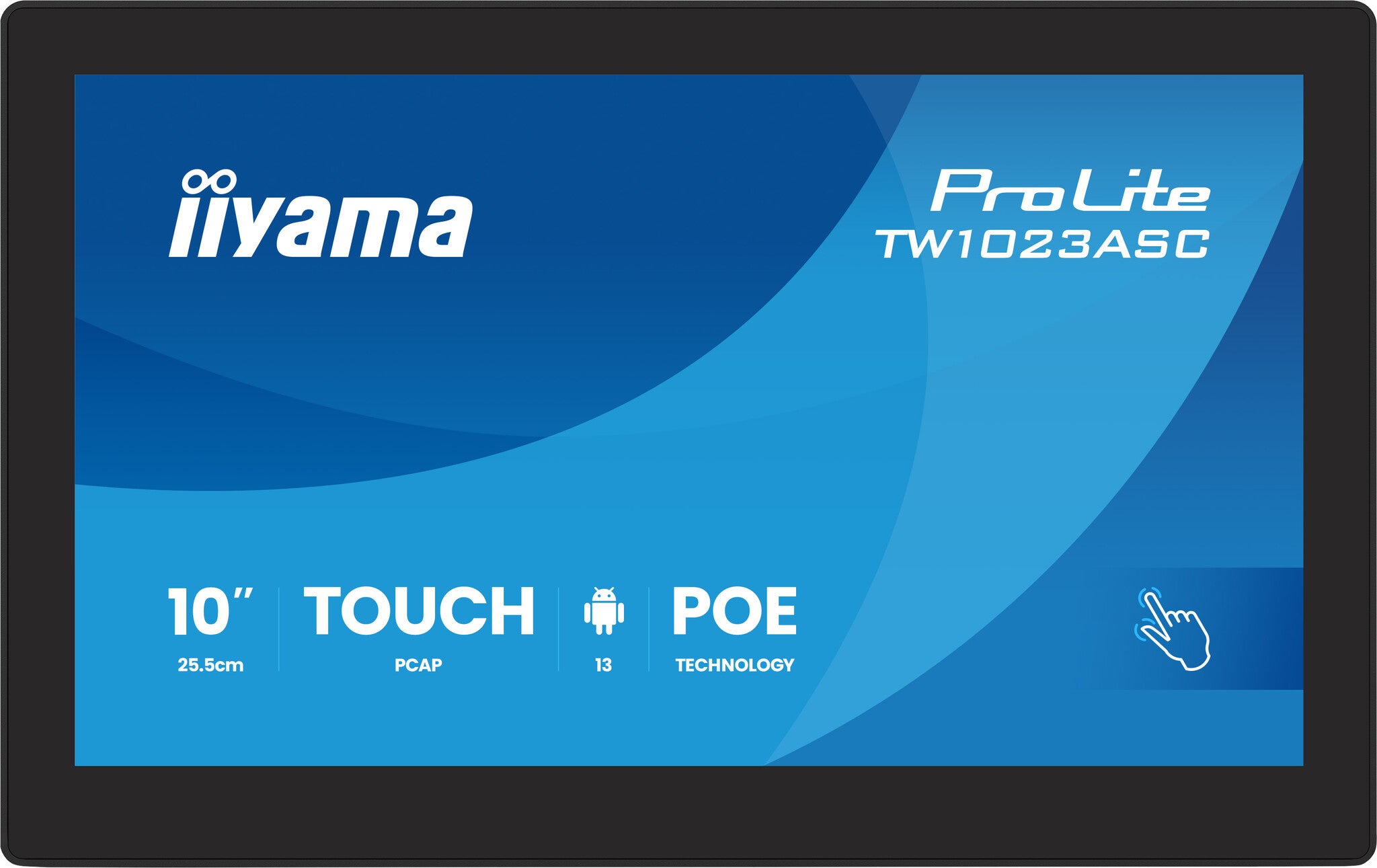

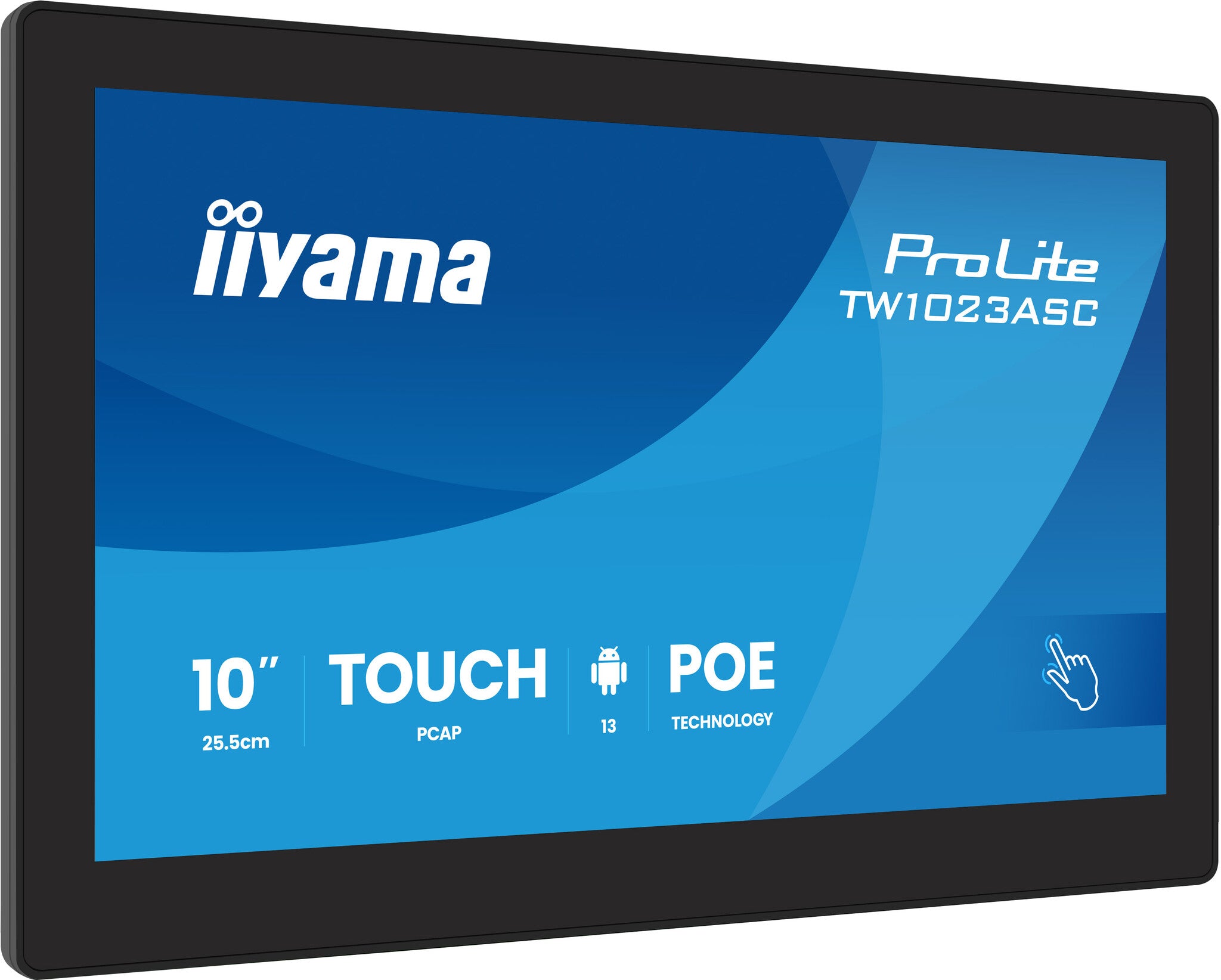

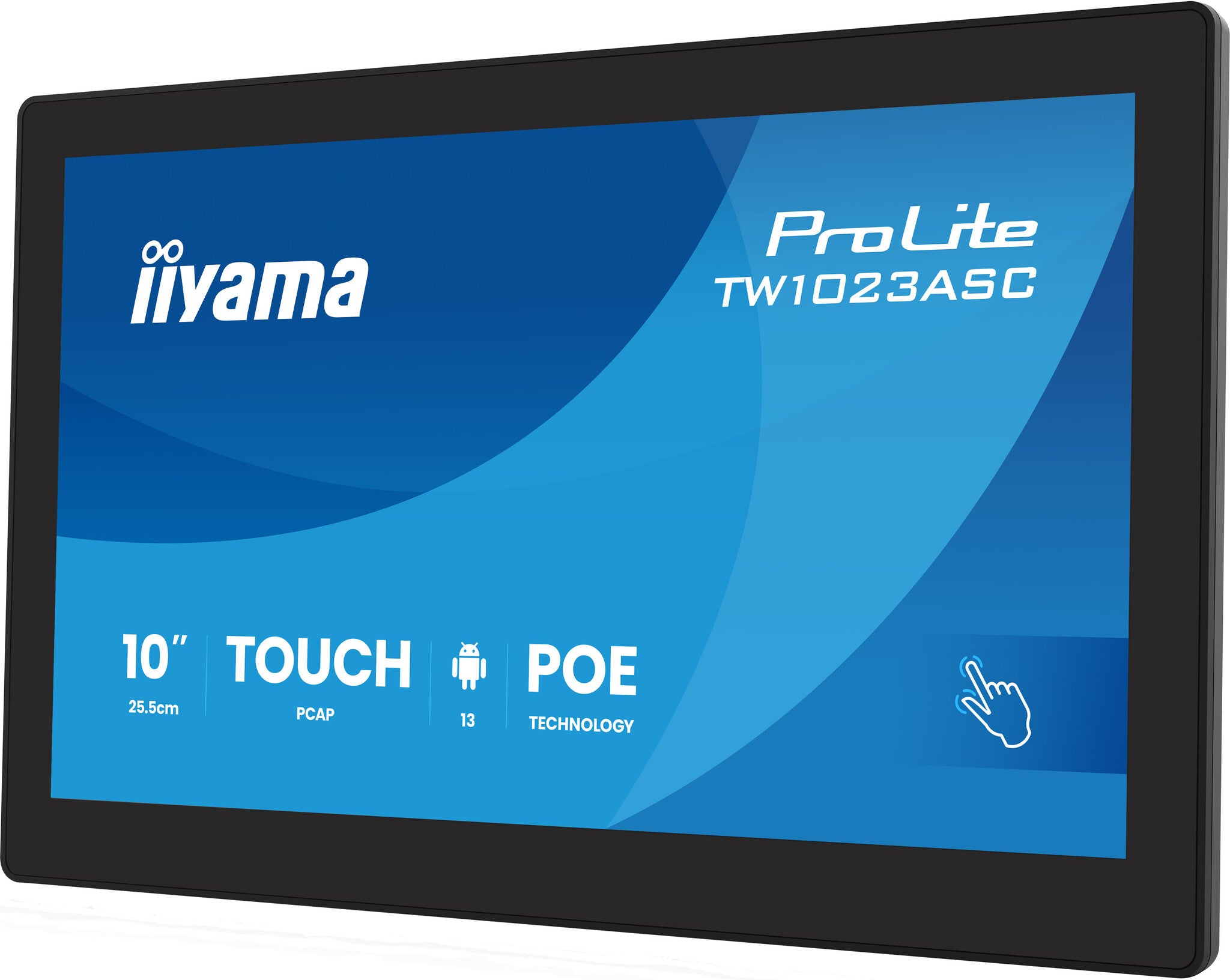

The ProLite TW1023AS-B3P is a smart and intuitive 10.1" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 13, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in camera, microphone and speakers, the TW1023AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Panel type | IPS |
| Display resolution | 1280 x 800 pixels |
| Display brightness | 385 cd/m² |
| HD type | WXGA |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Multi-touch | Yes |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:10 |
| Response time | 25 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Active display area (W x H) | 216.6 x 135.4 mm |
| Display diagonal (metric) | 25.5 cm |
| Glass thickness | 1.25 mm |
| Colour depth | 8 bit |
| Surface hardness | 6H |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 1 |
| Mini HDMI ports quantity | 1 |
| DVI port | No |
| USB port | Yes |
| USB ports quantity | 4 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | Micro-USB, USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| PC Audio in | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| DC-in jack | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 3 W |
| Design | |
|---|---|
| Product design | Kiosk design |
| Product colour | Black |

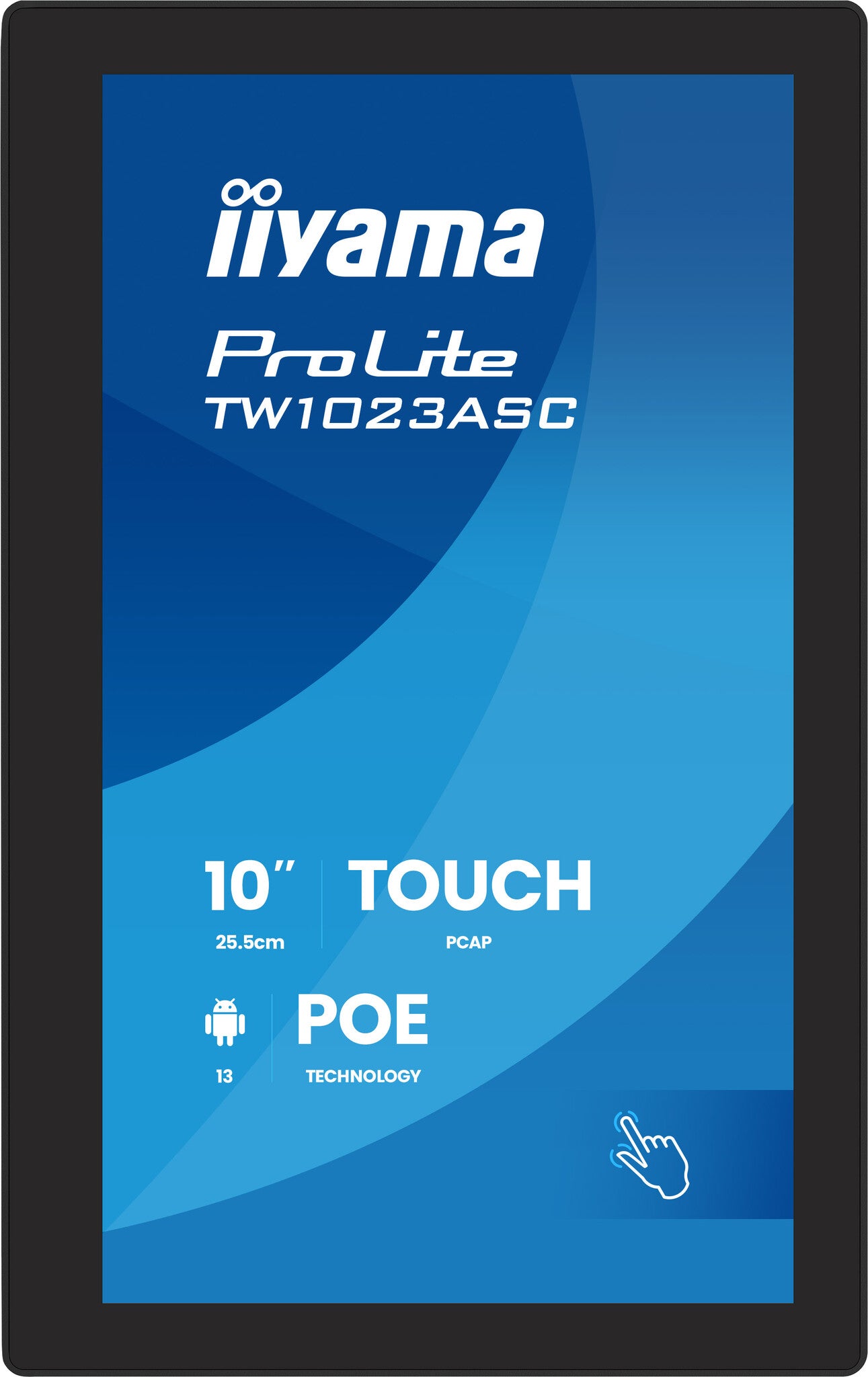

| Orientation | Horizontal/Vertical |
| VESA mounting | Yes |
| Bezel colour | Black |
| Fingerprint resistant | Yes |
| Performance | |
|---|---|
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Number of microphones | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| Input voltage | 12 V |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Computer system | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Rockchip |
| Processor family | ARM Rockchip |
| Processor model | RK3568 |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Internal memory | 4 GB |
| On-board graphics card model | Mali-G52 MC1 |
| Internal storage capacity | 32 GB |
| Operating system installed | Android |
| Operating system version | 13 |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Weight & dimensions | |
|---|---|
| Display width | 255 mm |
| Display depth | 30.5 mm |
| Display height | 172 mm |
| Display weight | 800 g |
| Width | 255 mm |
| Depth | 30.5 mm |
| Height | 172 mm |
| Weight | 800 g |
| Width (with stand) | 255 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 172 mm |
| Weight (with stand) | 800 g |
| Packaging data | |
|---|---|
| Package width | 398 mm |
| Package depth | 68 mm |
| Package height | 223 mm |
| Package weight | 1.36 kg |
| Packaging content | |
|---|---|
| Power adapter included | Yes |
| Cables included | AC |
| Certificates | |
|---|---|
| Certification | CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
| Logistics data | |
|---|---|
| Pallet gross height | 120 cm |
| Pallet gross width | 2.15 m |
| Pallet gross length | 100 cm |
| Products per pallet | 256 pc(s) |
| Features | |
|---|---|
| Suitable for indoor use | Yes |
| Technical details | |
|---|---|
| Pallet net width | 100 cm |
| Pallet net length | 2.15 m |
| Pallet net height | 120 cm |
| Internal memory | 32000 MB |
| Sustainability certificates | ErP |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |

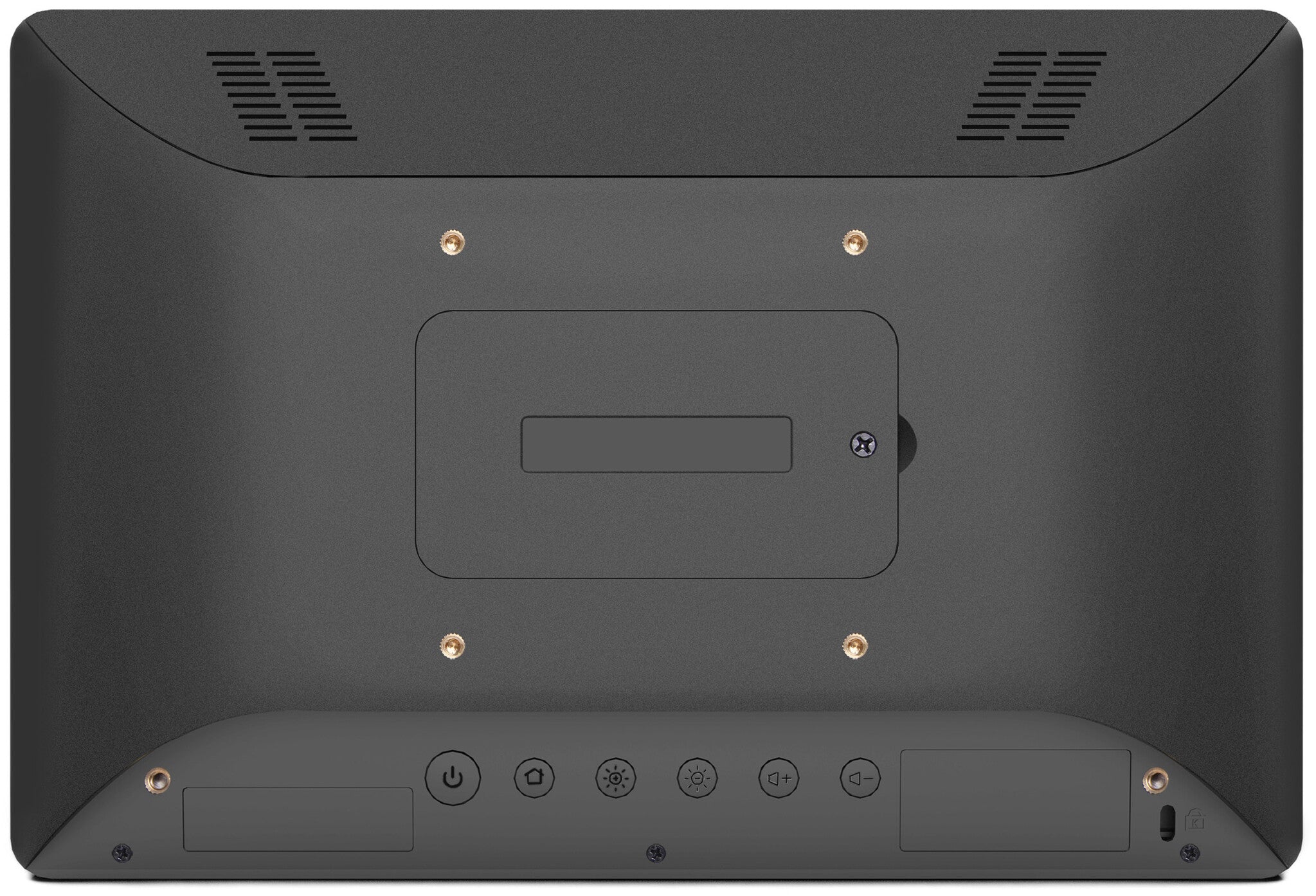

| User controls | Power, home, brightness +, brightness -, volume +, volume - |
| Audio in (mini jack) | Yes |
| Other features | |
|---|---|
| Micro-USB ports quantity | 1 |
| Brightness | 385 cd/m² |
| AC adapter included | Yes |
| RJ-45 ports quantity | 1 |
| Viewable size, vertical | 13.5 cm |
| Viewable size, horizontal | 21.7 cm |
| Power supply type | External |
| Cable management | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Audio input | Y |
| USB 2.0 ports quantity | 2 |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Quick start guide | Yes |
| Built-in camera | Yes |
