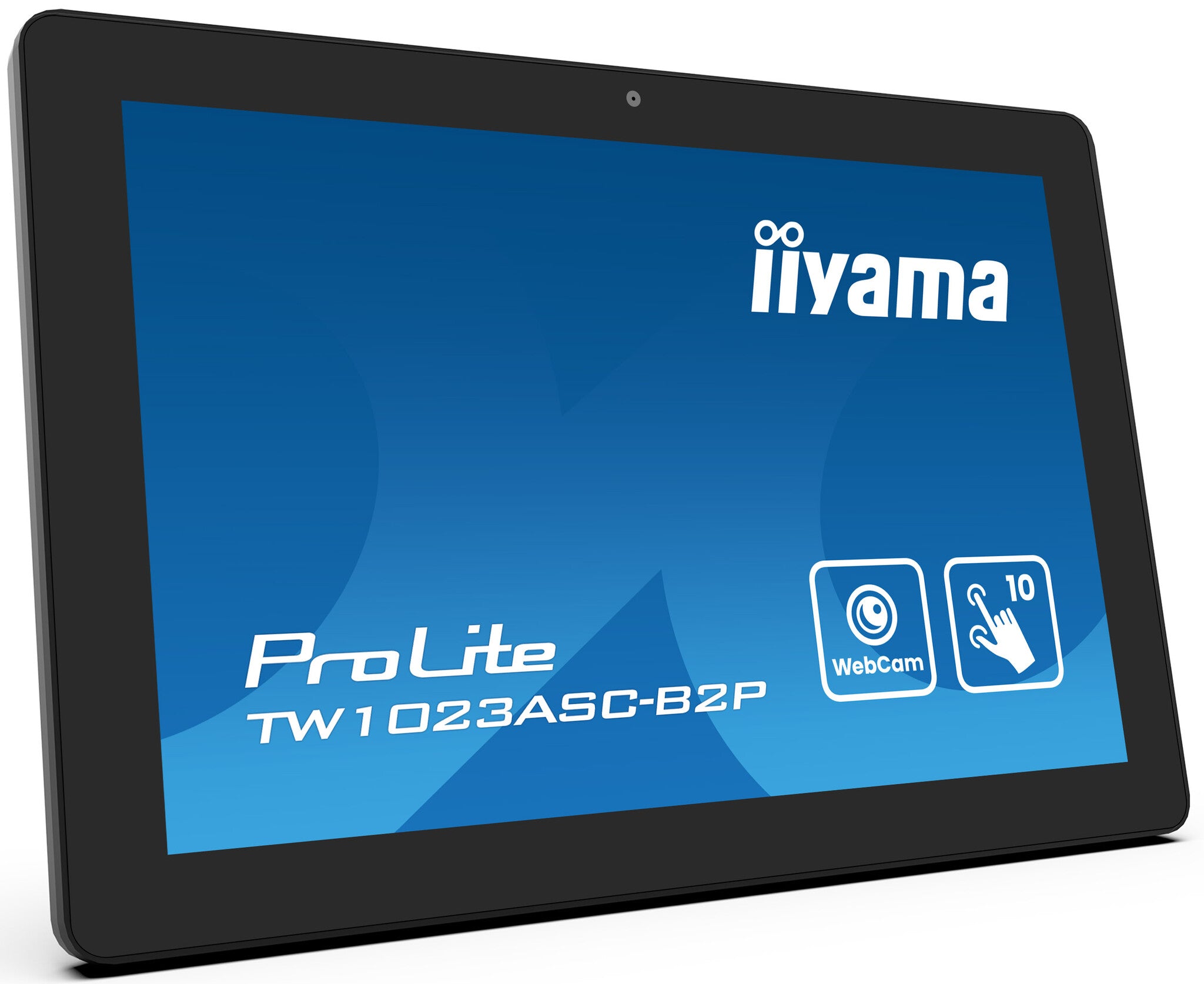

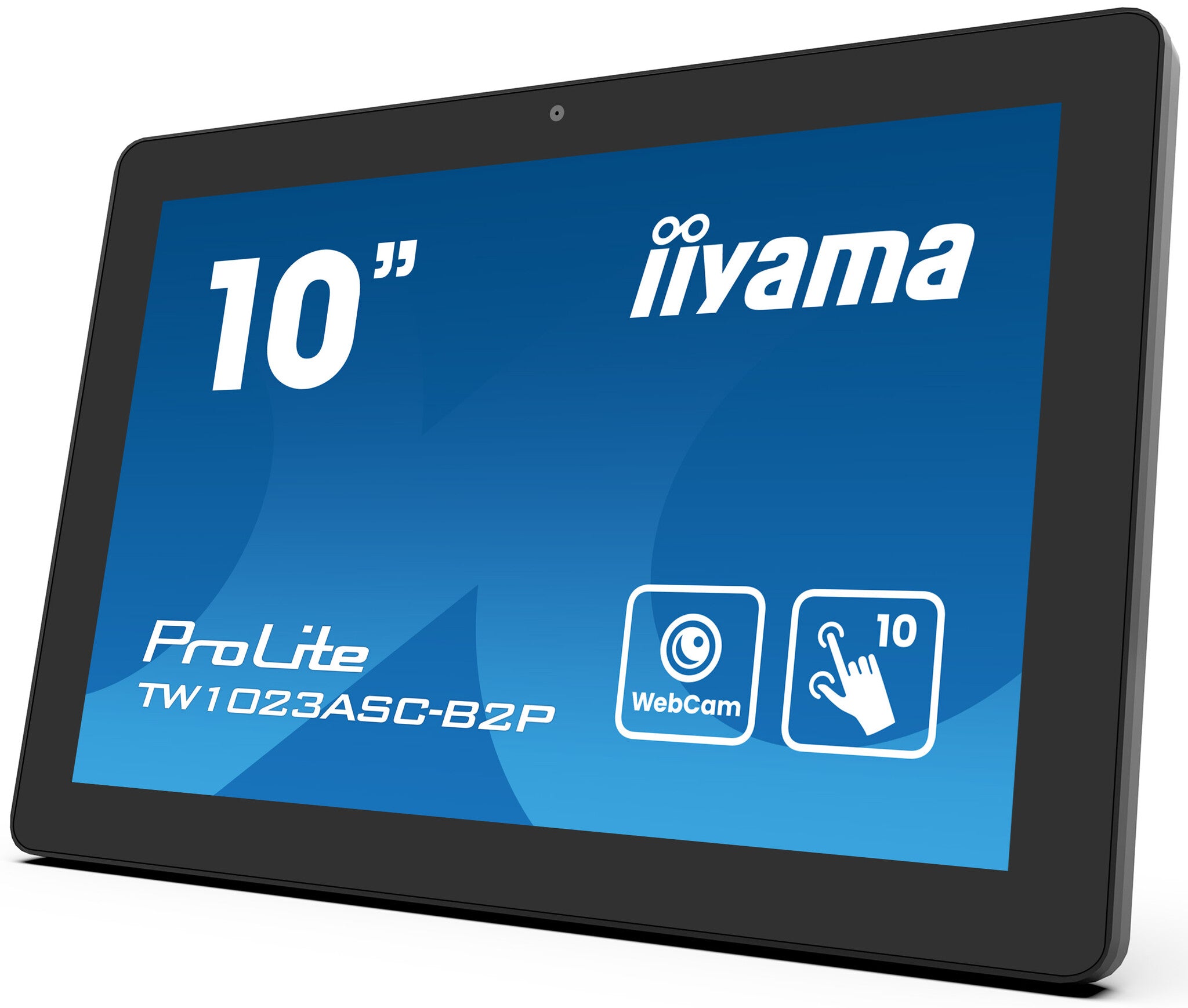

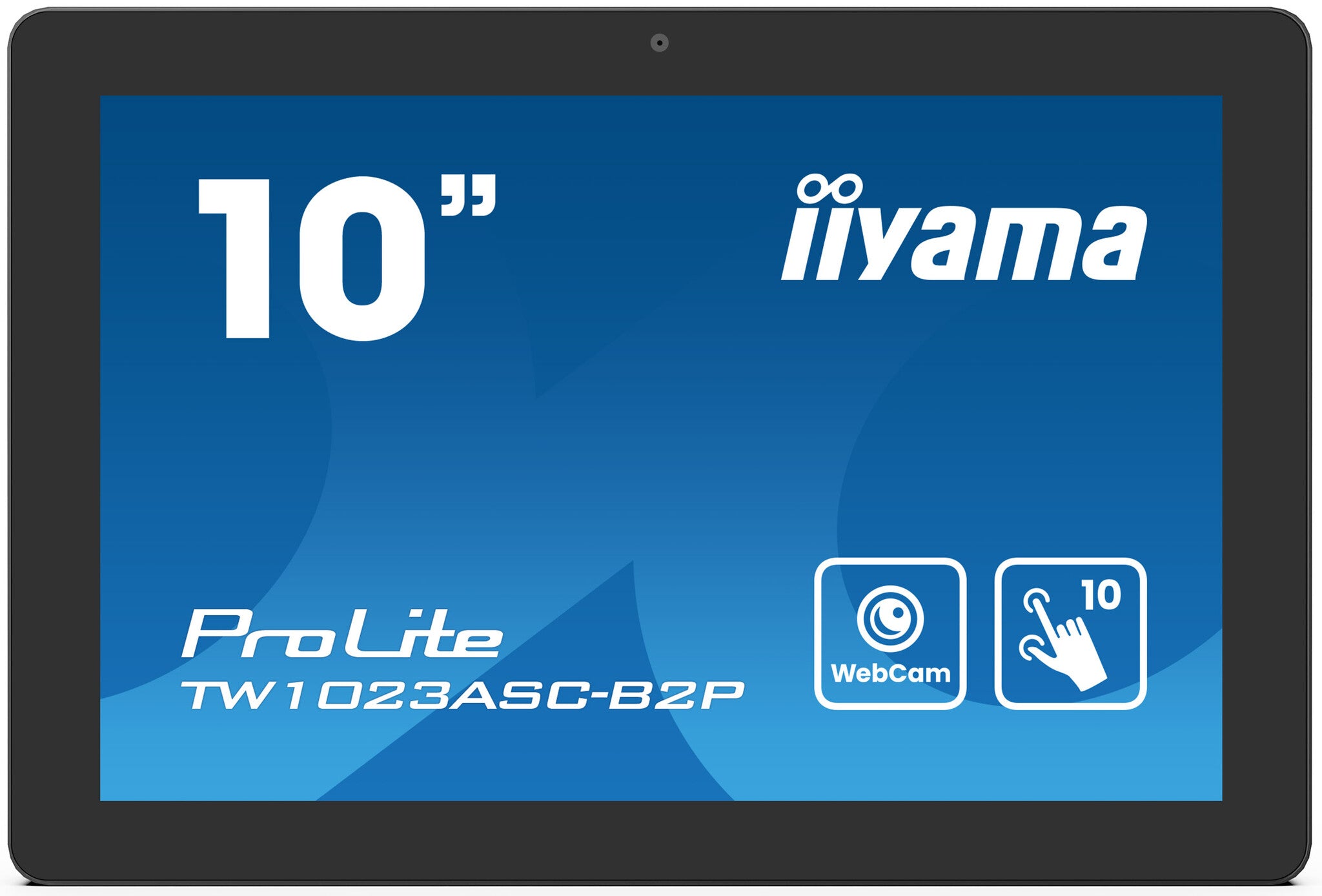

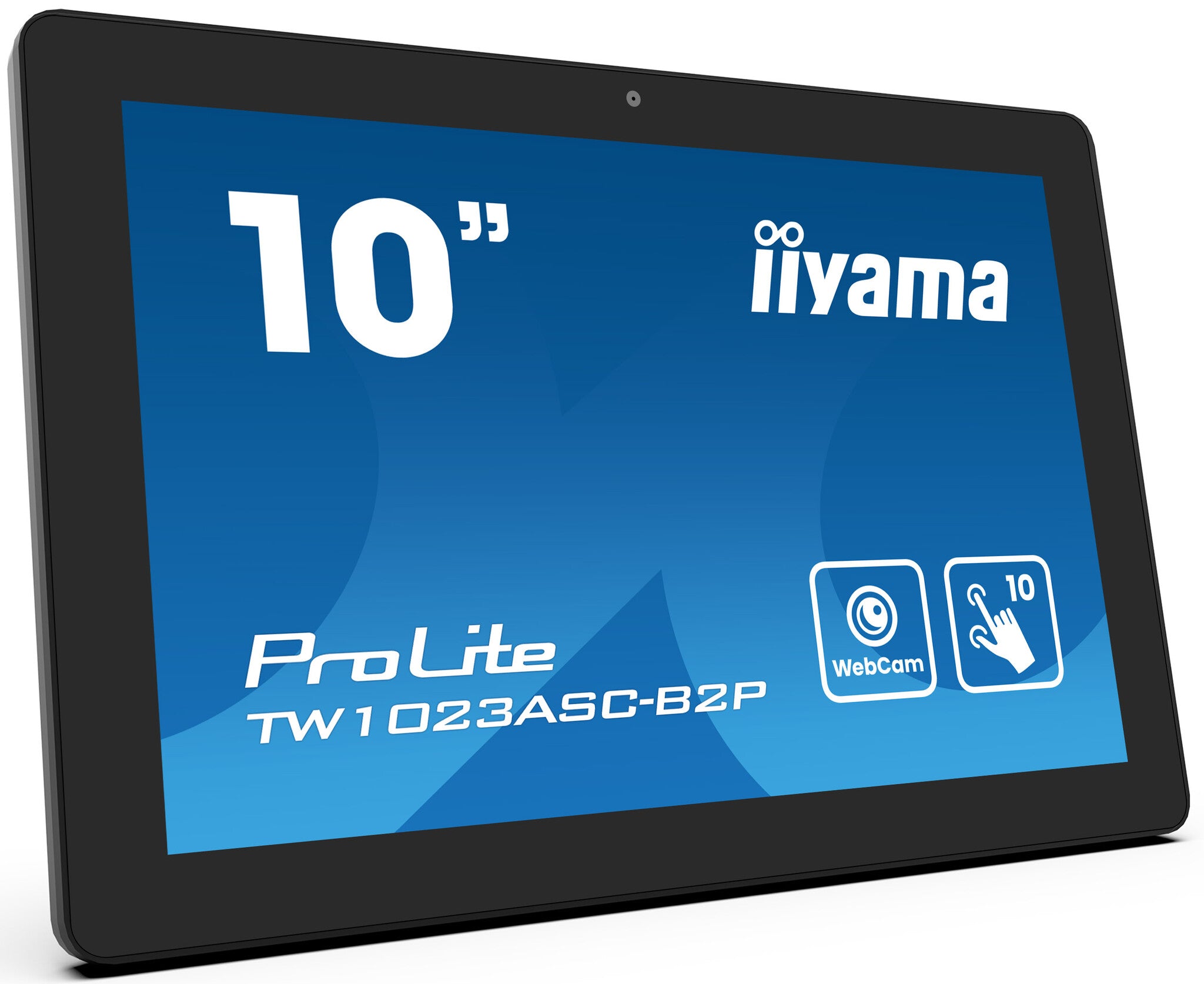

iiyama TW1023ASC-B2P computer monitor 25.6 cm (10.1") 1280 x 800 pixels Touchscreen Black
£195.99
Couldn't load pickup availability
- 25.6 cm (10.1") Black
- Built-in speaker(s) Built-in camera
- Response time: 25 ms Response time measurement type: GTG (Gray to Gray)
- 1280 x 800 pixels Panel type: IPS
- ErP CE, EAC, REACH, RoHS, UKCA, WEEE
The ProLite TW1023ASC-B2P touch panel PC is a perfect choice for high-use environments such as retail, interactive POS, information desks or hospitality applications. Thanks to the pre-installed Android operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. This monitor can operate in landscape, portrait or face-up orientation. Together with the built-in camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:9 |
| Touchscreen | Yes |
| Panel type | IPS |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 385 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Viewable size, horizontal | 21.7 cm |
| Viewable size, vertical | 13.5 cm |
| Display diagonal (metric) | 25.5 cm |
| Surface hardness | 6H |
| Colour depth | 8 bit |
| Performance | |
|---|---|
| Flicker-free technology | Yes |
| Operating hours (hours/days) | 24/7 |
| Operating system installed | Android |
| Operating system version | 13 |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
| Built-in camera | Yes |
| Megapixel (approx.) | 5 MP |
| Built-in microphone | Yes |
| Design | |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.25 mm |

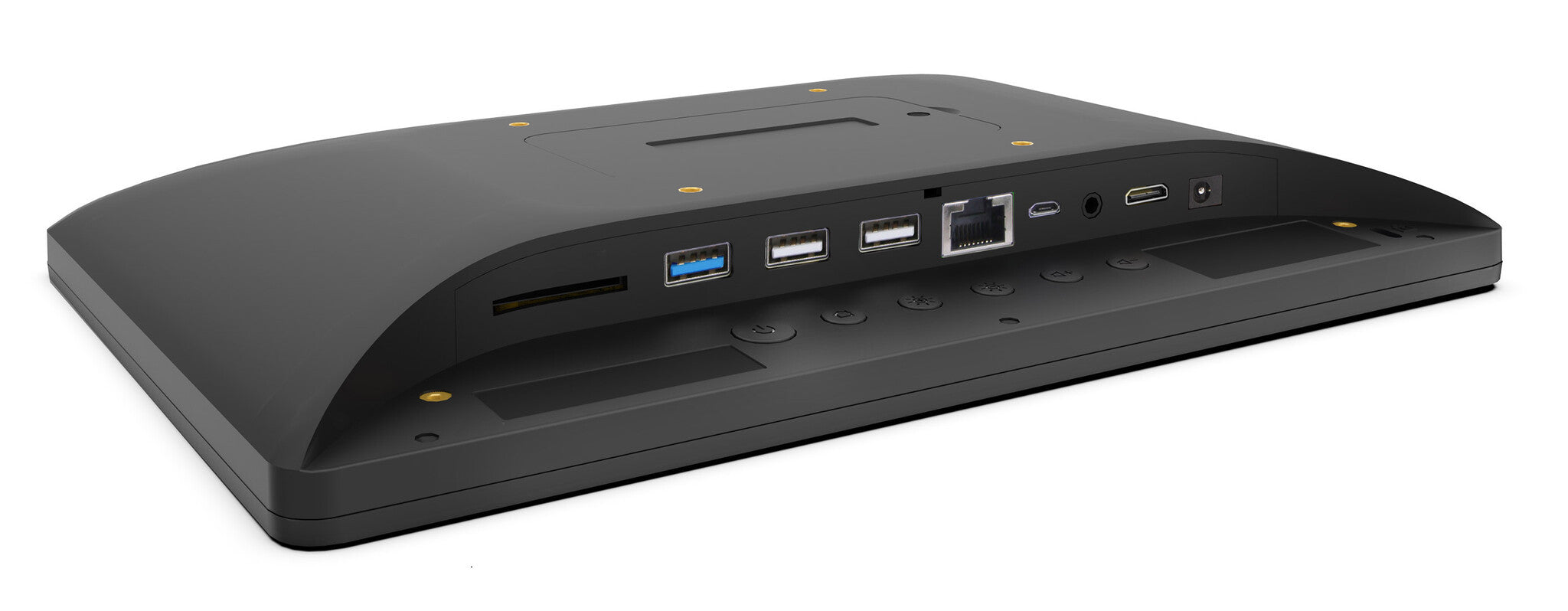

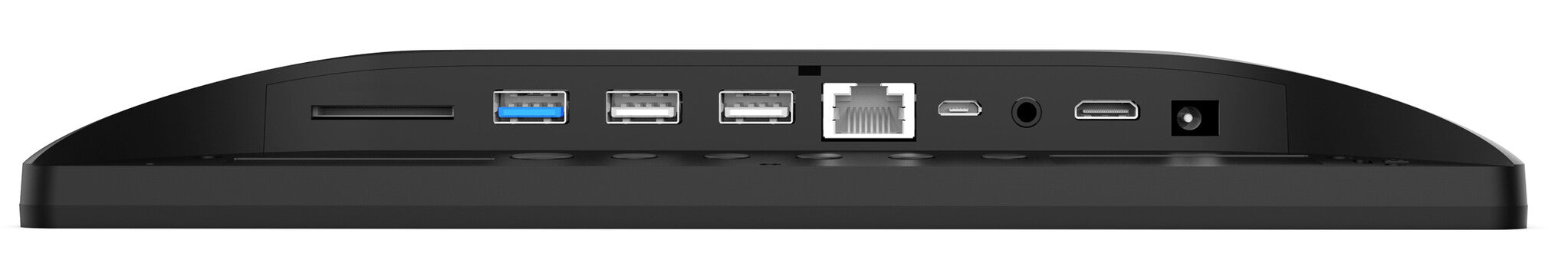

| Ports & interfaces | |
|---|---|
| USB 2.0 Type-A ports quantity | 2 |
| USB Touch port | Yes |
| HDMI ports quantity | 1 |
| Audio input | Yes |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable management | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| Power consumption (standby) | 0.5 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 255 mm |
| Depth (with stand) | 30.5 mm |
| Height (with stand) | 172 mm |
| Weight (with stand) | 800 g |
| Packaging data | |
|---|---|
| Package width | 398 mm |
| Package depth | 68 mm |
| Package height | 223 mm |
| Package weight | 1.36 kg |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Cables included | AC |
| Quick start guide | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| Other features | |
|---|---|
| AC adapter included | Yes |
| Brightness | 385 cd/m² |
| Google applications | Google Chrome, Gmail, Google Calendar |
| Packaging content | AC adapter, interchangeable plugs (EU/UK) |
| USB ports quantity | 4 |
| Active display area (W x H) | 216.6 x 135.4 mm |
| Built-in processor | Yes |
| RJ-45 ports quantity | 1 |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Depth | 30.5 mm |
| Width | 255 mm |
| Height | 172 mm |
| Weight | 800 g |
| Ethernet LAN (RJ-45) ports | 1 |

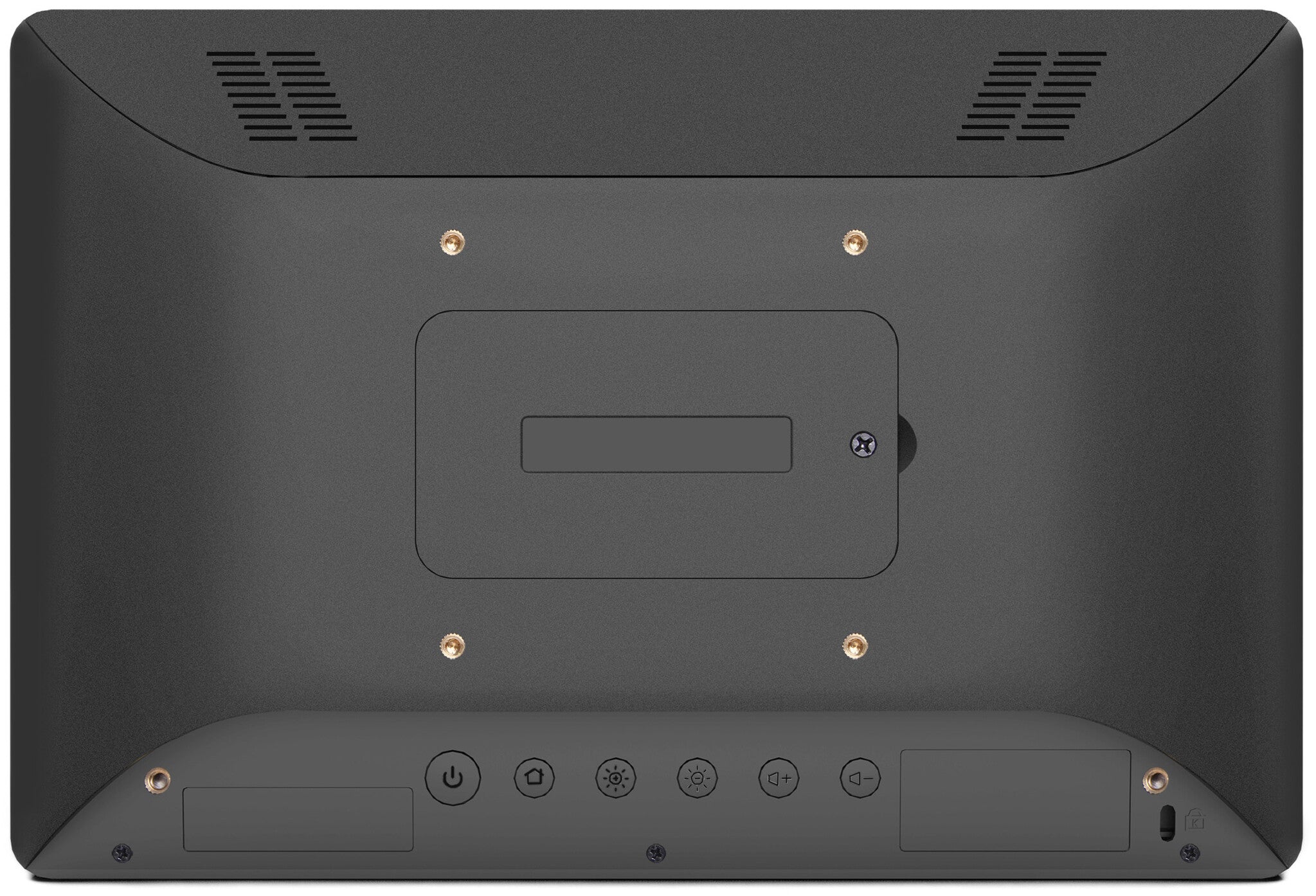

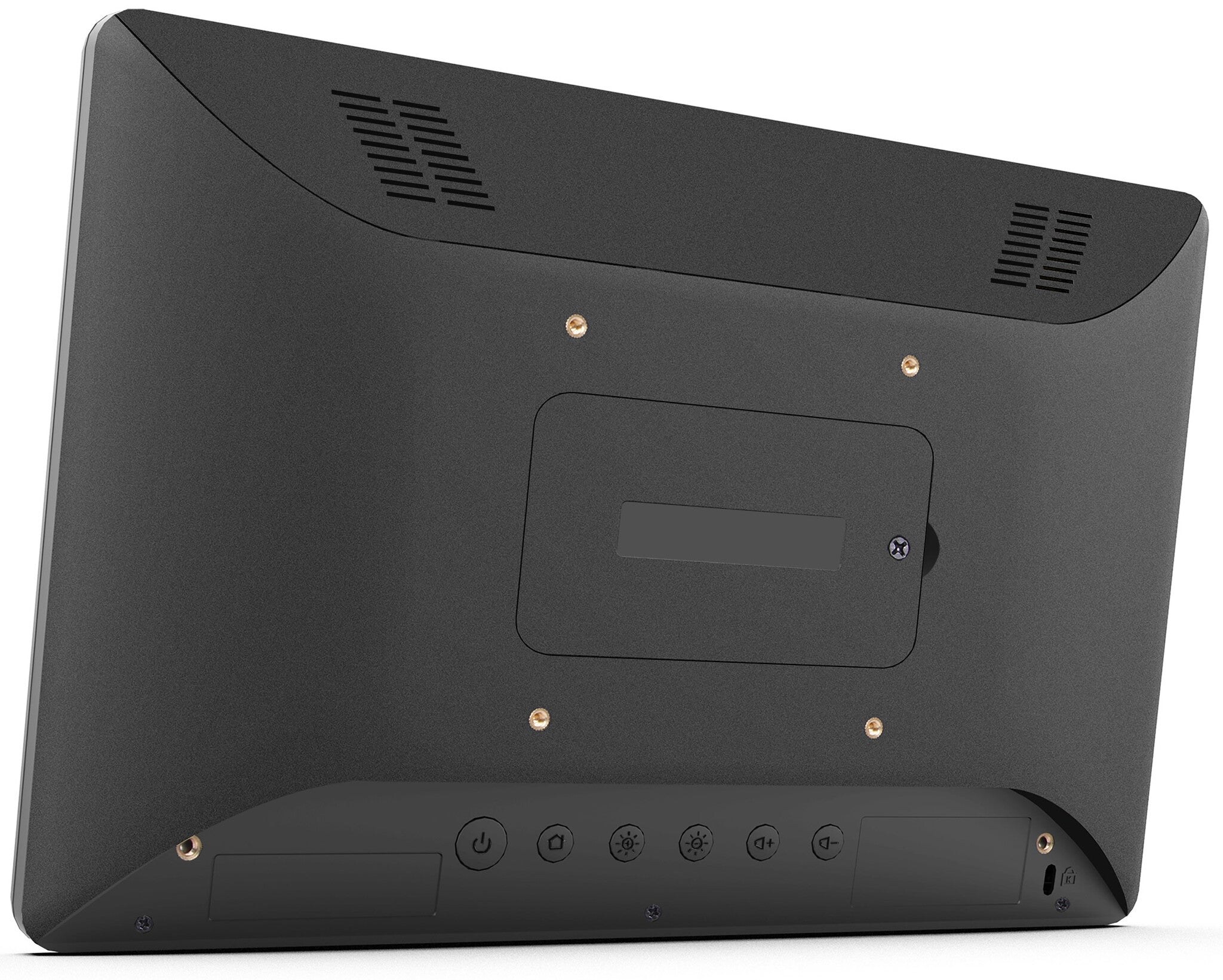

| Control panel | Power, home, brightness +, brightness -, volume +, volume - |
| User controls | Power, home, brightness +, brightness -, volume +, volume - |
| Touch method | finger, glove (latex), capacitive stylus |
| Thin Client | |
|---|---|
| Internal memory | 4000 MB |
| Logistics data | |
|---|---|
| Products per pallet | 256 pc(s) |
| Pallet net width | 100 cm |
| Pallet net length | 2.15 m |
| Pallet net height | 120 cm |
