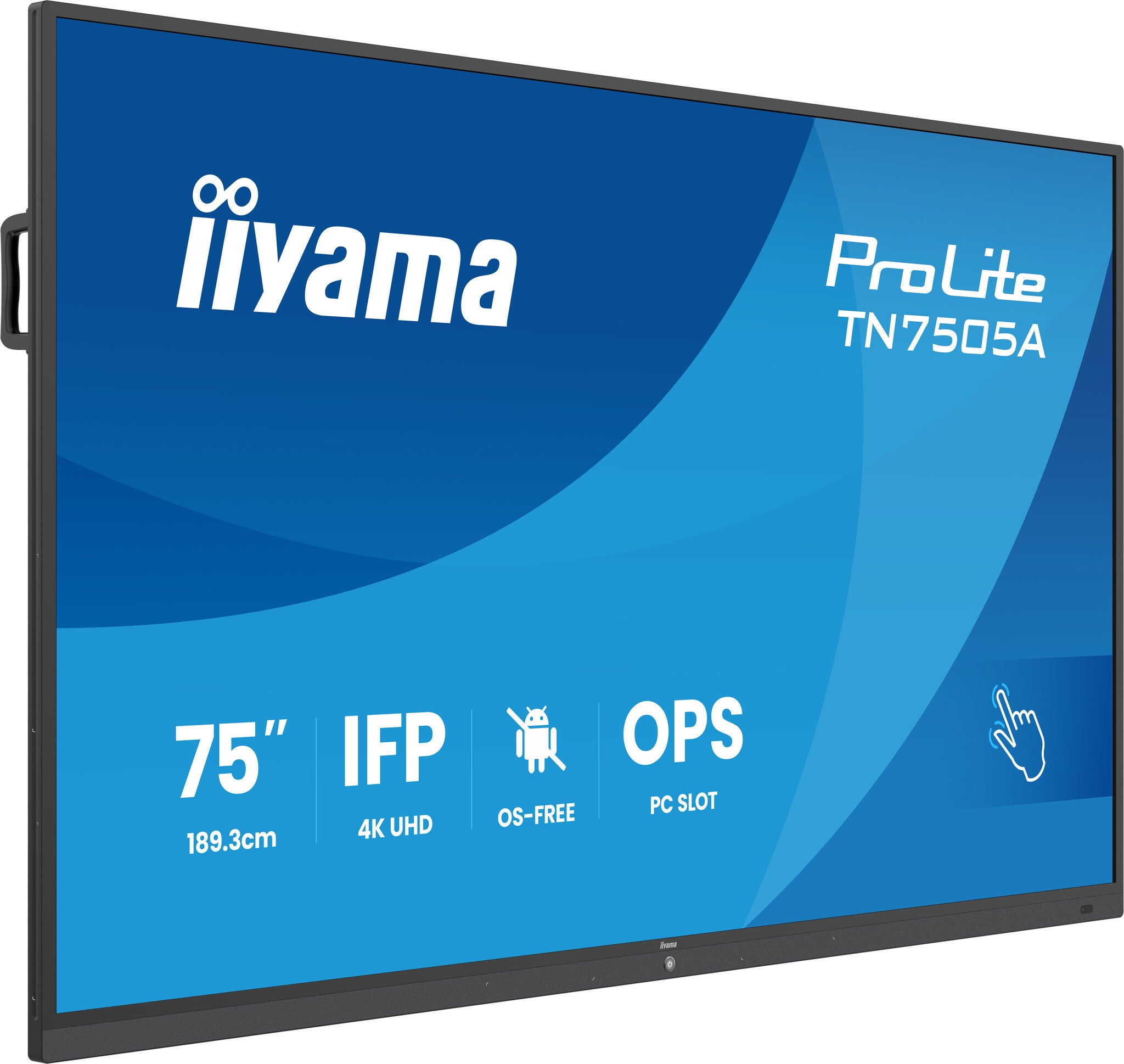

iiyama TN7505A-B1AG Signage Display Interactive flat panel 189.3 cm (74.5") 500 cd/m² 4K Ultra HD Black Touchscreen
Couldn't load pickup availability
- Indoor Interactive flat panel Black
- 189.3 cm (74.5") 3840 x 2160 pixels 500 cd/m²
- Touchscreen 60 Hz 5 ms
- Ethernet LAN
- Built-in speaker(s)
The ProLite TN7505A-B1AG is a large-format professional touch display, without an operating system, designed for environments where security, reliability and control are non-negotiable. Despite its minimalist structure, the TN7505A is exceptionally easy to use: simply connect your source and it works. The responsive multi-touch panel, 4K UHD resolution and high brightness deliver a precise and professional experience for collaboration, presentations and interactive applications. Built-in annotation allows users to write directly on the screen with a pen, marking up presentations or any on-screen content in real time for clear and effective communication. The TN7505A is the ideal choice for banks, courts, defence organisations, IT departments, universities and other high-security or compliance-driven environments where simplicity, transparency and trust are essential.
| Display | |
|---|---|
| Display diagonal | 189.3 cm (74.5") |
| Panel type | IPS |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.273 cm |
| Haze rate | 25% |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 2 |
| HDMI input ports quantity | 2 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| USB port | Yes |
| USB ports quantity | 1 |
| USB connector type | USB Type-C, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| PC Audio in | Yes |
| RS-232C | Yes |
| Remote (IR) output | 1 |
| PC Audio out | Yes |
| Audio Return Channel (ARC) | Yes |
| OPS module slot | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Design | |
|---|---|
| Product design | Interactive flat panel |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Positioning accuracy | 1 mm |
| Anti-glare screen | Yes |
| Performance | |
|---|---|
| Purpose | Education |
| Picture-in-Picture | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Russian |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 175 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 175 kWh |
| Energy efficiency scale | A to G |
| Weight & dimensions | |
|---|---|
| Display width | 1710.2 mm |
| Display depth | 120.4 mm |
| Display height | 1036.3 mm |
| Display weight | 54.5 kg |
| Width | 1710.2 mm |
| Depth | 120.4 mm |
| Height | 1036.3 mm |
| Weight | 54.5 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Cables included | RS-232, AC, HDMI, USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
|---|---|
| OPS slot | 1 |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| User controls | Color temp., image mode (including eye protection mode), sound mode, no signal standby ( Off / 1 min. / 3 min. / 5 min. / 15 min. / 30 min.), meeting mode, time scheduler, key lock, PIP & PBP, brightness / contrast. |
| Audio in (mini jack) | Yes |
| Other features | |
|---|---|
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Brightness | 450 cd/m² |
| Power supply type | Internal |
