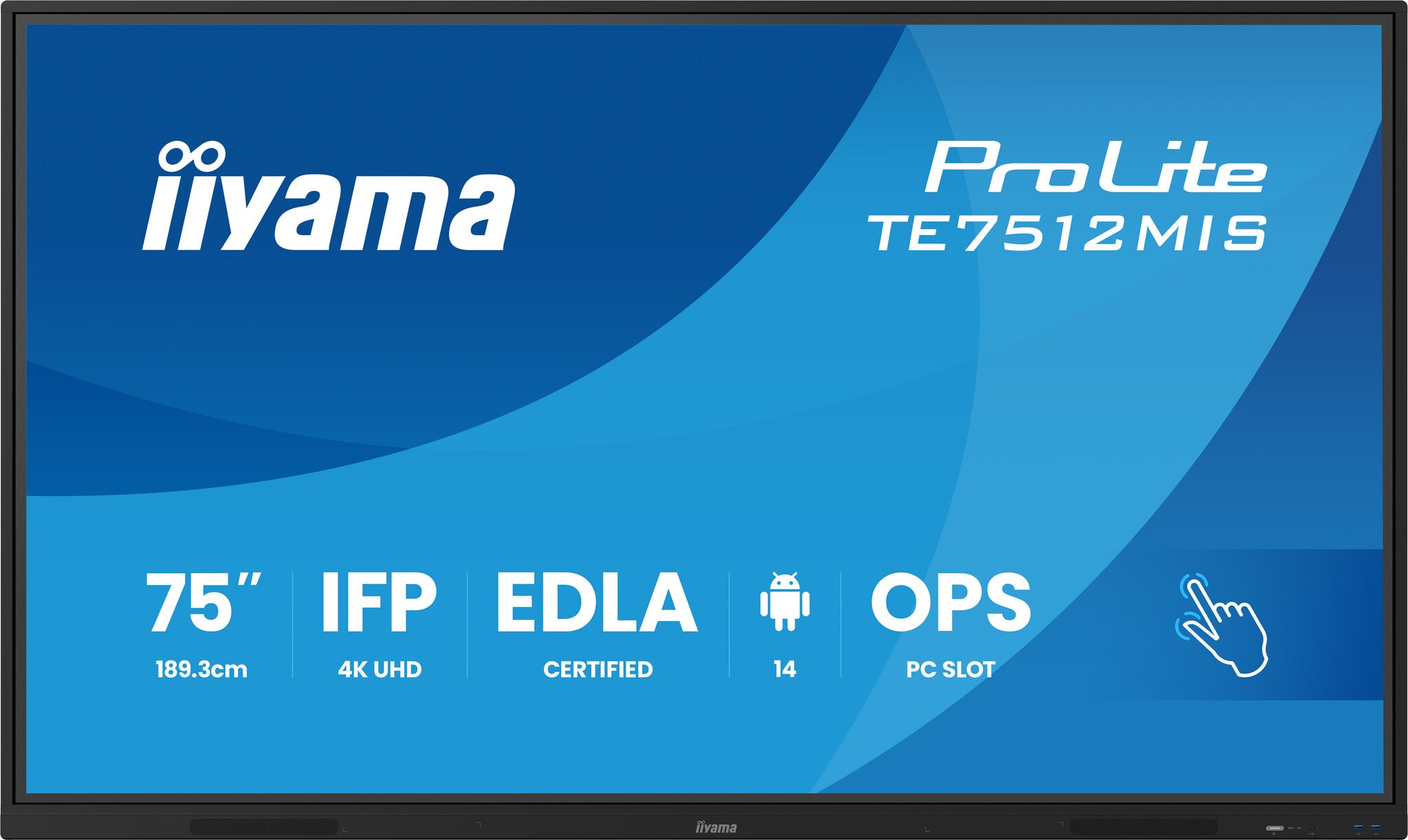

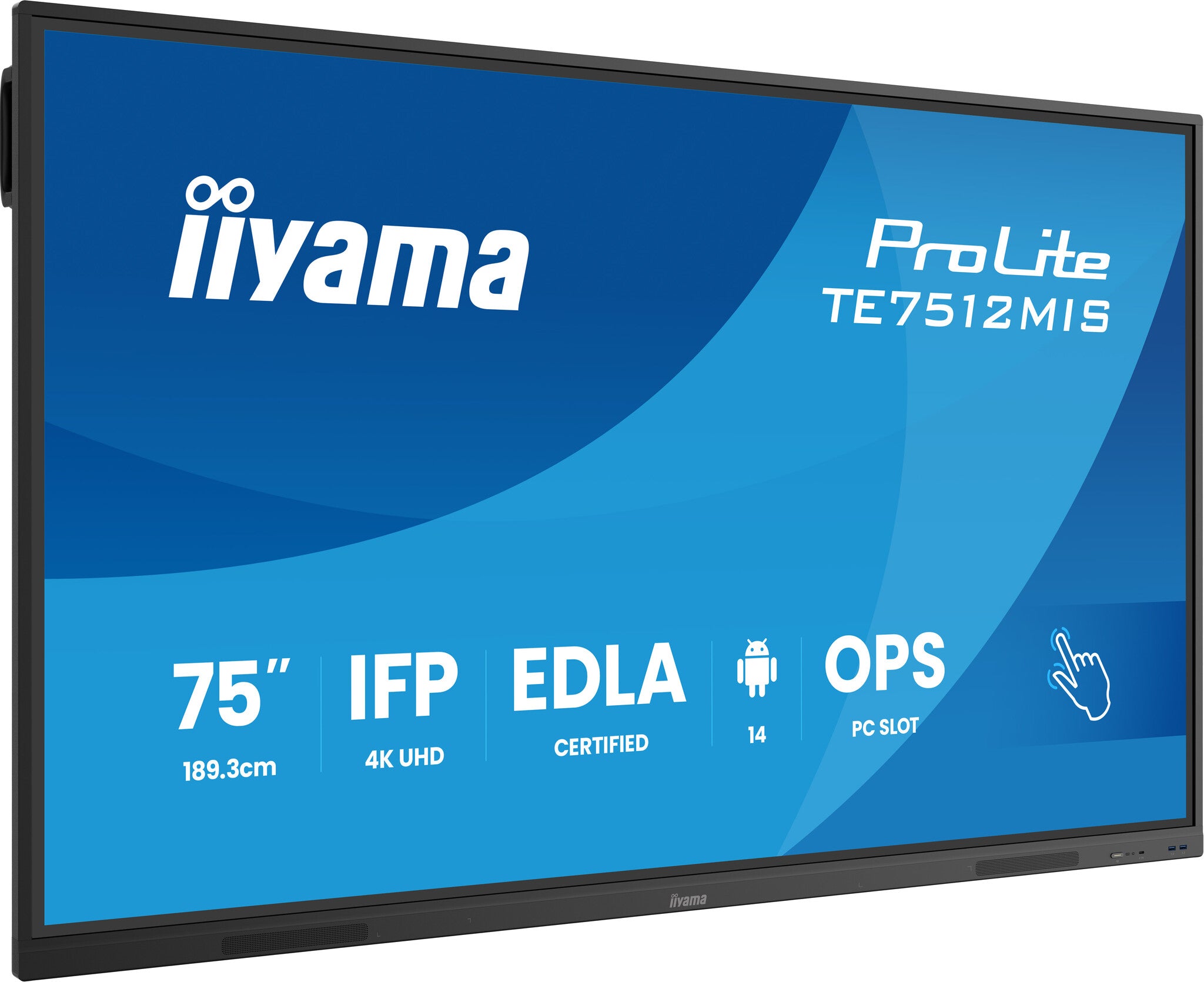

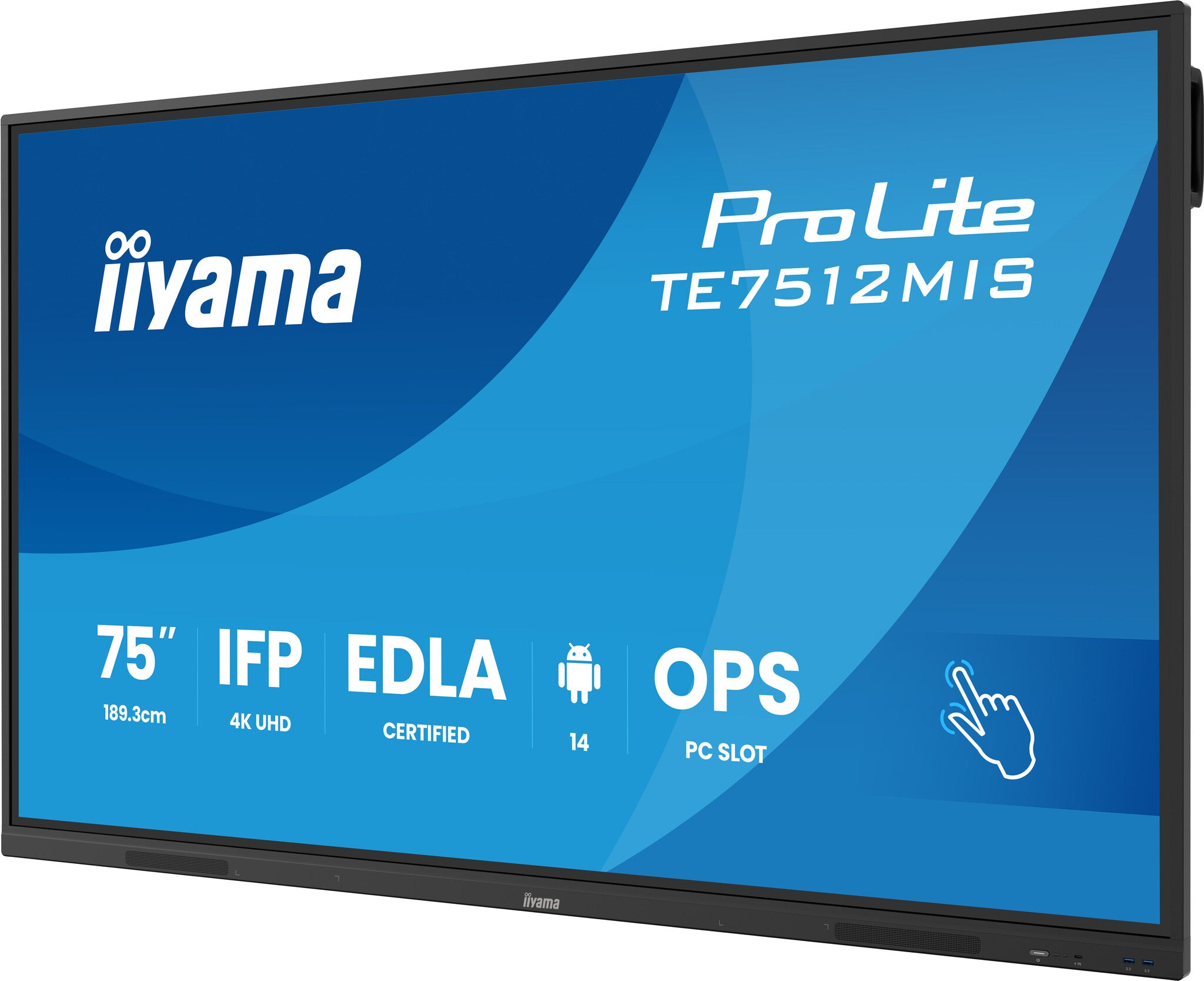

iiyama TE7512MIS-B4AG Signage Display Kiosk design 190.5 cm (75") LCD Wi-Fi 400 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
Couldn't load pickup availability
- Indoor Kiosk design Black
- 190.5 cm (75") 3840 x 2160 pixels LCD 400 cd/m²
- Touchscreen Direct-LED 60 Hz 6.5 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 32 W
The TE7512MIS-B4AG is an exceptional 4K UHD interactive display designed by iiyama to enhance collaboration, communication, and engagement. With key features like Zero Airgap LCD DLED screen eliminating parallax, accurate PureTouch-IR, iiWare 13E with Android 14, WiFi and the iiyama DMS (Device management System), this display transforms the way you engage with content, making it an indispensable tool for modern workspaces and educational settings. Boasting a new 4K Interface with User Profiles for simple login and access to your very own bespoke application and Cloud Drives or harmonize with your existing estate and unleash the true power of Windows and Office applications. iiyama TE7512MIS-B4AG becomes a highly personalised & flexible device within a busy hybrid environment for multiple users. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. This affordable display transforms the modern workplaces, educational institutions, dynamic meeting spaces and beyond. Elevate your interactive experience with the iiyama TE12 SERIES displays and embrace the future of visual communication.
| Display | |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display technology | LCD |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | PureTouch-IR |
| Multi-touch | Yes |
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio | 16:9 |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 8000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.43 x 0.43 mm |
| Active display area (W x H) | 1650 x 928 mm |
| Display diagonal (metric) | 189.3 cm |
| Glass thickness | 3 mm |
| Surface hardness | 7H |
| Horizontal scan range | 30 - 135 kHz |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPorts in | 1 |
| DisplayPort version | 1.2 |
| USB port | Yes |
| USB ports quantity | 5 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 65 W |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b |
| Wi-Fi | Yes |
| PC Audio in | Yes |
| RS-232C | Yes |
| Remote (IR) input | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Audio Return Channel (ARC) | Yes |
| OPS module slot | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Design | |
|---|---|
| Product design | Kiosk design |
| Product colour | Black |
| Placement supported | Indoor |
| Orientation | Horizontal |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Bezel width (bottom) | 4.5 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (top) | 1.65 cm |
| Bezel colour | Black |
| Anti-glare screen | Yes |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Universal |
| On Screen Display (OSD) languages | Czech, Danish, German, English, Spanish, Finnish, French, Italian, Norwegian, Dutch, Polish, Russian, Swedish |
| Number of OSD languages | 14 |
| On Screen Display (OSD) | Yes |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 2.2 |
| HDCP | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 174 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 174 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
|---|---|
| Computer system | Yes |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory | 8 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Weight & dimensions | |
|---|---|
| Display width | 1709 mm |
| Display depth | 98 mm |
| Display height | 1020 mm |
| Display weight | 39 kg |
| Width | 1709 mm |
| Depth | 98 mm |
| Height | 1020 mm |
| Weight | 39 kg |
| Packaging data | |
|---|---|
| Package width | 1863 mm |
| Package depth | 225 mm |
| Package height | 1148 mm |
| Package weight | 51.5 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Number of stylus pens | 4 |
| Stylus pen | Yes |
| Cables included | AC, USB, HDMI |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certificates | |
|---|---|
| Certification | CB, CE, TÜV-Bauart, EAC, ErP, WEEE, REACH |
| Technical details | |
|---|---|
| OPS slot | 1 |
| Warranty period | 5 year(s) |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, EAC, REACH, RoHS, TÜV mark, WEEE |
| Playback media | Y |
| User controls | general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, colour temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) |
| Audio in (mini jack) | Yes |
| Other features | |
|---|---|
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Backlight type | Direct LED |
| Power supply type | Internal |
| Housing material | Metal |
| Headphone outputs | 1 |
| Audio output | 3.5mm |
| Headphone connectivity | 3.5 mm |
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Quick start guide | Yes |
| Plug and Play | Yes |
