iiyama SDM51201BC-1L PC/workstation Intel® Core™ i5 i5-12450H 8 GB DDR4-SDRAM 256 GB SSD Windows 11 IoT Enterprise Slot-in PC Mini PC Black

iiyama · MPN: SDM51201BC-1L
£747.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £249.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Internal memory8 GB
  • Internal memory typeDDR4-SDRAM
  • Total storage capacity256 GB
  • Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Operating system installedWindows 11 IoT Enterprise
  • Weight400 g
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Mini PC Black
  • Intel® Core™ i5 i5-12450H
  • 8 GB DDR4-SDRAM 3200 MHz
  • 256 GB SSD
  • Intel® UHD Graphics
  • Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 6E (802.11ax) Bluetooth 5.3
  • Windows 11 IoT Enterprise 64-bit

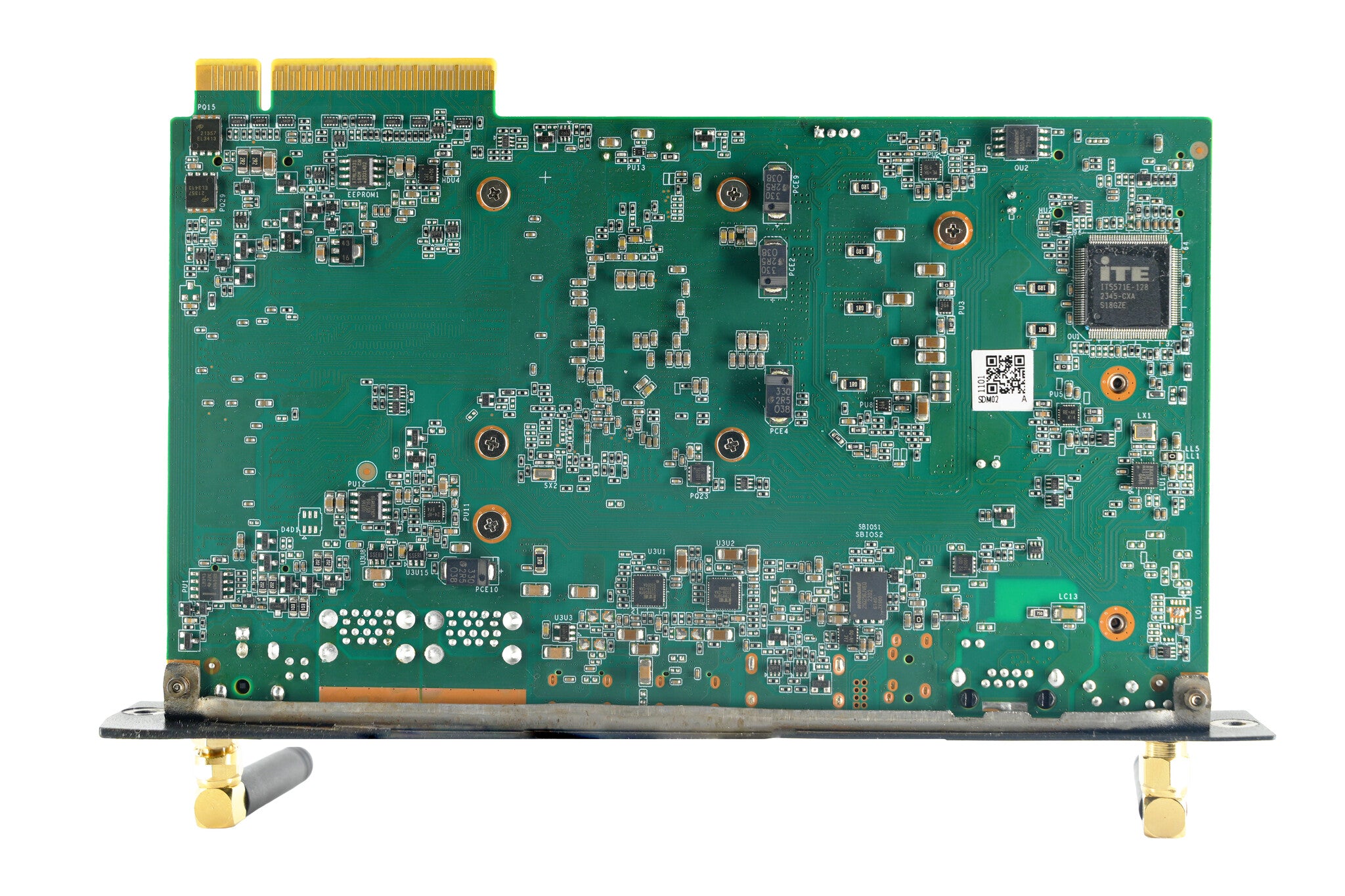

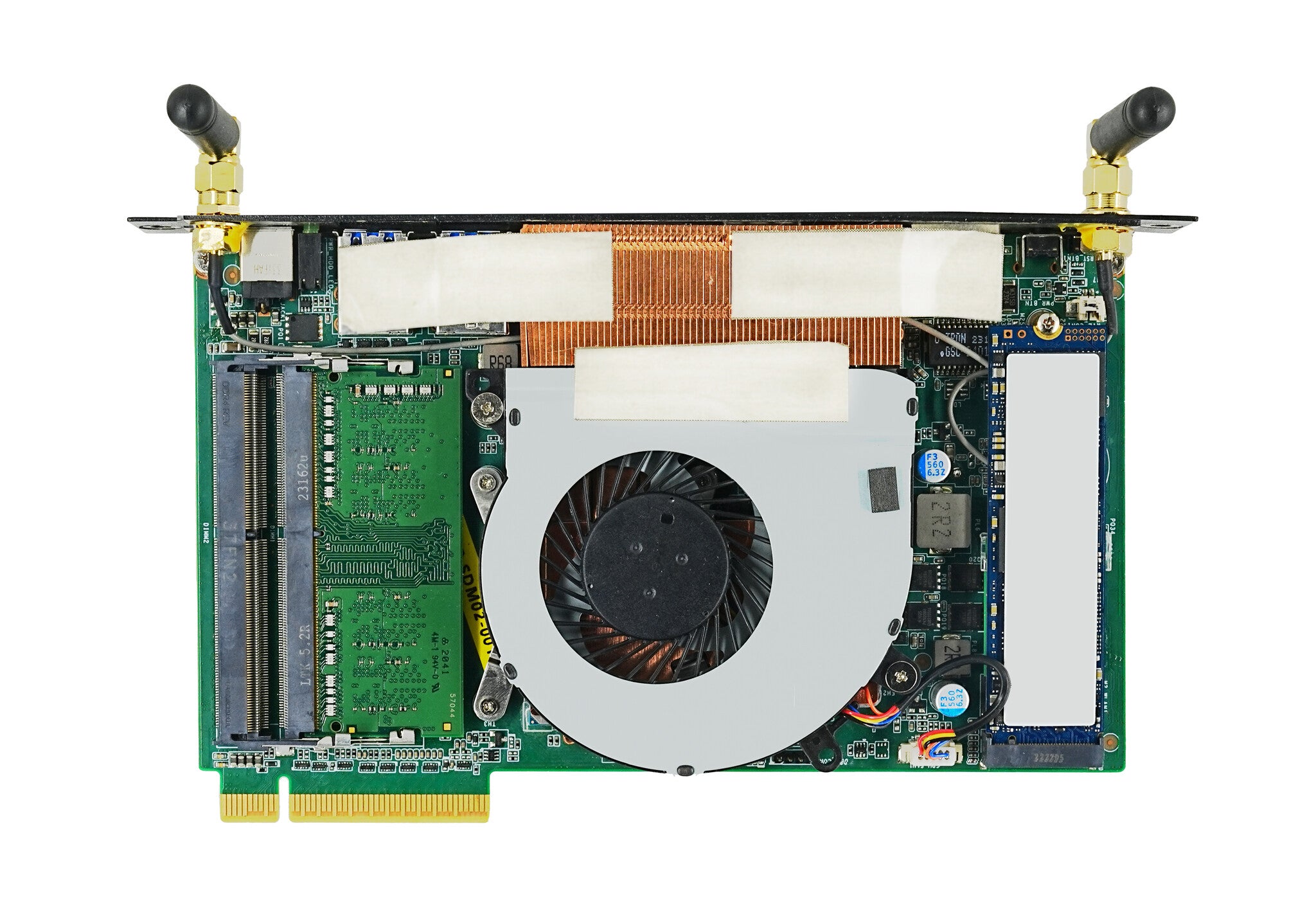

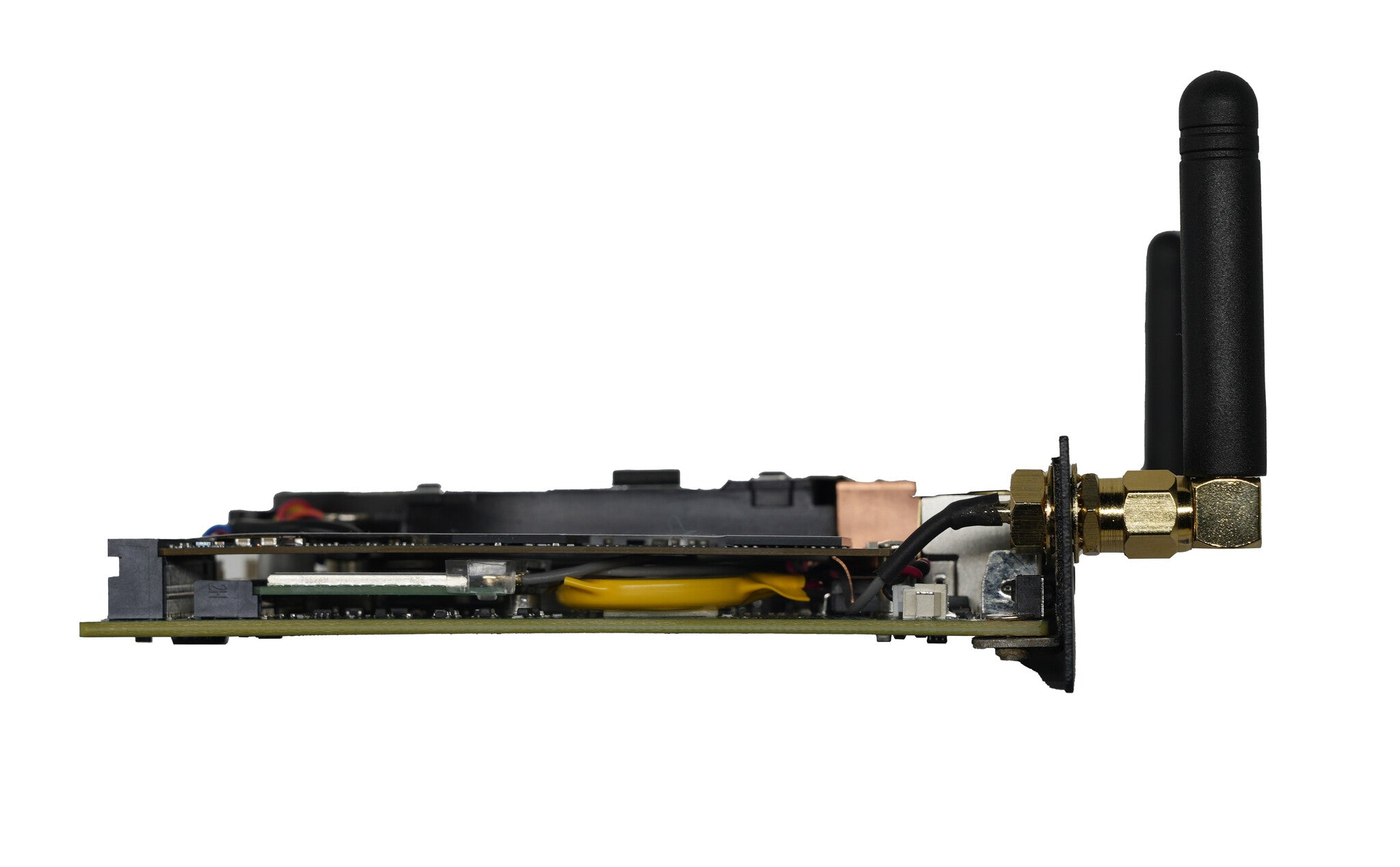

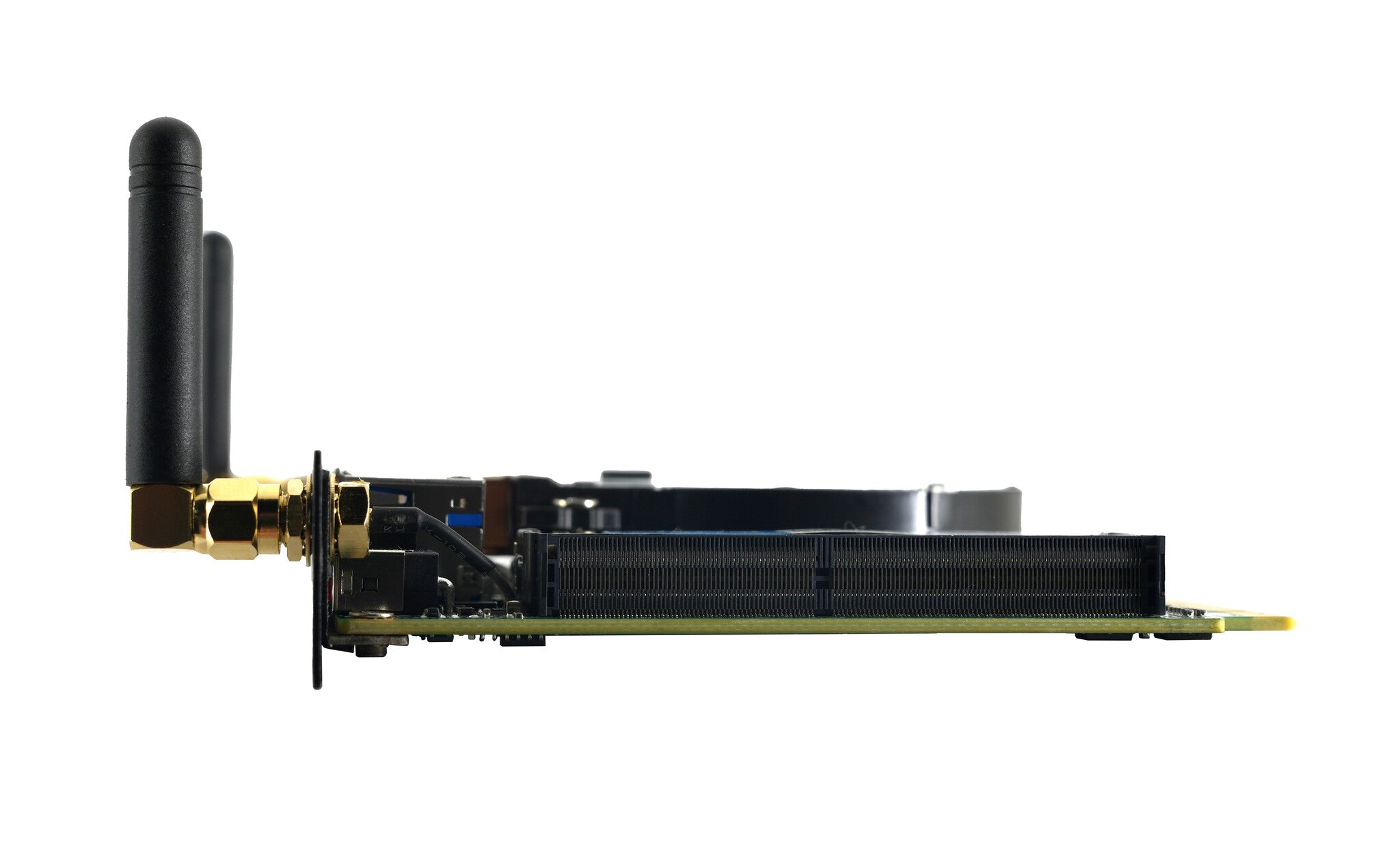

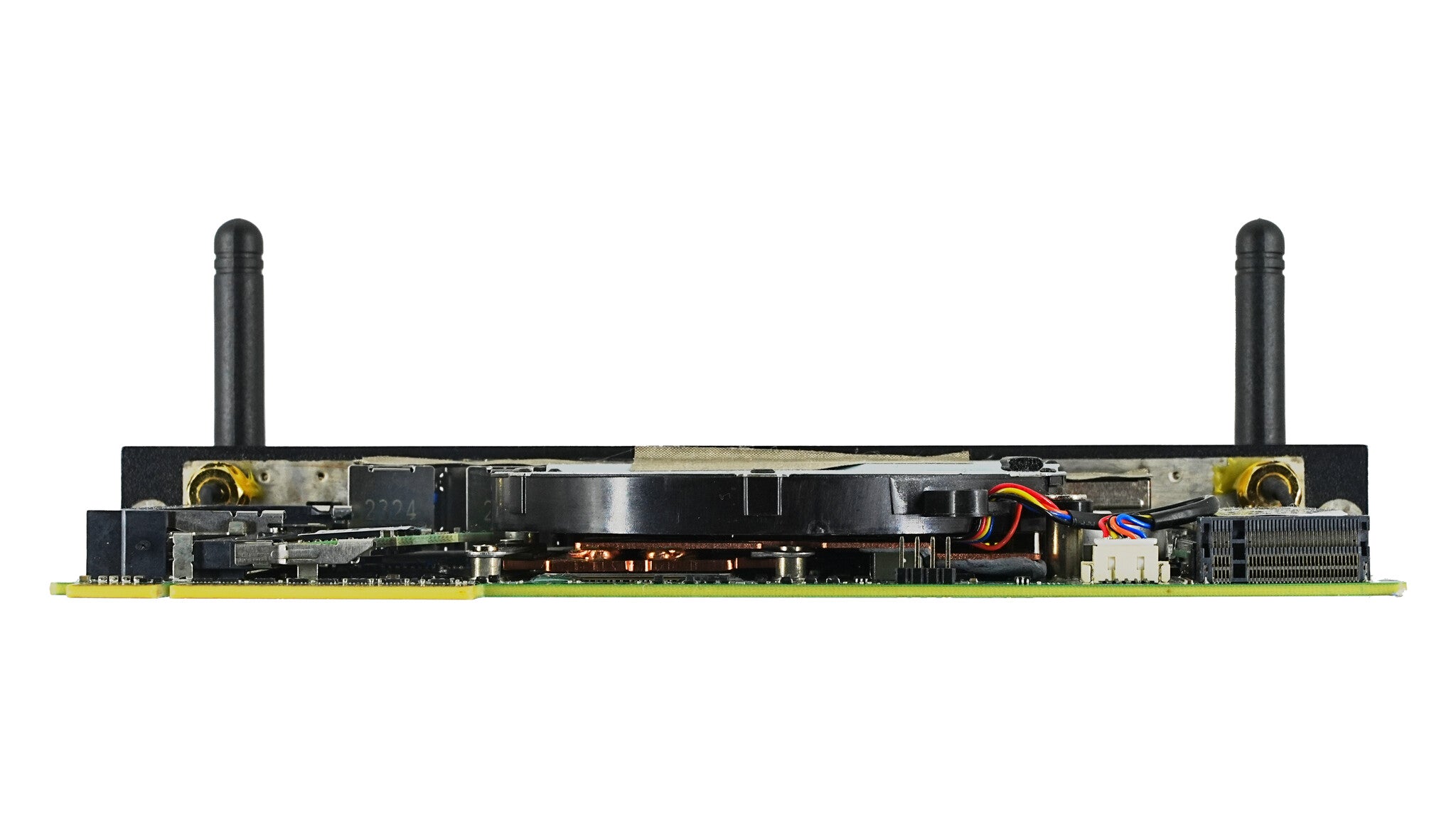

Equipped with an Intel Core i5-12450H processor, this SDM-L PC transforms your iiyama large format display into a powerful, standalone solution. It features Intel UHD Graphics, a high-speed M.2 NVMe PCIe SSD, four USB 3.2 Gen1 ports, and two Type-C ports (supporting USB 3.2 Gen1 and DP Alt Mode) for ultimate connectivity.

Specifications

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor modeli5-12450H

Memory

Internal memory8 GB
Maximum internal memory32 GB
Internal memory typeDDR4-SDRAM
Memory clock speed3200 MHz
Show all 67 specificationsShow fewer specifications

Storage

Total storage capacity256 GB
Optical drive typeNo
Storage mediaSSD
Number of storage drives installed1
SSD capacity256 GB
NVMeYes
SSD interfacePCI Express
SSD form factorM.2

Graphics

Discrete graphics cardNo
On-board graphics cardYes
Discrete GPU manufacturerIntel
Discrete graphics card modelNot available
On-board graphics card modelIntel® UHD Graphics

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
LAN controllerRealtek RTL8111H
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller manufacturerIntel
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity2
USB Type-C DisplayPort Alternate ModeYes
HDMI ports quantity1
HDMI version2.0
DisplayPort version1.4
Ethernet LAN (RJ-45) ports1
Microphone inYes
Combo headphone/mic portYes

Design

Chassis typeSlot-in PC
Product colourBlack

Performance

Product typeMini PC
Audio chipRealtek ALC245
Audio systemHigh Definition Audio
Trusted Platform Module (TPM) version2.0
Trusted Platform Module (TPM)Yes

Software

Operating system installedWindows 11 IoT Enterprise
Copilot+ PCNo
Operating system architecture64-bit
Compatible operating systemsWindows 11 loT Enterprise (SAC) 64Bit

Power

Power consumption (standby)0.5 W
Power consumption (typical)72 W

Operational conditions

Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%

Certificates

Compliance certificatesREACH, RoHS, WEEE

Sustainability

Sustainability certificatesErP

Weight & dimensions

Width110 mm
Depth195 mm
Height25 mm
Weight400 g
Package width279 mm
Package depth67 mm
Package height201 mm
Package weight610 g

Packaging content

Display includedNo
