iiyama ProLite TW1025LASC-B3PNR computer monitor 25.6 cm (10.1") 1280 x 800 pixels WXGA LED Touchscreen Multi-user Black
Couldn't load pickup availability
- 25.6 cm (10.1") Black
- Built-in speaker(s) Built-in camera
- Screen shape: Flat
- Response time: 25 ms Response time measurement type: GTG (Gray to Gray)
- 1280 x 800 pixels WXGA Panel type: IPS
- ErP CE, EAC, REACH, RoHS, UKCA, WEEE

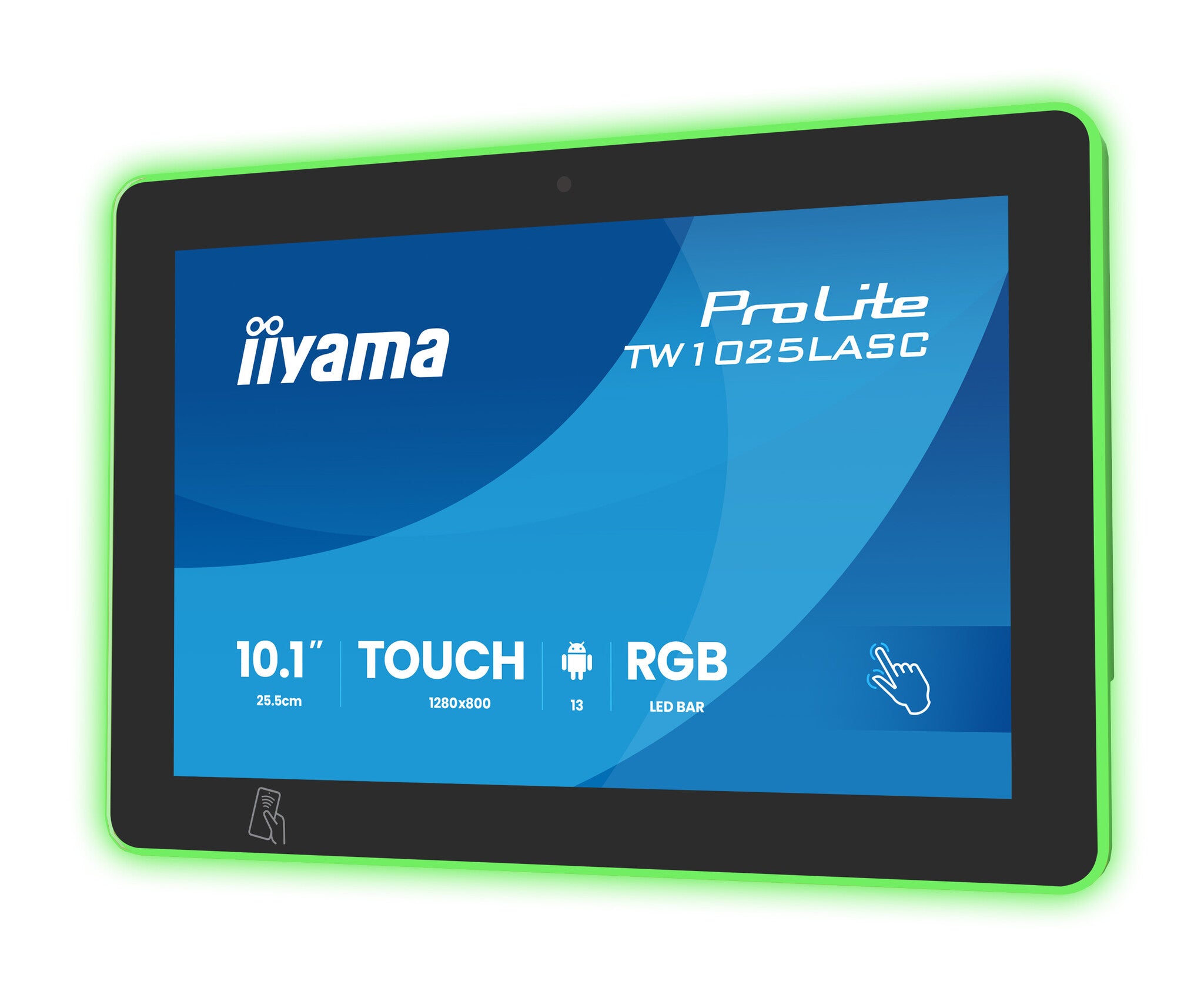

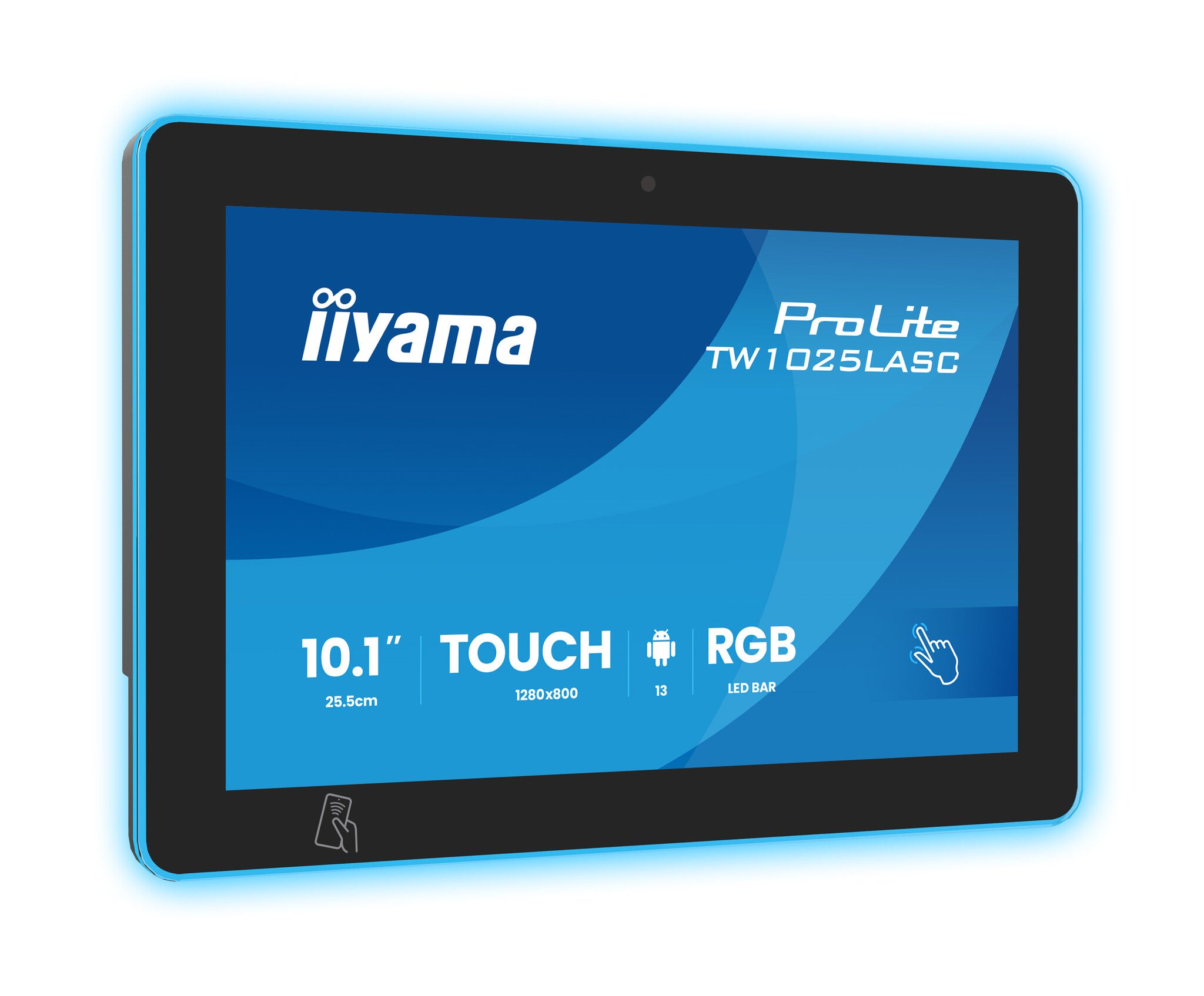

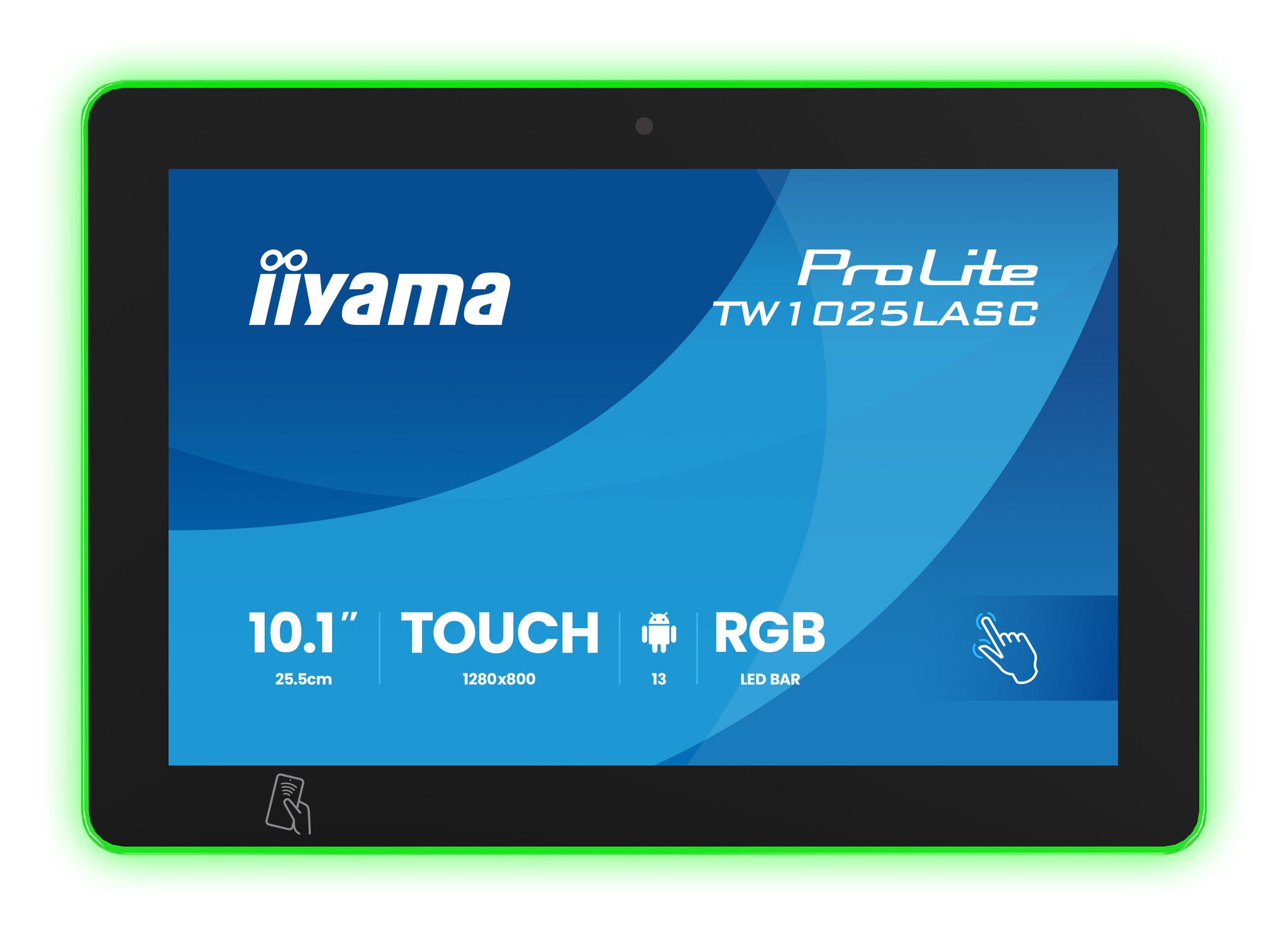

The ProLite TW1025LASC-B3PNR touch panel PC is a perfect choice for high-use environments such as booking rooms, information desks or other corporate and hospitality applications. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. Thanks to the pre-installed Android 13 operating system, it is possible to easily customize the monitor by installing applications directly to it. The Power over Ethernet technology (POE) allows to provide both data connection and power by a single cable, simplifying all installations. Thanks to the NFC/RFID reader, the touch panel PC allows to communicate wirelessly with enabled devices or tags within close proximity and the RGB Led bar will clearly and intuitively indicate the availability status of the room. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position. Together with the built-in 5 megapixel camera, microphone and speakers it offers limitless, interactive installation possibilities.
| Display | |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1280 x 800 pixels |
| Native aspect ratio | 16:10 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | WXGA |
| Panel type | IPS |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 450 cd/m² |
| Display brightness | 390 cd/m² |
| Response time | 25 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.1692 x 0.1692 mm |
| Viewable size, horizontal | 21.7 cm |
| Viewable size, vertical | 13.5 cm |
| Display diagonal (metric) | 25.5 cm |
| Surface hardness | 6H |
| Colour depth | 8 bit |
| Performance | |
|---|---|
| Operating hours (hours/days) | 24/7 |
| Operating system version | 13 |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | Yes |
| Megapixel (approx.) | 5 MP |
| Design | |
|---|---|
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.85 mm |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | Yes |
| USB Touch port | Yes |
| HDMI | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11b |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ethernet LAN | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Cable management | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 10 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 259.5 mm |
| Depth (with stand) | 28 mm |
| Height (with stand) | 178.5 mm |
| Weight (with stand) | 1.1 kg |
| Weight (without stand) | 1.6 kg |
| Packaging data | |
|---|---|
| Package width | 363 mm |
| Package depth | 65 mm |
| Package height | 225 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| AC adapter included | Yes |
| Brightness | 390 cd/m² |
| Google applications | Google Chrome, Gmail, Google Calendar |

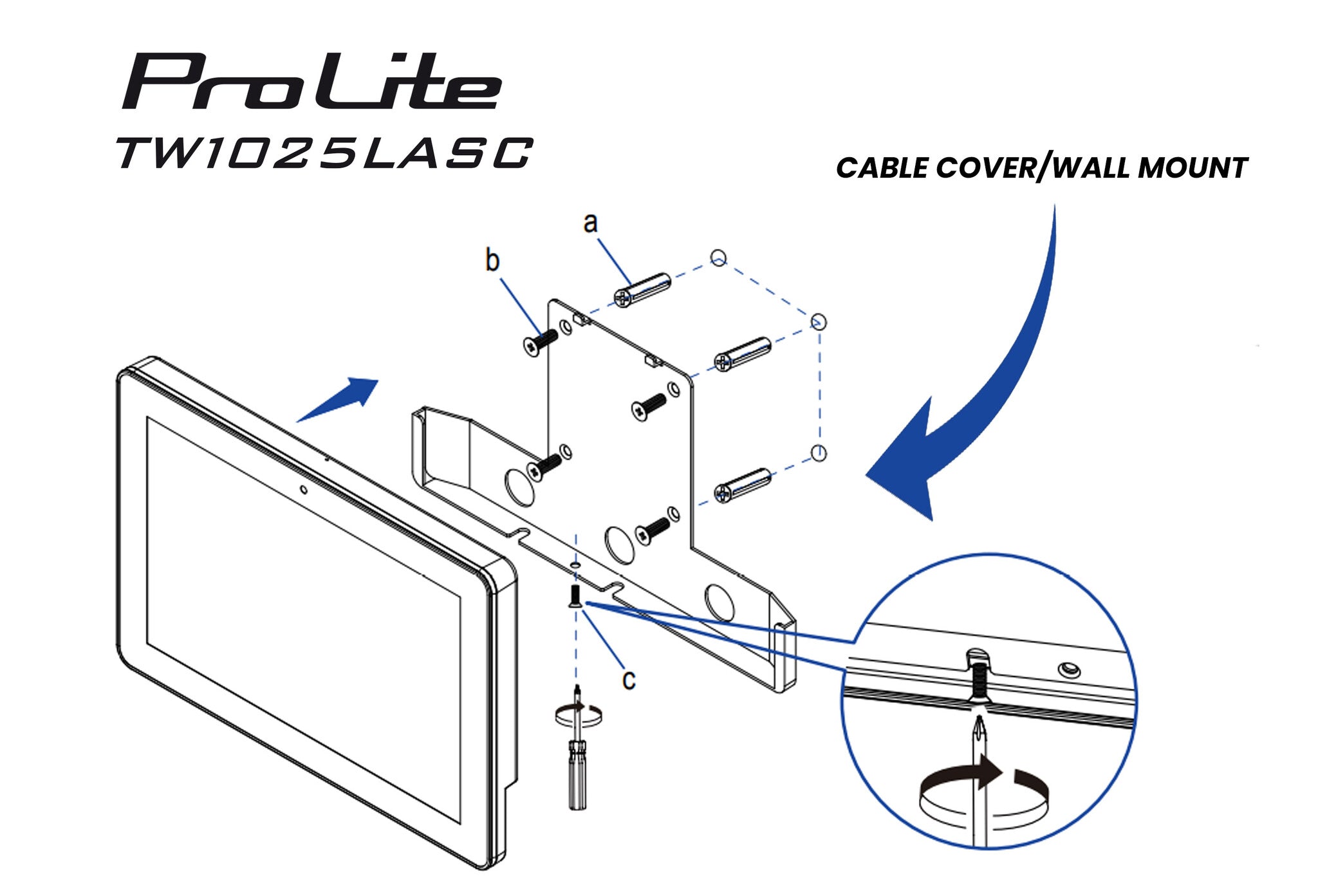

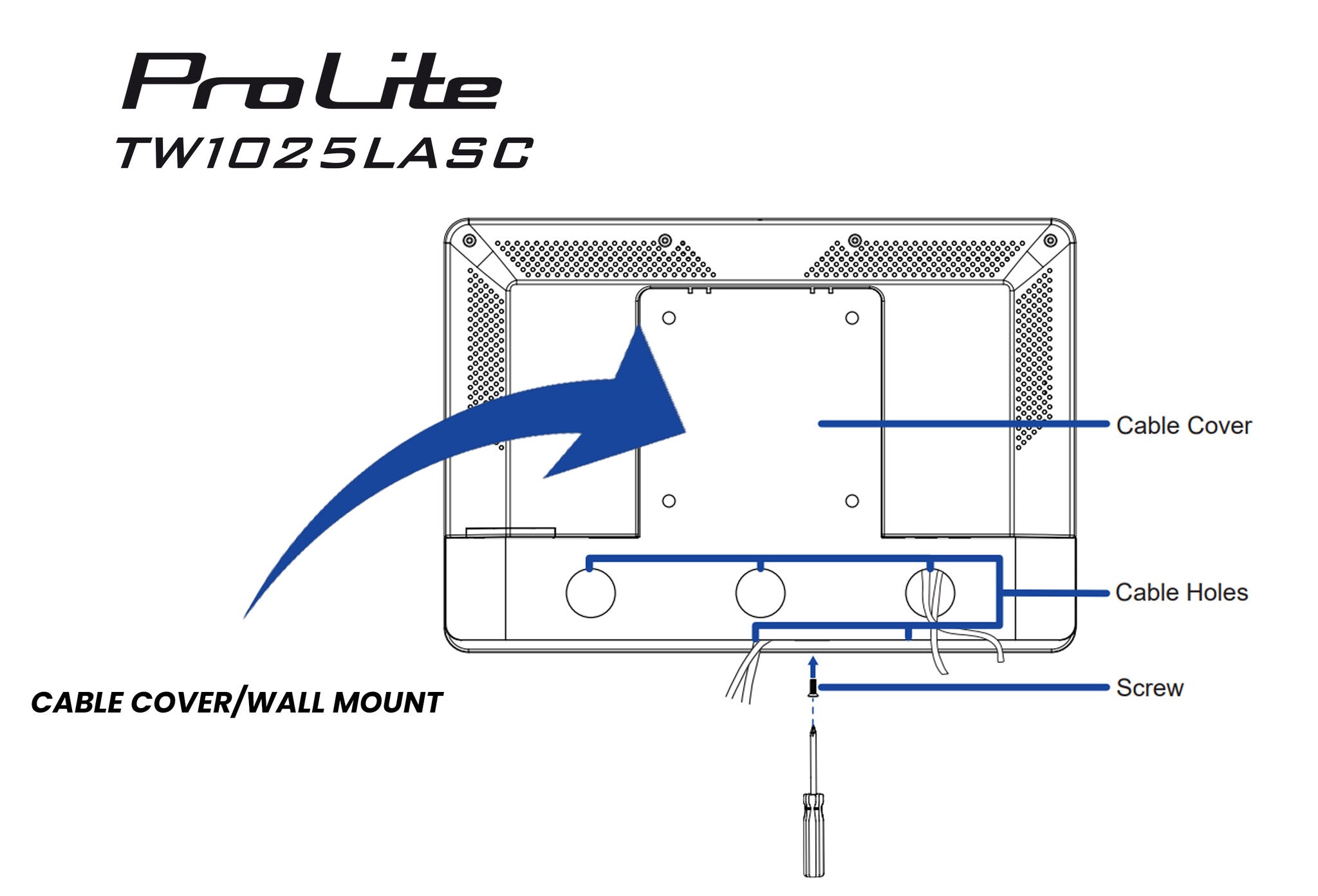

| Packaging content | AC adapter, interchangeable plugs (EU/UK), cable cover/wall mount |
| USB ports quantity | 3 |
| Active display area (W x H) | 216.6 x 135.4 mm |
| Built-in processor | Yes |
| Compliance certificates | CE, EAC, REACH, RoHS, UKCA, WEEE |
| Depth | 28 mm |
| Width | 259.5 mm |
| Height | 178.5 mm |
| Weight | 1.1 kg |
| Ethernet LAN (RJ-45) ports | 1 |
| Control panel | Power switch |
| User controls | Power switch |
| Touch method | finger, glove (latex), capacitive stylus |
