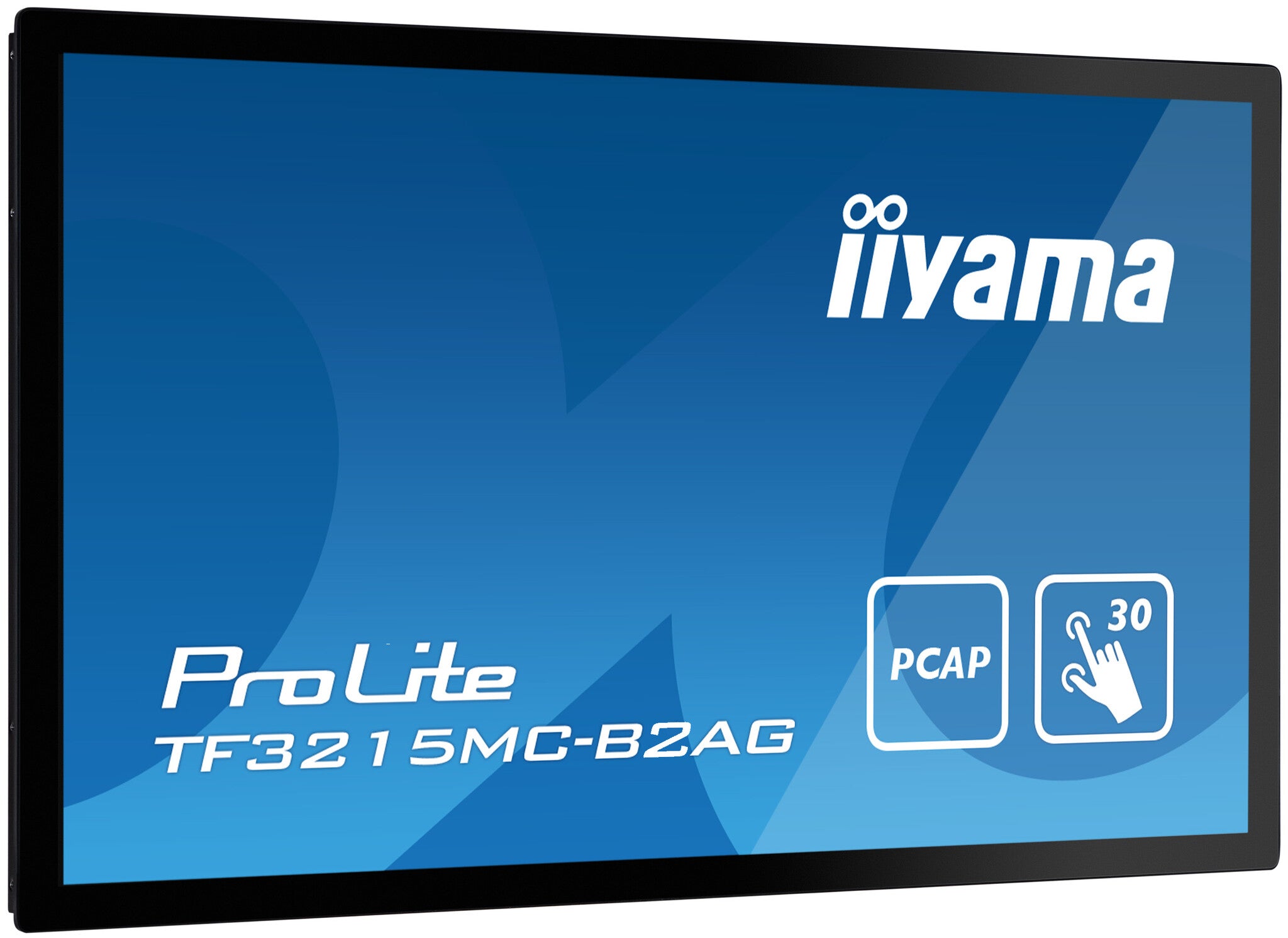

iiyama ProLite TF3215MC-B2AG computer monitor 80 cm (31.5") 1920 x 1080 pixels Full HD LED Touchscreen Kiosk Black
iFrame
£803.99
Couldn't load pickup availability
- 80 cm (31.5") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Response time: 8 ms Response time measurement type: GTG (Gray to Gray)
- 1920 x 1080 pixels Full HD Panel type: VA
- Energy efficiency class (SDR): F REACH

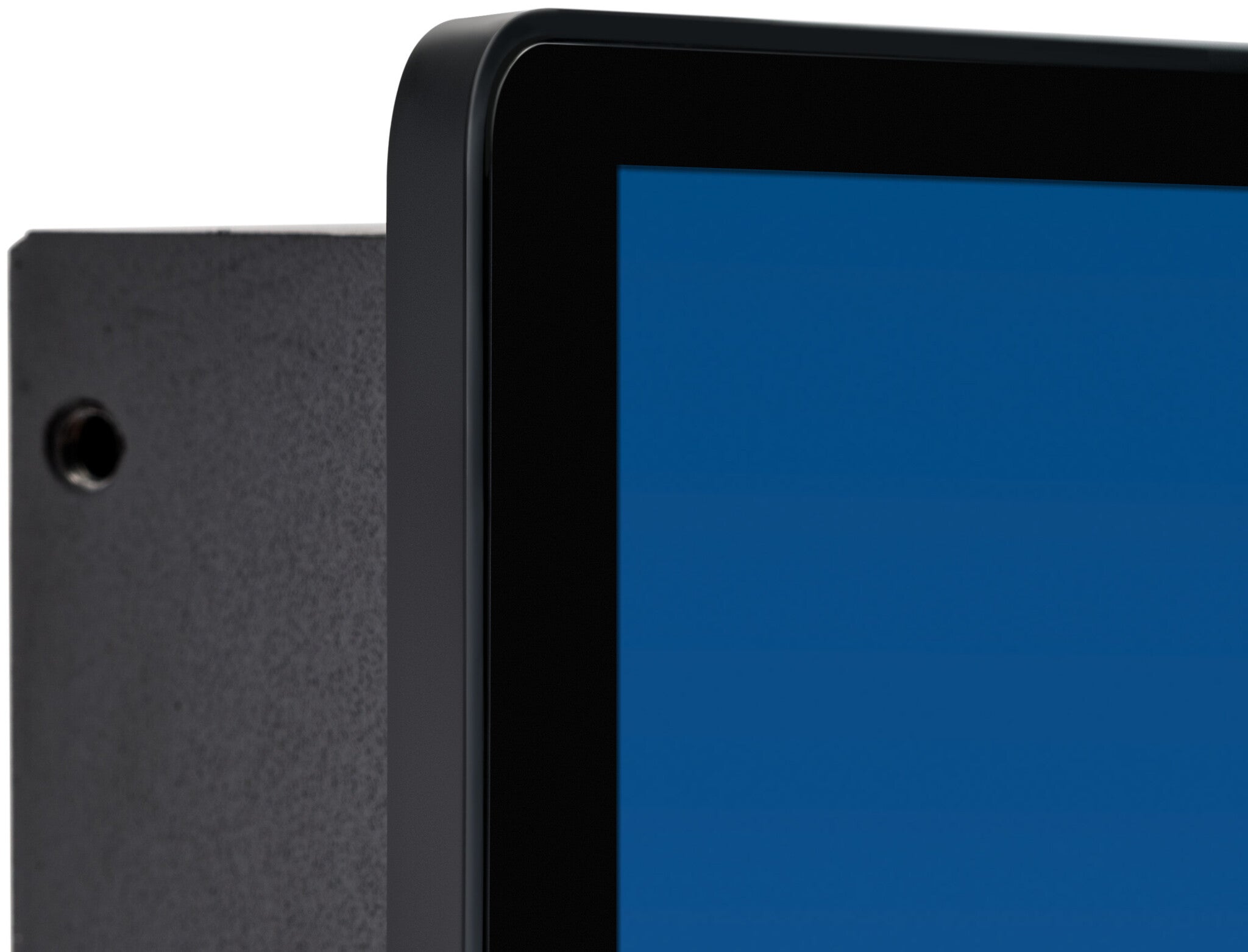

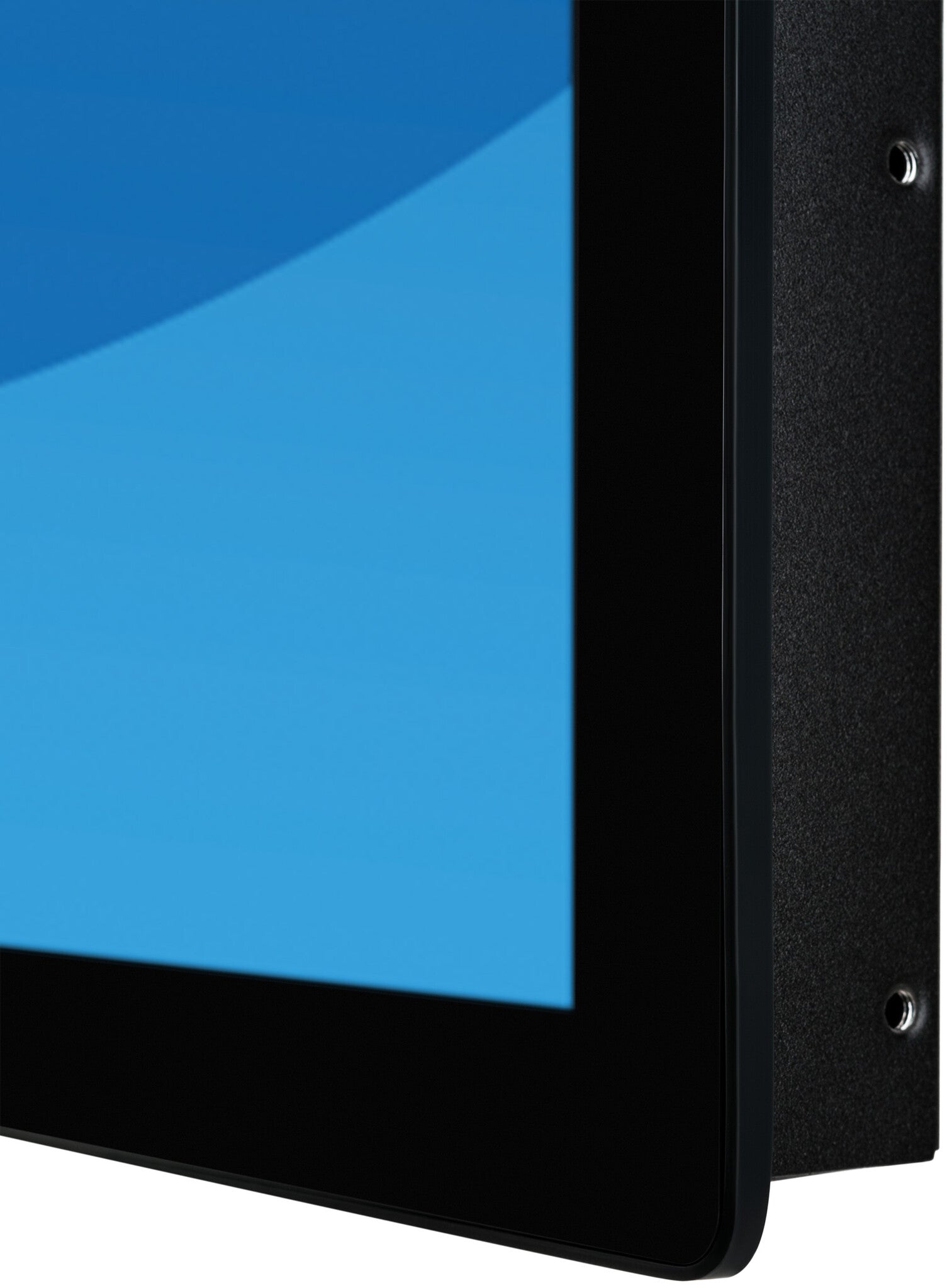

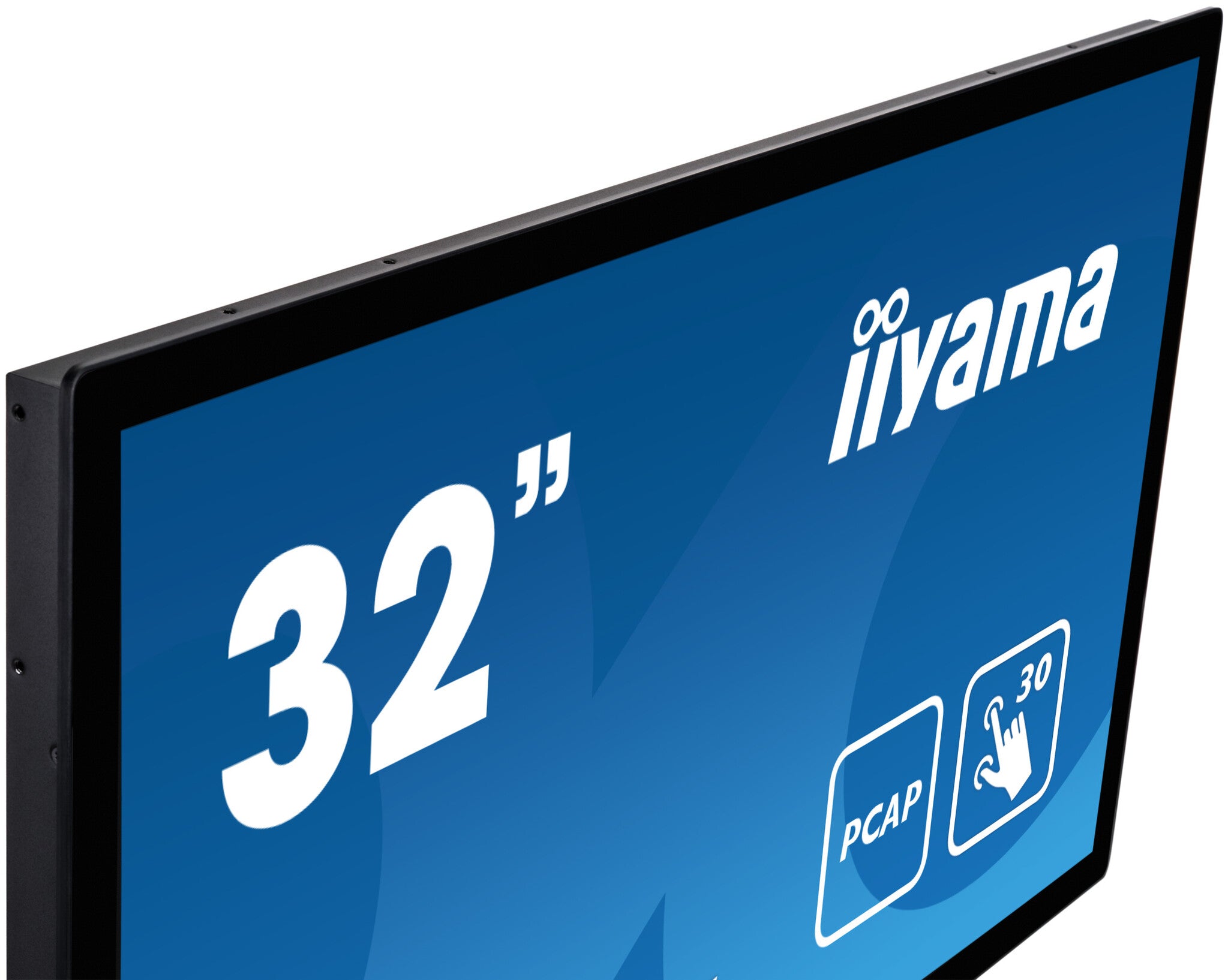

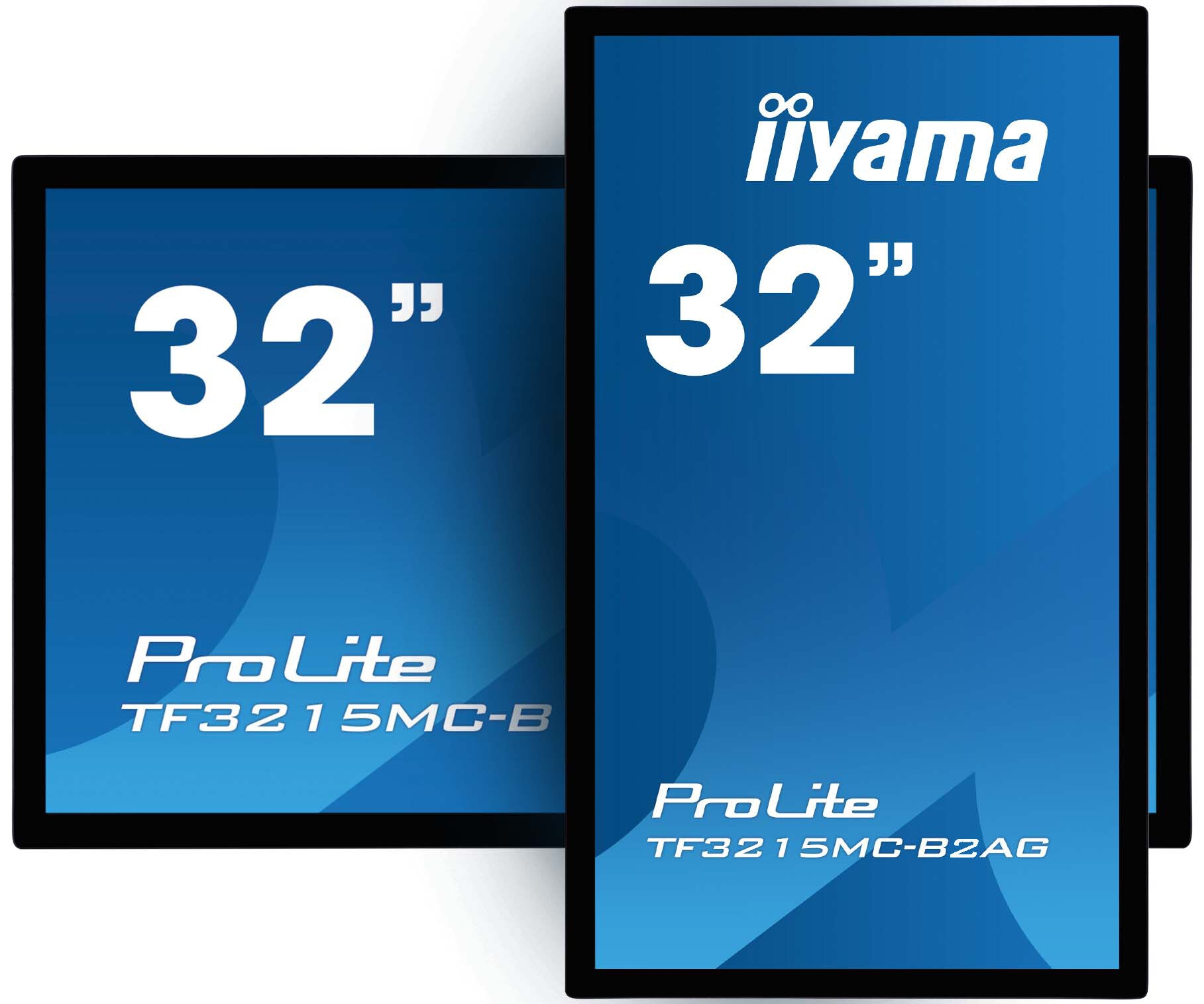

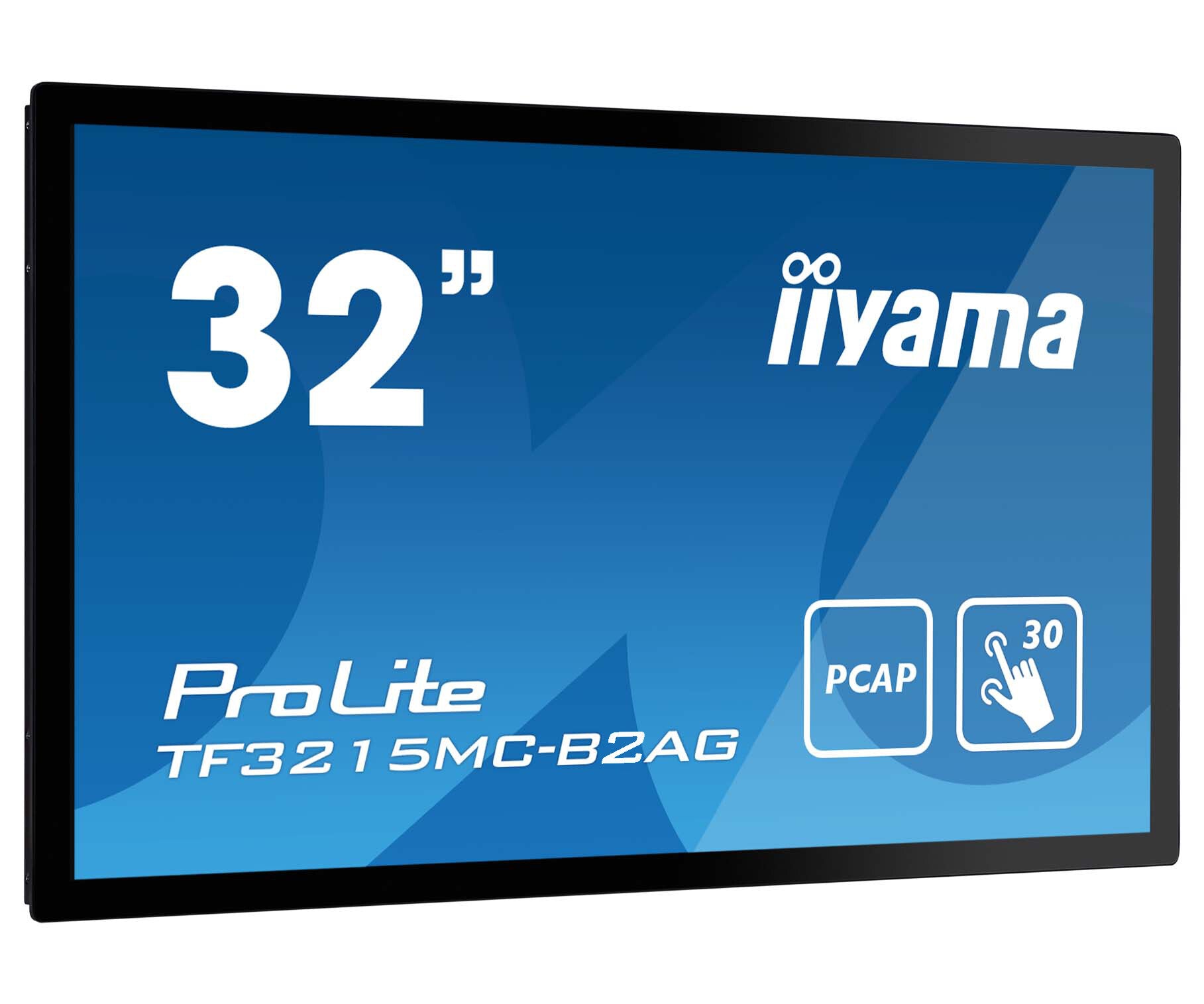

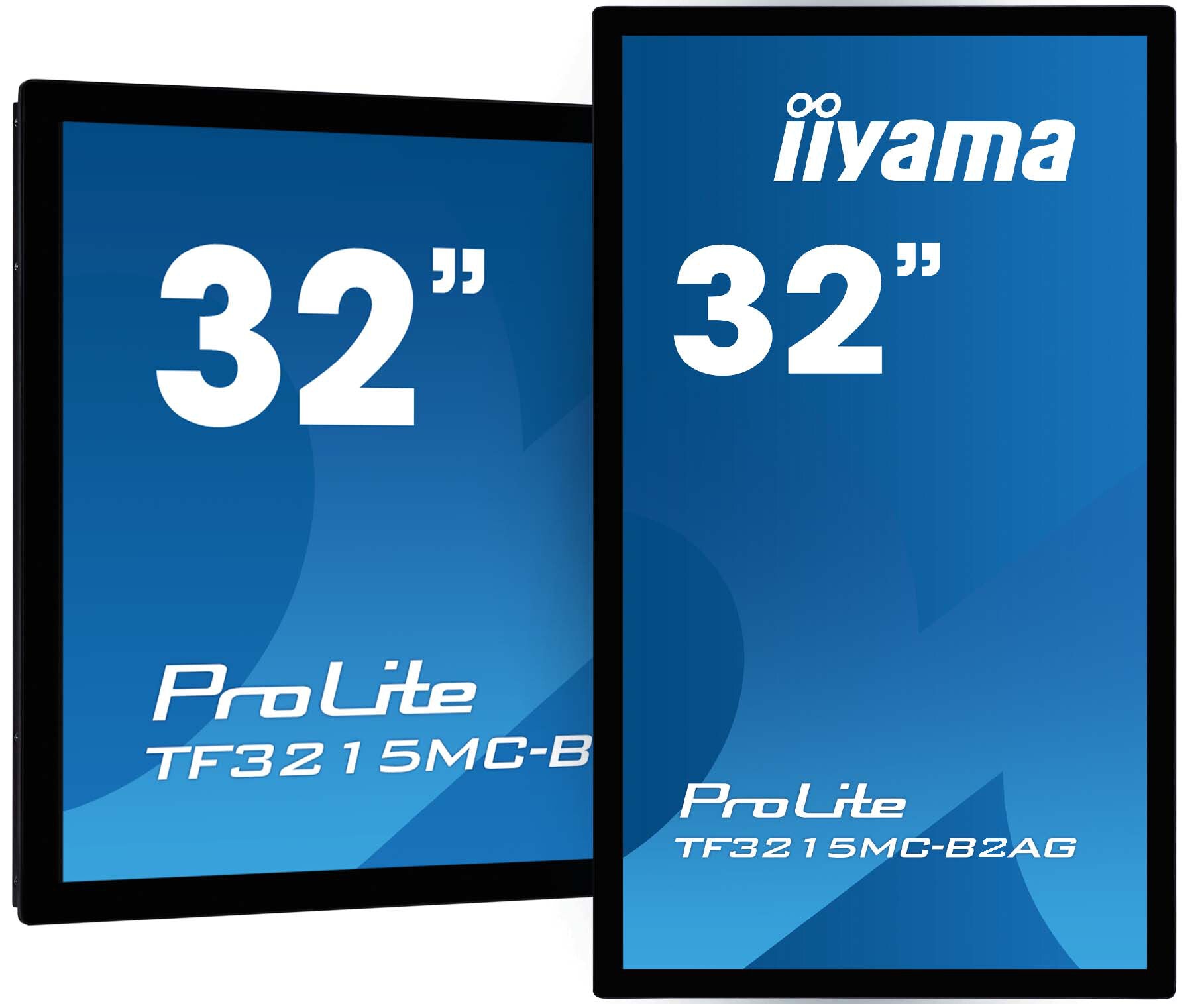

The ProLite TF3215MC-B2AG uses PCAP Touch technology and is built into an eye-catching bezel with edge-to-edge anti-glare coated glass drastically reducing ambient reflections in high-brightness environments without compromising the sharpness and clarity of the image. The rugged bezel equipped with a foam seal finish supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front making it perfect for high use public facing applications. Landscape and portrait orientation ensures flexible mounting possibilities in almost any installation. The TF3215MC-B2AG is the ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display | |
|---|---|
| Display diagonal | 80 cm (31.5") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | VA |
| Touchscreen type | Kiosk |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 30 |
| Display brightness (typical) | 500 cd/m² |
| Display brightness | 425 cd/m² |
| Response time | 8 ms |
| Response time measurement type | GTG (Gray to Gray) |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 3000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Horizontal scan range | 30 - 68 kHz |
| Viewable size, horizontal | 69.8 cm |
| Viewable size, vertical | 39.3 cm |
| Digital horizontal frequency | 30 - 68 kHz |
| Display diagonal (metric) | 80 cm |
| Surface hardness | 6H |
| Colour depth | 8 bit |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Operating hours (hours/days) | 24/7 |
| Design | |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Housing material | Metal |
| Front bezel colour | Black |
| Glass thickness | 6 mm |

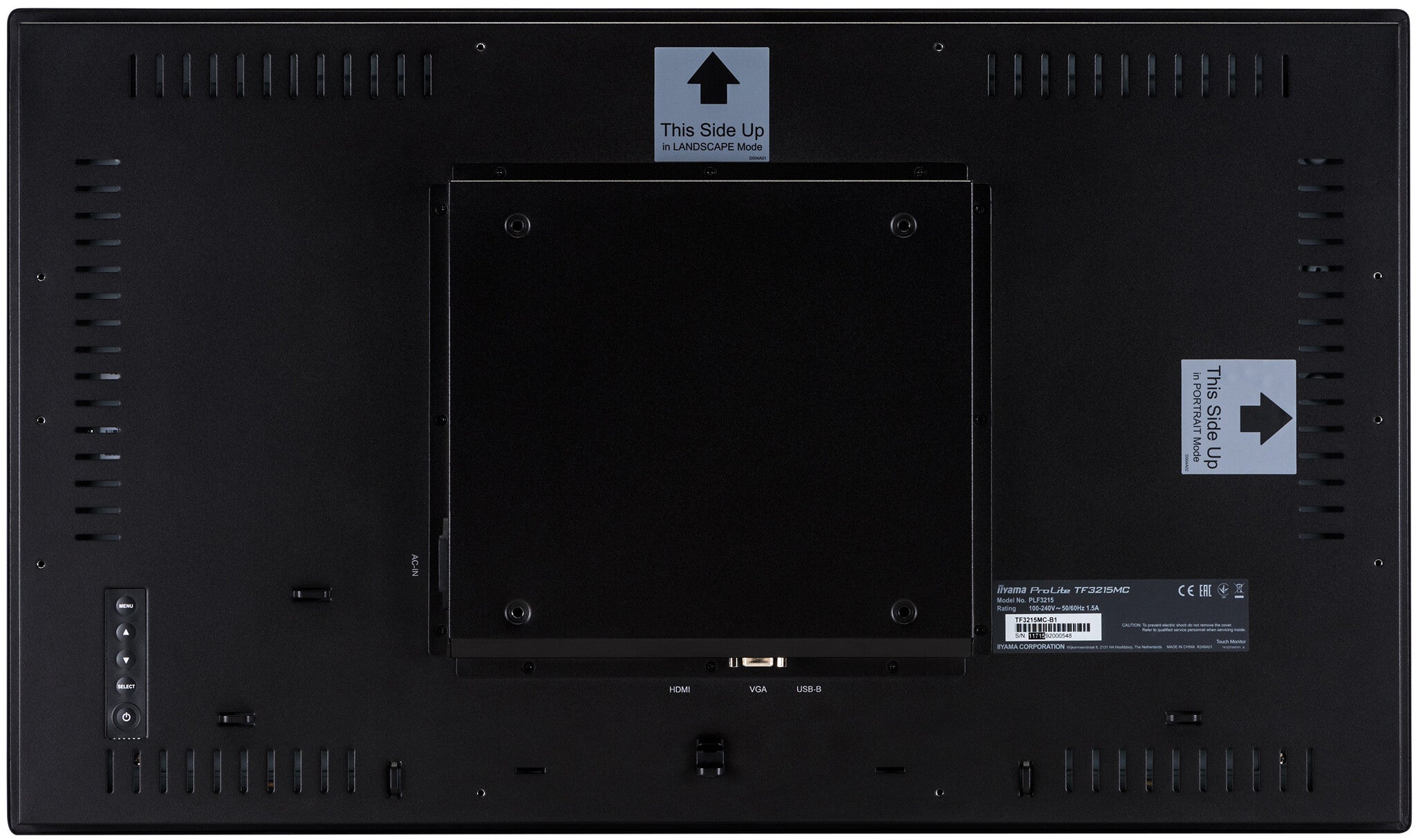

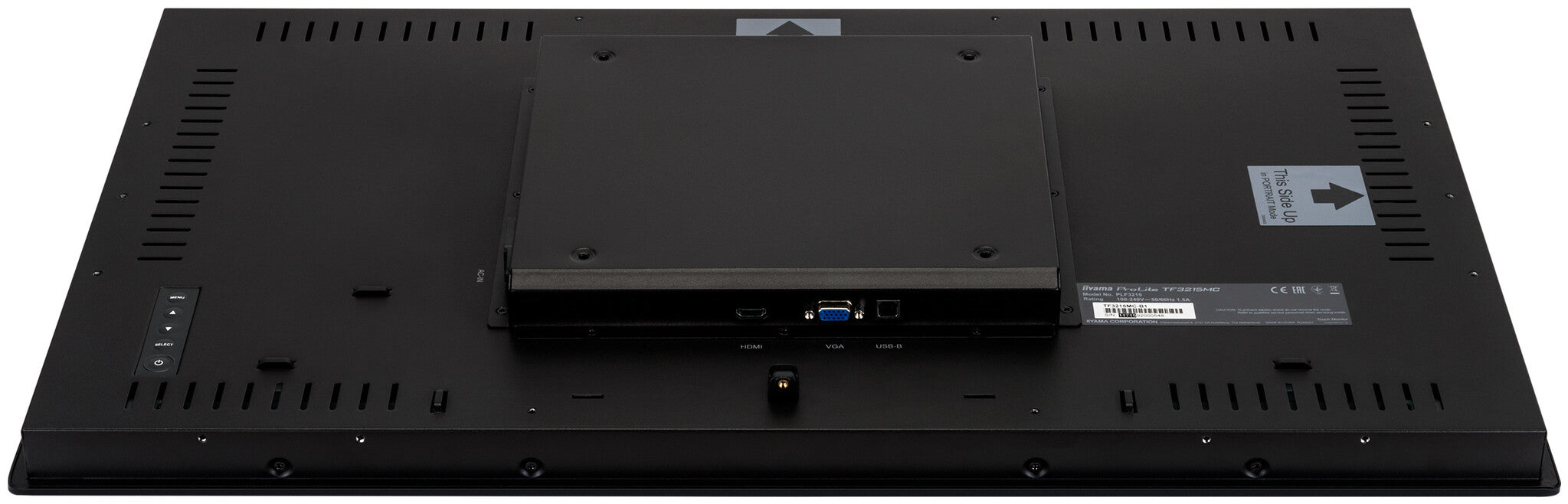

| Ports & interfaces | |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 200 x 200 mm |
| Cable management | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 27.4 kWh |
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 743 mm |

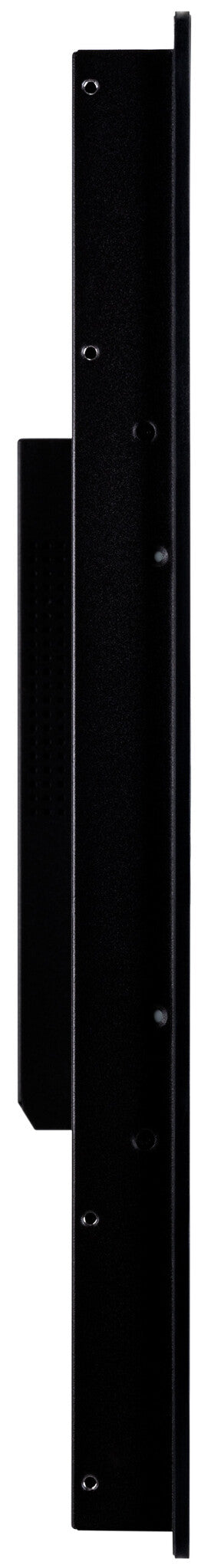

| Depth (with stand) | 61 mm |
| Height (with stand) | 437 mm |
| Weight (with stand) | 10 kg |
| Width (without stand) | 745.5 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 437 mm |
| Weight (without stand) | 10 kg |
| Packaging data | |
|---|---|
| Package width | 890 mm |
| Package depth | 155 mm |
| Package height | 630 mm |
| Package weight | 12.8 kg |
| Packaging content | |
|---|---|

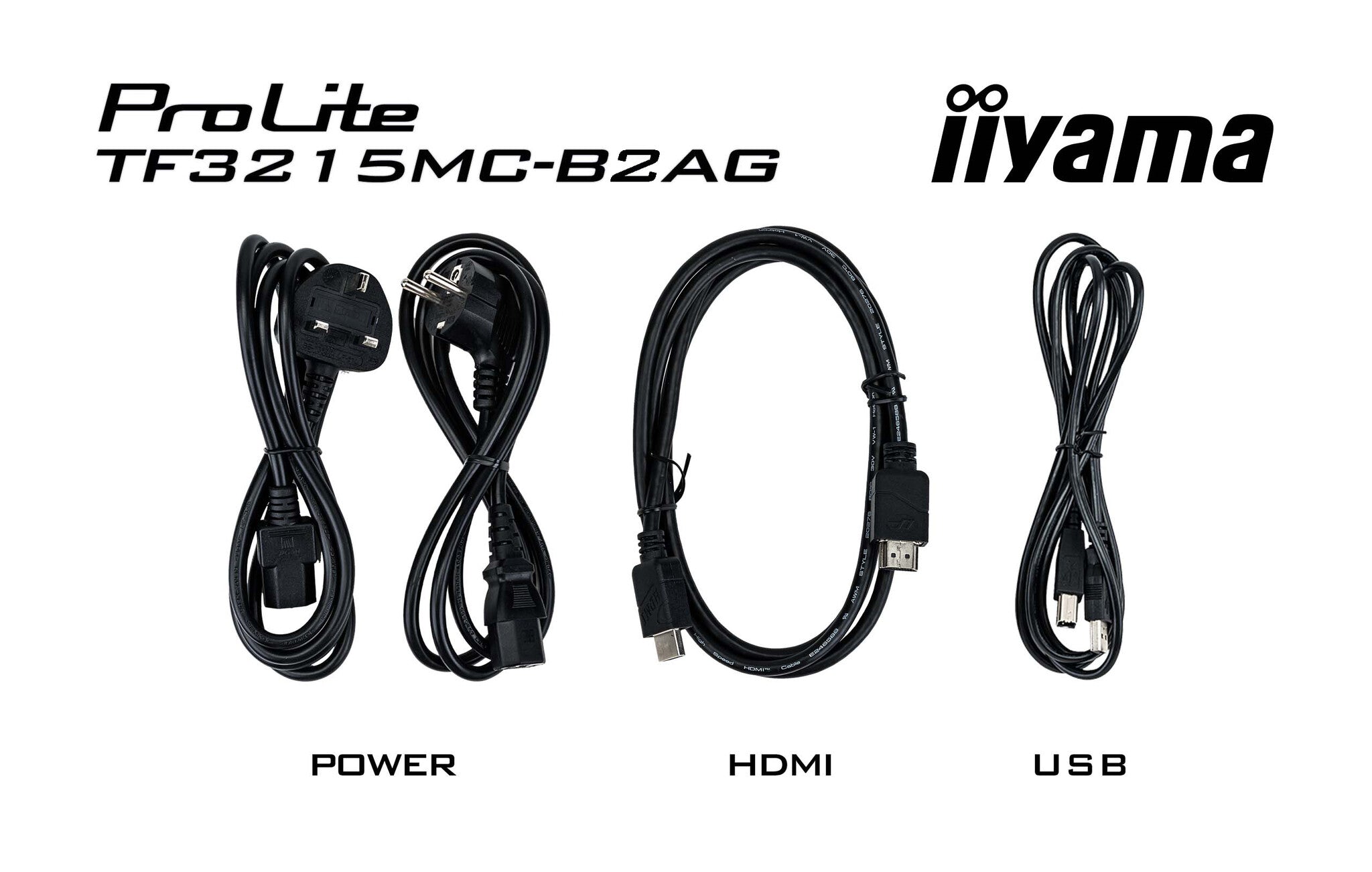

| Cables included | AC, USB, HDMI |
| Quick start guide | Yes |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IP65 |
| IK code | IK07 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy | 2 mm |
| Brightness | 425 cd/m² |
| Active display area (W x H) | 698.4 x 392.8 mm |
| Compliance certificates | REACH |
| Depth | 61 mm |
| Width | 743 mm |
| Height | 437 mm |
| Weight | 10 kg |
| Mean time between failures (MTBF) | 50000 h |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, colour temperature, sharpness, touch switch (normal, glove, through-glass) |
| Touch method | finger, glove (latex), capacitive stylus |
| Logistics data | |
|---|---|
| Products per pallet | 21 pc(s) |
| Pallet net width | 100 cm |
| Pallet net length | 120 cm |
| Pallet net height | 2.04 m |
