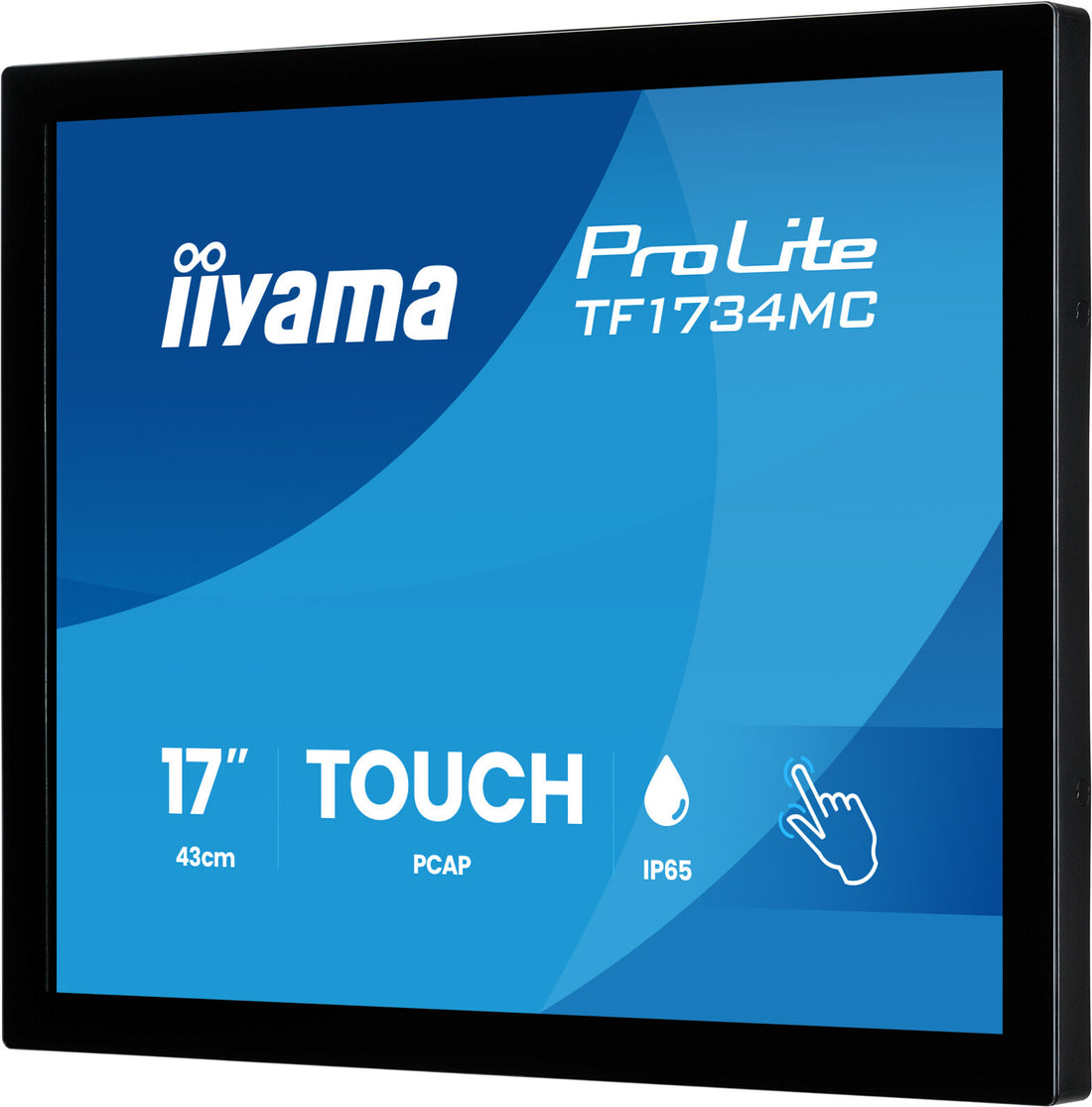

iiyama ProLite TF1734MC-B8X computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Table Black
Couldn't load pickup availability
- 43.2 cm (17") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Maximum refresh rate: 75 Hz Response time: 5 ms
- 1280 x 1024 pixels SXGA Panel type: TN
- Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE

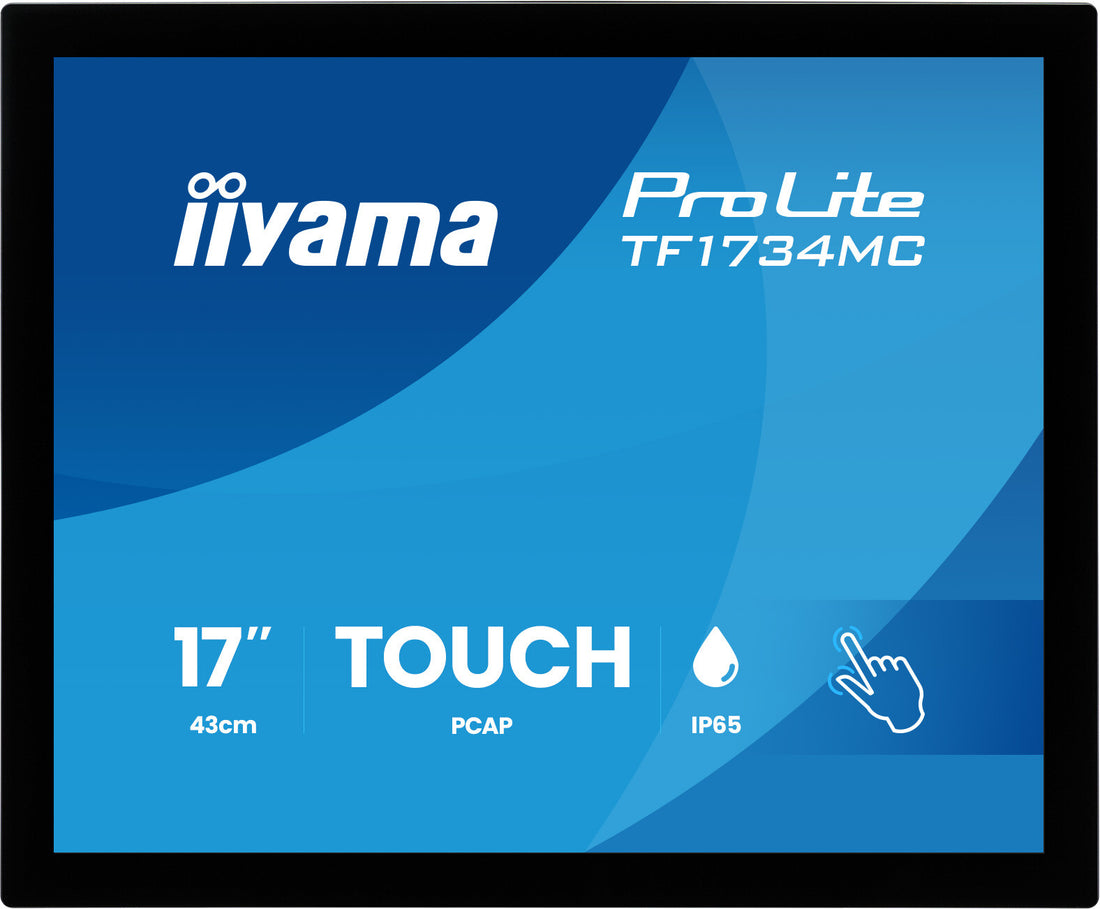

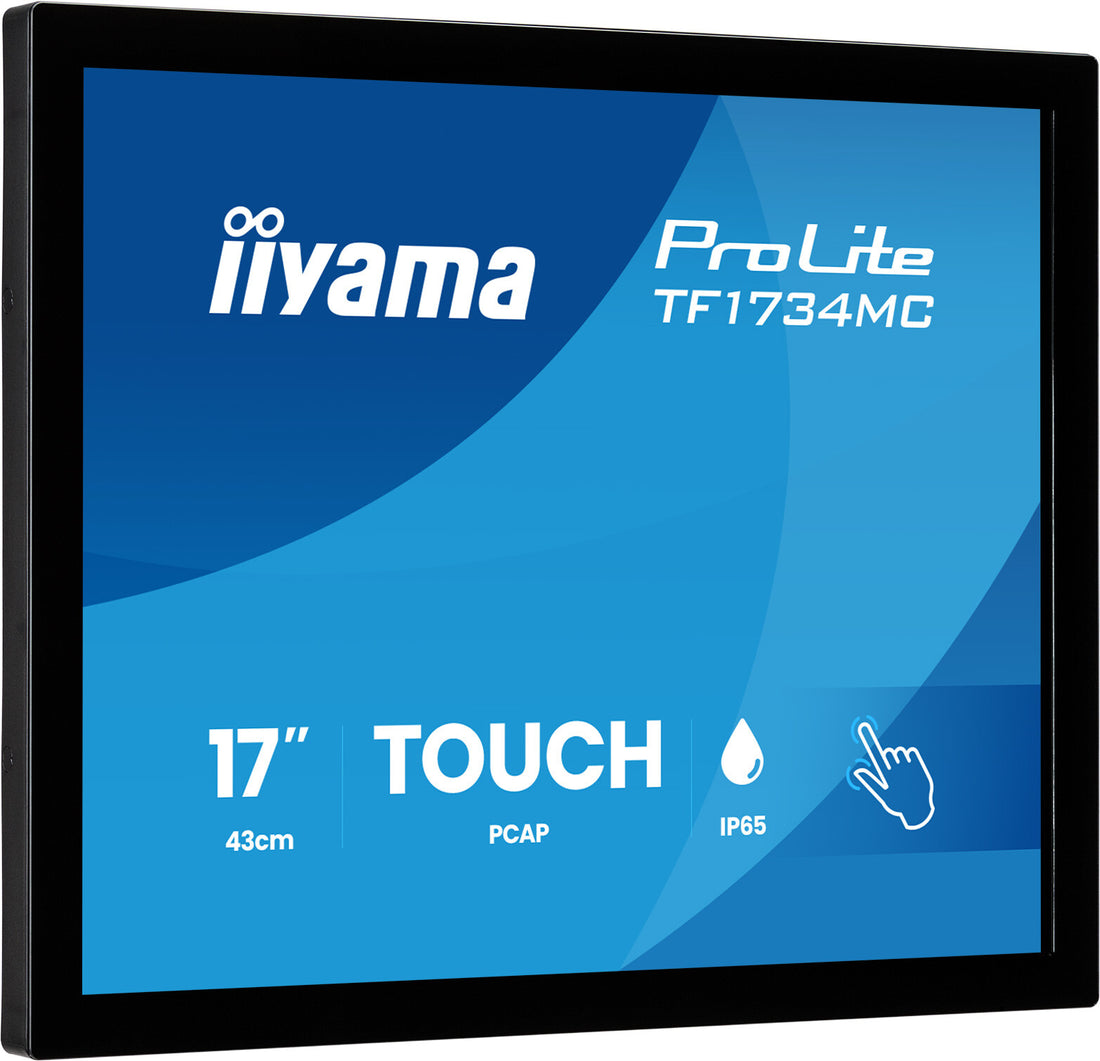

17” Open Frame touchscreen monitor with edge-to-edge glass and Touch Through-Glass function for flexible integration
The ProLite TF1734MC-B8X is a 17” Open Frame touchscreen monitor designed for integration into kiosks, retail systems, interactive displays and custom installations. Its 10-point PCAP touch technology provides accurate multi-touch operation, while the edge-to-edge glass surface offers durability, scratch resistance and a clean, professional appearance.
With IP65-rated front protection, the screen is resistant to dust and splashing water from the front, making it suitable for demanding public and commercial environments. The anti-fingerprint coating helps keep the display clear and easy to use, even with frequent interaction.

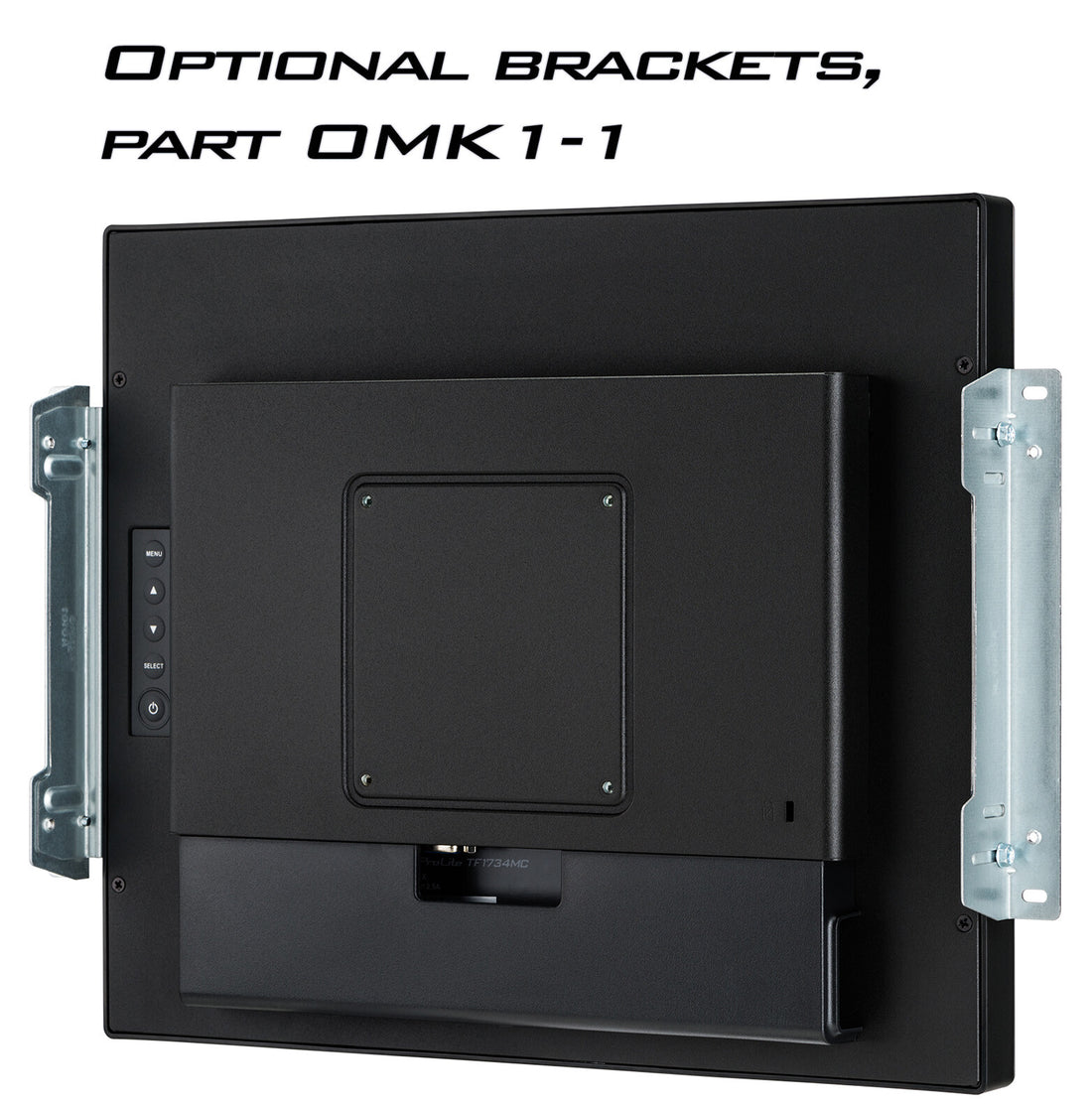

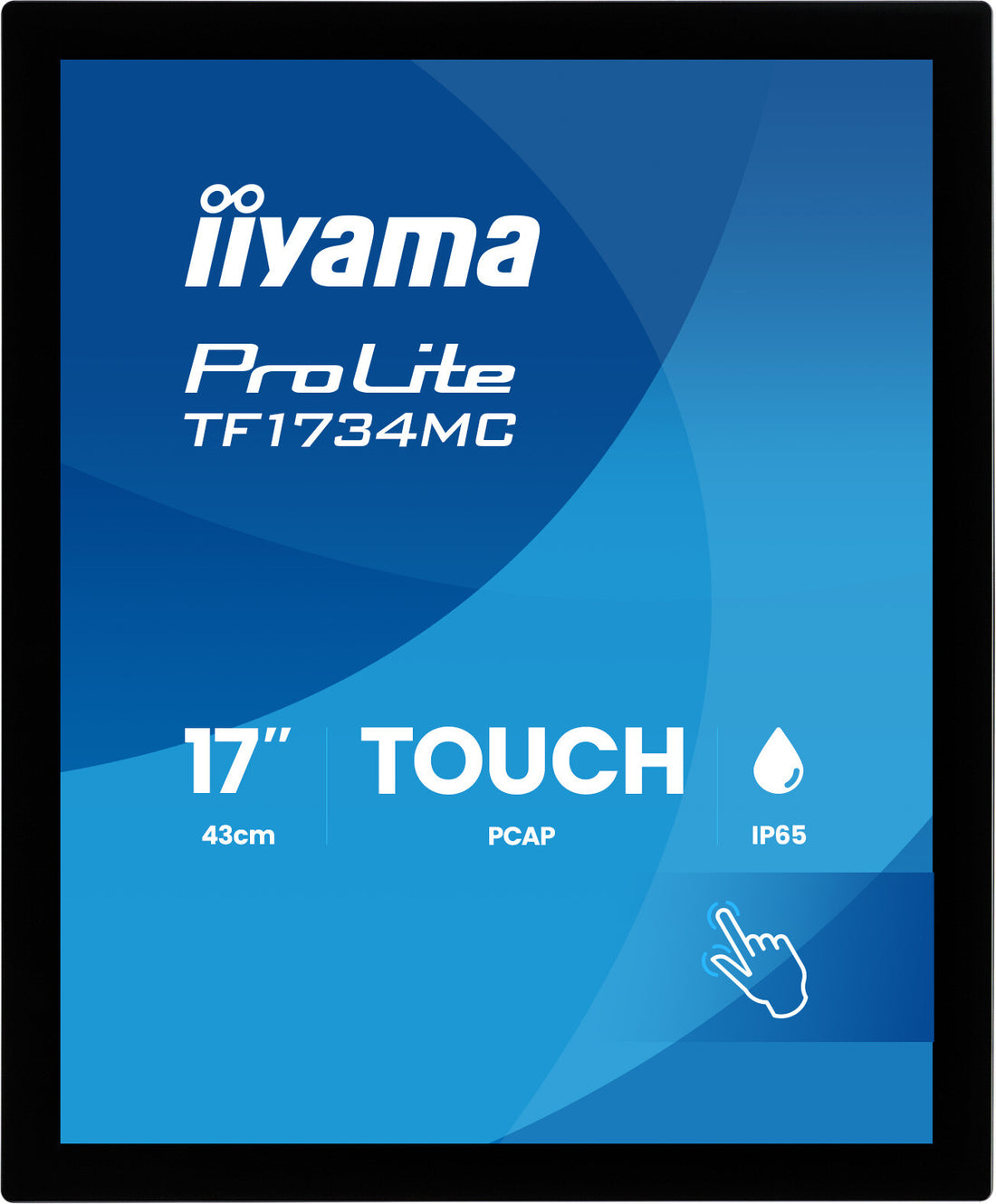

For applications requiring additional protection, the Touch Through-Glass function allows reliable touch operation through a glass overlay up to 6 mm. The monitor can be installed in landscape, portrait or face-up orientation, while optional Open Frame mounting brackets support easy and secure integration into different installation designs.For ease of integration, the monitor can be equipped with optional external mounting brackets (OMK1-1).
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Display technology | LCD |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Touchscreen type | Table |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (peak) | 350 cd/m² |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
| Display diagonal (metric) | 43 cm |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Multimedia | |
|---|---|
| Built-in speaker(s) | No |
| Built-in camera | No |
| Design | |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 3 mm |
| Ports & interfaces | |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |

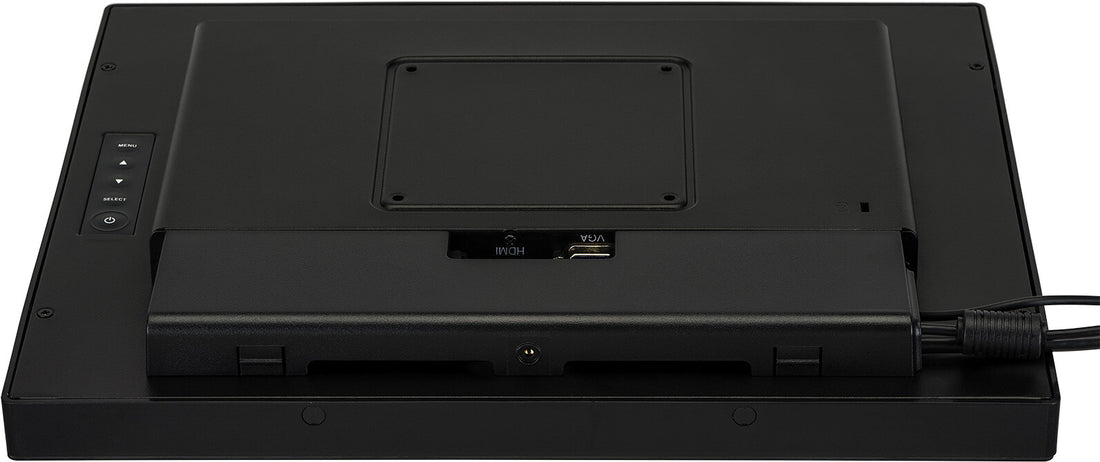

| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone out | No |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |

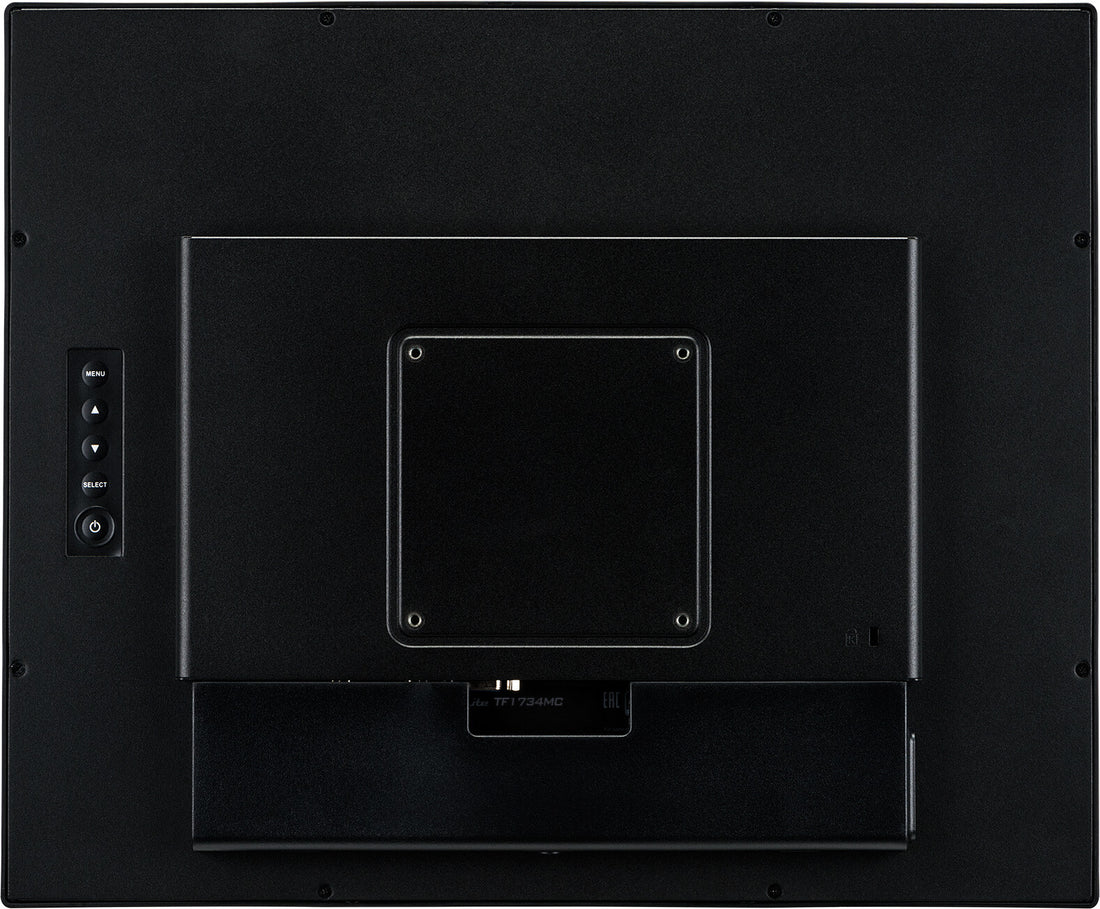

| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | No |
| Height adjustment | No |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Dutch, Polish, Portuguese, Russian |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 13 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 369 mm |

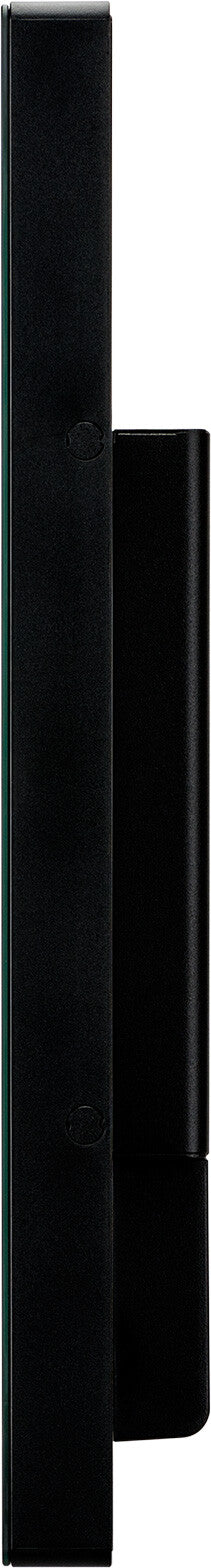

| Depth (with stand) | 47.5 mm |
| Height (with stand) | 307 mm |
| Weight (with stand) | 3.6 kg |
| Packaging data | |
|---|---|
| Package width | 387 mm |
| Package depth | 455 mm |
| Package height | 145 mm |
| Package weight | 5.2 kg |
| Packaging content | |
|---|---|

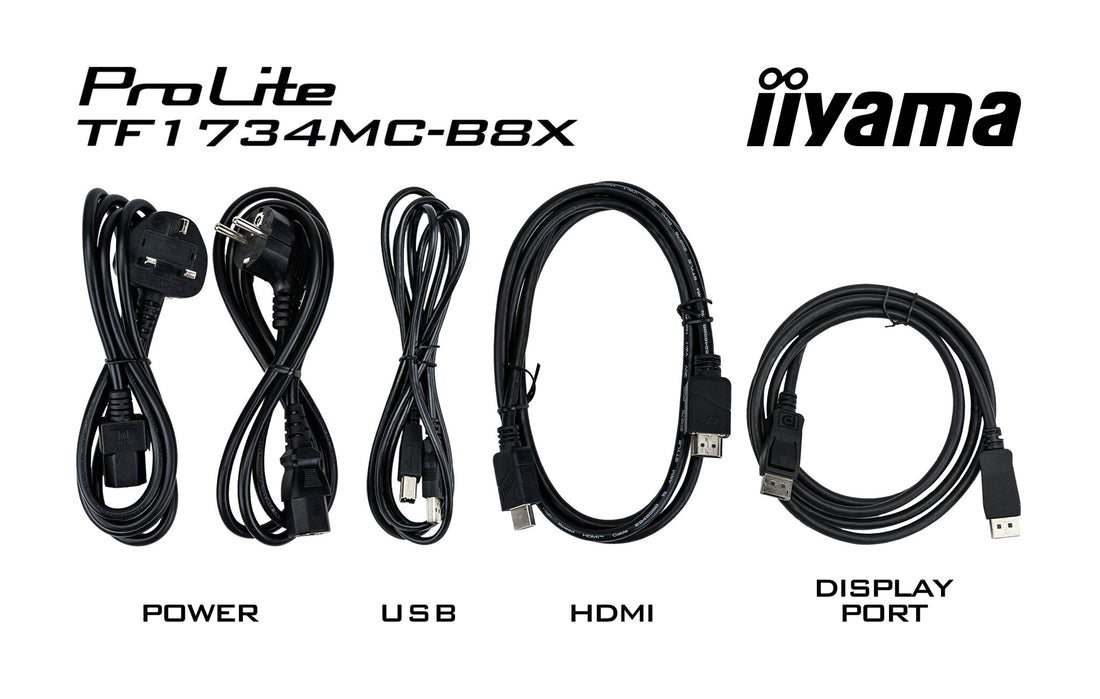

| Cables included | AC, USB, HDMI, DisplayPort |
| Quick start guide | Yes |
| DisplayPort cable length | 1.8 m |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IP65 |
| Positional accuracy | 2 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
