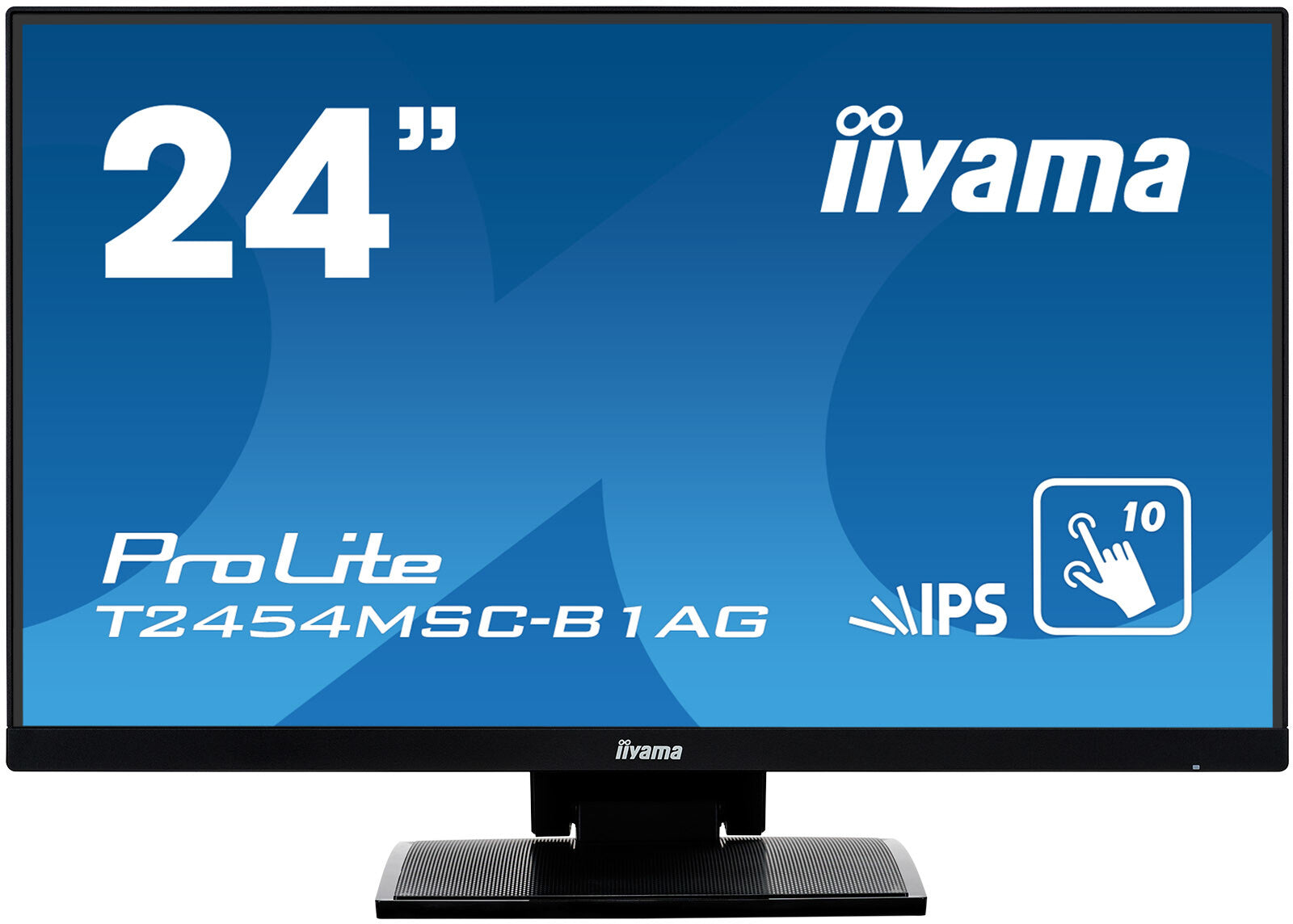

iiyama ProLite T2454MSC-B1AG computer monitor 60.5 cm (23.8") 1920 x 1080 pixels Full HD LED Touchscreen Multi-user Black
Couldn't load pickup availability
- 60.5 cm (23.8") Black
- Height adjustment 7 cm Built-in speaker(s)
- HDMI
- Screen shape: Flat
- Response time: 4 ms
- 1920 x 1080 pixels Full HD Panel type: IPS
- Energy efficiency class (SDR): F RoHS
24” P-CAP 10pt touch screen featuring IPS panel technology and Anti Glare coating

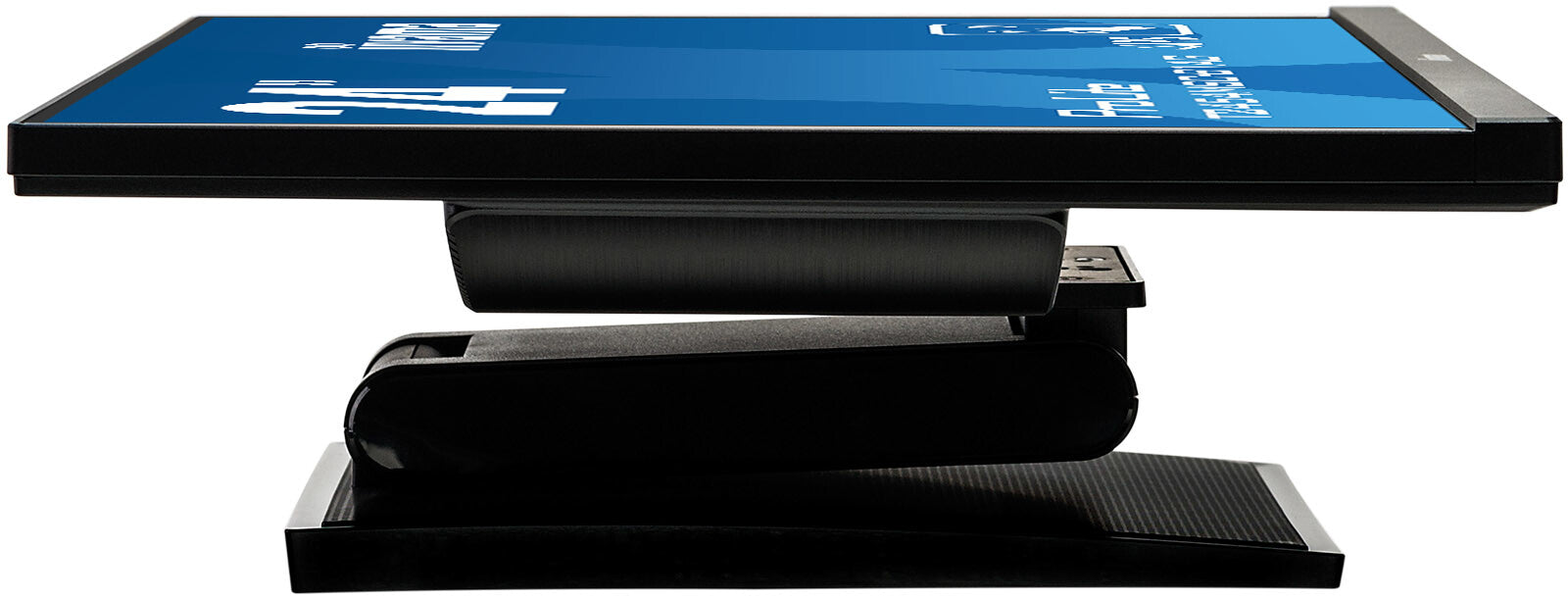

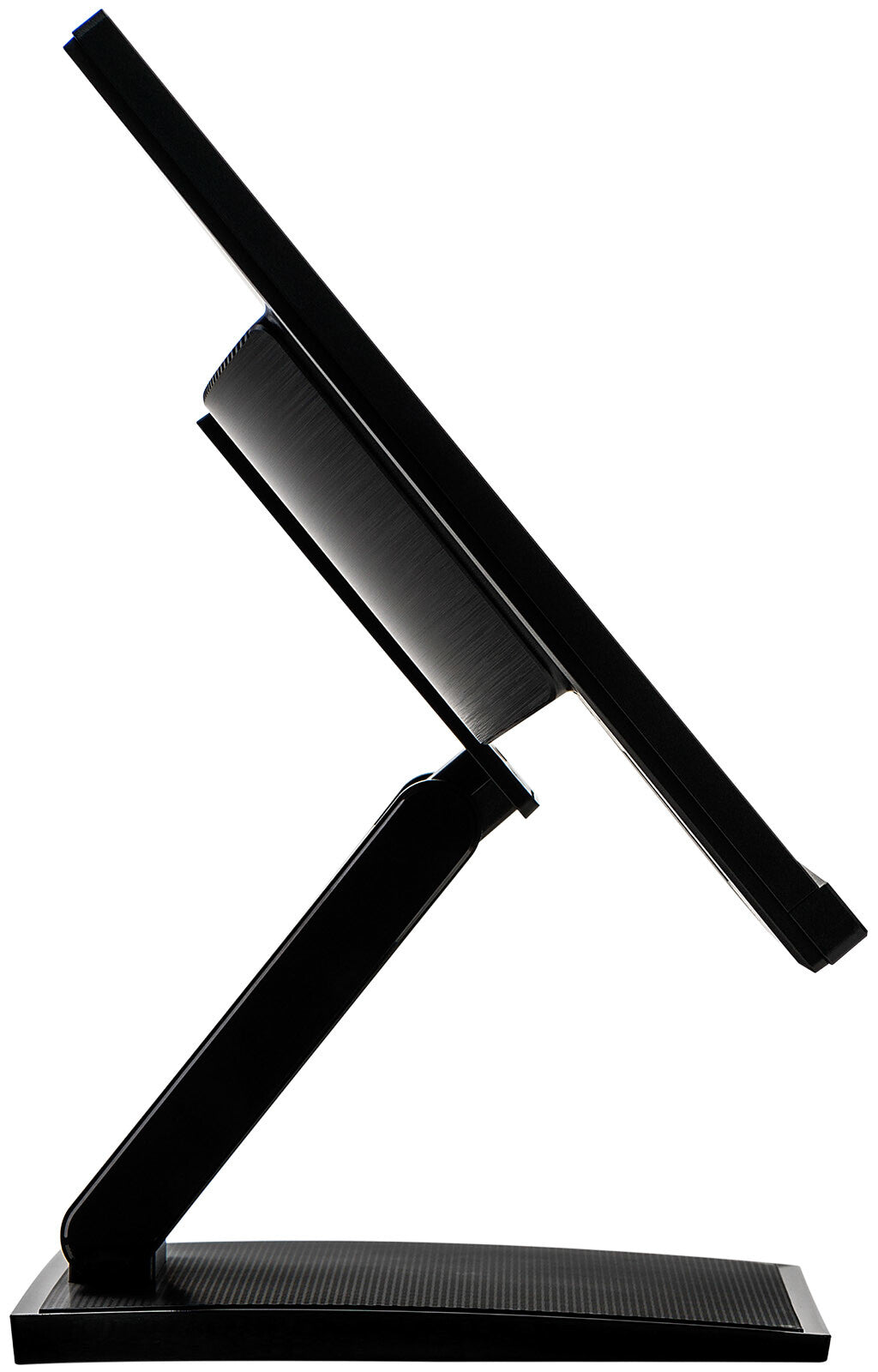

With its Full HD (1920x1080) resolution and accurate Projective Capacitive 10 point touch technology, the ProLite T2454MSC-B1AG delivers seamless and accurate touch response. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angels, making it a perfect choice for a vast array of interactive applications. The Anti Glare coating helps to avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. Its flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience. The ProLite T2454MSC-B1AG is the ideal solution for interactive signage, instore retail, POS and interactive presentations.
TOUCH TECHNOLOGY - CAPACITIVE
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
IPS
IPS technology offers higher contrast, darker blacks and much better viewing angles than standard TN technology. The screen will look good no matter what angle you look at it.
AG COATING
The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

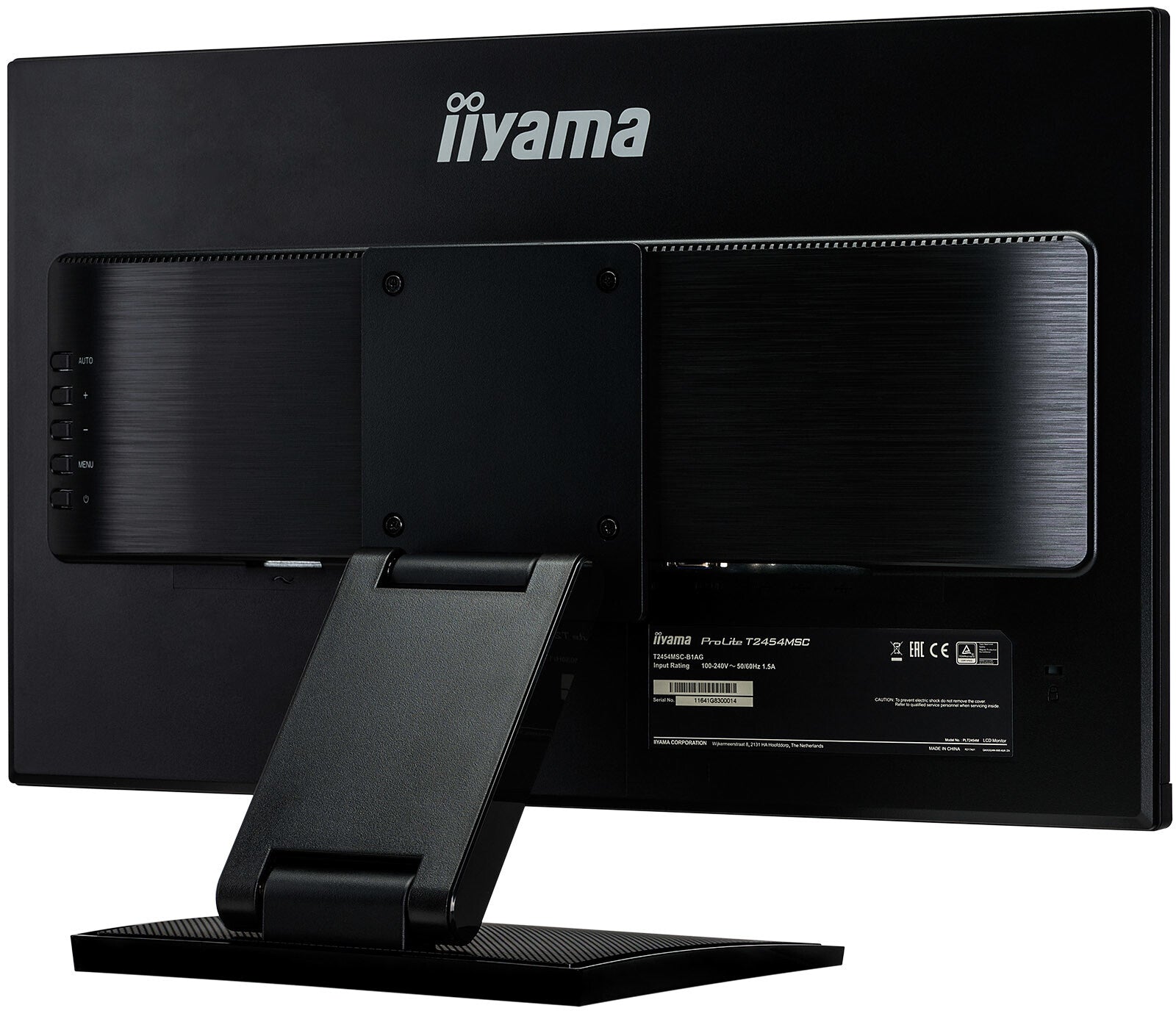

VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.
| Display | |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| Native aspect ratio | 16:9 |
| Display technology | LED |
| Touchscreen | Yes |
| HD type | Full HD |
| Panel type | IPS |
| LED backlight | Yes |
| Touchscreen type | Multi-user |
| Touchscreen technology | Projected capacitive system |
| Touch technology | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness | 250 cd/m² |
| Response time | 4 ms |
| Screen shape | Flat |
| Supported graphics resolutions | 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Contrast ratio (dynamic) | 5000000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.274 x 0.274 mm |
| Horizontal scan range | 30 - 80 kHz |
| Vertical scan range | 56 - 75 Hz |
| Display diagonal (metric) | 60.5 cm |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| OmniTapps Multitouch compatibility | No |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 4 W |
| Built-in camera | No |
| Megapixel (approx.) | 2.1 MP |
| Built-in microphone | No |
| Design | |
|---|---|
| Product colour | Black |

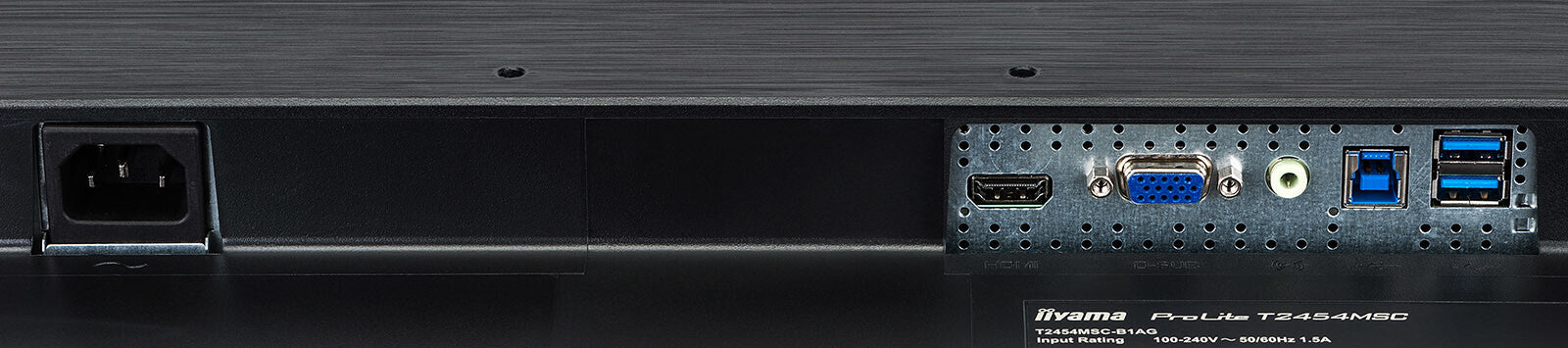

| Ports & interfaces | |
|---|---|
| Number of upstream ports | 1 |
| USB Type-A downstream ports quantity | 1 |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Audio input | 3.5mm |
| HDCP | Yes |
| Ergonomics | |
|---|---|

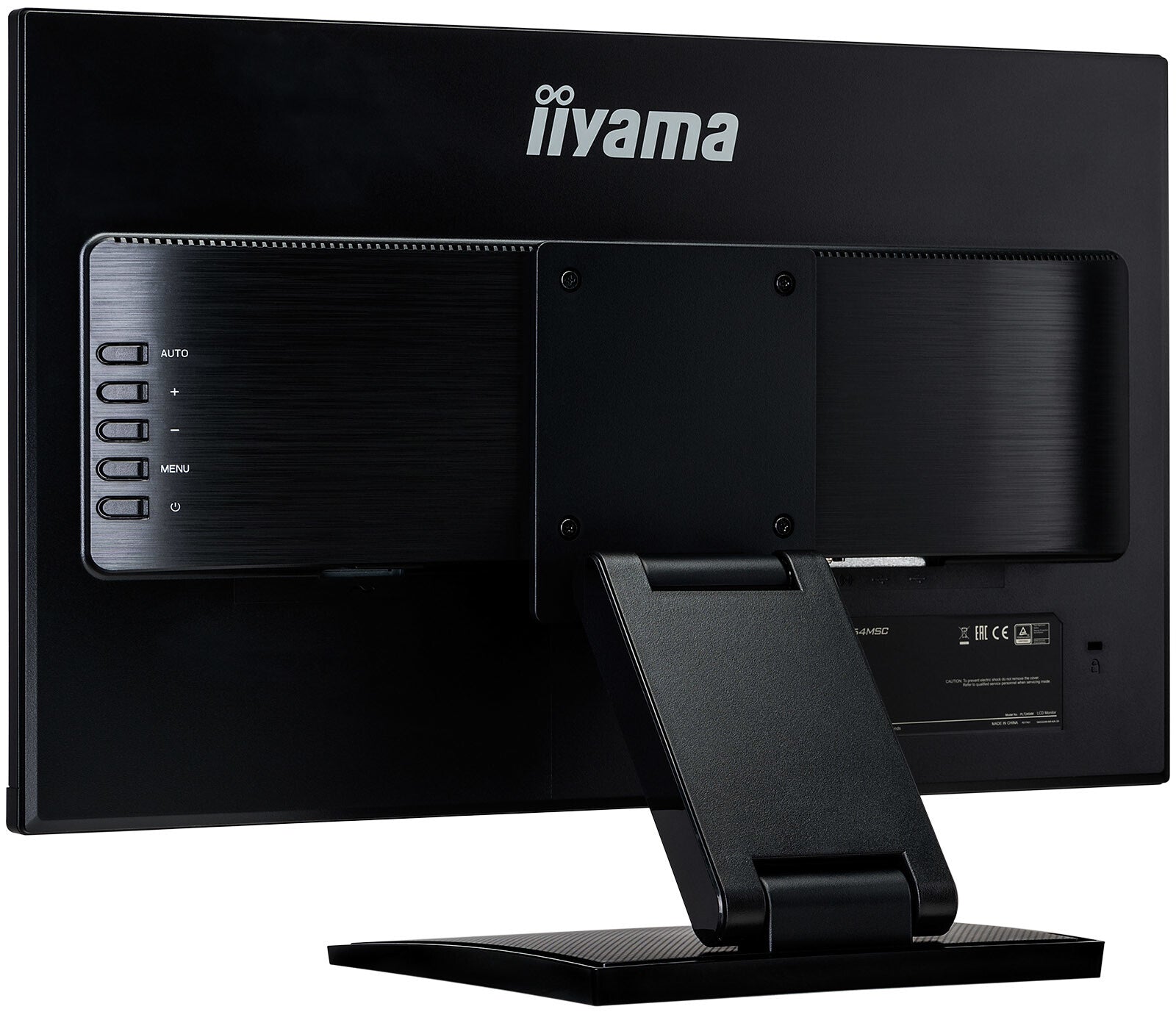

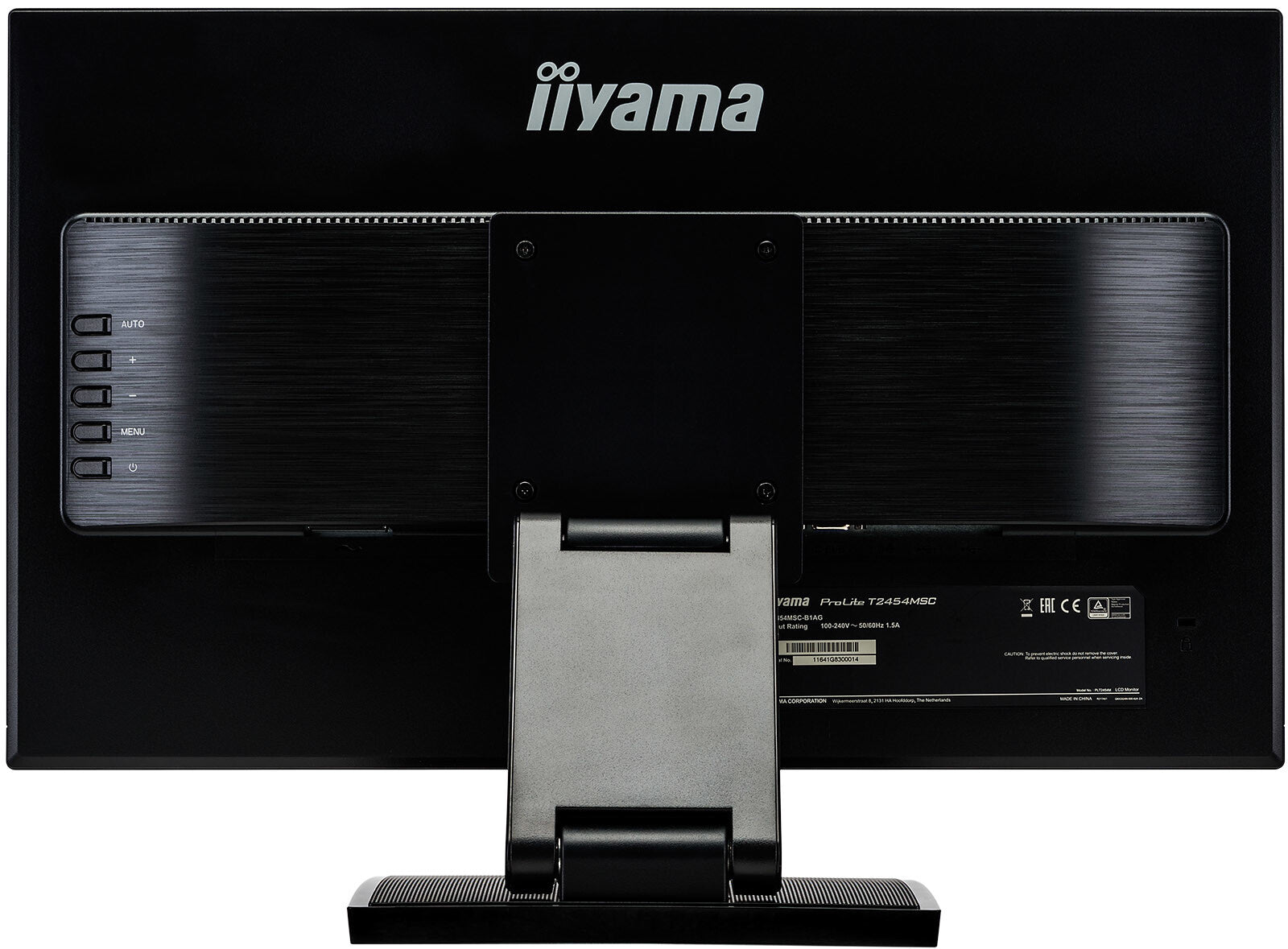

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 7 cm |

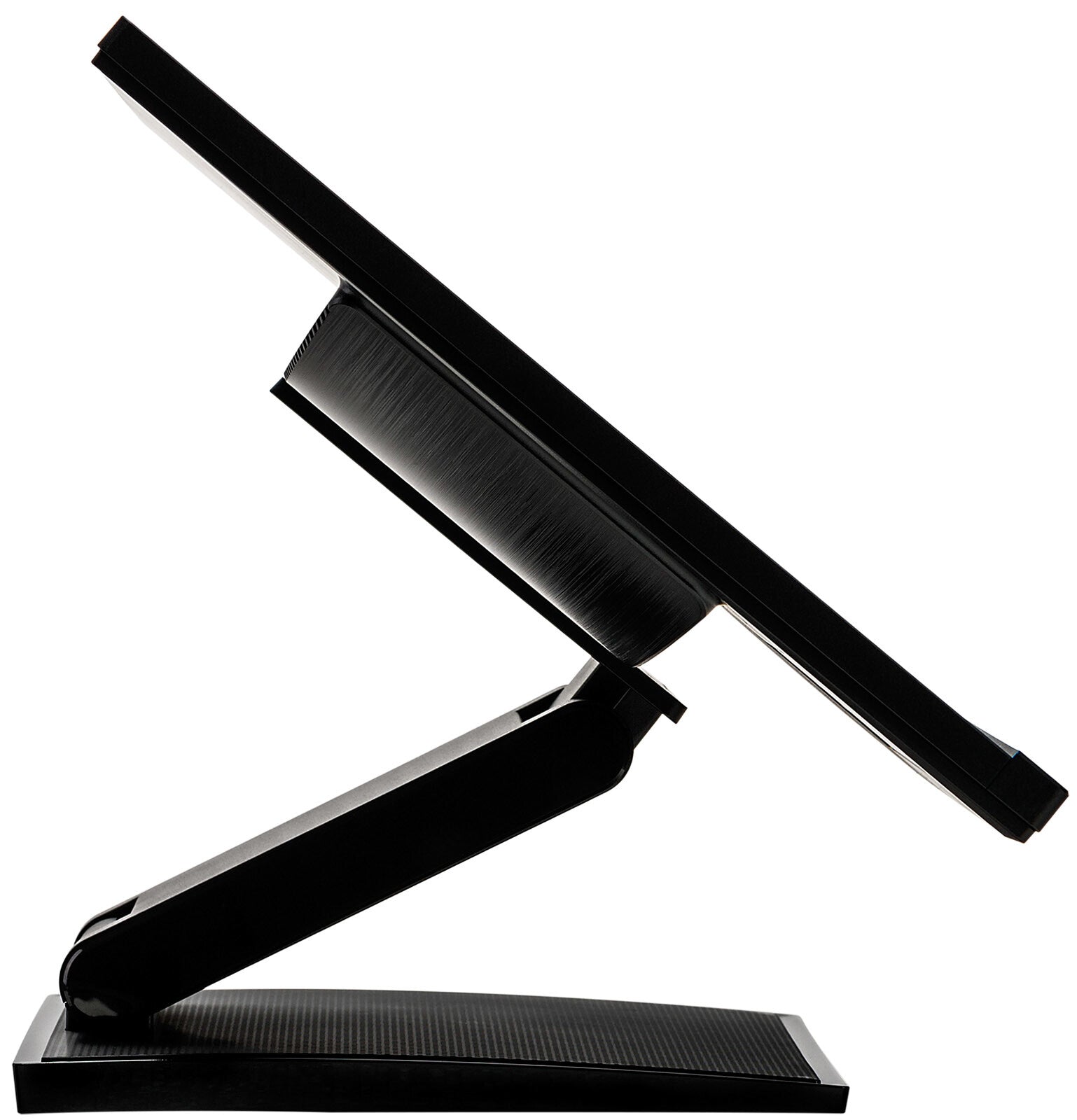

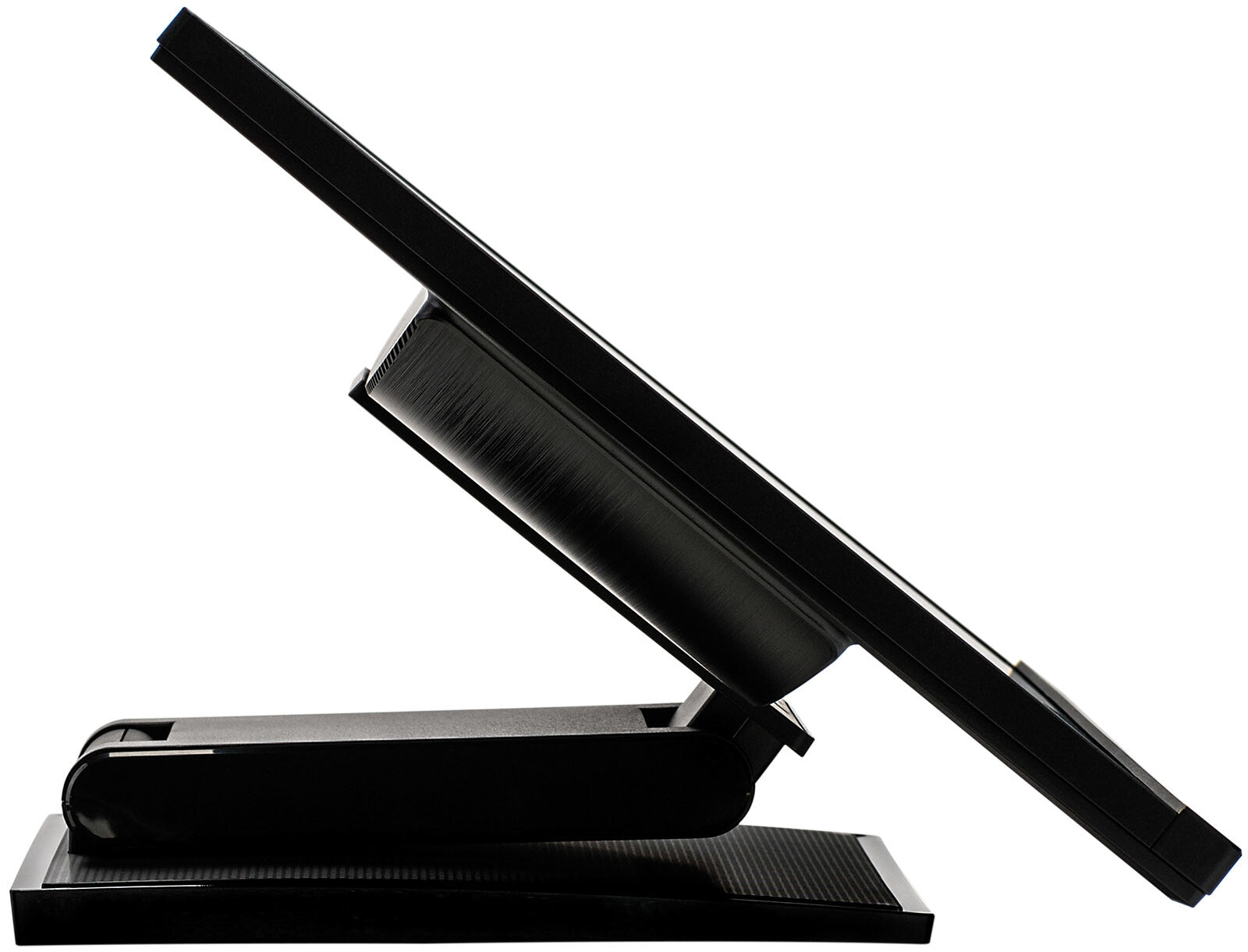

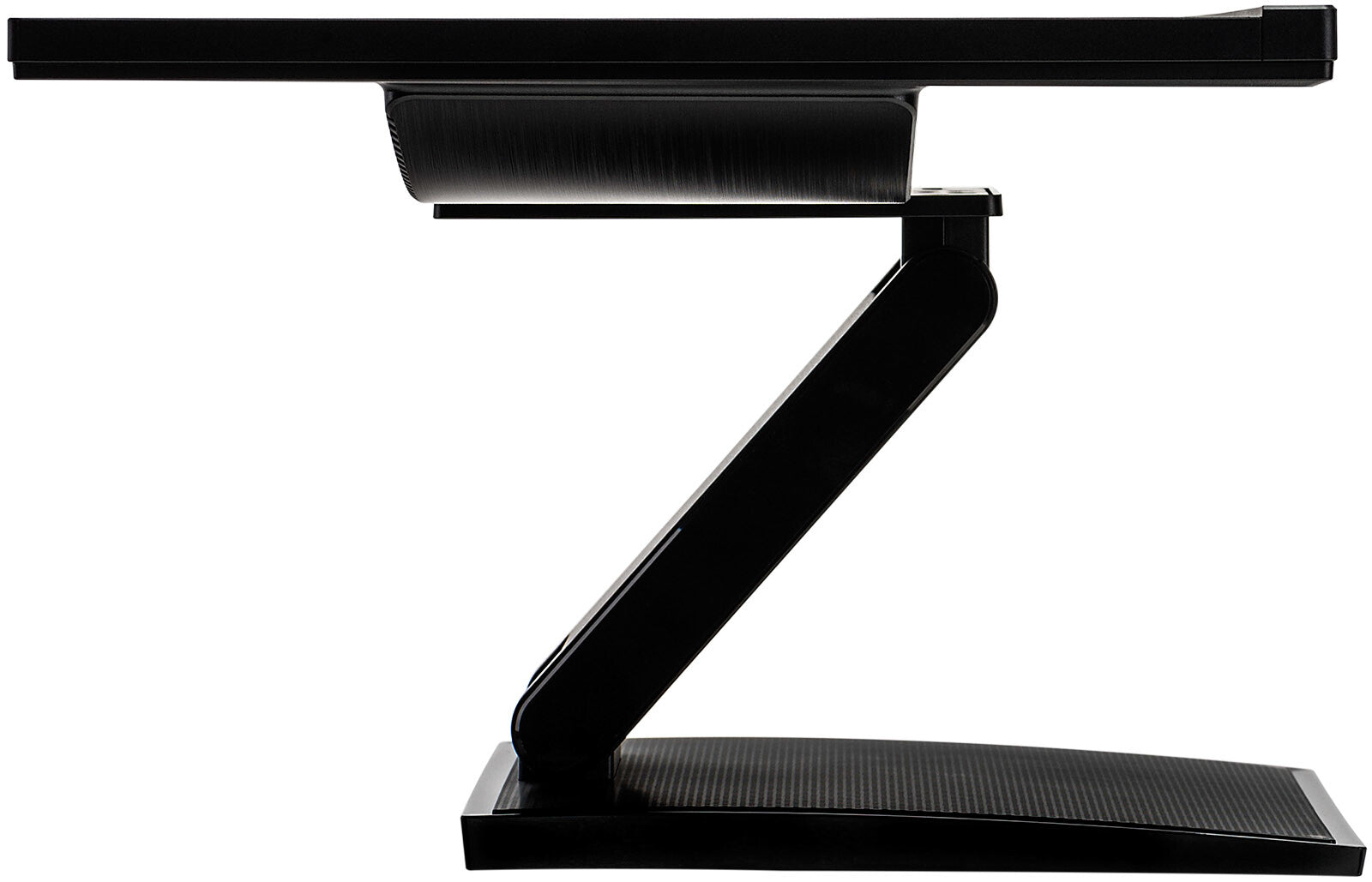

| Tilt adjustment | Yes |
| Tilt angle range | -5 - 90° |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Portuguese, Russian |
| Number of OSD languages | 10 |
| Plug and Play | Yes |
| Power | |
|---|---|
| Energy efficiency class (SDR) | F |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 20 kWh |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type | Internal |
| Energy efficiency scale | A to G |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 540.5 mm |
| Depth (with stand) | 128 mm |
| Height (with stand) | 388 mm |
| Weight (with stand) | 5.5 kg |
| Width (without stand) | 540.5 mm |
| Depth (without stand) | 46.5 mm |
| Height (without stand) | 322.5 mm |
| Packaging content | |
|---|---|

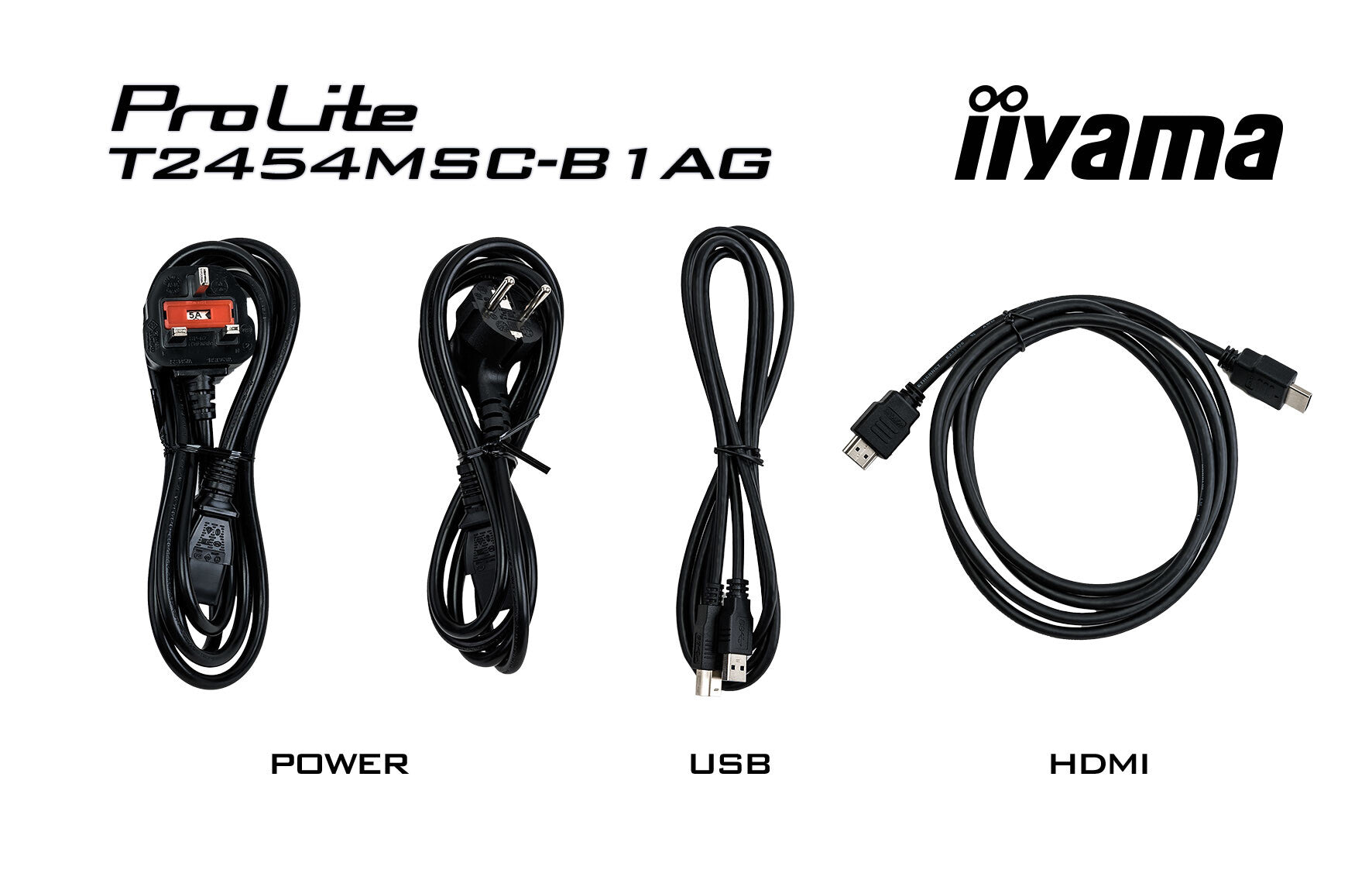

| Cables included | AC, HDMI, USB, VGA |
| Quick start guide | Yes |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IPX1 |
| Dimensions (W x D x H) with stand | 540.5 x 128 x 388 mm |
| Placement supported | Horizontal/Vertical |
| Compliance certificates | RoHS |
| Display viewable area (HxV) | 527.04 x 296.46 mm |
| Mean time between failures (MTBF) | 30000 h |
| Certification | CE, TÜV-Bauart, VCCI-B, EAC, ErP, WEEE, REACH, CB |
| Supplied AC adapter type | AC |
| Technical details | |
|---|---|
| Native refresh rate | 60 Hz |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85285210 |
