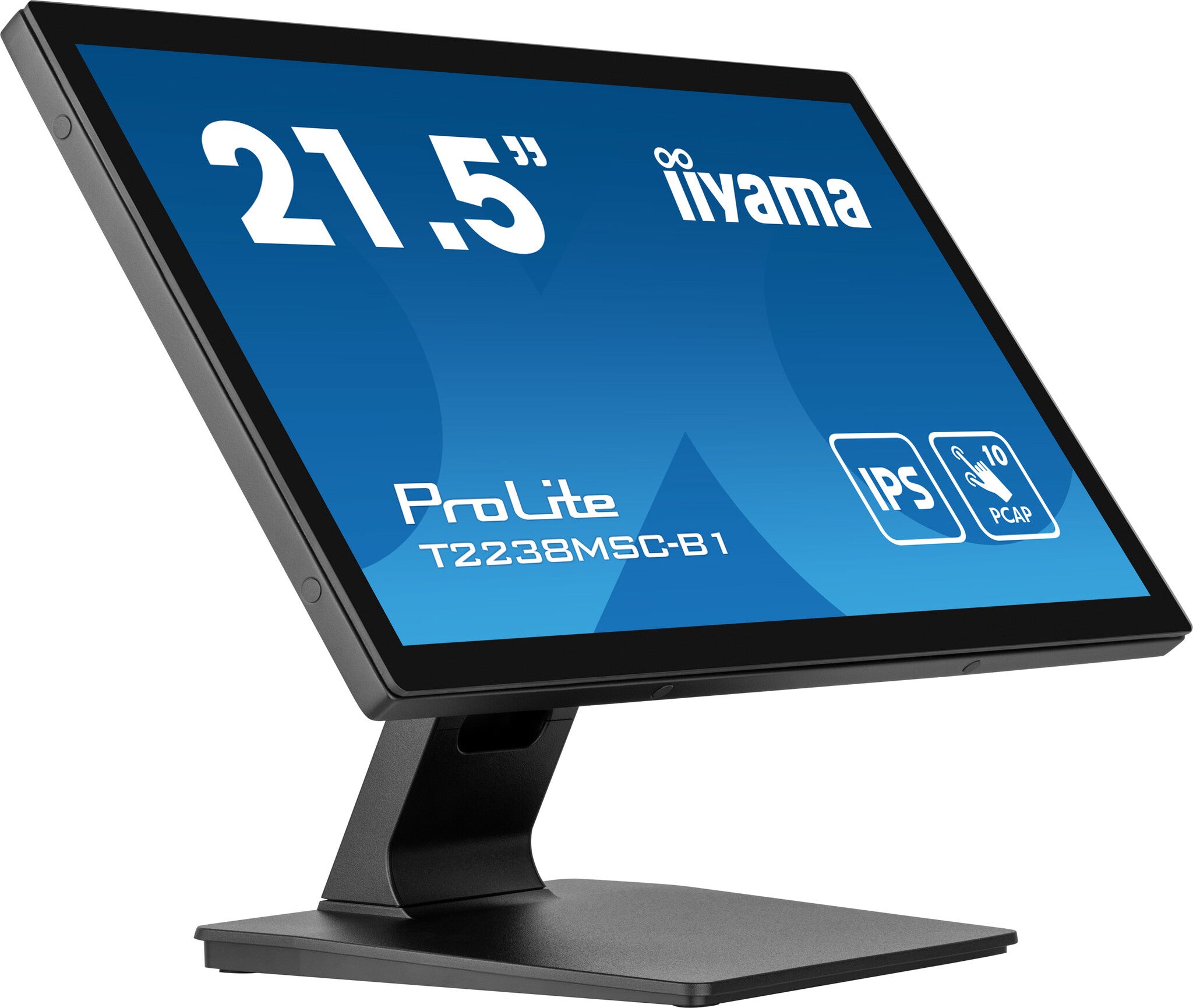

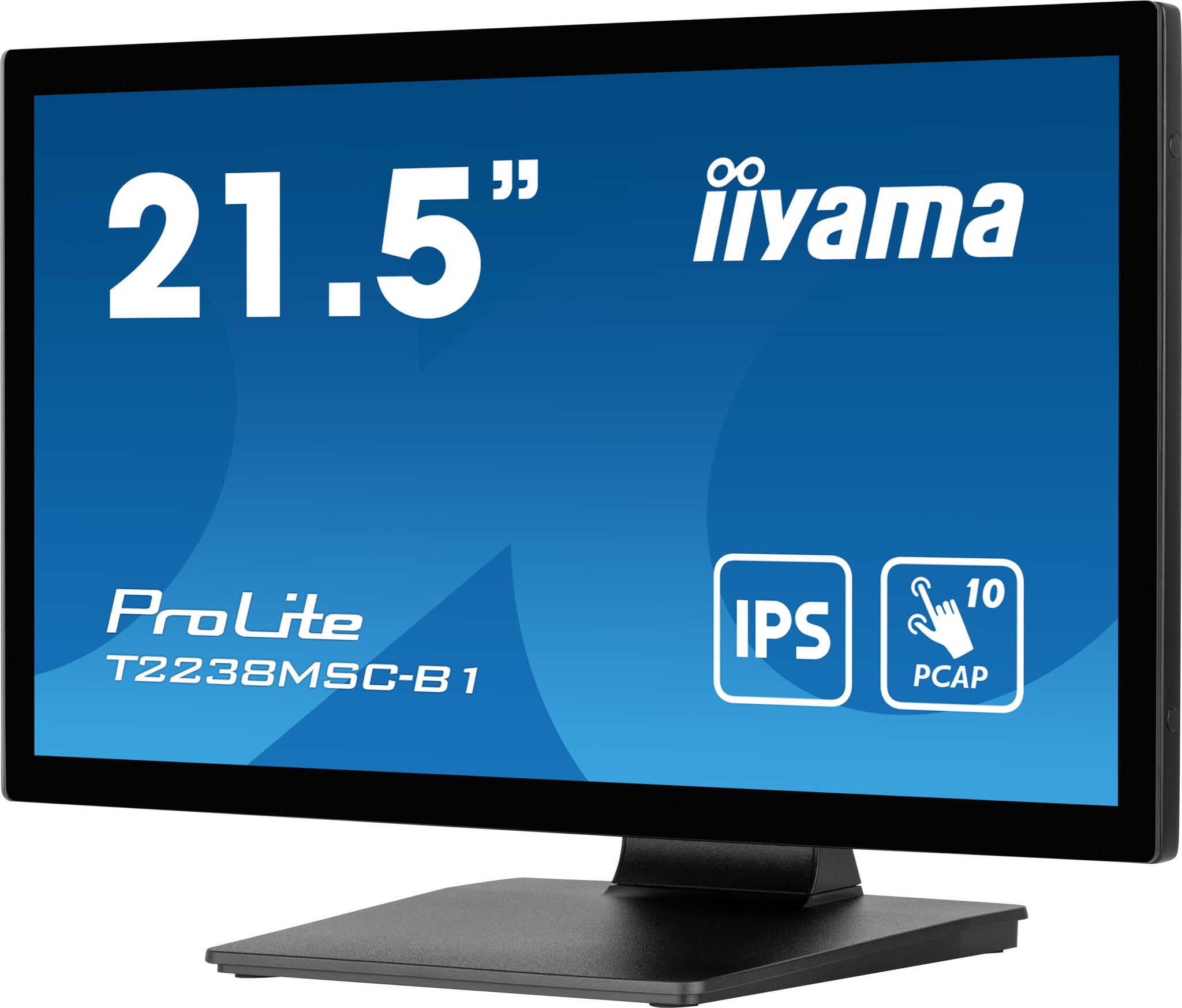

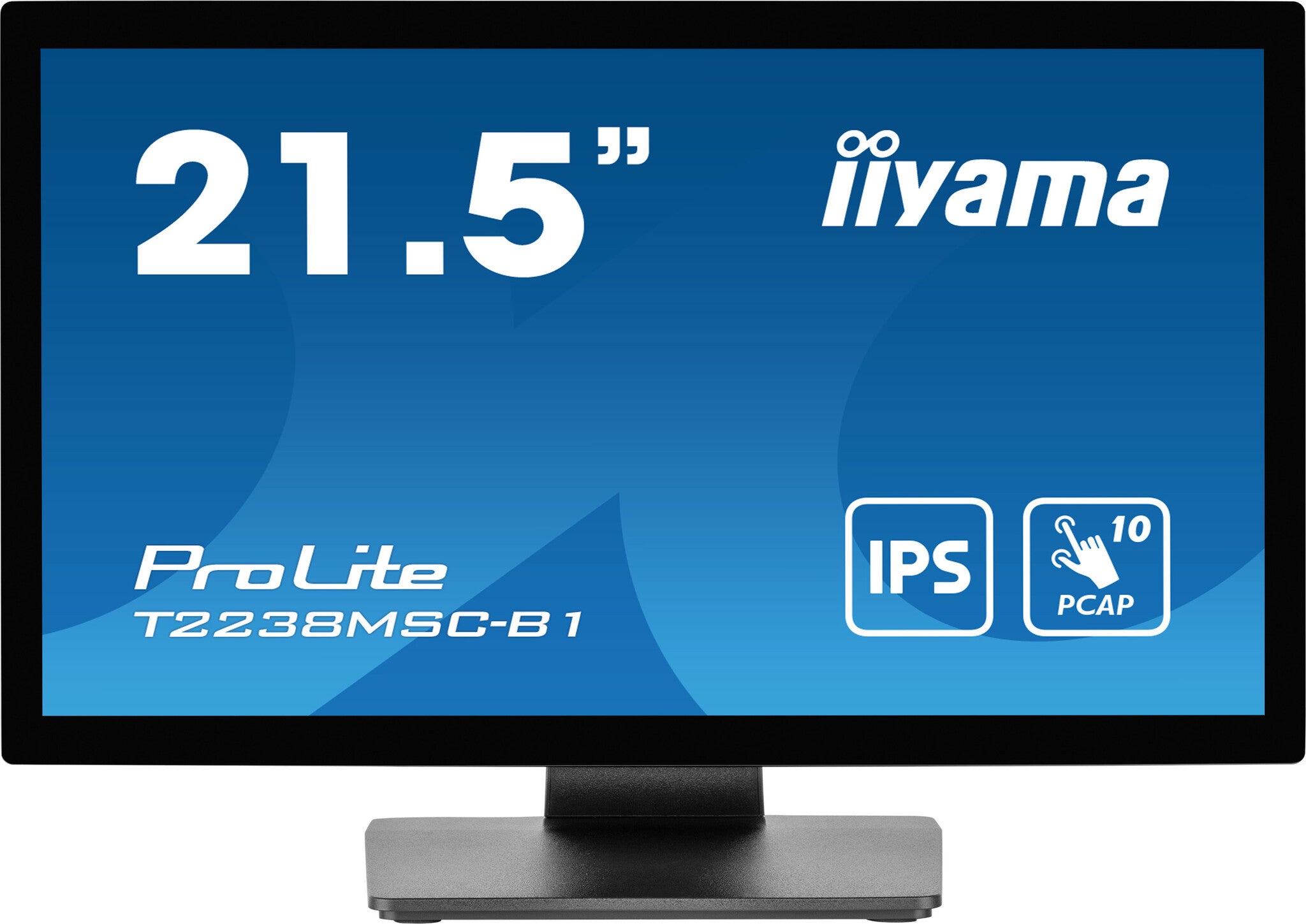

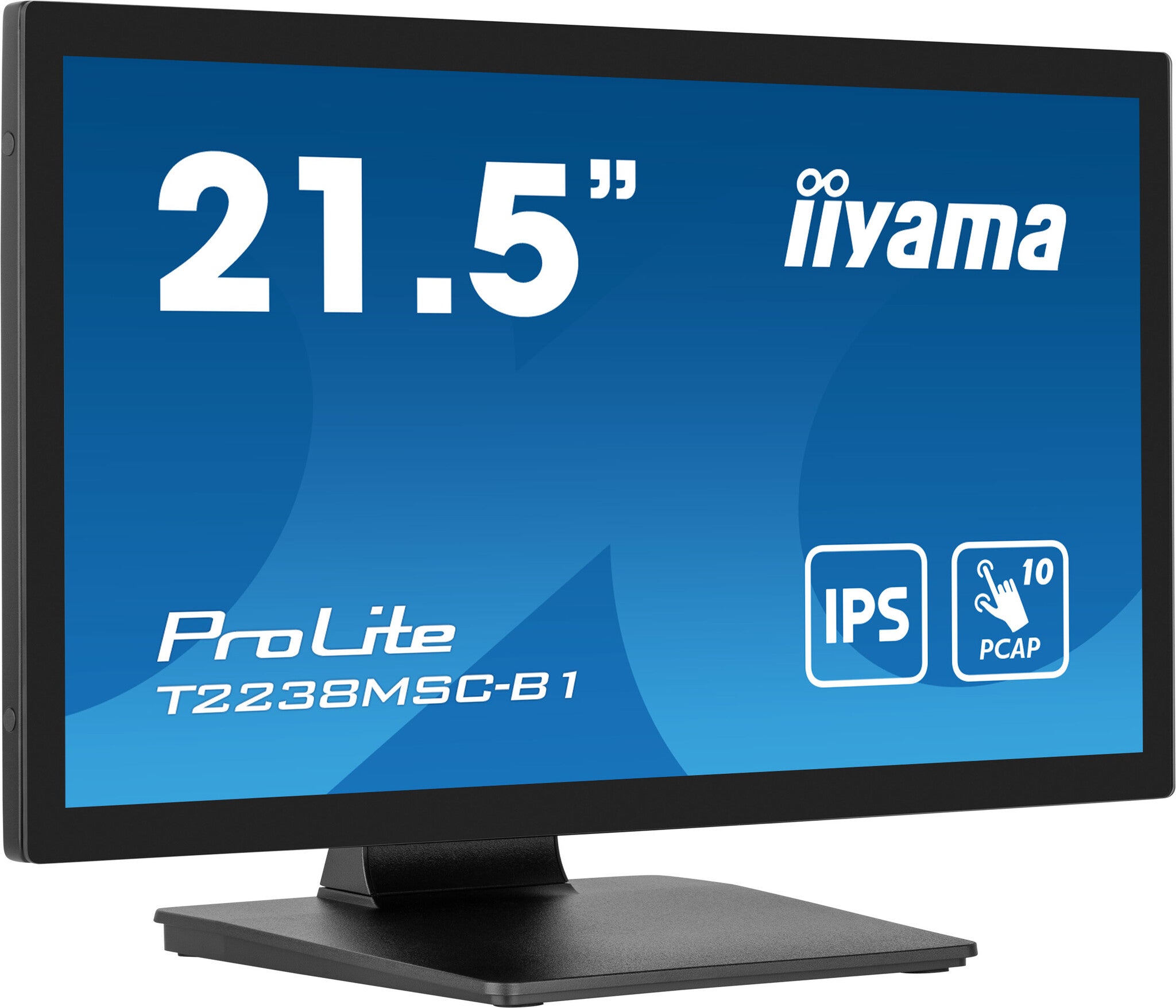

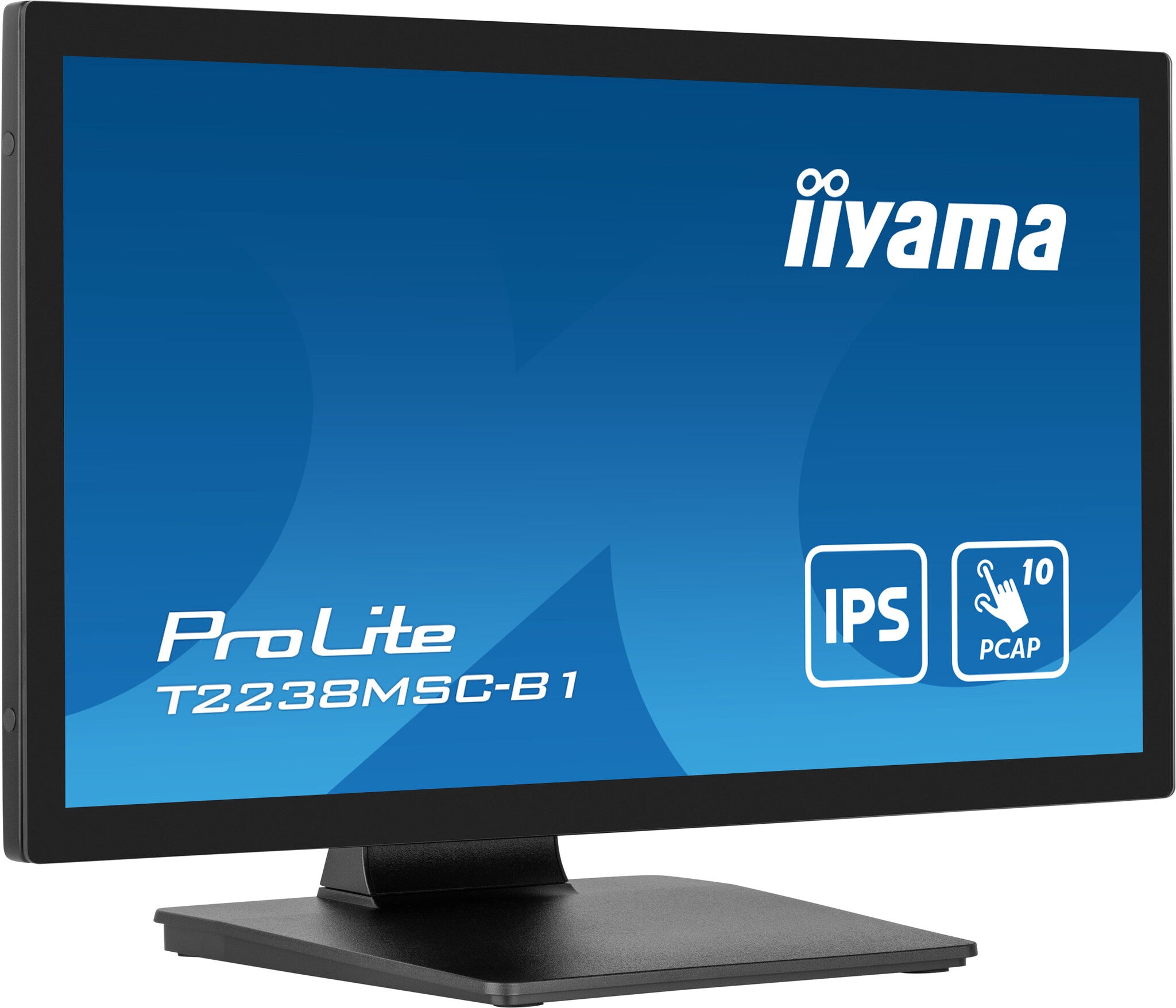

iiyama ProLite T2238MSC-B1 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LED Touchscreen Black
Couldn't load pickup availability
- Touchscreen 54.6 cm (21.5") LED IPS
- Full HD 1920 x 1080 pixels 16:9
- 5 ms 600 cd/m² 1000:1
- D 12.9 kWh 17 W

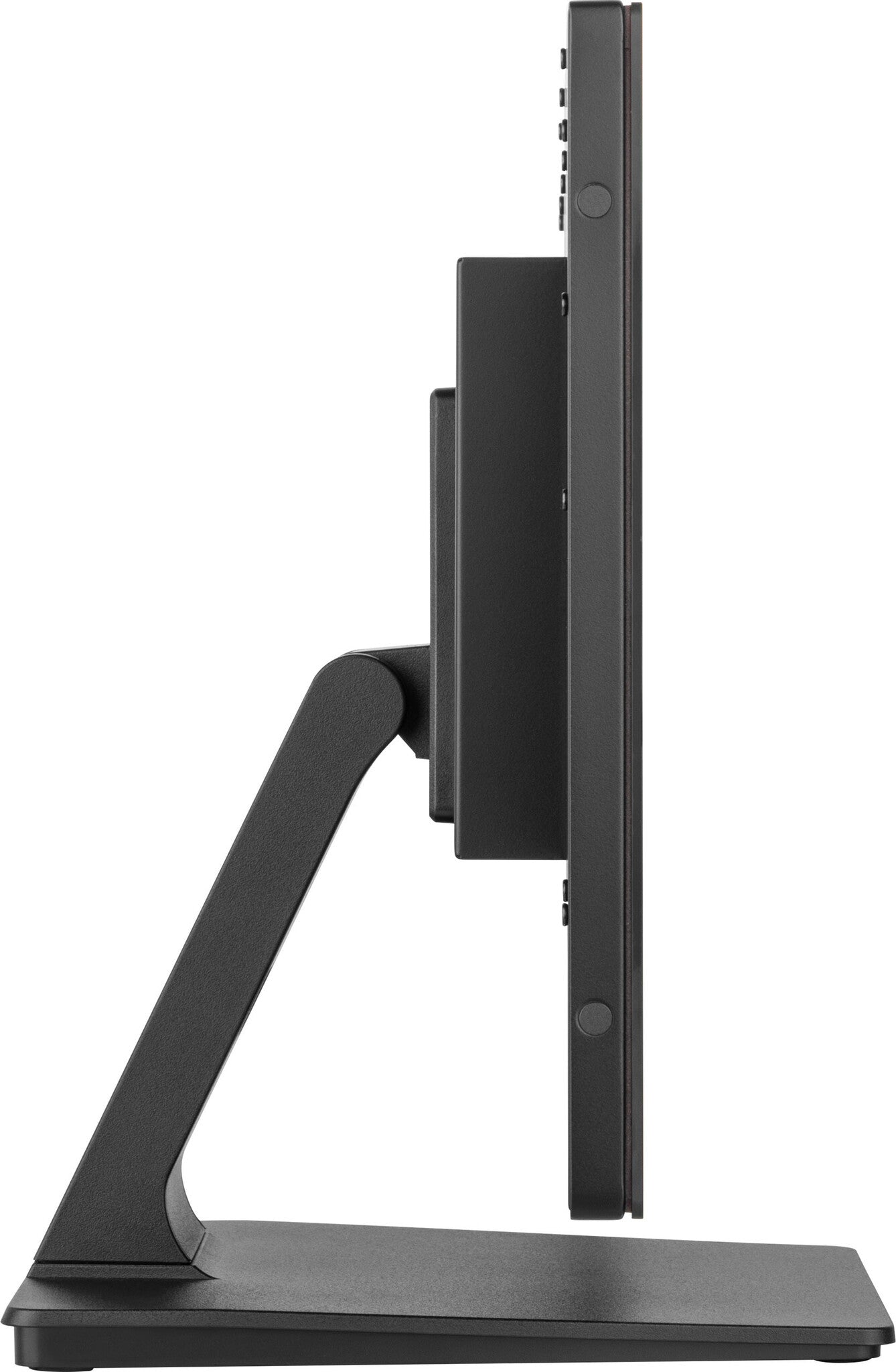

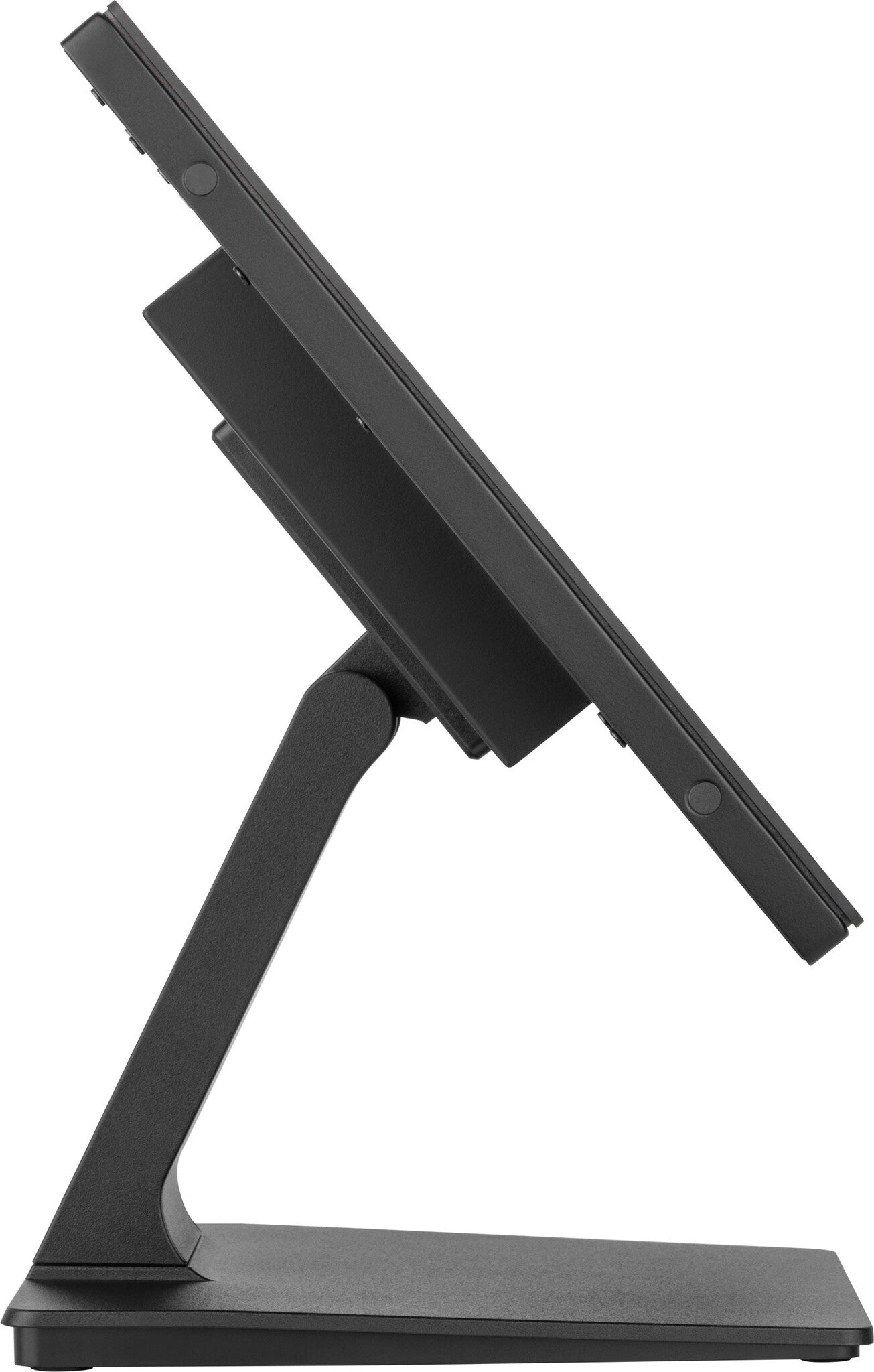

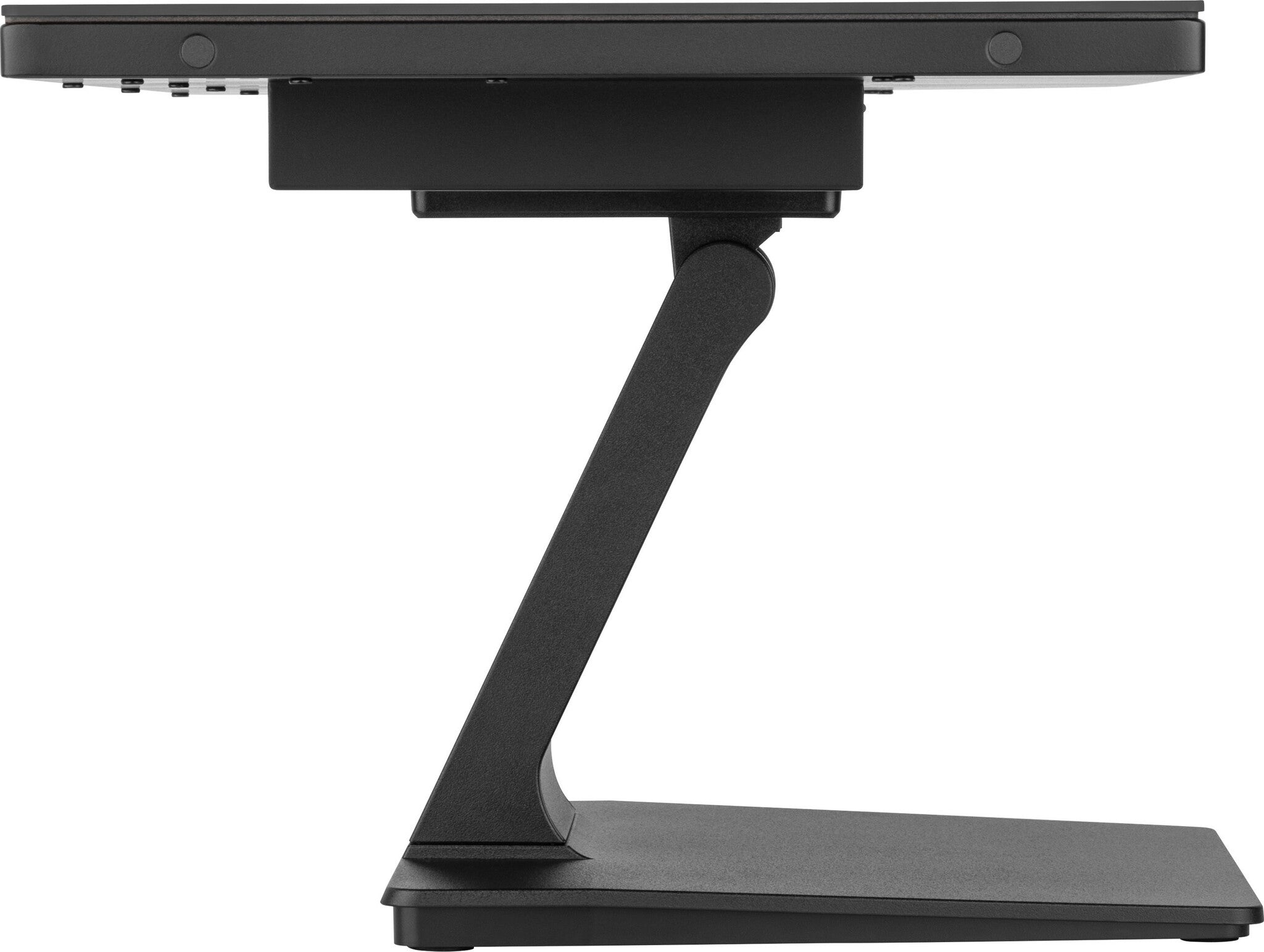

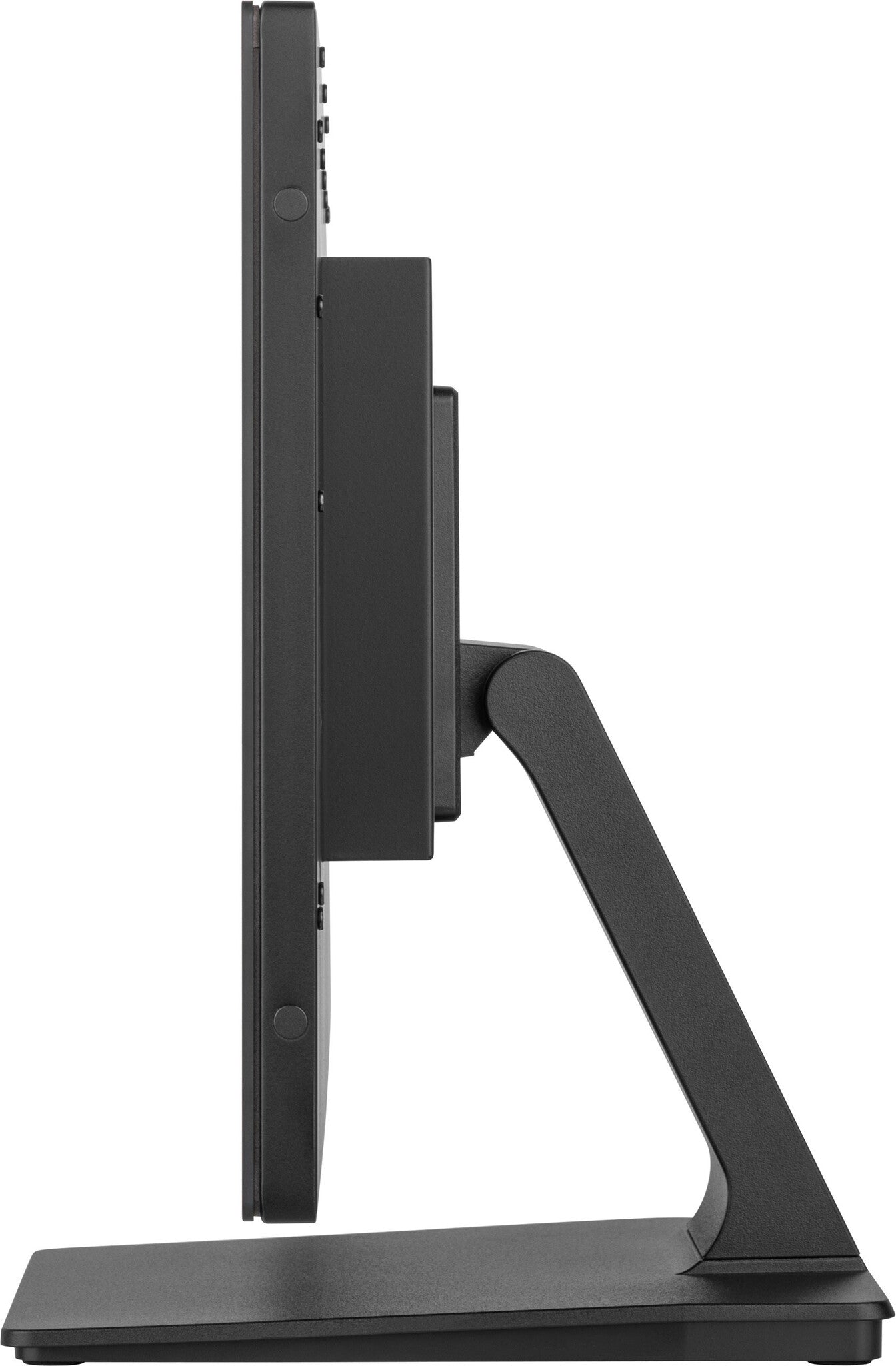

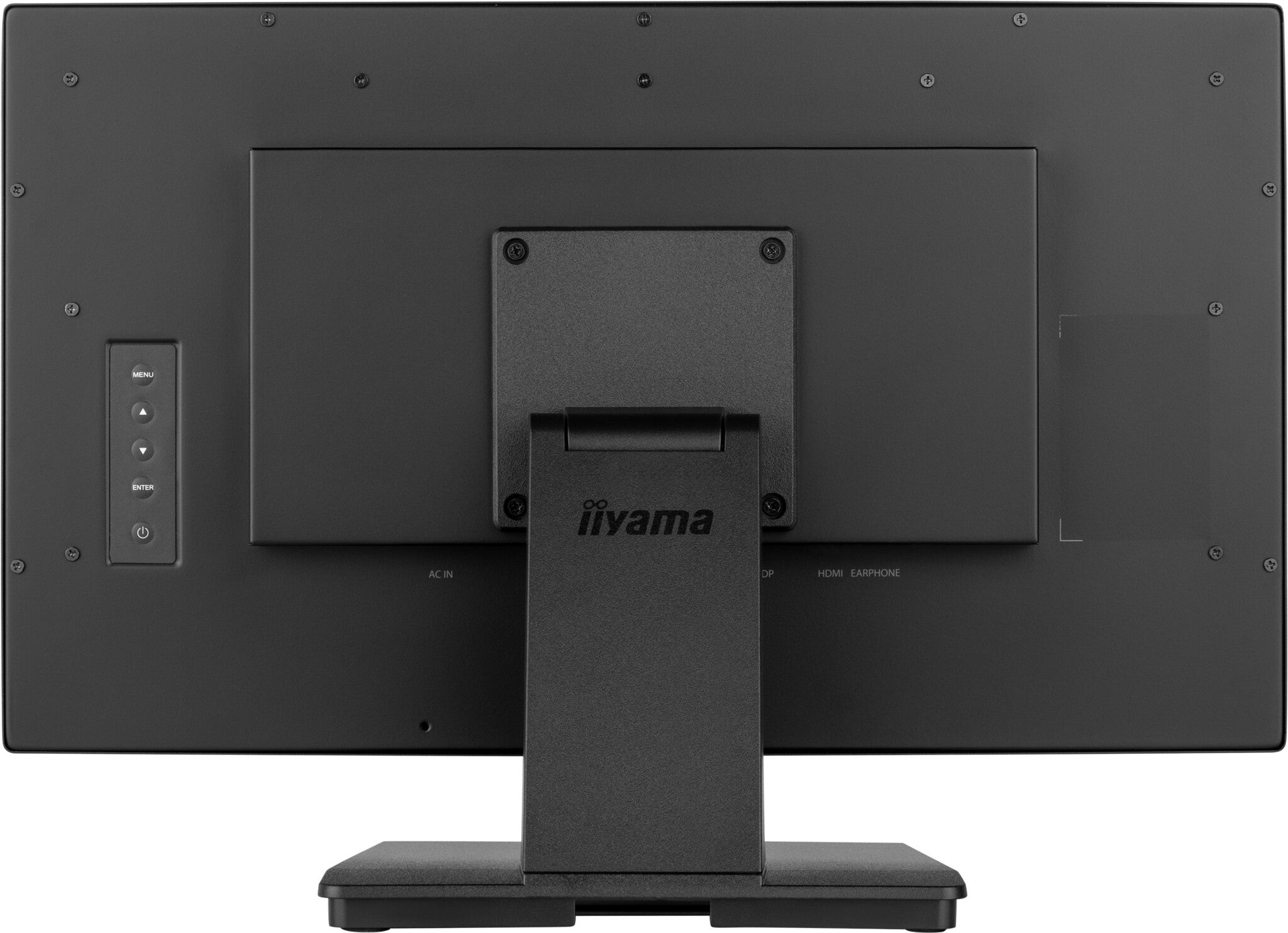

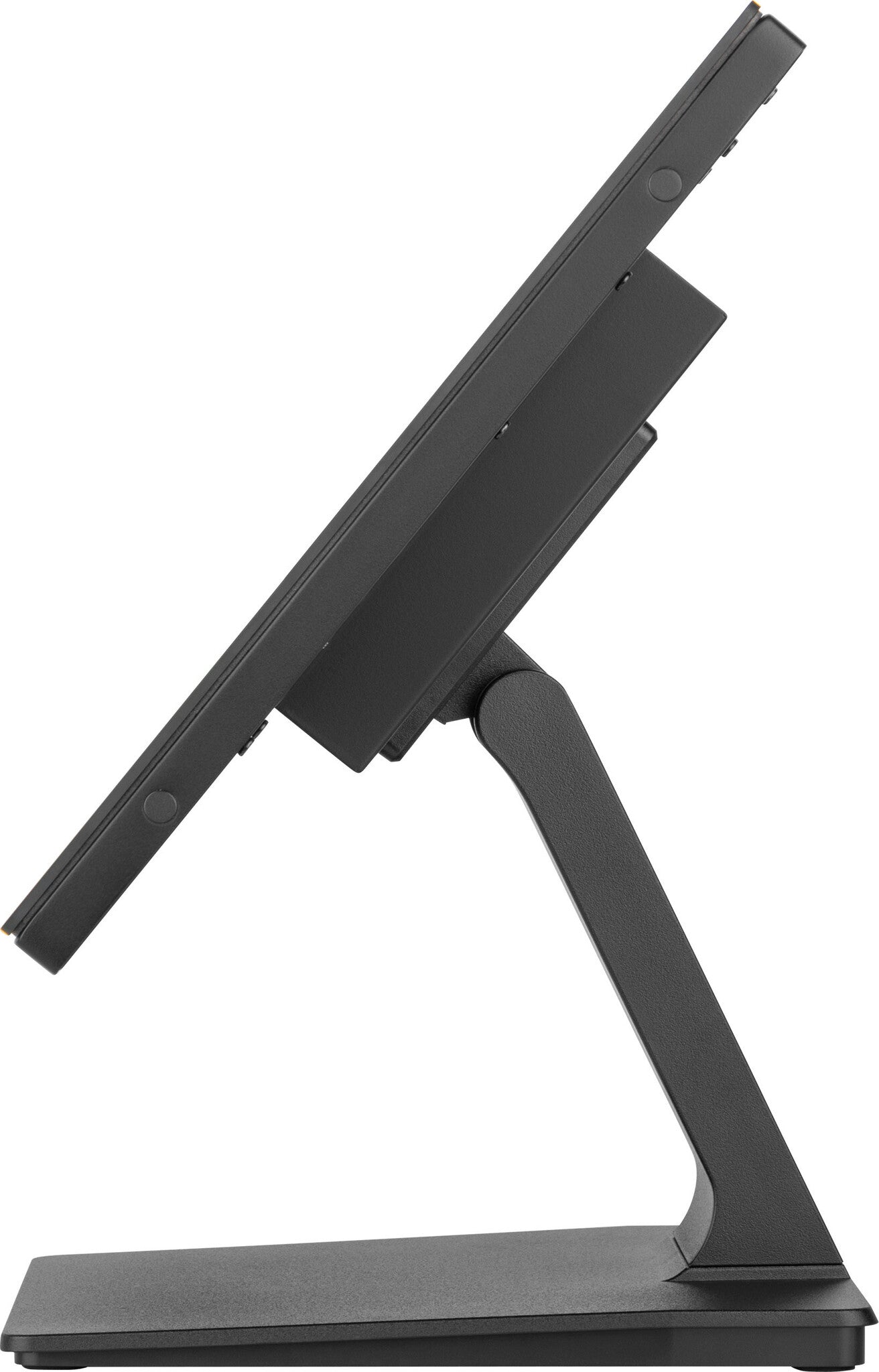

The Full HD (1920x1080) monitor ProLite T2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The flexible stand can be positioned at several angles creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The ProLite T2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for interactive signage, instore retail, POS and interactive presentations.
| Display | |
|---|---|
| Surface hardness | 7H |
| Display diagonal (metric) | 54.5 cm |
| Viewable size, vertical | 26 cm |
| Viewable size, horizontal | 47.9 cm |
| Horizontal scan range | 30 - 83 kHz |
| Pixel pitch | 0.249 x 0.249 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Display surface | Matt |
| Response time measurement type | GTG (Gray to Gray) |
| Response time | 5 ms |
| Display brightness | 525 cd/m² |
| Display brightness (typical) | 600 cd/m² |
| Display brightness (peak) | 600 cd/m² |
| Number of simultaneous touchpoints | 10 |
| Panel type | IPS |
| HD type | Full HD |
| Touchscreen | Yes |
| Display technology | LED |
| Native aspect ratio | 16:9 |
| Display resolution | 1920 x 1080 pixels |
| Display diagonal | 54.6 cm (21.5") |
| Performance | |
|---|---|
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Glass thickness | 3.6 mm |
| Front bezel colour | Black |
| Housing material | Metal |
| Product colour | Black |
| Market positioning | Office |

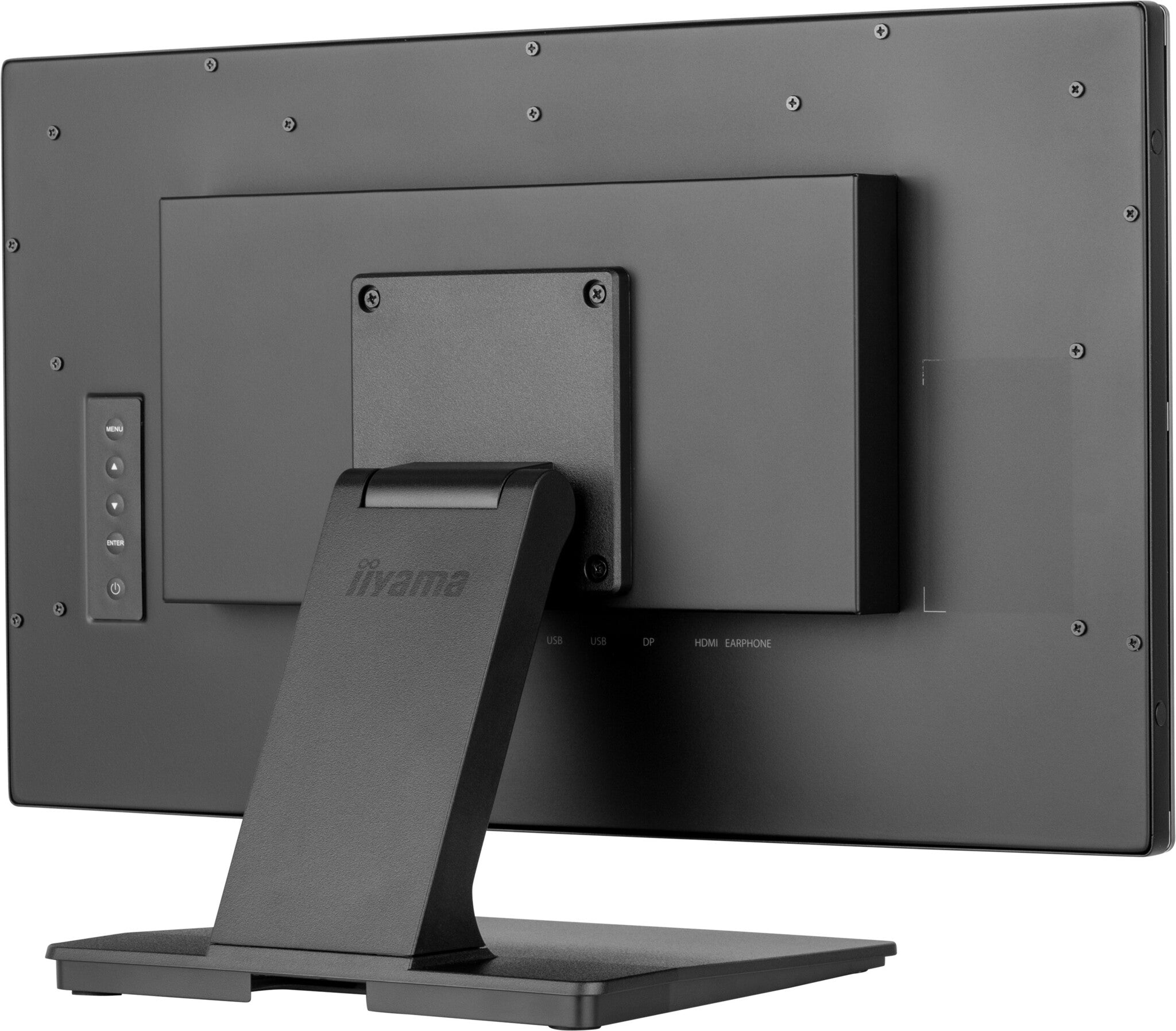

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| USB Type-A downstream ports quantity | 2 |
| Number of downstream ports | 2 |
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Built-in USB hub | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian |
| On Screen Display (OSD) | Yes |
| Wall mountable | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 0.4 W |
| Power consumption (typical) | 17 W |
| Energy consumption (SDR) per 1000 hours | 12.9 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | D |
| Weight & dimensions | |
|---|---|
| Bezel width (bottom) | 1.98 cm |
| Bezel width (top) | 1.98 cm |
| Bezel width (side) | 1.7 cm |
| Weight (with stand) | 6.8 kg |
| Height (with stand) | 353.5 mm |
| Depth (with stand) | 239.5 mm |
| Width (with stand) | 512.5 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 8.1 kg |
| Package height | 430 mm |
| Package depth | 150 mm |
| Package width | 625 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Touch method | stylus, finger, glove |
| User controls | Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch) |
| Control panel | Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power |
| Brightness | 525 cd/m² |
| Active display area (W x H) | 479 x 260 mm |
| Weight | 6.8 kg |
| Height | 353.5 mm |
| Width | 512.5 mm |
| Depth | 239.5 mm |
| Compliance certificates | CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE |
| USB ports quantity | 2 |
| Second display effective viewing area | 479 x 260 mm |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Protection features | Waterproof |
| International Protection (IP) code | IP1X |
