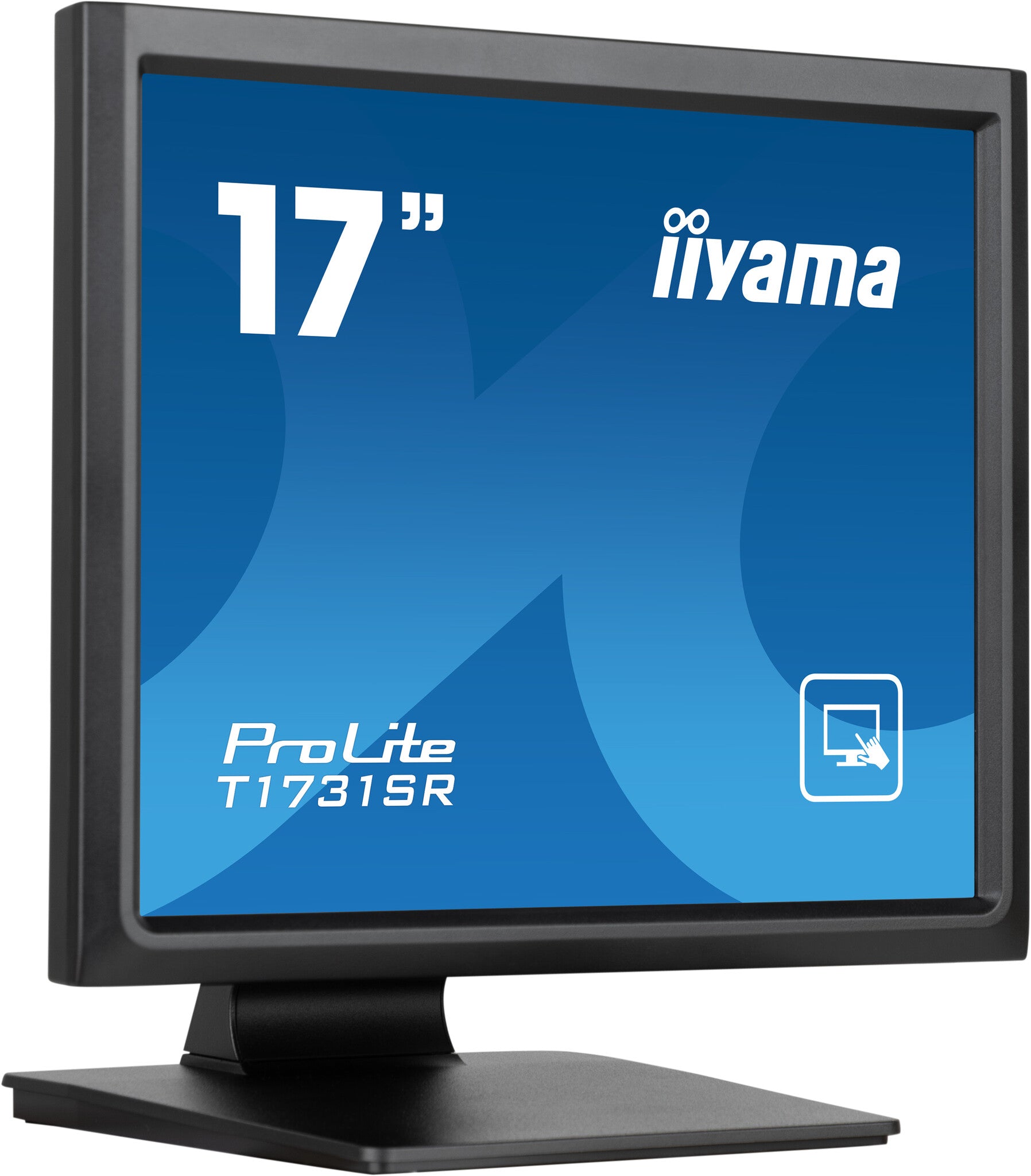

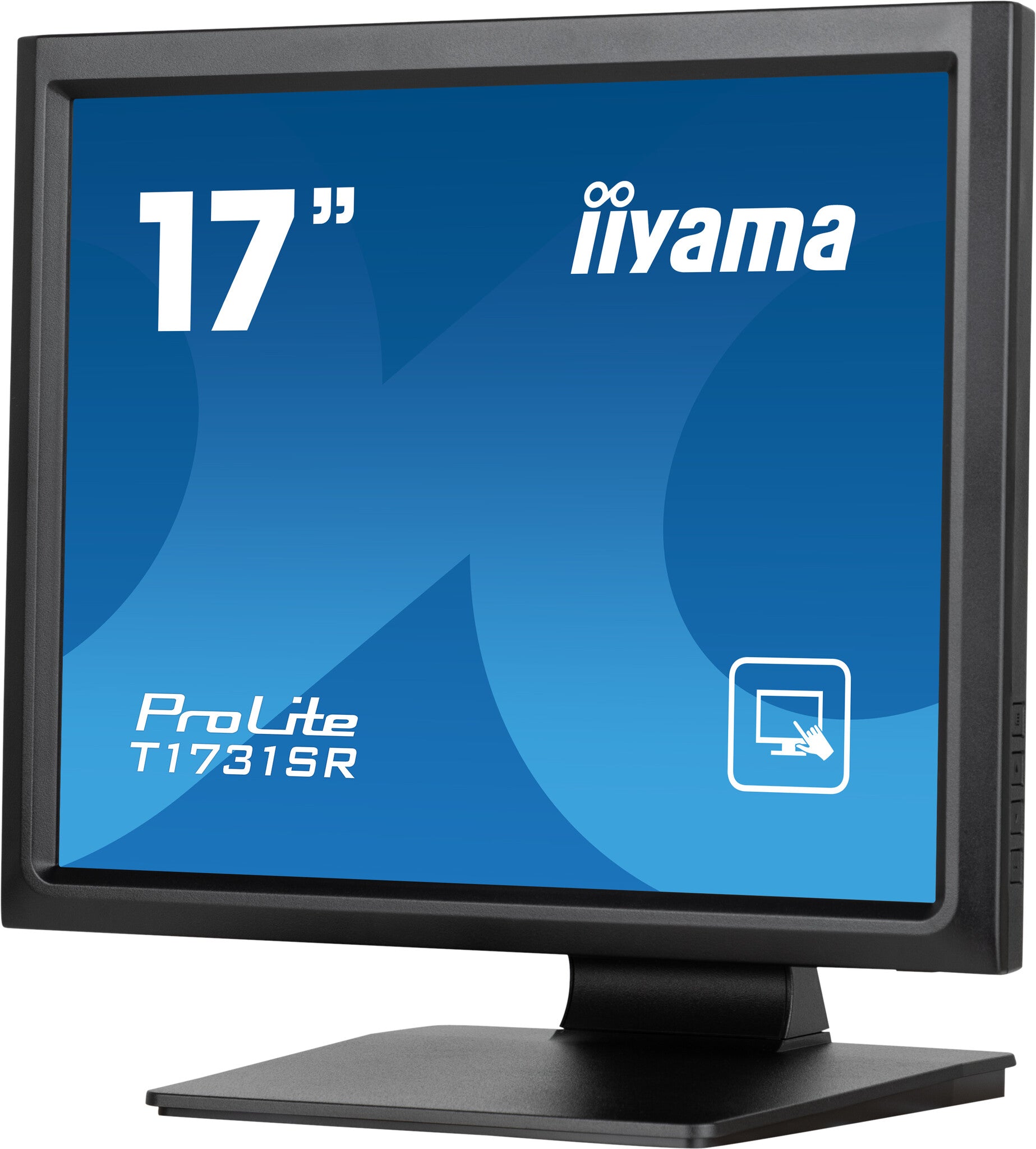

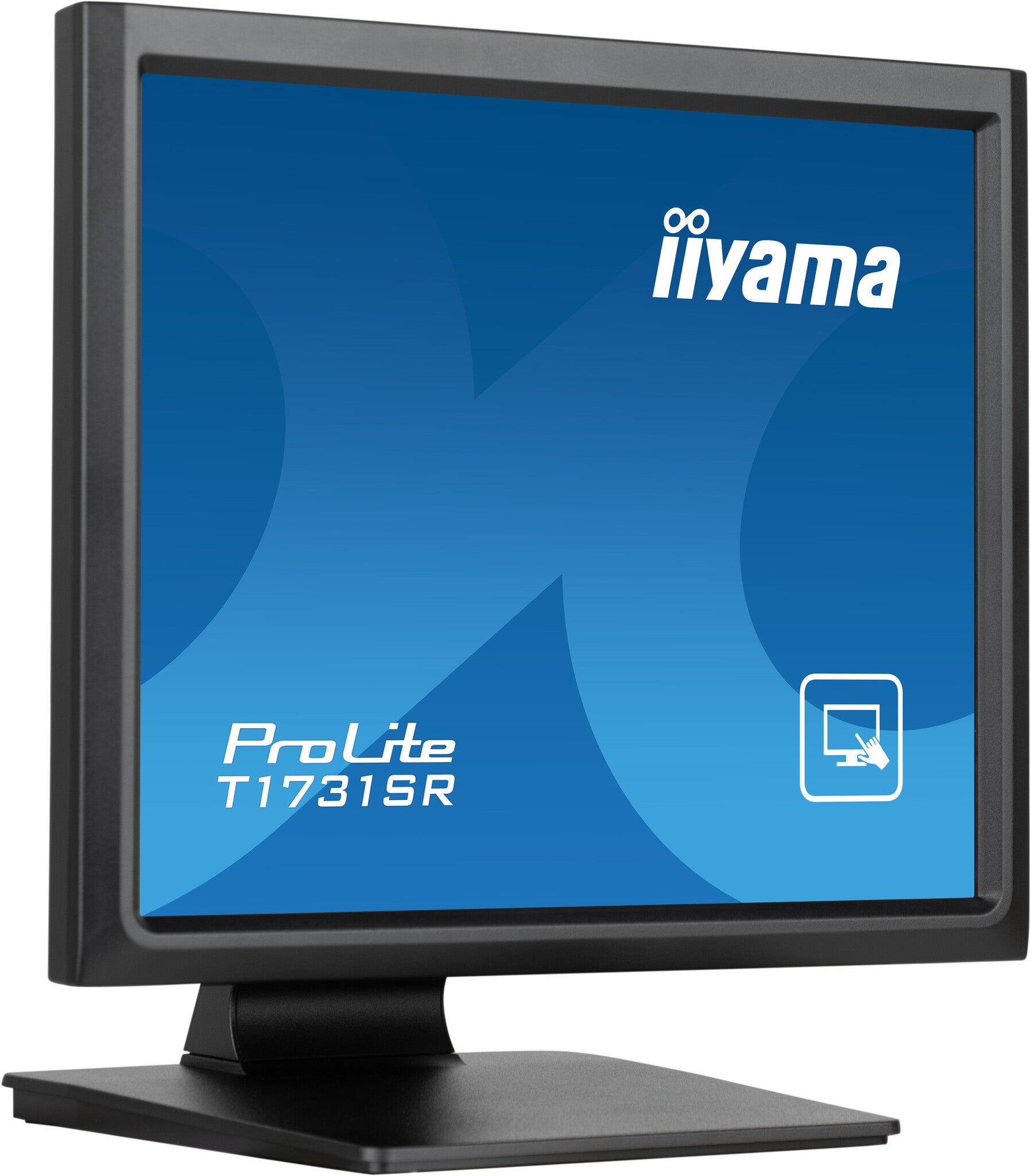

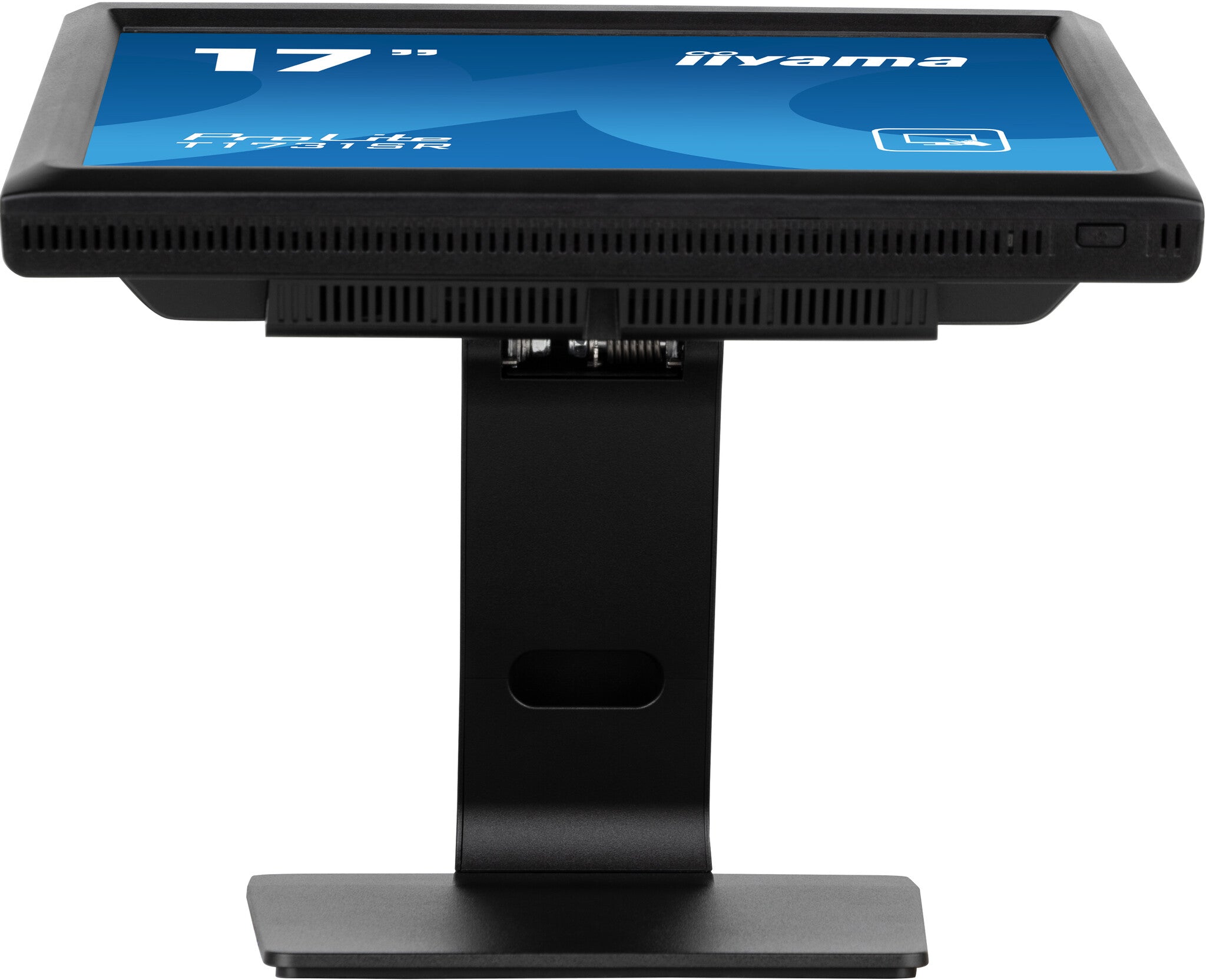

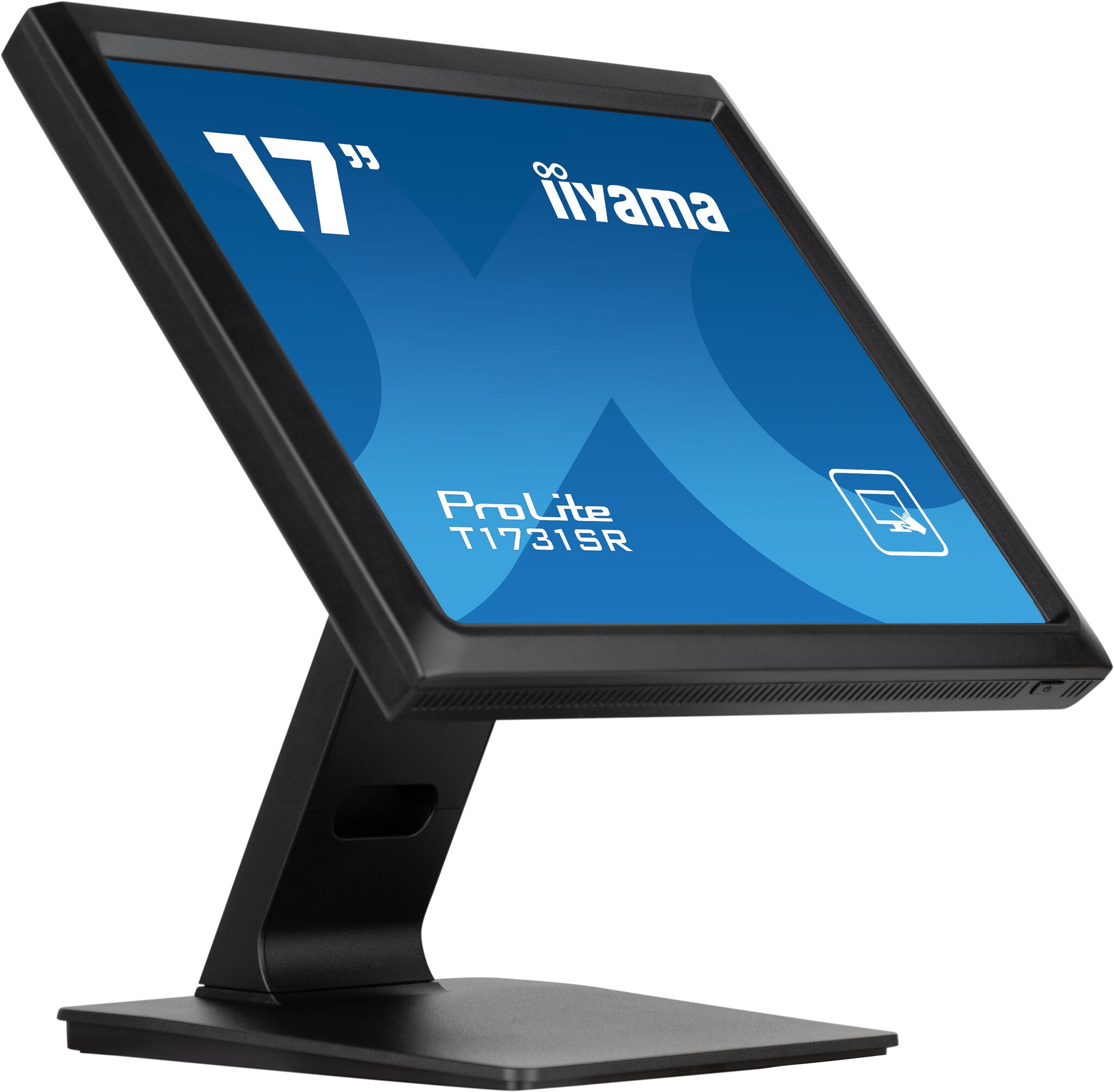

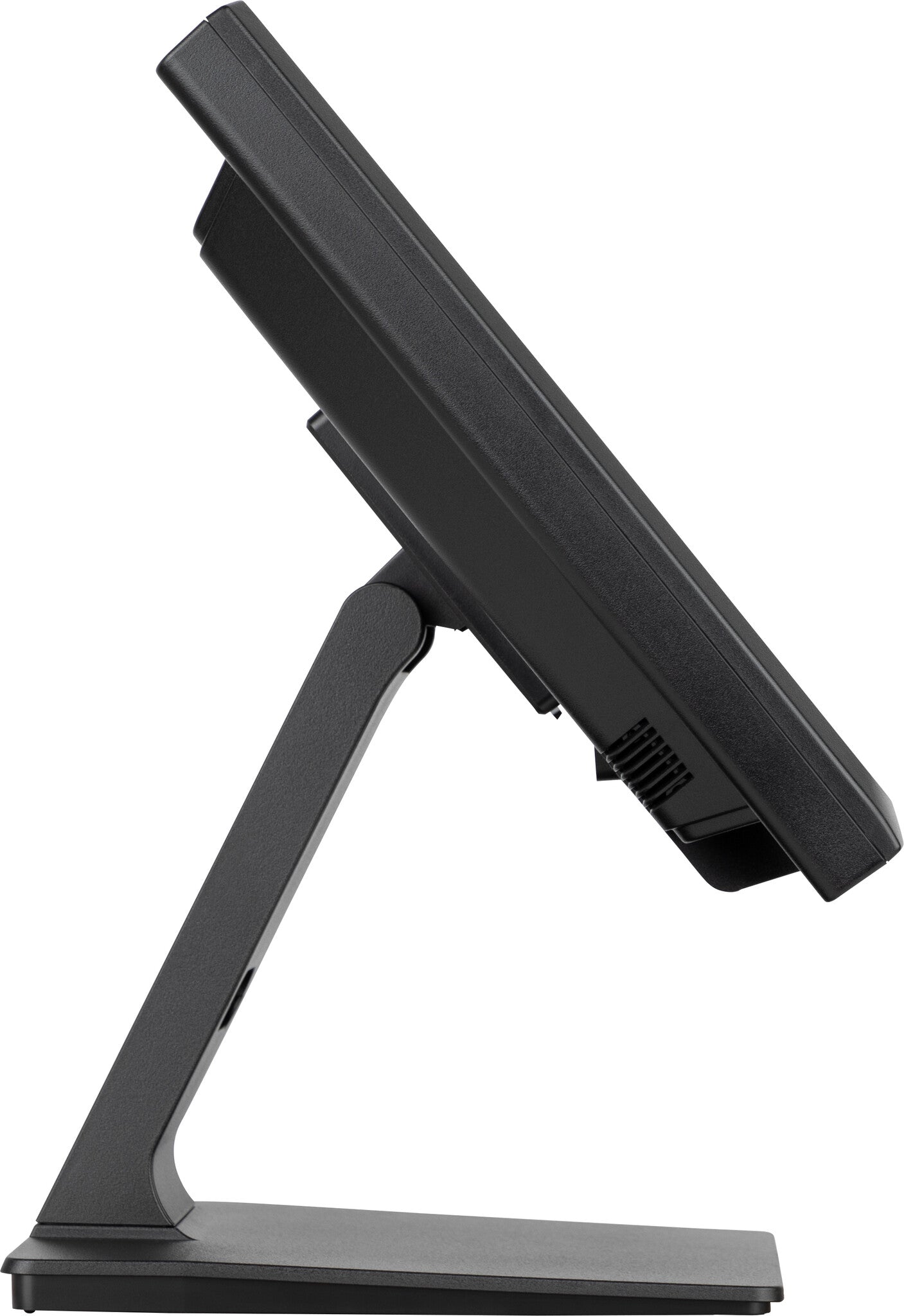

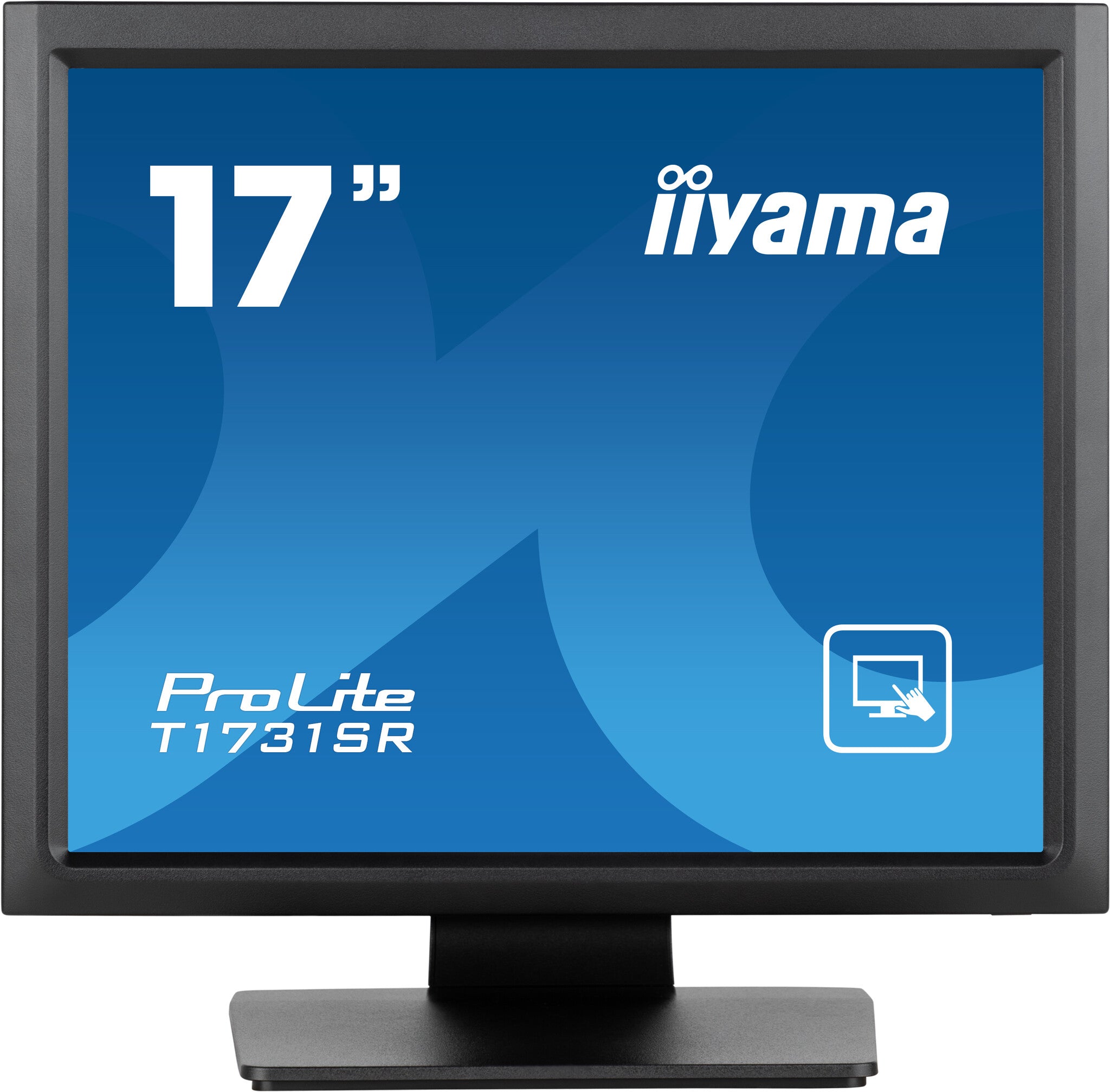

iiyama ProLite T1731SR-B1S computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Black
iFrame
£294.99
Couldn't load pickup availability
- Speakers
- Touch technology - Resistive
- IP54
- VESA

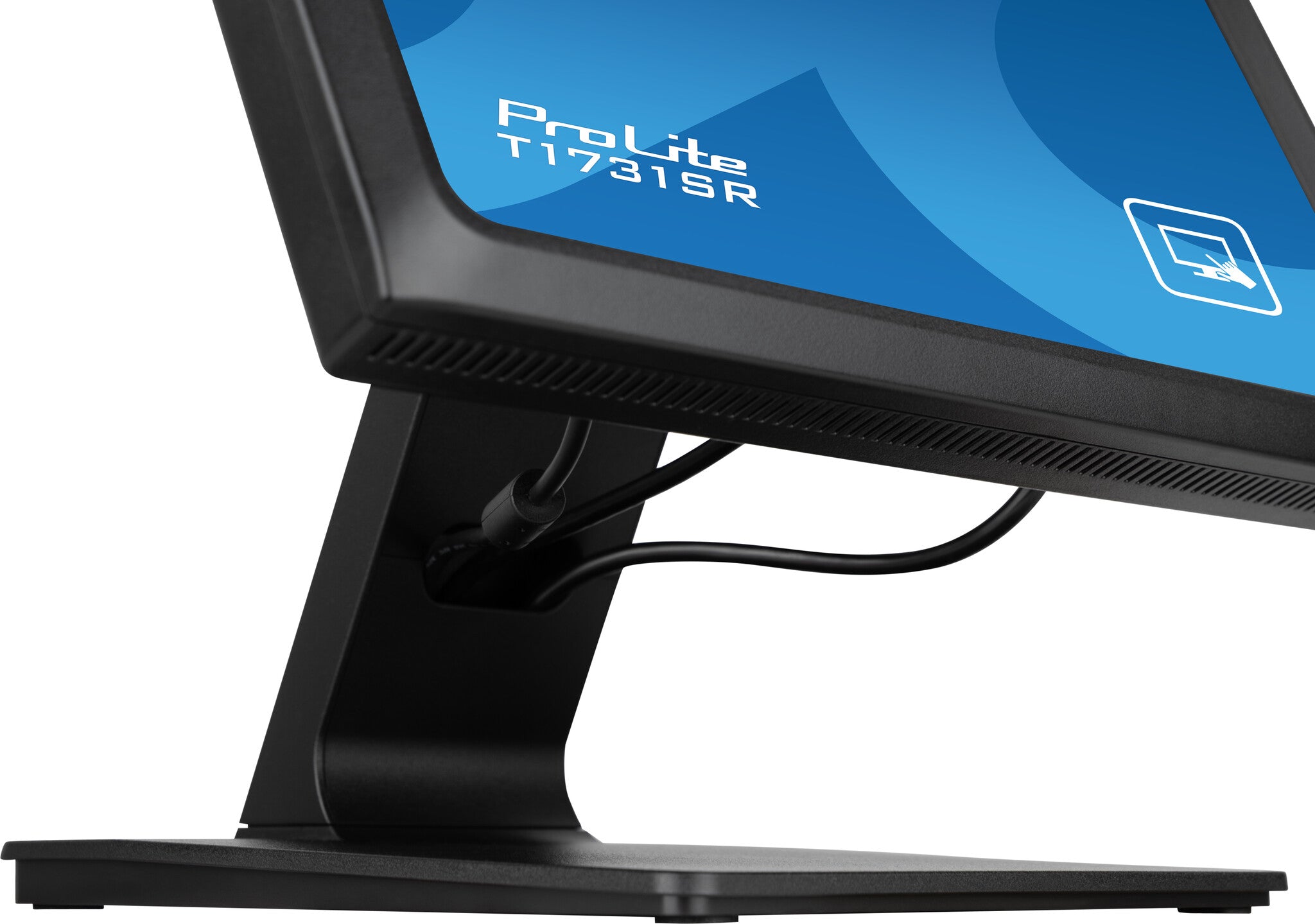

The T1731SR-B1S is based on 5 wire resistive touch technology. The price / performance ratio is ideal for the budget conscious user while quality and performance are certainly not compromised. The display inputs include both analogue and digital (HDMI and DisplayPort) with touchscreen connectivity via USB offering great flexibility. The flexible stand can be positioned at several angels creating a comfortable and ergonomic user experience and the integrated cable management system hides all the cables and electrical wires giving a neat and cable-free workspace. The T1731SR-B1S can be used in a variety of environments, especially recommended for shops, restaurants and industrial purposes.
| Display | |
|---|---|
| Display diagonal (metric) | 43 cm |
| Viewable size, vertical | 27 cm |
| Viewable size, horizontal | 33.8 cm |
| Horizontal scan range | 31.5 - 80 kHz |
| Pixel pitch | 0.264 x 0.264 mm |
| Display number of colours | 16.7 million colours |
| Viewing angle, vertical | 160° |
| Viewing angle, horizontal | 170° |
| Contrast ratio (typical) | 1000:1 |
| Screen shape | Flat |
| Response time | 5 ms |
| Display brightness | 193 cd/m² |
| Display brightness (typical) | 250 cd/m² |
| Number of simultaneous touchpoints | 1 |
| Touch technology | Single-touch |
| Touchscreen technology | Resistive |
| Panel type | TN |
| HD type | SXGA |
| Touchscreen | Yes |
| Display technology | LCD |
| Native aspect ratio | 5:4 |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Multimedia | |
|---|---|
| Built-in camera | No |
| RMS rated power | 2 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Design | |
|---|---|
| Detachable stand | No |
| Front bezel colour | Black |
| Product colour | Black |
| Ports & interfaces | |
|---|---|
| HDCP | Yes |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI | Yes |
| VGA (D-Sub) ports quantity | 1 |
| USB Touch port | Yes |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| On Screen Display (OSD) | Yes |
| Tilt angle range | -5 - 90° |
| Tilt adjustment | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Cable management | Yes |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | Yes |
| Power | |
|---|---|
| Energy efficiency scale | A to G |
| Power supply type | Internal |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (off) | 0.3 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 20 W |
| Energy consumption (SDR) per 1000 hours | 12.5 kWh |
| Energy efficiency class (HDR) | Not available |
| Energy efficiency class (SDR) | E |
| Weight & dimensions | |
|---|---|
| Weight (with stand) | 5.4 kg |
| Height (with stand) | 378 mm |
| Depth (with stand) | 239.5 mm |
| Width (with stand) | 387 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Cables included | AC, USB, HDMI, DisplayPort, Audio |
| Stand included | Yes |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| Touch method | stylus, finger, glove |
| User controls | contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, colour temperature, volume, mute |
| Control panel | Menu, Scroll up/ Brightness, Scroll down/ Mute, Select, Power |
| Brightness | 193 cd/m² |
| Active display area (W x H) | 338 x 270 mm |
| Weight | 5.4 kg |
| Height | 378 mm |
| Width | 387 mm |
| Depth | 239.5 mm |
| Compliance certificates | CE, cULus, EAC, REACH, RoHS, UKCA, VCCI, WEEE |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| International Protection (IP) code | IP54 |
