iiyama ProLite T1721MSC-B3 computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA Touchscreen Tabletop Black
Couldn't load pickup availability
- 43.2 cm (17") Black
- Built-in speaker(s)
- HDMI
- Screen shape: Flat
- Maximum refresh rate: 75 Hz Response time: 5 ms
- 1280 x 1024 pixels SXGA Panel type: TN
- Energy efficiency class (SDR): E ErP CE, cULus, REACH, RoHS, VCCI, WEEE

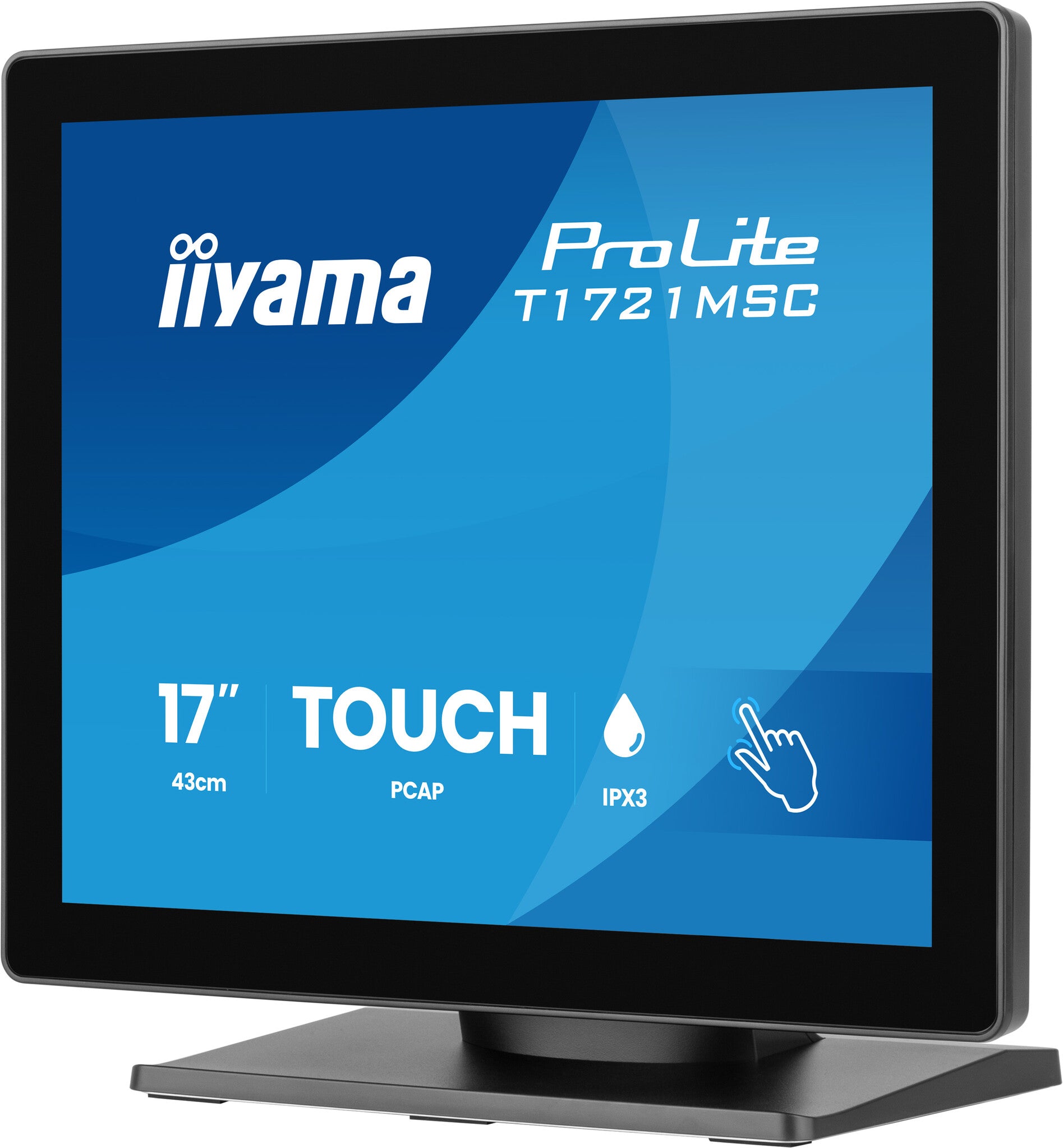

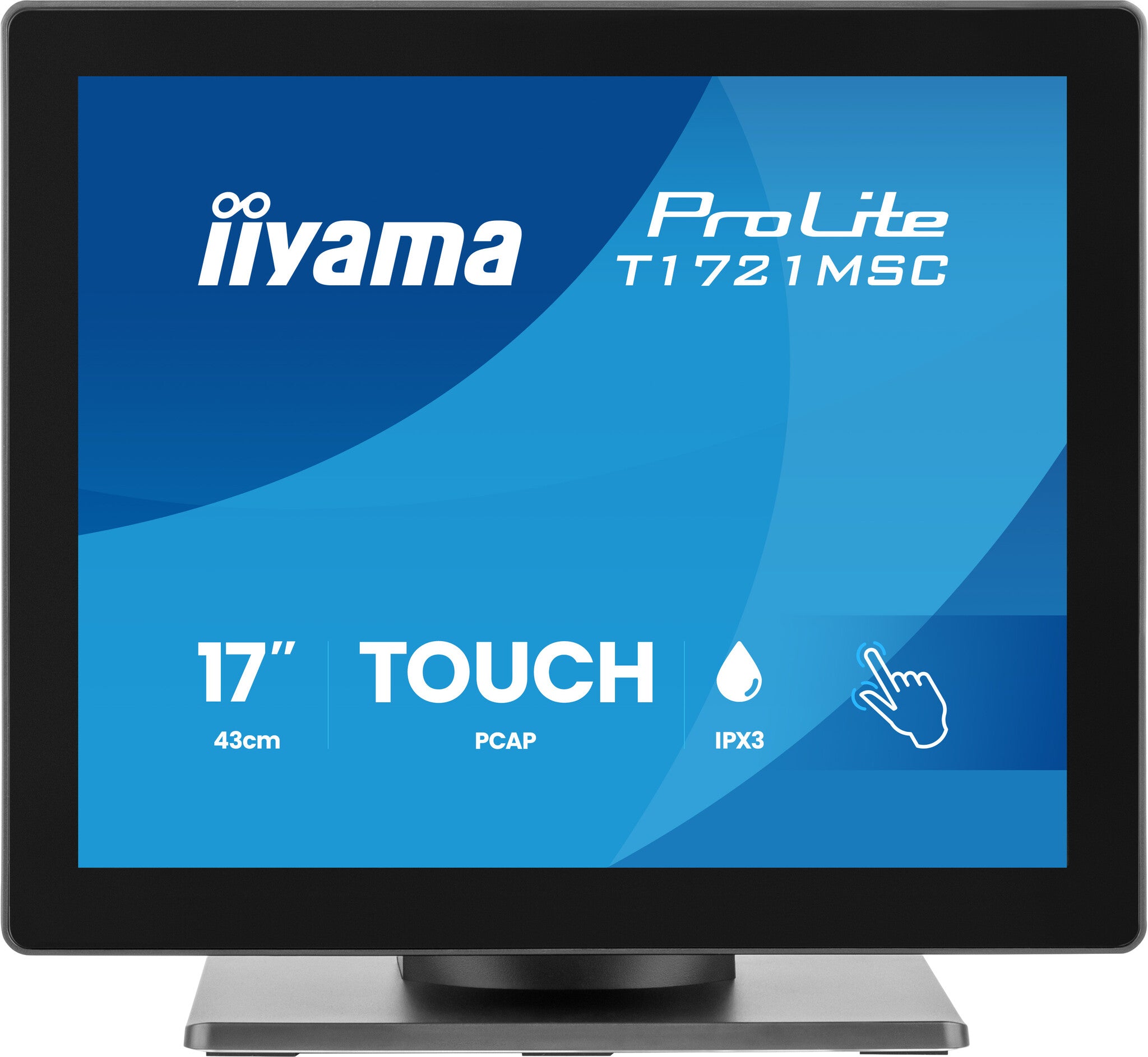

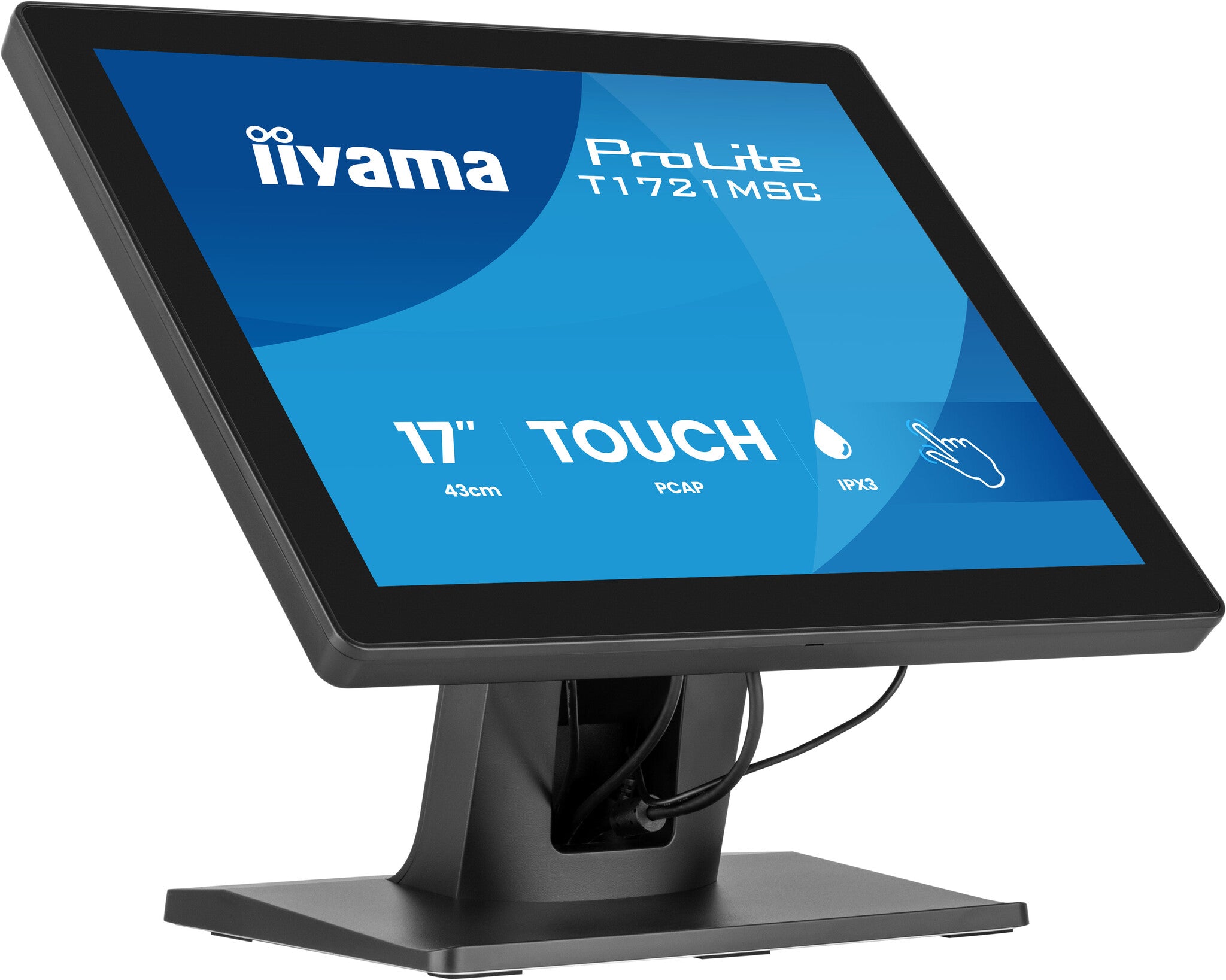

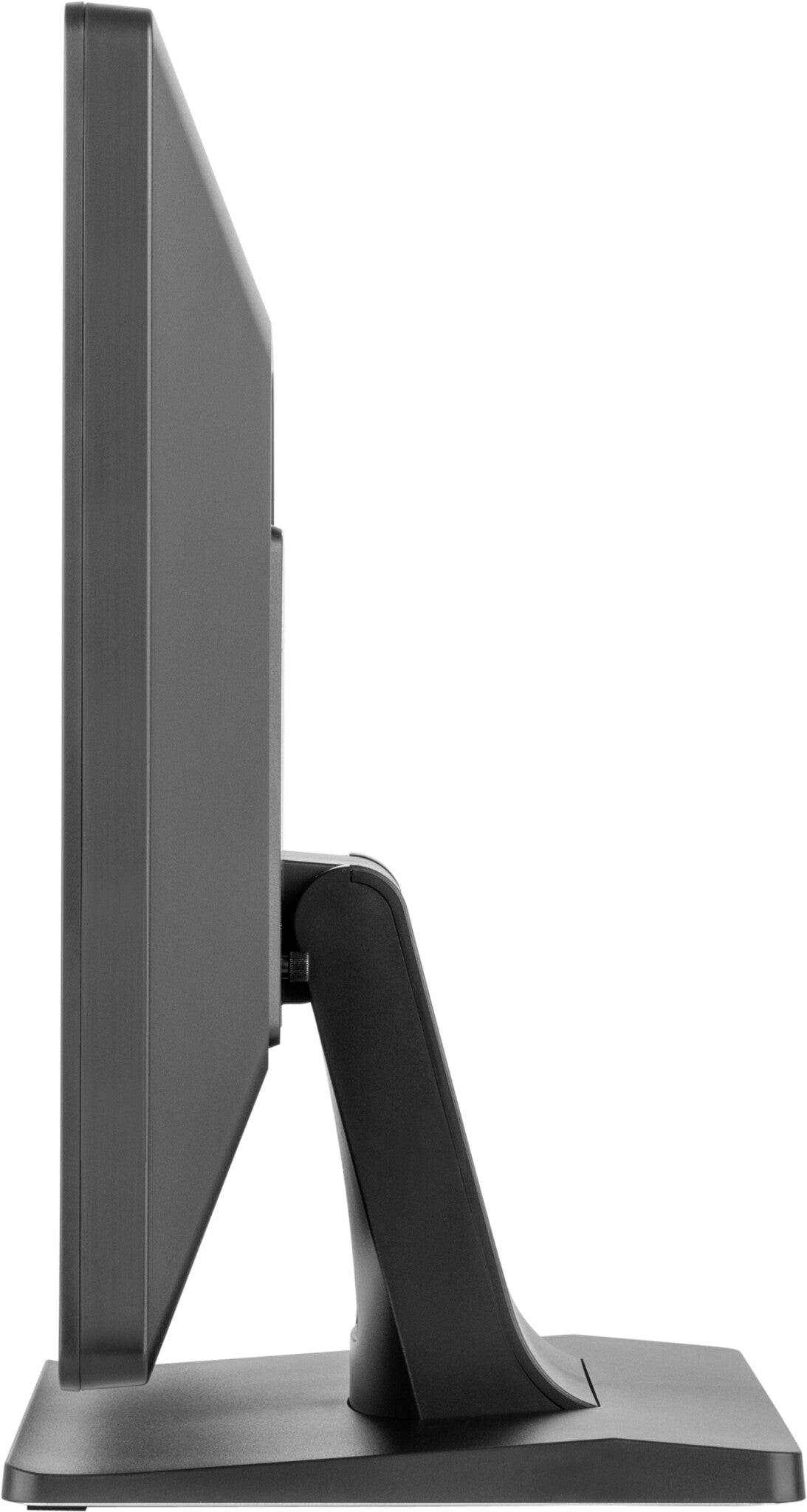

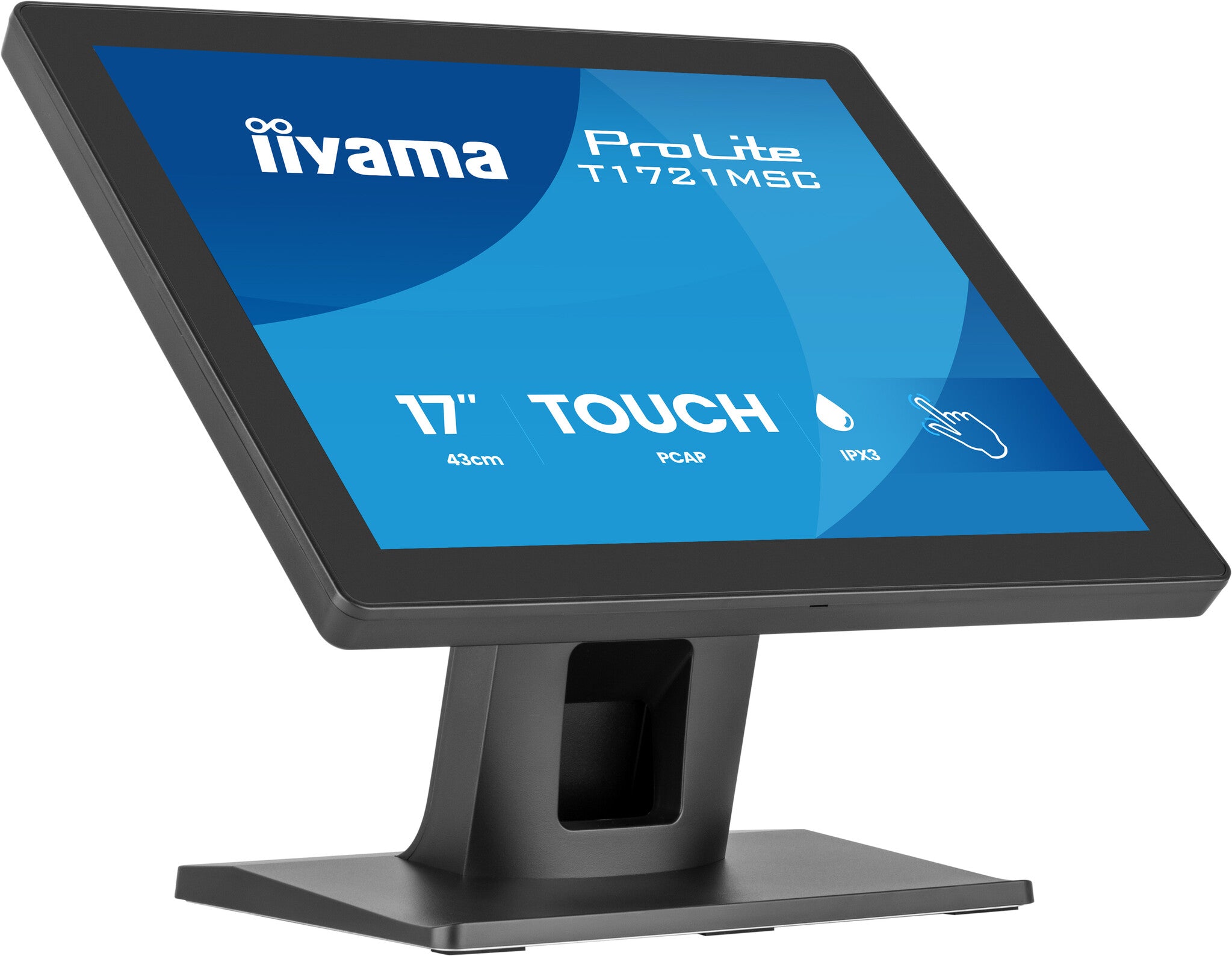

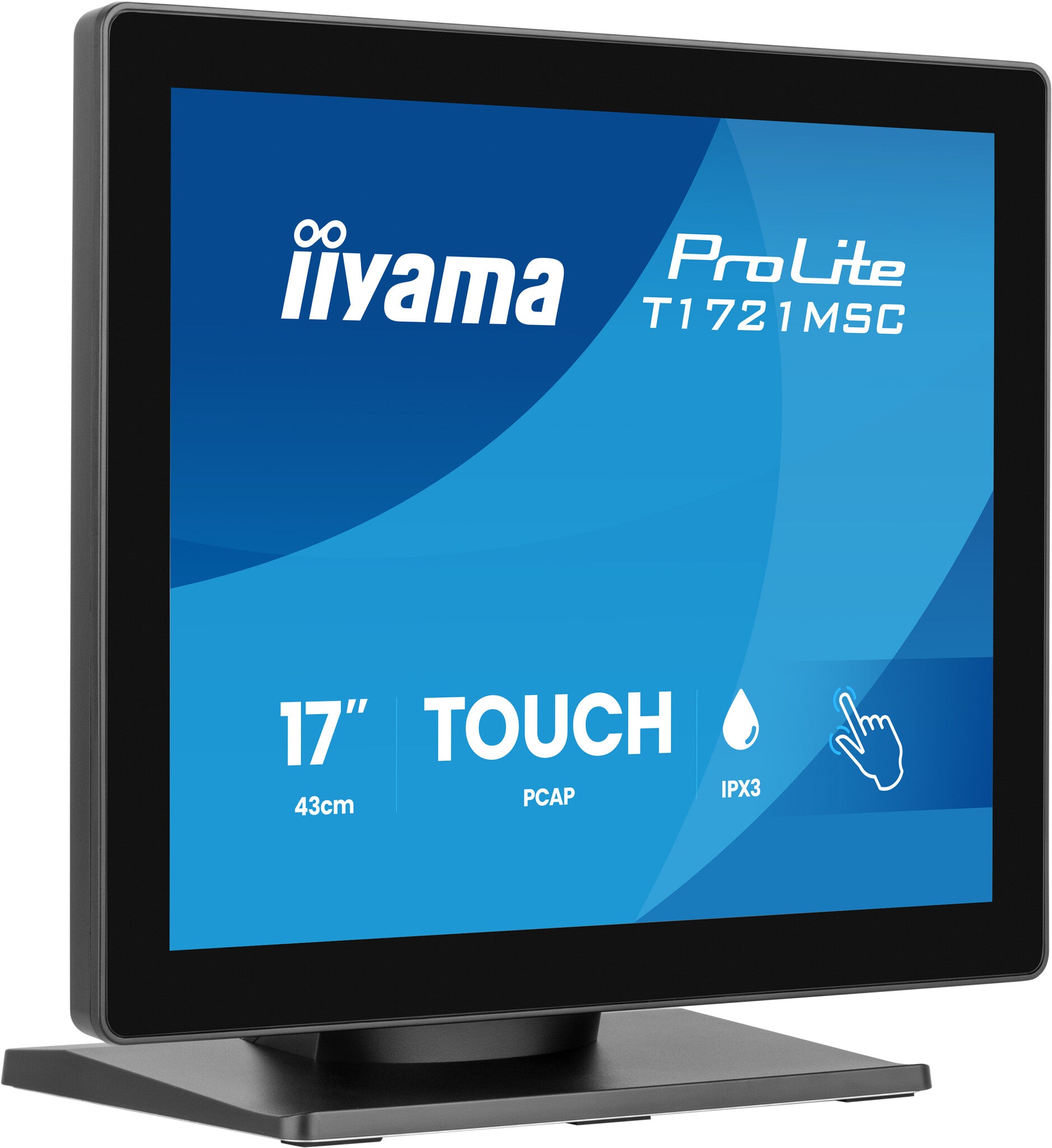

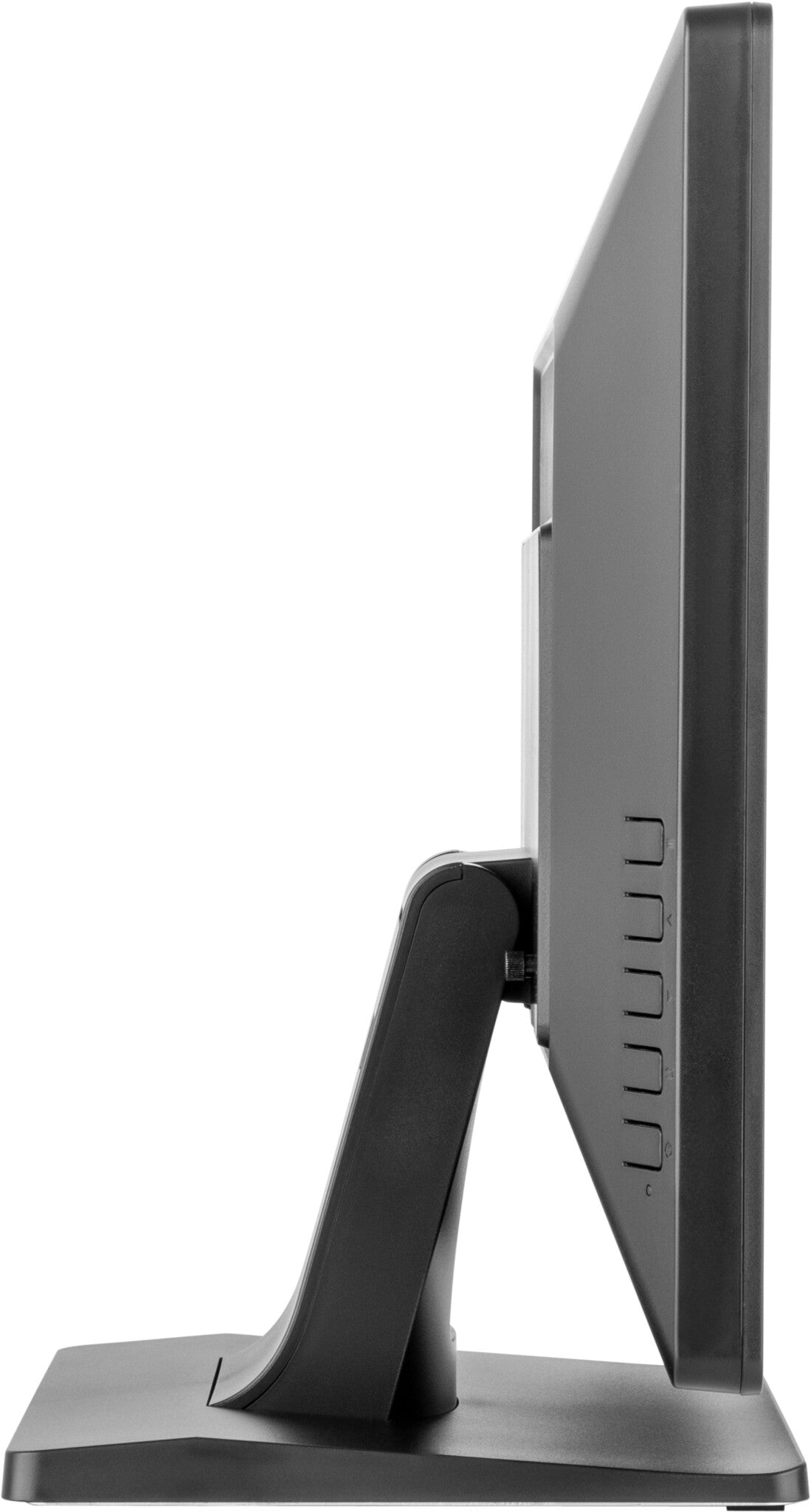

The ProLite T1721MSC-B3 is a versatile 17” touchscreen monitor designed for smooth, accurate and reliable interaction. Its 10-point PCAP touch technology supports operation by finger, latex glove or compatible stylus, making it well suited to retail, hospitality, education and industrial environments. A protective glass overlay enhances durability and scratch resistance while preserving clear image quality and consistent touch performance. This makes the monitor a dependable choice for applications where the screen is used frequently throughout the day. The IPX3-rated front provides protection against water sprays from different directions at angles of up to 60°, offering added reassurance in environments where occasional exposure to moisture may occur. The stable stand features an 70° tilt range, allowing the screen to be positioned comfortably for different users and applications. Integrated 2 x 2W speakers deliver clear sound directly from the monitor, making the ProLite T1721MSC-B3 a practical and complete touchscreen solution for a wide range of professional settings.
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Native aspect ratio | 5:4 |
| Touchscreen | Yes |
| HD type | SXGA |
| Panel type | TN |
| Touchscreen type | Tabletop |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) | 250 cd/m² |
| Display brightness | 230 cd/m² |
| Response time | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) | 1000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Horizontal scan range | 31 - 80 kHz |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27.1 cm |
| Display diagonal (metric) | 43 cm |
| Surface hardness | 7H |
| Performance | |
|---|---|
| NVIDIA G-SYNC | No |
| AMD FreeSync | No |
| Low Blue Light technology | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 4 W |
| Built-in camera | No |
| Design | |
|---|---|
| Market positioning | Business |
| Product colour | Black |
| Front bezel colour | Black |
| Glass thickness | 1.5 mm |

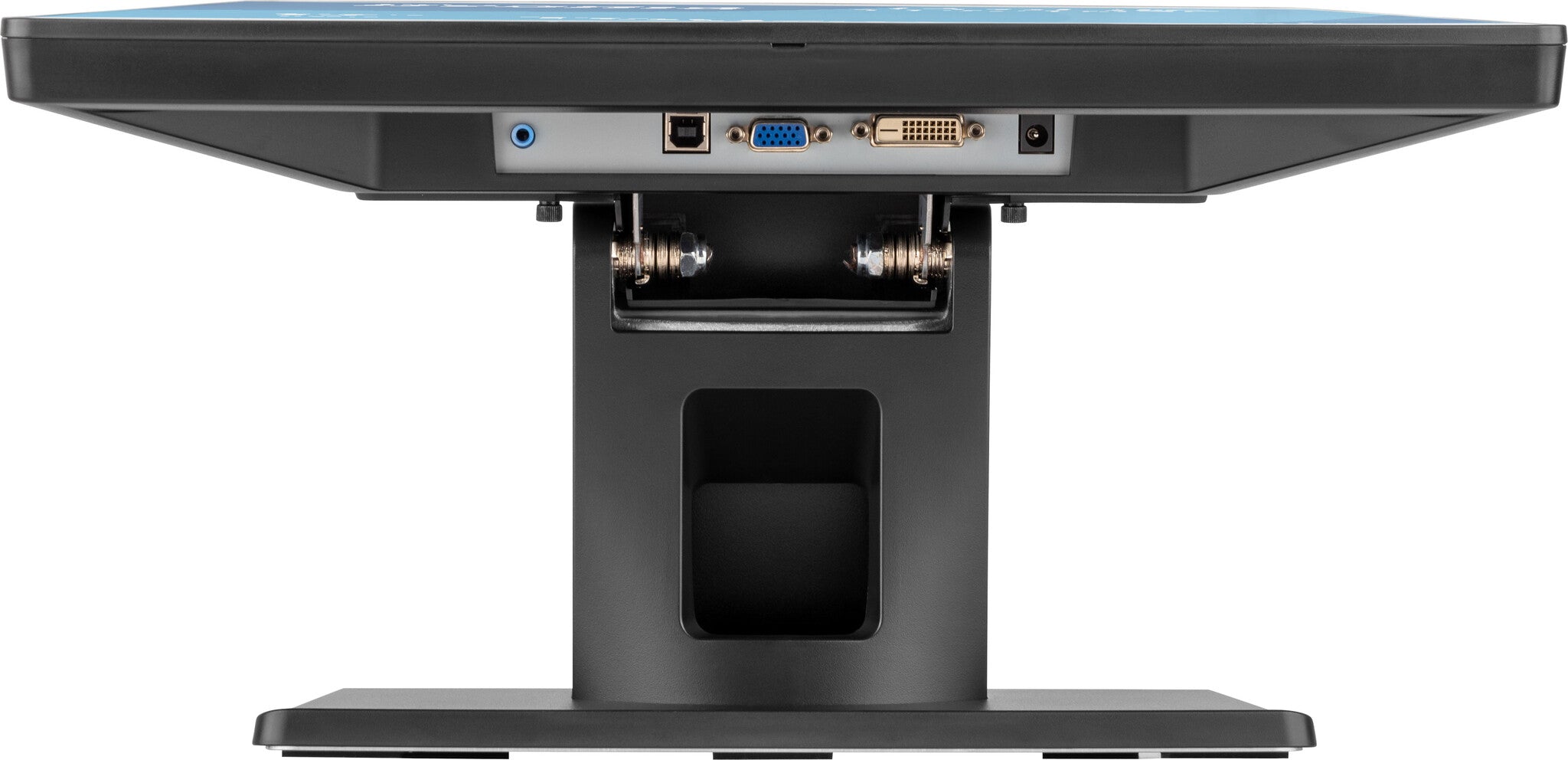

| Ports & interfaces | |
|---|---|
| Built-in USB hub | No |
| USB Touch port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| Audio input | Yes |
| Headphone out | No |
| HDCP | Yes |
| Ergonomics | |
|---|---|
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Cable management | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | No |
| Tilt adjustment | Yes |

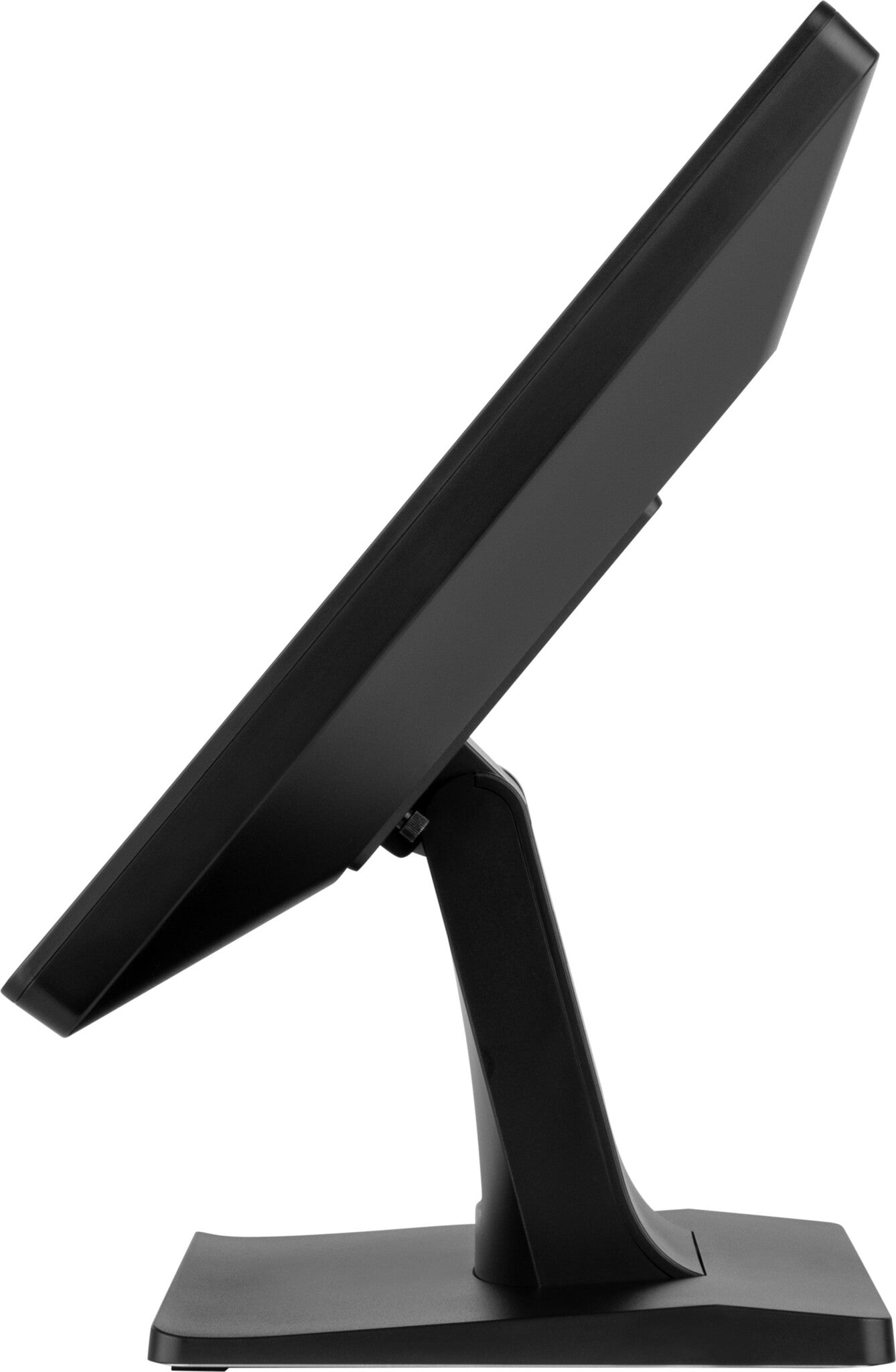

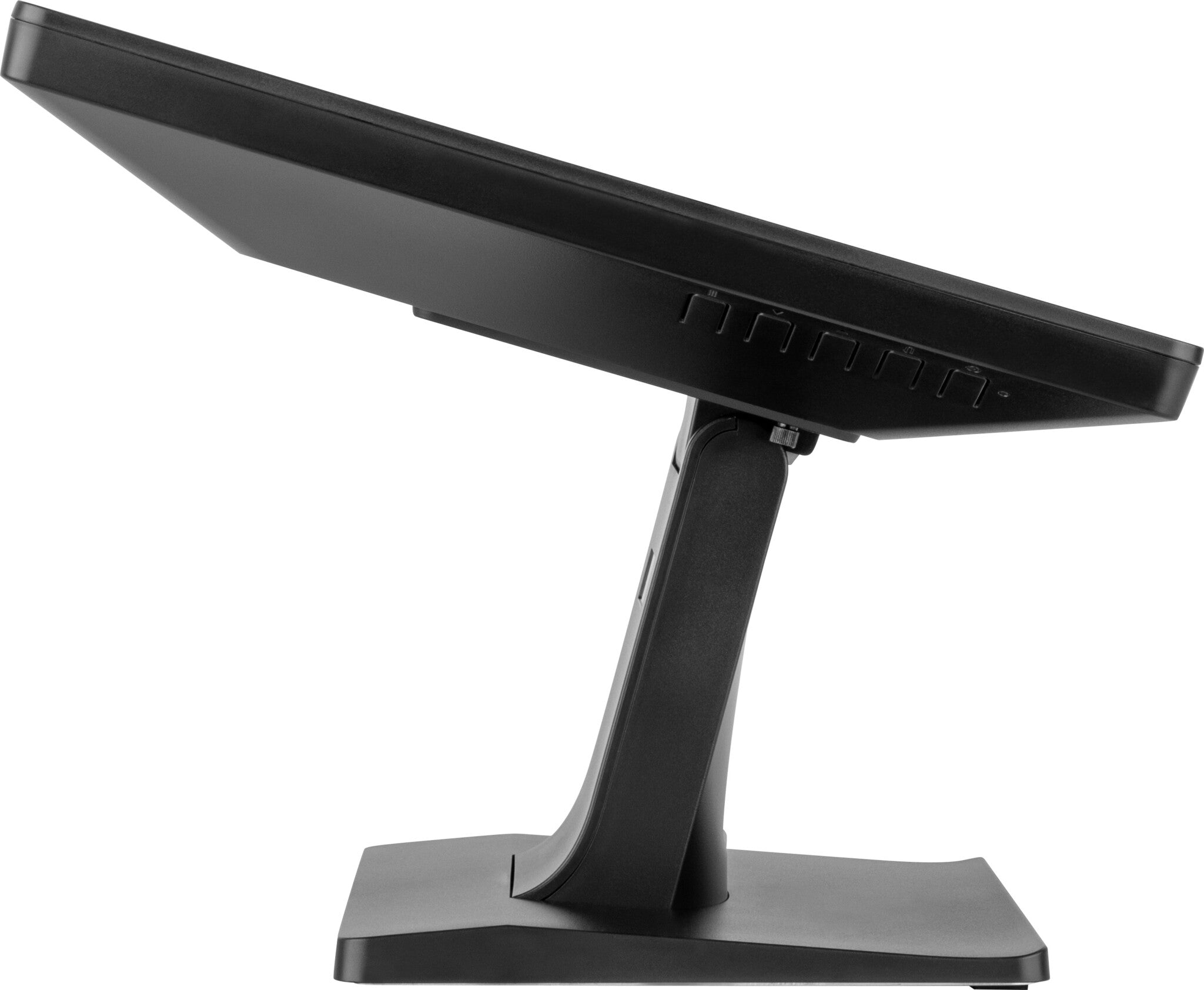

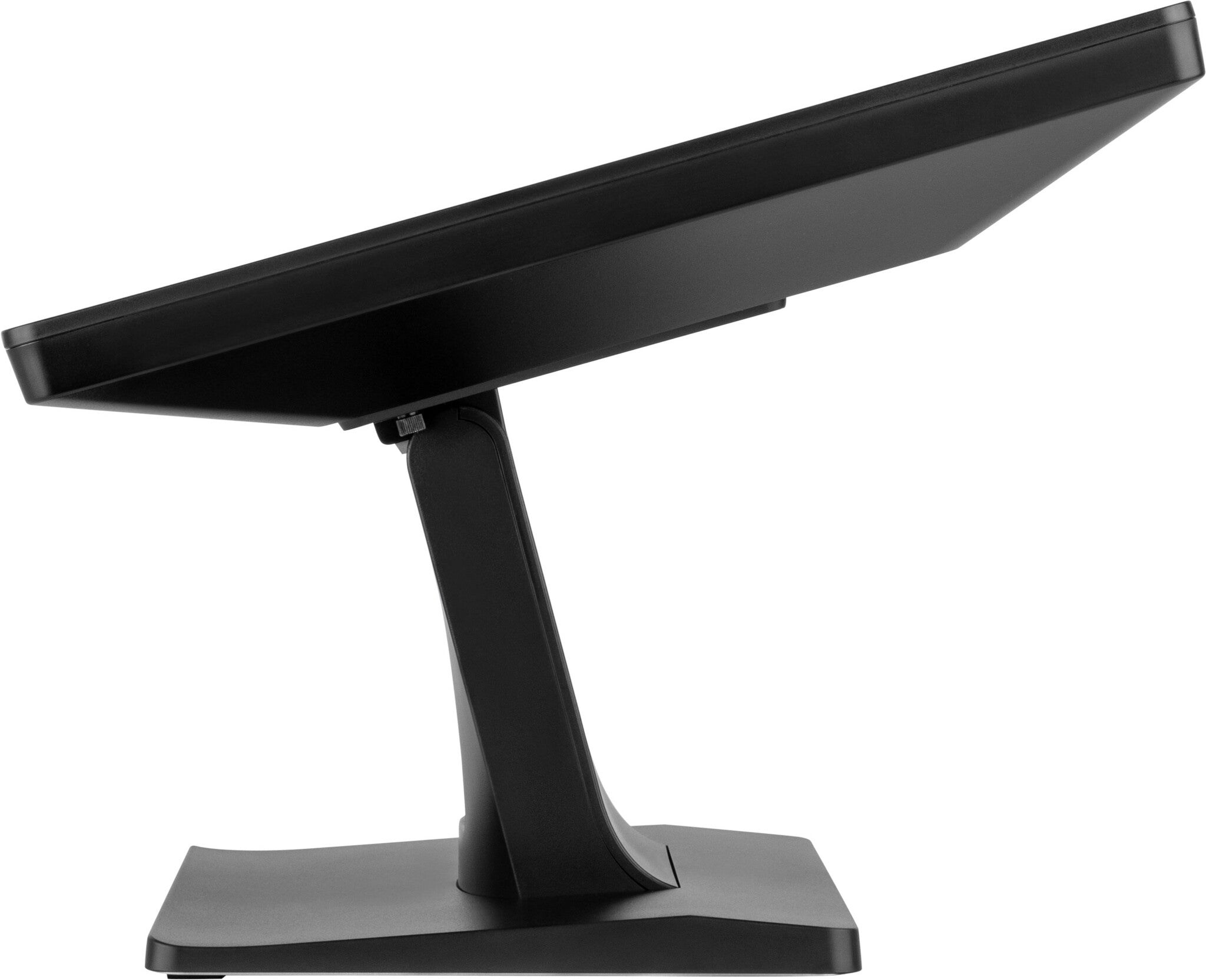

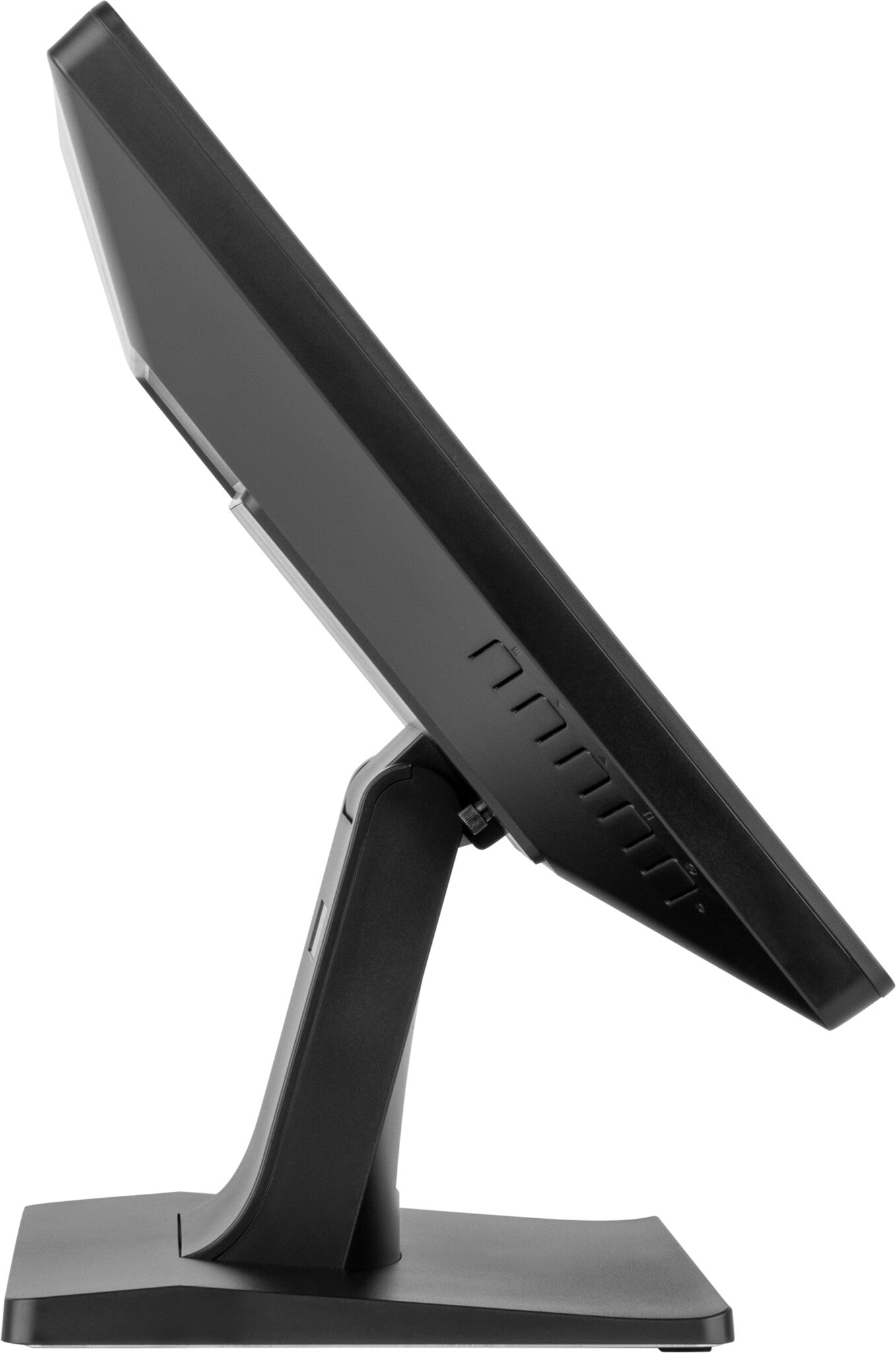

| Tilt angle range | -10 - 70° |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 7 |
| Plug and Play | Yes |
| Power | |
|---|---|
| Energy efficiency class (SDR) | E |
| Energy efficiency class (HDR) | Not available |
| Power consumption (typical) | 20 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| AC adapter output voltage | 12 V |
| Power supply type | External |
| Weight & dimensions | |
|---|---|
| Width (with stand) | 392.5 mm |
| Depth (with stand) | 198 mm |
| Height (with stand) | 364 mm |
| Weight (with stand) | 4.4 kg |
| Packaging data | |
|---|---|
| Package width | 537 mm |
| Package depth | 172 mm |
| Package height | 500 mm |
| Package weight | 5.8 kg |
| USB cable length | 1.8 m |
| Packaging content | |
|---|---|
| Cables included | AC, USB, HDMI |
| Quick start guide | Yes |
| HDMI cable length | 1.8 m |
| Power cable length | 1.8 m |
| Sustainability | |
|---|---|
| Sustainability certificates | ErP |
| General | |
|---|---|
| Product family | ProLite |
| Other features | |
|---|---|
| International Protection (IP) code | IPX3 |
| Compatible operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included | Yes |
| Brightness | 230 cd/m² |
| Packaging content | AC adapter, mylar sheet (for VESA mount) |
| USB ports quantity | 1 |
| Active display area (W x H) | 338 x 270.5 mm |
| Compliance certificates | CE, cULus, REACH, RoHS, VCCI, WEEE |
| Depth | 198 mm |
| Width | 392.5 mm |
| Height | 364 mm |
| Weight | 4.4 kg |
| Mean time between failures (MTBF) | 50000 h |
| Control panel | Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power |
| User controls | picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information |
| Touch method | stylus, finger, glove (latex) |
| Technical details | |
|---|---|
| Native refresh rate | 75 Hz |
