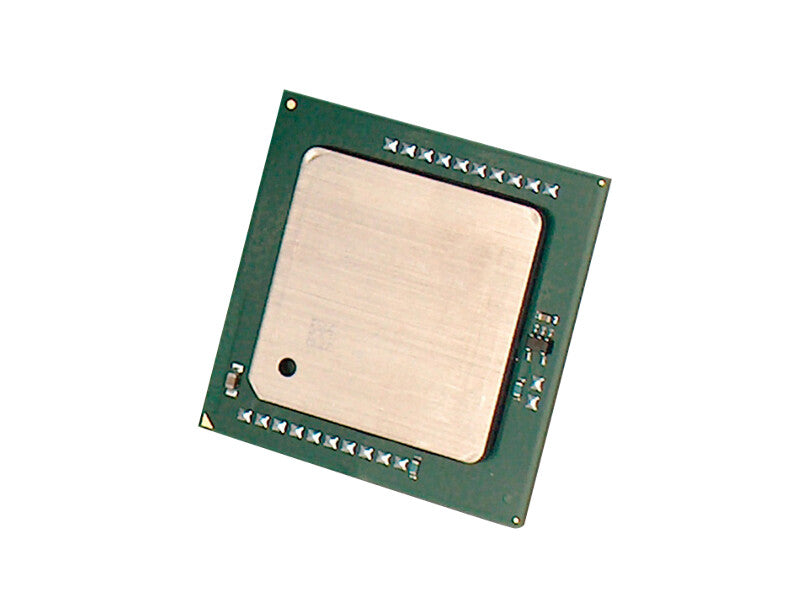

HPE Xeon P11146-B21 processor 1.9 GHz 8.25 MB Tray
£541.99
Couldn't load pickup availability
- Intel Xeon Bronze 3204 1.9 GHz
- 8.25 MB LGA 3647 (Socket P)
- Processor cores: 6 14 nm 64-bit 85 W
- Maximum internal memory supported by processor: 1.02 TB DDR4-SDRAM
- Tray
| Processor | |
|---|---|
| Processor codename | Cascade Lake |
| Thermal Design Power (TDP) | 85 W |
| Processor cache | 8.25 MB |
| Processor boost frequency | 1.9 GHz |
| Processor operating modes | 64-bit |
| Processor threads | 6 |
| Component for | Server/workstation |
| Cooler included | No |
| Processor lithography | 14 nm |
| Processor socket | LGA 3647 (Socket P) |
| Processor cores | 6 |
| Processor base frequency | 1.9 GHz |
| Processor model | 3204 |
| Processor generation | 2nd Generation Intel® Xeon® Scalable |
| Processor family | Intel Xeon Bronze |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| ECC | Yes |
| Memory channels | Hexa-channel |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory types supported by processor | DDR4-SDRAM |
| Maximum internal memory supported by processor | 1.02 TB |
| Graphics | |
|---|---|
| Discrete graphics card model | Not available |
| On-board graphics card model | Not available |
| On-board graphics card | No |
| Discrete graphics card | No |
| Features | |
|---|---|
| Scalability | 2S |
| Embedded options available | No |
| PCI Express CEM revision | 3.0 |
| Supported instruction sets | AVX-512 |
| PCI Express slots version | 3.0 |
| Maximum number of PCI Express lanes | 48 |
| Market segment | Server |
| Execute Disable Bit | Yes |
| Processor special features | |
|---|---|
| Intel Speed Select Technology (SST) | No |
| Intel® Optane™ DC Persistent Memory technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) | No |
| Intel TSX-NI | Yes |
| Intel Turbo Boost Max Technology 3.0 | No |
| Intel® Run Sure Technology | No |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| General | |
|---|---|
| Product family | Xeon |
| Operational conditions | |
|---|---|
| Tcase | 77 °C |
| Packaging data | |
|---|---|
| Package type | Tray |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85423119 |
| Technical details | |
|---|---|
| Launch date | Q2'19 |
| Status | Launched |
| Memory speed (max) | 2133 MHz |
| Number of UPI links | 2 |
| Product type | Processor |
| Weight & dimensions | |
|---|---|
| Processor package size | 76.0 x 56.5 mm |
