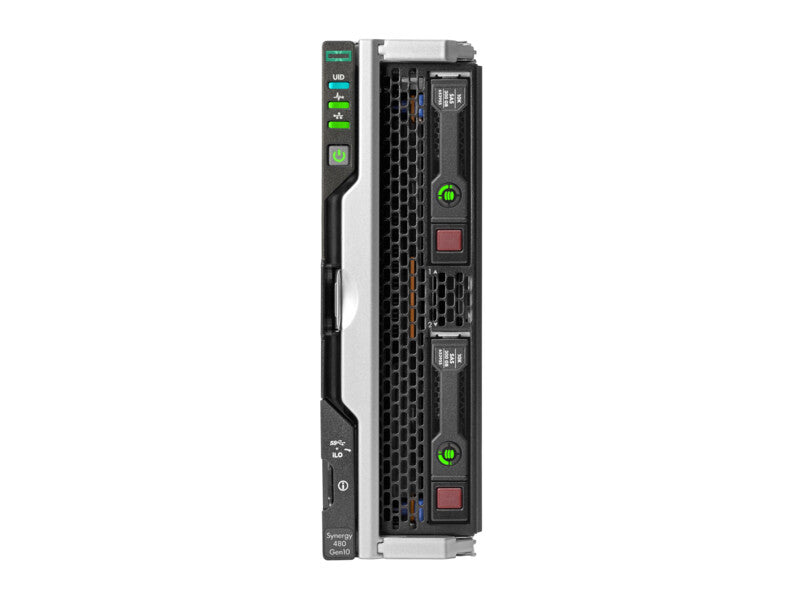

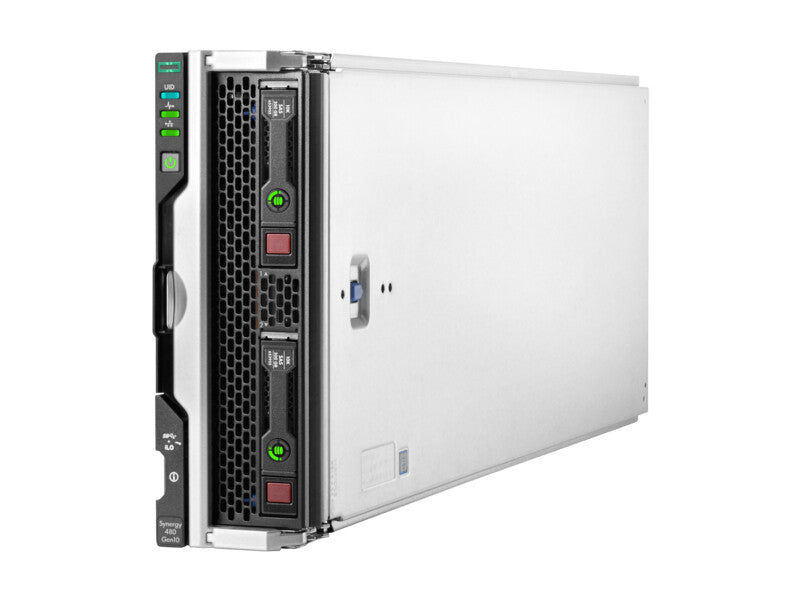

HPE Synergy 480 Gen10 server 0 GB Blade Intel® Xeon® Gold 5118 2.3 GHz 32 GB DDR4-SDRAM
Couldn't load pickup availability
- Intel® Xeon® Gold 5118 2.3 GHz
- 32 GB 2400 MHz DDR4-SDRAM
- Blade
Are your data centers struggling to find the right balance of performance, flexibility, and density for traditional workloads. Delivering an agile and efficient IT infrastructure requires the transformation of traditionally rigid physical systems into intelligent flexible physical or virtual resource pools. HPE Synergy Composable Compute resources creates a pool of flexible compute capacity that can be configured almost instantly to rapidly provision infrastructure for a broad range of applications. The HPE Synergy 480 Gen10 Compute Module delivers an efficient and flexibility two-socket workhorse to support most demanding workloads. Powered by Intel® Xeon® Scalable Family of processors, up to 3TB DDR4, more storage capacity and controllers and a variety of GPU options within a composable architecture. HPE Synergy 480 Gen10 Compute Module is the ideal platform for general-purpose enterprise workload performance now and in the future.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Stepping | M0 |
| Processor code | SR3GF |
| Maximum internal memory supported by processor | 768 GB |
| Execute Disable Bit | Yes |
| Processor socket | LGA 3647 (Socket P) |
| Processor lithography | 14 nm |
| Processor threads | 24 |
| Processor operating modes | 64-bit |
| Processor codename | Skylake |
| Tcase | 81 °C |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2666 MHz |
| Maximum number of PCI Express lanes | 48 |
| Processor package size | 76.0 x 56.5 mm |
| Supported instruction sets | AVX, AVX 2.0, AVX-512, SSE4.2 |
| Scalability | 4S |
| Embedded options available | Yes |
| ECC supported by processor | Yes |
| Processor cache type | L3 |
| Thermal Design Power (TDP) | 105 W |
| Number of processors installed | 1 |
| Memory channels supported by processor | Hexa |
| Processor cache | 16.5 MB |
| Processor cores | 12 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.3 GHz |
| Processor model | 5118 |
| Processor generation | 1st Generation Intel® Xeon® Scalable |
| Processor family | Intel® Xeon® Gold |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Maximum internal memory | 768 GB |
| Memory slots | 24x DIMM |
| ECC | Yes |
| Memory clock speed | 2400 MHz |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 32 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| RAID levels | 0, 1, 1 ADM, 5, 6, 10 |
| RAID support | Yes |
| Number of HDDs supported | 2 |
| HDD size | 2.5" |
| HDD interface | Serial ATA, Serial Attached SCSI (SAS) |
| Total storage capacity | 0 GB |
| Maximum storage capacity | 7.68 TB |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion slots | |
|---|---|
| PCI Express slots version | 3.0 |
| Design | |
|---|---|
| Chassis type | Blade |
| Software | |
|---|---|
| Compatible operating systems | Microsoft Windows ServerMicrosoft Hyper-V ServerRed Hat Enterprise Linux (RHEL)SUSE Linux Enterprise Server (SLES)VMware ESXi |
| Operating system installed | No |
| Processor special features | |
|---|---|
| Intel TSX-NI | Yes |
| Intel TSX-NI version | 1.00 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 120473 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
|---|---|
| Redundant power supply (RPS) support | No |
| Weight & dimensions | |
|---|---|
| Weight | 8.16 kg |
| Depth | 214 mm |
| Height | 600 mm |
| Width | 63.5 mm |
