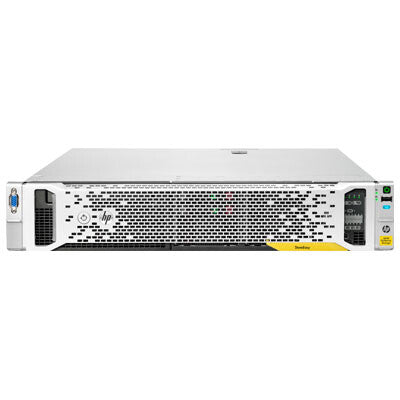

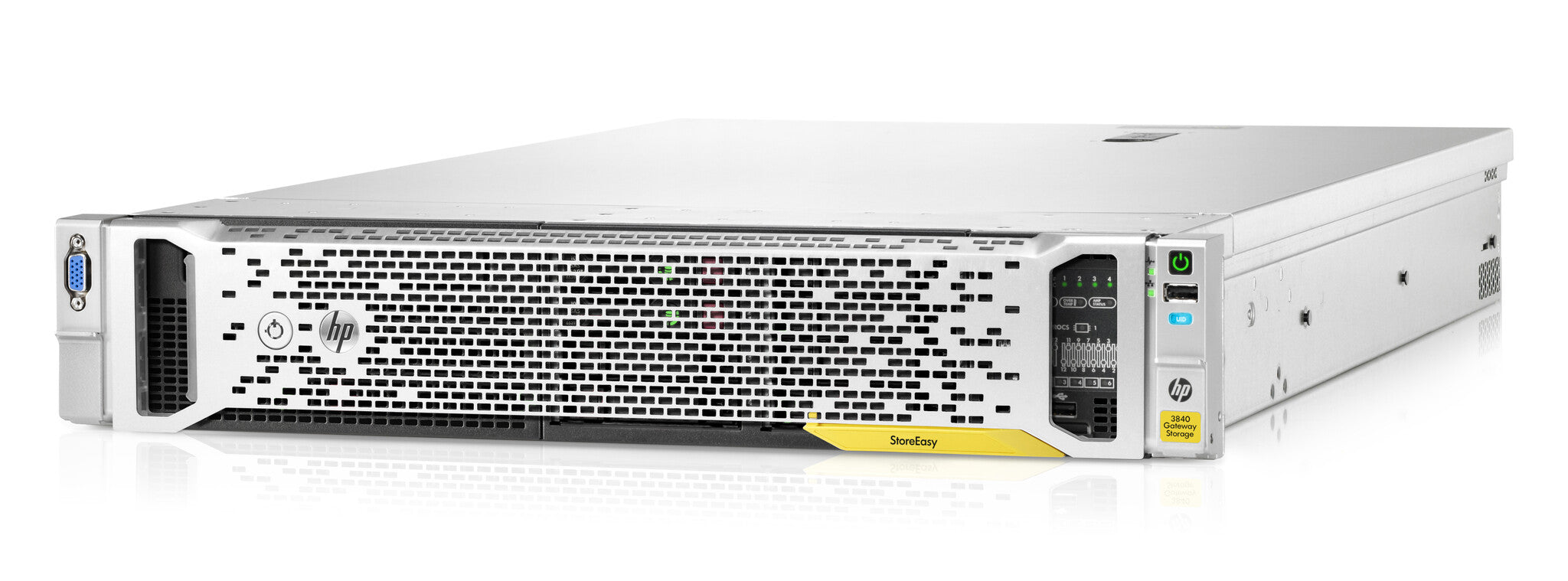

HPE StoreEasy 3840 Gateway Storage NAS Rack (2U) Intel® Xeon® E5 Family E5-2609 16 GB DDR3 0.6 TB HDD Windows Storage Server 2012 R2 Silver
Couldn't load pickup availability
- Small & Medium Business NAS Rack (2U) Silver
- Windows Storage Server 2012 R2
- Total installed storage capacity: 0.6 TB Number of storage drives supported: 2 HDD
- Intel® Xeon® E5 Family E5-2609 2.4 GHz
- 16 DDR3 Memory slots: 24 DIMM
- Ethernet LAN
- Cooling type: Active
Need an easy solution to your SAN storage demands?
With HP StoreEasy 3000 Gateway Storage you get a new breed of optimized, efficient, secure and highly available file storage gateways to easily address medium to large businesses, branches or workgroup file and application storage for SANs. Save time and money by simply supporting hundreds to thousands of concurrent users and multiple diverse workloads. It has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight. StoreEasy is highly available with turnkey clustered configurations, transparent failover, and online maintenance to deliver near continuous availability of data to users, servers, and applications. It is a robust storage platform for demanding 24x7 environments.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1+0, 5, 5+0 |
| RAID support | Yes |
| Storage drive size | 2.5" |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive capacity | 300 GB |
| Supported storage drive types | HDD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 2 |
| Number of storage drives installed | 2 |
| Total installed storage capacity | 0.6 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| Memory bandwidth supported by processor (max) | 34.1 GB/s |
| Maximum internal memory supported by processor | 750 GB |
| CPU configuration (max) | 2 |
| Tcase | 70 °C |
| CPU multiplier (bus/core ratio) | 24 |
| Bus type | QPI |
| Scalability | 2S |
| System bus rate | 6.4 GT/s |
| ECC supported by processor | Yes |
| PCI Express slots version | 3.0 |
| Processor cache type | Smart Cache |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45.0 mm |
| Processor socket | LGA 2011 (Socket R) |
| Stepping | M1 |
| Thermal Design Power (TDP) | 80 W |
| L3 cache | 10 MB |
| Processor cache | 10 MB |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor frequency | 2.4 GHz |
| Processor model | E5-2609 |
| Processor family | Intel® Xeon® E5 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory form factor | DIMM |
| Memory slots | 24 |
| Internal memory type | DDR3 |
| Internal memory | 16 GB |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Product colour | Silver |
| Cooling type | Active |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Operating system installed | Windows Storage Server 2012 R2 |
| General | |
|---|---|
| Product family | StoreEasy |
| Product series | 3000 |
| Weight & dimensions | |
|---|---|
| Weight | 22.7 kg |
| Height | 87.3 mm |
| Depth | 698.5 mm |
| Width | 445.5 mm |
| Processor special features | |
|---|---|
| Memory types supported by processor | DDR3-SDRAM |
| Memory channels supported by processor | Quad |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 32 nm |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 40 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Demand Based Switching | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Number of QPI links | 2 |
| Thermal Monitoring Technologies | Yes |
| Other features | |
|---|---|
| Processor ARK ID | 64588 |
