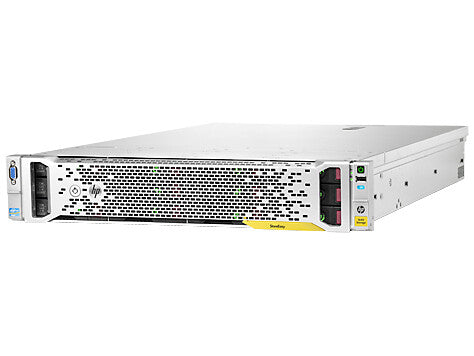

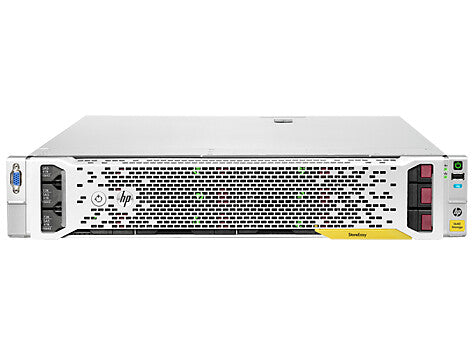

HPE StoreEasy 1640 8TB SAS Storage NAS Rack (2U) Intel® Xeon® E5 V2 Family E5-2407V2 16 GB DDR3 HDD Windows Storage Server 2012 R2
Couldn't load pickup availability
- Small & Medium Business NAS Rack (2U)
- Windows Storage Server 2012 R2
- Total installed storage capacity: 8 TB Number of storage drives supported: 12 HDD
- Intel® Xeon® E5 V2 Family E5-2407V2 2.4 GHz
- 16 DDR3 Memory slots: 12 DIMM DIMM
- Ethernet LAN
- Cooling type: Active
- 750 W
Your business deals with many challenges but why does storage need to be one of them?
With HP StoreEasy 1000 Storage you get a new breed of optimized, efficient, secure and highly available storage to easily address file and application storage. For small to medium business, branch office, and workgroup environments you can easily and economically support large numbers of users and store growing volumes of files such as documents, images, audio files, and videos. It also has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight. Built on Microsoft Windows Storage Server 2012 or 2012 R2, depending on model, you can provide users with a highly available solution so that their data is ready when they need it.
Optimized: Tailored for Your File Storage
• The HP StoreEasy 1000 Storage comes with pre-configured hardware with the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment.
Efficient: Saves You Money and Time
• HP StoreEasy 1000 Storage supports a large numbers of users with a high performance file serving controller and a wide range of disk drives including solid state disks (SSDs). A broad range of file access protocols, including Microsoft Hyper-V and SQL Server application storage over SMB3 or iSCSI.
Protection: Safeguards Your Data
• The HP StoreEasy 1000 Storage protects data while at rest with file system encryption and BitLocker® drive encryption, and while it is being transferred with SMB3 encryption and signing.
Highly Available: Prevents Your User and Organization Disruption
• The HP StoreEasy 1000 Storage increases uptime with such standard features as near continuous health monitoring with HP Active Health System, mirrored OS disks, redundant fans (not available on all models) and power, and advanced memory protection.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, 1+0, 5, 6, 50, 60, 1 ADM |
| RAID support | Yes |
| Maximum supported storage capacity | 48 TB |
| HDD speed | 7200 RPM |
| Storage drive size | 3.5" |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive capacity | 1 TB |
| Supported storage drive types | HDD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 12 |
| Number of storage drives installed | 8 |
| Total installed storage capacity | 8 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Memory bandwidth supported by processor (max) | 32 GB/s |
| Maximum internal memory supported by processor | 384 GB |
| CPU configuration (max) | 2 |
| Processor codename | Ivy Bridge EN |
| Tcase | 76 °C |
| FSB Parity | No |
| Bus type | QPI |
| Scalability | 2S |
| System bus rate | 6.4 GT/s |
| ECC supported by processor | Yes |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 bit |
| Processor cache type | Smart Cache |
| Processor code | SR1AK |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 45 x 42.5 mm |
| Processor socket | LGA 1356 (Socket B2) |
| Stepping | S1 |
| Thermal Design Power (TDP) | 80 W |
| L3 cache | 10 MB |
| Processor cache | 10 MB |
| Processor threads | 4 |
| Processor cores | 4 |
| Processor boost frequency | 2.4 GHz |
| Processor frequency | 2.4 GHz |
| Processor model | E5-2407V2 |
| Processor family | Intel® Xeon® E5 V2 Family |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory form factor | DIMM |
| Memory slots | 12 DIMM |
| Internal memory type | DDR3 |
| Internal memory | 16 GB |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 4 |
| Design | |
|---|---|
| Cooling type | Active |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Number of users | 3400 user(s) |
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Operating system installed | Windows Storage Server 2012 R2 |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 750 W |
| Power supply location | Built-in |
| General | |
|---|---|
| Product family | StoreEasy |
| Product series | 1000 |
| Weight & dimensions | |
|---|---|
| Weight | 32.3 kg |
| Height | 87.5 mm |
| Depth | 749.4 mm |
| Width | 445.5 mm |
| Processor special features | |
|---|---|
| Memory types supported by processor | DDR3-SDRAM |
| Memory channels supported by processor | Triple |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 24 |
| Physical Address Extension (PAE) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel Demand Based Switching | Yes |
| Intel Dual Display Capable Technology | No |
| Intel Fast Memory Access | No |
| Intel FDI Technology | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Clear Video Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Number of QPI links | 1 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel Rapid Storage Technology | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® Insider™ | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Quick Sync Video Technology | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Thermal Monitoring Technologies | Yes |
| Other features | |
|---|---|
| Processor ARK ID | 75782 |
