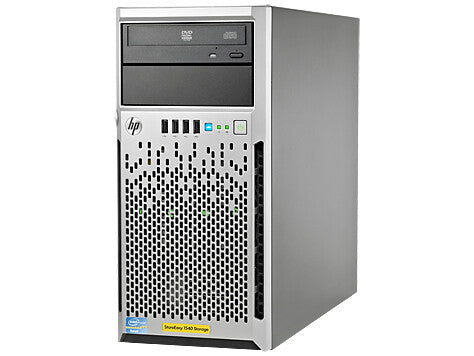

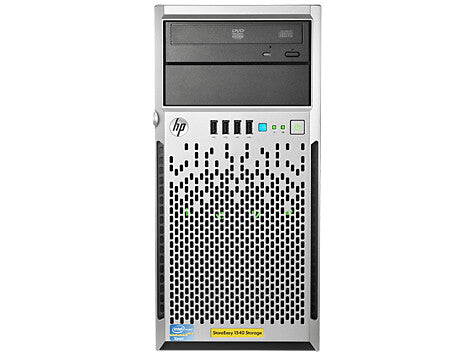

HPE StoreEasy 1540 12TB SATA Storage NAS Rack (4U) Intel® Core™ i3 i3-4130 8 GB DDR3 HDD Windows Storage Server 2012 R2
Couldn't load pickup availability
- Small & Medium Business NAS Rack (4U)
- Windows Storage Server 2012 R2
- Total installed storage capacity: 12 TB Number of storage drives supported: 4 HDD
- Intel® Core™ i3 i3-4130 3.4 GHz Intel® HD Graphics 4400
- 8 DDR3 Memory slots: 4 DIMM
- Ethernet LAN
- Cooling type: Active
- 460 W
Your business deals with many challenges but why does storage need to be one of them?
With HP StoreEasy 1000 Storage you get a new breed of optimized, efficient, secure and highly available storage to easily address file and application storage. For small to medium business, branch office, and workgroup environments you can easily and economically support large numbers of users and store growing volumes of files such as documents, images, audio files, and videos. It also has non-intrusive data de-duplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight. Built on Microsoft Windows Storage Server 2012 or 2012 R2, depending on model, you can provide users with a highly available solution so that their data is ready when they need it.
Optimized: Tailored for Your File Storage
• The HP StoreEasy 1000 Storage comes with pre-configured hardware with the latest generation storage OS for purpose-built file storage. StoreEasy installation and network configuration wizards simplify installation and prevent configuration errors for faster deployment.
Efficient: Saves You Money and Time
• HP StoreEasy 1000 Storage supports a large numbers of users with a high performance file serving controller and a wide range of disk drives including solid state disks (SSDs). A broad range of file access protocols, including Microsoft Hyper-V and SQL Server application storage over SMB3 or iSCSI.
Protection: Safeguards Your Data
• The HP StoreEasy 1000 Storage protects data while at rest with file system encryption and BitLocker® drive encryption, and while it is being transferred with SMB3 encryption and signing.
Highly Available: Prevents Your User and Organization Disruption
• The HP StoreEasy 1000 Storage increases uptime with such standard features as near continuous health monitoring with HP Active Health System, mirrored OS disks, redundant fans (not available on all models) and power, and advanced memory protection.
| Storage | |
|---|---|
| Hot-swap drive bays | Yes |
| RAID levels | 0, 1, 6, 10, 60, 1 ADM |
| RAID support | Yes |
| Maximum supported storage capacity | 16 TB |
| HDD speed | 7200 RPM |
| Storage drive size | 3.5" |
| Storage drive interface | Serial ATA |
| Storage drive capacity | 3 TB |
| Supported storage drive types | HDD |
| Installed storage drive type | HDD |
| Number of storage drives supported | 4 |
| Number of storage drives installed | 4 |
| Total installed storage capacity | 12 TB |
| Storage drives installed | Yes |
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Memory bandwidth supported by processor (max) | 25.6 GB/s |
| Maximum internal memory supported by processor | 32 GB |
| On-board graphics card model | Intel® HD Graphics 4400 |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x8, 1x16, 2x4, 2x8 |
| Processor codename | Haswell |
| Tcase | 72 °C |
| Bus type | DMI2 |
| Processor series | Intel Core i3-4100 Desktop series |
| Scalability | 1S |
| System bus rate | 5 GT/s |
| ECC supported by processor | Yes |
| PCI Express slots version | 3.0 |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 37.5 x 37.5 mm |
| Processor socket | LGA 1150 (Socket H3) |
| Stepping | C0 |
| Thermal Design Power (TDP) | 65, 54 |
| L3 cache | 3 MB |
| Processor cache | 3 MB |
| Processor threads | 4 |
| Processor cores | 2 |
| Processor frequency | 3.4 GHz |
| Processor model | i3-4130 |
| Processor generation | 4th gen Intel® Core™ i3 |
| Processor family | Intel® Core™ i3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory form factor | DIMM |
| Memory slots | 4 |
| Internal memory type | DDR3 |
| Internal memory | 8 GB |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Graphics | |
|---|---|
| Number of displays supported (on-board graphics) | 3 |
| Maximum on-board graphics card memory | 1.74 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 11.1 |
| On-board graphics card ID | 0x41E |
| Design | |
|---|---|
| Cooling type | Active |
| Chassis type | Rack (4U) |
| Performance | |
|---|---|
| Number of users | 1300 user(s) |
| Device class | Small & Medium Business |
| Type | NAS |
| Software | |
|---|---|
| Operating system installed | Windows Storage Server 2012 R2 |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Yes |
| Number of power supply units | 1 |
| Power supply unit (PSU) capacity | 460 W |
| Power supply location | Built-in |
| Weight & dimensions | |
|---|---|
| Weight | 19 kg |
| Height | 368.2 mm |
| Depth | 475.2 mm |
| Width | 175 mm |
| General | |
|---|---|
| Product family | StoreEasy |
| Product series | 1000 |
| Processor special features | |
|---|---|
| Memory channels supported by processor | Dual |
| Embedded options available | No |
| Execute Disable Bit | Yes |
| Graphics & IMC lithography | 22 nm |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 16 |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Thermal solution specification | PCG 2013C |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | No |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel Small Business Advantage (SBA) version | 1.00 |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Intel Stable Image Platform Program (SIPP) version | 0.00 |
| Thermal Monitoring Technologies | Yes |
| Other features | |
|---|---|
| Processor ARK ID | 77480 |
