£61,542.99

Stock Available: 0
  • Managed
  • Switching capacity: 3584 Gbit/s
  • 1U Rack mounting
  • AC Power supply included

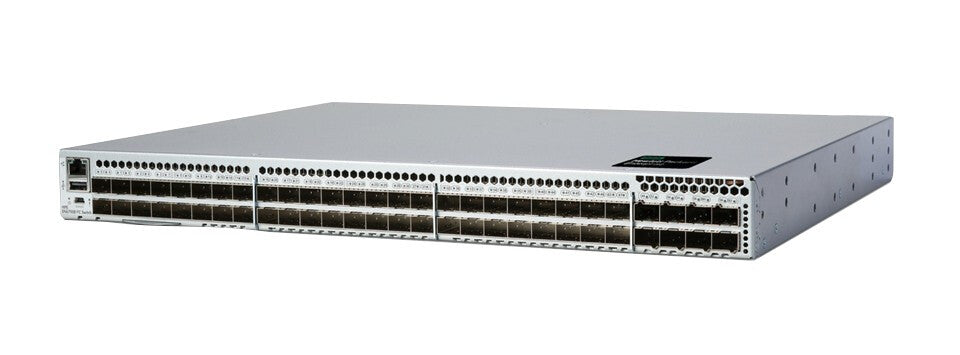

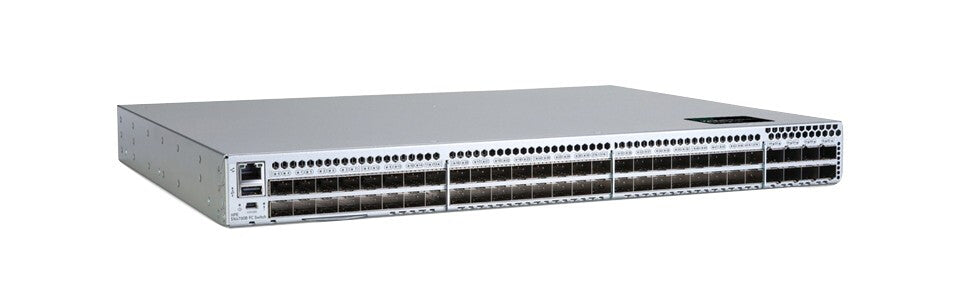

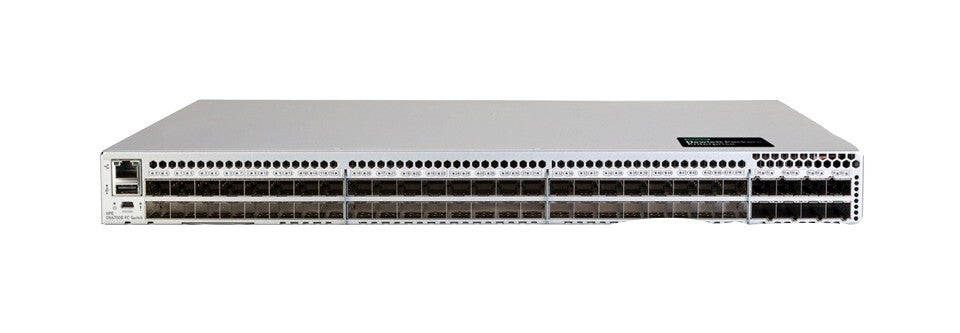

Are you struggling to meet the I/O demands of hyper-scale virtualization, large cloud infrastructures, and growing, NVMe storage environments? The HPE Storage Fibre Channel Switch B-series SN6700B is a high-performance, ultra-dense, highly scalable, and easy-to-use enterprise-class storage networking switch delivering Gen7 64Gb Fibre Channel (FC) capabilities. It is designed to support data growth, demanding workloads, and data center consolidation in small to large scale enterprise infrastructures. Delivering 64Gb performance, customized high port density, and integrated network sensors, it accelerates data access, adapts to evolving requirements, and drives 24x7 businesses. It can scale from 24 to 64 ports, all in an efficient 1U package. In addition, a simplified deployment process and a point-and-click user interface make the HPE Storage Fibre Channel Switch B-series SN6700B easy to use.

What is new supporting point:
Switch offerings as well as Port-on-Demand upgrade kits bundled with 64Gb optics.
Increase scalability with a double-density (DD) Port-On-Demand (POD) Kit upgrade. Each transceiver within the kit provides 2x the bandwidth with dual SN connections.
HPE Storage B-series Gen7 64Gb FC switch technology combines analytics and advanced automation capabilities to accelerate data access, adapt to evolving requirements, and drive 24x7 operations.
HPE Storage B-series Gen7 64Gb FC switch technology enables organizations to realize a self-learning, self-optimizing, and self-healing autonomous SAN.

Management features
Switch type Managed
Ports & interfaces
Fiber optic connector SFP28
Fiber ports quantity 56
Installed SFP+ modules quantity 24
Basic switching RJ-45 Ethernet ports type No
Data transmission
Switching capacity 3584 Gbit/s
Security
Security algorithms HTTPS, IPSec, SNMP, SNMPv3, SSH, SSH-2, TLS
Authentication type RADIUS, TACACS+
SSH/SSL support Yes
Design
Form factor 1U
Rack mounting Yes
Power
AC input frequency 47/63 Hz
AC input voltage 90 - 264 V
Number of power supply units 2
Redundant power supply (RPS) support Yes
Power supply included Yes
Power source AC
Power over Ethernet (PoE)
Power over Ethernet (PoE) No
Operational conditions
Storage relative humidity (H-H) 10 - 90%
Operating relative humidity (H-H) 10 - 85%
Storage temperature (T-T) -25 - 70 °C
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 7.17 kg
Height 43.9 mm
Depth 355.6 mm
Width 440 mm
