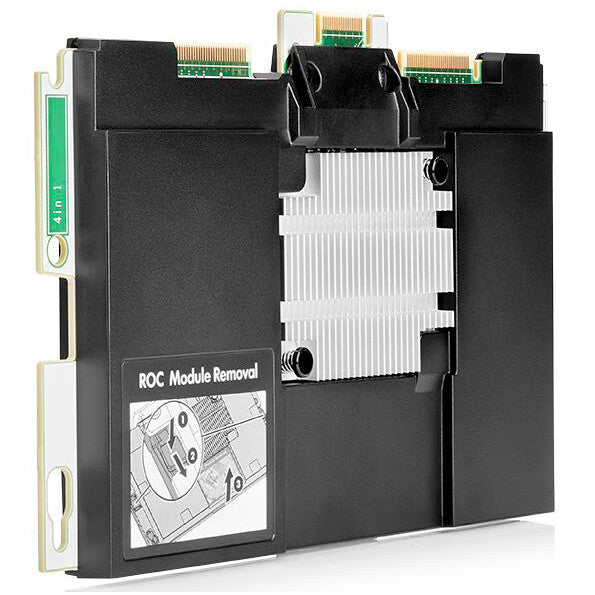

HPE SmartArray P240nr/1GB FBWC 12Gb 1-port Internal FIO SAS RAID controller PCI Express x8 3.0 12 Gbit/s
£562.99
Couldn't load pickup availability
- Supported storage drive interfaces: SAS, Serial ATA
- Host interface: PCI Express x8
- RAID levels: 0, 1, 5, 6, 10 ADM, 10, 50, 60
- 12 Gbit/s
The HPE Smart Array P240nr Controller is a flexible Smart Array 12 Gb/s Serial Attached SCSI (SAS), PCI Express (PCIe) 3.0 RAID controller that provides enterprise-class storage performance and data protection for the HPE Synergy Compute Modules. It features four internal physical links and delivers increased compute module uptime by providing advanced storage functionality; including 1 GB Flash-Backed Write Cache (FBWC), pre-failure alert, and optional Secure Encryption. Data compatibility between HPE Smart Array Controllers means customers can easily upgrade to future Smart Array Controllers.
| Ports & interfaces | |
|---|---|
| Internal SAS ports | 1 |
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Supported storage drive interfaces | SAS, Serial ATA |
| Performance | |
|---|---|
| Compatible products | Synergy 480 Gen9Synergy 620 Gen9Synergy 660 Gen9Synergy 680 Gen9 |
| Memory clock speed | 1866 MHz |
| Internal memory type | DDR3 |
| Internal memory | 1024 MB |
| Data transfer rate | 12 Gbit/s |
| RAID levels | 0, 1, 5, 6, 10 ADM, 10, 50, 60 |
| General | |
|---|---|
| Product family | SmartArray |
| Weight & dimensions | |
|---|---|
| Height | 15.2 mm |
| Depth | 104.6 mm |
| Width | 178.6 mm |
